8-8
Specifications & Consumer information

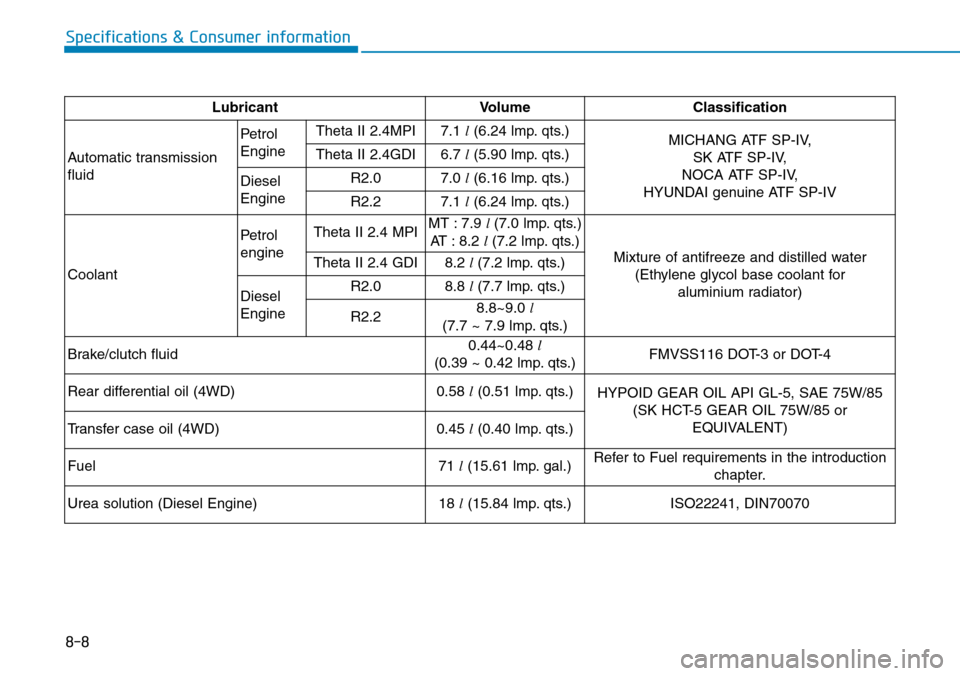

Lubricant Volume Classification
Automatic transmission
fluid Petrol
EngineTheta II 2.4MPI7.1 l(6.24 lmp. qts.)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV Theta II 2.4GDI6.7 l(5.90 lmp. qts.)
Diesel
EngineR2.07.0 l(6.16 lmp. qts.)
R2.27.1 l(6.24 lmp. qts.)
Coolant Petrol
engineTheta II 2.4 MPIMT : 7.9 l (7.0 lmp. qts.)
AT : 8.2 l (7.2 lmp. qts.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for
aluminium radiator) Theta II 2.4 GDI8.2 l (7.2 lmp. qts.)
Diesel
EngineR2.08.8 l (7.7 lmp. qts.)
R2.28.8~9.0 l
(7.7 ~ 7.9 lmp. qts.)
Brake/clutch fluid0.44~0.48 l
(0.39 ~ 0.42 lmp. qts.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.58 l(0.51 lmp. qts.)
HYPOID GEAR OIL API GL-5, SAE 75W/85
(SK HCT-5 GEAR OIL 75W/85 or
EQUIVALENT)
Transfer case oil (4WD) 0.45 l(0.40 lmp. qts.)
Fuel71 l(15.61 lmp. gal.)Refer to Fuel requirements in the introduction
chapter.
Urea solution (Diesel Engine)18 l(15.84 lmp. qts.)
ISO22241, DIN70070
