H33

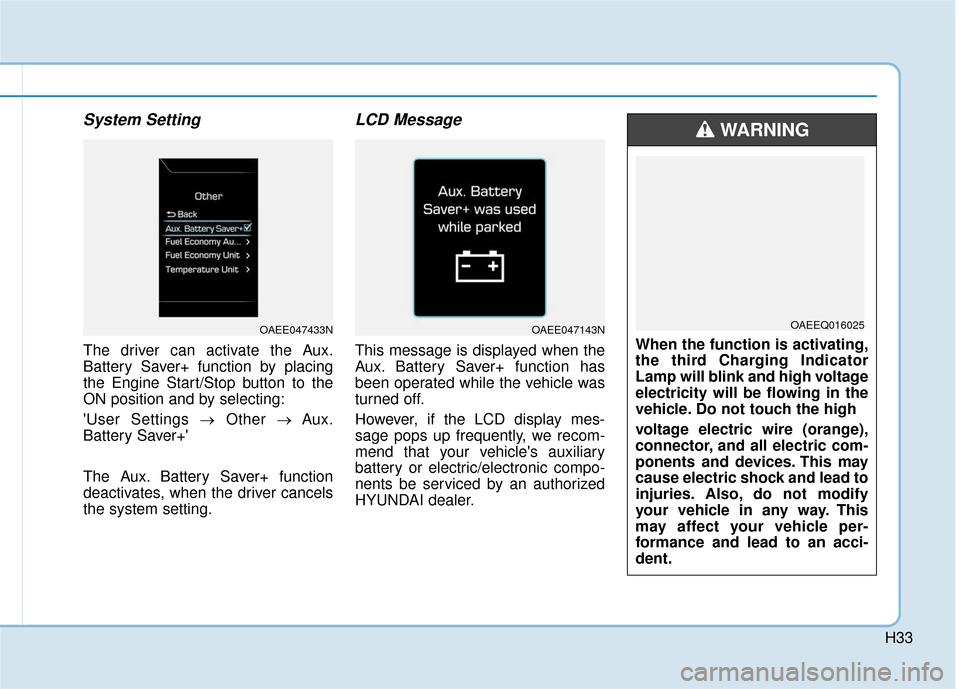

System Setting
The driver can activate the Aux.
Battery Saver+ function by placing
the Engine Start/Stop button to the
ON position and by selecting:
'User Settings →Other → Aux.
Battery Saver+'
The Aux. Battery Saver+ function
deactivates, when the driver cancels
the system setting.
LCD Message
This message is displayed when the
Aux. Battery Saver+ function has
been operated while the vehicle was
turned off.
However, if the LCD display mes-
sage pops up frequently, we recom-
mend that your vehicle's auxiliary
battery or electric/electronic compo-
nents be serviced by an authorized
HYUNDAI dealer.
OAEE047143N
When the function is activating,
the third Charging Indicator
Lamp will blink and high voltage
electricity will be flowing in the
vehicle. Do not touch the high
voltage electric wire (orange),
connector, and all electric com-
ponents and devices. This may
cause electric shock and lead to
injuries. Also, do not modify
your vehicle in any way. This
may affect your vehicle per-
formance and lead to an acci-
dent.
WARNING
OAEEQ016025OAEE047433N

H34
D
DR
RI
IV
V I
IN
N G
G
T
T H
H E
E
H
H Y
Y B
BR
RI
ID
D /
/P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E
(
( C
C O
O N
NT
T.
.)
)

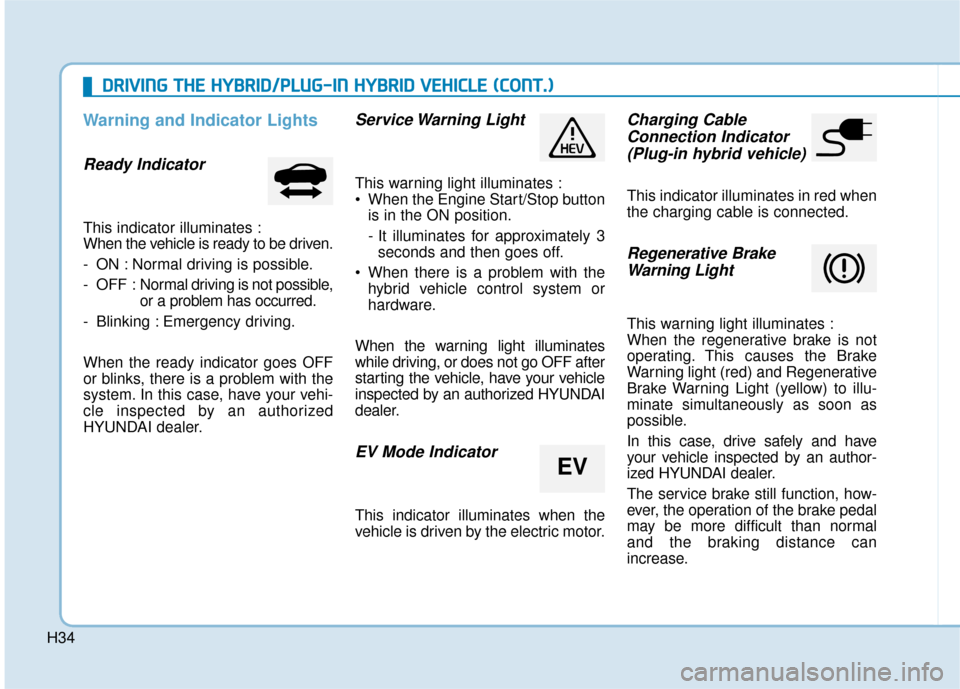

Warning and Indicator Lights
Ready Indicator
This indicator illuminates :
When the vehicle is ready to be driven.
- ON : Normal driving is possible.
- OFF : Nor mal driving is not possible,
or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, have your vehi-
cle inspected by an authorized
HYUNDAI dealer.
Service Warning Light
This warning light illuminates :
When the Engine Start/Stop button is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a problem with the hybrid vehicle control system or
hardware.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, have your vehicle
inspected by an authorized HYUNDAI
dealer.
EV Mode Indicator
This indicator illuminates when the
vehicle is driven by the electric motor.
Charging Cable Connection Indicator (Plug-in hybrid vehicle)
This indicator illuminates in red when
the charging cable is connected.
Regenerative BrakeWarning Light
This warning light illuminates :
When the regenerative brake is not
operating. This causes the Brake
Warning light (red) and Regenerative
Brake Warning Light (yellow) to illu-
minate simultaneously as soon as
possible.
In this case, drive safely and have
your vehicle inspected by an author-
ized HYUNDAI dealer.
The service brake still function, how-
ever, the operation of the brake pedal
may be more difficult than normal
and the braking distance can
increase.
EV

I-15

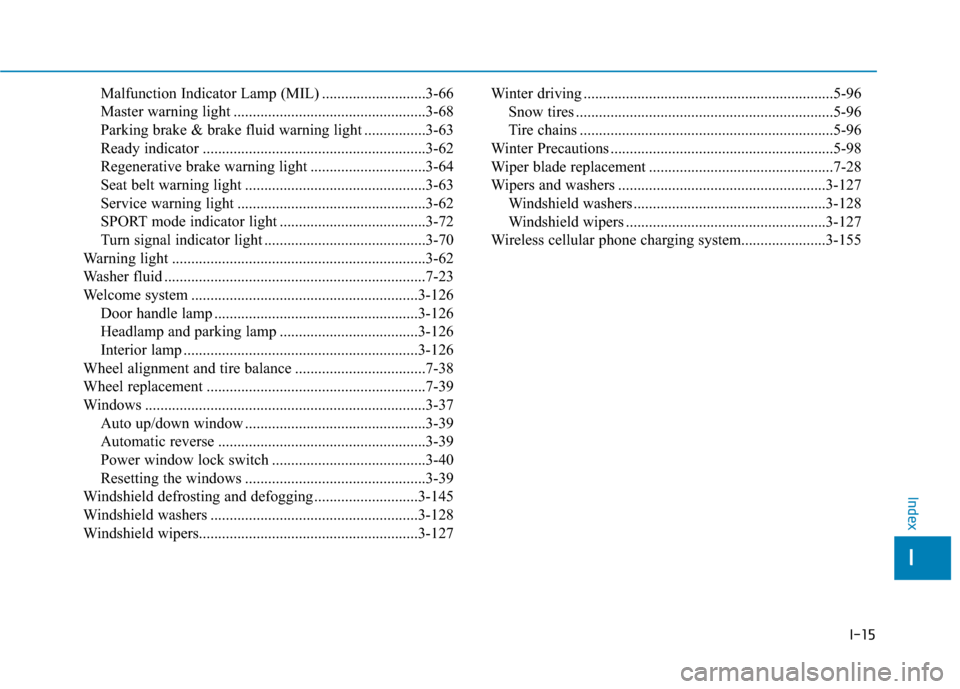

Malfunction Indicator Lamp (MIL) ...........................3-66
Master warning light ..................................................3-68
Parking brake & brake fluid warning light ................3-63
Ready indicator ..........................................................3-62
Regenerative brake warning light ..............................3-64
Seat belt warning light ...............................................3-63
Service warning light .................................................3-62
SPORT mode indicator light ......................................3-72
Turn signal indicator light ..........................................3-70
Warning light ..................................................................3-62
Washer fluid ....................................................................7-23\
Welcome system ...........................................................3-126 Door handle lamp .....................................................3-126
Headlamp and parking lamp ....................................3-126
Interior lamp .............................................................3-126
Wheel alignment and tire balance ..................................7-38
Wheel replacement .........................................................7-39
Windows ........................................................................\
.3-37 Auto up/down window ...............................................3-39
Automatic reverse ......................................................3-39
Power window lock switch ........................................3-40
Resetting the windows ...............................................3-39
Windshield defrosting and defogging ...........................3-145
Windshield washers ......................................................3-128
Windshield wipers........................................................\
.3-127 Winter driving .................................................................5-96
Snow tires ...................................................................5-96
Tire chains ..................................................................5-96
Winter Precautions ..........................................................5-98
Wiper blade replacement ................................................7-28
Wipers and washers ......................................................3-127 Windshield washers ..................................................3-128
Windshield wipers ....................................................3-127
Wireless cellular phone charging system......................3-155
