2019 Hyundai Ioniq Hybrid jump start

6-10
Information
An inappropriately disposedbattery can be harmful to the
environment and human
health. Dispose of the battery
according to your local law(s)
or regulations.
To prevent damage to your vehicle:
Only use a 12-volt power supply (battery or jumper system) to
jump start your vehicle.
Do not attempt to jump start your vehicle by push-starting.
Jump starting procedure
1. Position the vehicles close enough that the jumper cables will reach,
but do not allow the vehicles to
touch.
2. Avoid fans or any moving parts in the engine compartment at all
times, even when the vehicles are
turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning,
etc. Put the vehicles in P (Park)
and set the parking brake. Turn
both vehicles OFF.
Information
Your vehicle has a battery in the lug-
gage compartment, but when you
jump start your vehicle, use the
jumper terminal in the engine com-
partment.
i
NOTICE
i
What to do in an emergency
(Continued)
NEVER attempt to recharge
the battery when the vehicle's
battery cables are connected
to the battery.
The electrical ignition system
works with high voltage.
NEVER touch these compo-
nents with the engine running
or when the Engine Start/Stop
button is in the ON position.

6-11
What to do in an emergency

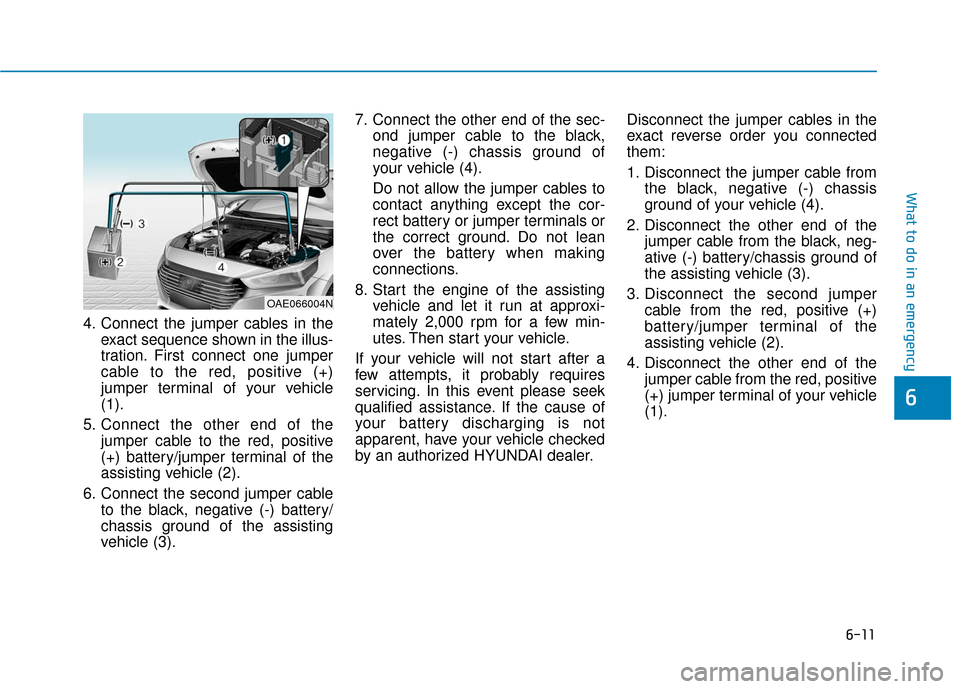

4. Connect the jumper cables in theexact sequence shown in the illus-
tration. First connect one jumper
cable to the red, positive (+)
jumper terminal of your vehicle
(1).
5. Connect the other end of the jumper cable to the red, positive
(+) battery/jumper terminal of the
assisting vehicle (2).
6. Connect the second jumper cable to the black, negative (-) battery/
chassis ground of the assisting
vehicle (3). 7. Connect the other end of the sec-
ond jumper cable to the black,
negative (-) chassis ground of
your vehicle (4).
Do not allow the jumper cables to
contact anything except the cor-
rect battery or jumper terminals or
the correct ground. Do not lean
over the battery when making
connections.
8. Start the engine of the assisting vehicle and let it run at approxi-
mately 2,000 rpm for a few min-
utes. Then start your vehicle.
If your vehicle will not start after a
few attempts, it probably requires
servicing. In this event please seek
qualified assistance. If the cause of
your battery discharging is not
apparent, have your vehicle checked
by an authorized HYUNDAI dealer. Disconnect the jumper cables in the
exact reverse order you connected
them:
1. Disconnect the jumper cable from
the black, negative (-) chassis
ground of your vehicle (4).
2. Disconnect the other end of the jumper cable from the black, neg-
ative (-) battery/chassis ground of
the assisting vehicle (3).
3. Disconnect the second jumper cable from the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
4. Disconnect the other end of the jumper cable from the red, positive
(+) jumper terminal of your vehicle
(1).
6
OAE066004N

B
BA
A T
TT
TE
ER
R Y
Y
(
( 1
1 2
2
V
V O
O L
LT
T ,
,
P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E )
)
7-31
7
Maintenance
To prevent SERIOUS INJURY or
DEATH to you or bystanders,
always follow these precautions
when working near or handling
the battery:
Always read and follow
instructions carefully
when handling a battery.Wear eye protection
designed to protect the
eyes from acid splashes.
Keep all flames, sparks,
or smoking materials
away from the battery.
Hydrogen is always pres- ent in battery cells, is
highly combustible, and
may explode if ignited.
Keep batteries out of
reach of children.
(Continued)
WARNING (Continued)Batteries contain sulfu-
ric acid which is highly
corrosive. Do not allow
acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush
your eyes with clean water for at
least 15 minutes and get imme-
diate medical attention. If acid
gets on your skin, thoroughly
wash the area. If you feel pain or
a burning sensation, get med-
ical attention immediately.
When lifting a plastic-cased
battery, excessive pressure
on the case may cause battery
acid to leak. Lift with a battery
carrier or with your hands on
opposite corners.
Do not attempt to jump start
your vehicle if your battery is
frozen. (Continued)
(Continued)
NEVER attempt to recharge
the battery when the vehicle’s
battery cables are connected
to the battery.
The electrical ignition system
works with high voltage.
NEVER touch these compo-
nents with the engine running
or when the Engine Start/Stop
button is in the ON position.

By jump starting
After a jump start from a good bat-
tery, drive the vehicle for 20-30 min-
utes before it is shutoff. The vehicle
may not restart if you shut it off
before the battery had a chance to
adequately recharge. See "Jump
Starting" in chapter 6 for more infor-
mation on jump starting procedures.
Information
An inappropriately disposedbattery can be harmful to
the environment and human
health. Dispose of the bat-
tery according to your local
law(s) or regulations.
Reset Features
The following items may need to be
reset after the battery has been dis-
charged or the battery has been dis-
connected. See chapter 3 or 4 for:
Power Windows
Trip Computer
Climate Control System
Clock
Audio System
Sunroof
Driver Position Memory System
i
7-33
7
Maintenance
(Continued)
Watch the battery during
charging, and stop or reduce
the charging rate if the battery
cells begin boiling violently.
The negative battery cable
must be removed first and
installed last when the battery
is disconnected. Disconnect
the battery charger in the fol-
lowing order:
(1) Turn off the battery charg- er main switch.
(2) Unhook the negative
clamp from the negative
battery terminal.
(3) Unhook the positive clamp from the positive battery
terminal.
Always use a genuine
HYUNDAI approved battery
when you replace the battery.

H28
D
DR
RI
IV
V I
IN
N G
G
T
T H
H E
E
H
H Y
Y B
BR
RI
ID
D /
/P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E
(
( C
C O
O N
NT
T.
.)
)

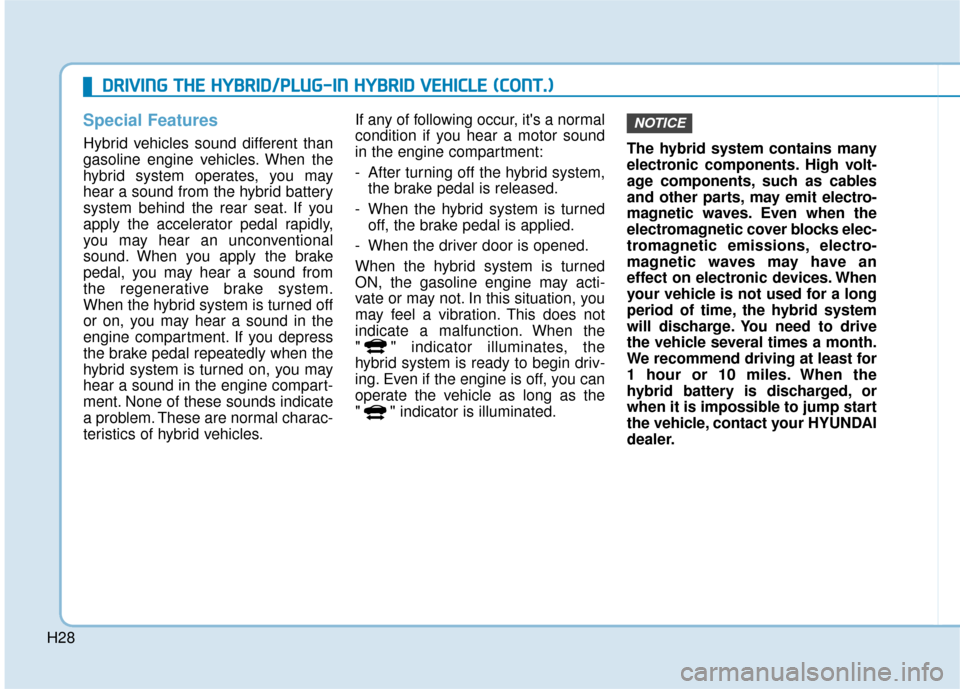

Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system behind the rear seat. If you
apply the accelerator pedal rapidly,
you may hear an unconventional
sound. When you apply the brake
pedal, you may hear a sound from
the regenerative brake system.
When the hybrid system is turned off
or on, you may hear a sound in the
engine compartment. If you depress
the brake pedal repeatedly when the
hybrid system is turned on, you may
hear a sound in the engine compart-
ment. None of these sounds indicate
a problem. These are normal charac-
teristics of hybrid vehicles. If any of following occur, it's a normal
condition if you hear a motor sound
in the engine compartment:
- After turning off the hybrid system,
the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
When the hybrid system is turned
ON, the gasoline engine may acti-
vate or may not. In this situation, you
may feel a vibration. This does not
indicate a malfunction. When the
" " indicator illuminates, the
hybrid system is ready to begin driv-
ing. Even if the engine is off, you can
operate the vehicle as long as the
" " indicator is illuminated. The hybrid system contains many
electronic components. High volt-
age components, such as cables
and other parts, may emit electro-
magnetic waves. Even when the
electromagnetic cover blocks elec-
tromagnetic emissions, electro-
magnetic waves may have an
effect on electronic devices. When
your vehicle is not used for a long
period of time, the hybrid system
will discharge. You need to drive
the vehicle several times a month.
We recommend driving at least for
1 hour or 10 miles. When the
hybrid battery is discharged, or
when it is impossible to jump start
the vehicle, contact your HYUNDAI
dealer.
NOTICE

H53
When the Hybrid Vehicle Shuts
Off
When the high voltage battery is dis-
charged, when the 12-volt battery is
discharged, or when the fuel tank is
empty, the hybrid system may not
operate while driving. When the
Hybrid system does not operate, do
the followings:
1. Gradually reduce the vehiclespeed. Pull over your vehicle off
the road in a safe area.
2. Locate the shift lever in P (Park).
3. Turn ON the hazard warning flash- ers.
4. Turn OFF the vehicle, and try to start the hybrid system again,
while depressing the brake pedal
and turning on the Engine
Start/Stop button. 5. When the hybrid system still does
not operate, refer to ''If the 12 Volt
Battery Is Discharged'' in chapter 6.
Before jump-starting the vehicle,
check the fuel level and the exact
procedure to jump start. For fur-
ther details, refer to ''If the 12 Volt
Battery Is Discharged'' in the
chapter 6. When the fuel level is
low, do not attempt to drive the
vehicle only with the battery
power. The high voltage battery
may be discharged, and the hybrid
system will turn OFF.

I-6
Fuel filler doorHybrid vehicle ............................................................3-48
Plug-in hybrid vehicle ................................................3-51
Fuel gauge .......................................................................3\
-58
Fuel requirements .............................................................F-7 Detergent fuel additives ...............................................F-8
Gasoline containing alcohol or methanol ....................F-7
Gasoline containing MMT ...........................................F-8
Operation in foreign countries .....................................F-9
Using fuel additives .....................................................F-8
Fuse switch .....................................................................7-5\
1
Fuses ........................................................................\
.......7-49 Engine compartment panel fuse replacement ............7-51
Fuse switch .................................................................7-51
Fuse/relay panel description .......................................7-53
Instrument panel fuse replacement.............................7-50
Multi fuse ...................................................................7-52
Gauges and meters ..........................................................3-56
Glove box......................................................................3-\
150
Gross vehicle weight.........................................................8-6
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .........................................5-93 Head restraints ................................................................2-16
Front seat head restraints............................................2-17
Rear seat head restraints .............................................2-19
Headlamp delay function ..............................................3-122
Headlamp position ........................................................3-117
Headlight bulb replacement ............................................7-55
Heated steering wheel .....................................................3-17
Heater ........................................................................\
....3-133
Height adjustment ...........................................................2-27
High beam operation .....................................................3-118
Highway driving .............................................................5-95
Hill-start Assist Control (HAC) ......................................5-33
Hood........................................................................\
........3-45
Horn ........................................................................\
........3-17
How to use this manual ....................................................F-6
Hybrid battery SOC (State of Charge) gauge .................3-59
Hybrid starter&generator (HSG) belt .............................7-22
Hybrid vehicle Engine compartment ....................................................1-6
Exterior overview .........................................................1-2
Fuel filler door............................................................3-48
If the 12 volt battery is discharged...............................6-4
If the vehicle will not start ...........................................6-3
Instrument panel overview ...........................................1-5
Interior overview ..........................................................1-4
Jump starting ................................................................6-6
Trip computer ...........................................................3-105
Index
G
H

I-7
If the 12 volt battery is discharged (Hybrid vehicle) .......6-4Jump starting ................................................................6-6
Using the 12V battery reset switch ..............................6-5
If the 12 volt battery is discharged (Plug-in hybrid vehicle).................................................6-9
Jump starting ................................................................6-9
If the engine overheats ....................................................6-12
If the engine stalls while driving ......................................6-2
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle will not start Hybrid vehicle ..............................................................6-3
Plug-in hybrid vehicle ..................................................6-4
If you have a flat tire ......................................................6-20
If you have a flat tire while driving ..................................6-3
Impact sensing door unlock ............................................3-12
Improtant safety precautions.............................................2-2 Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator light..................................................................3-62
Inside rearview mirror ....................................................3-18 Instrument cluster ...........................................................3-54
Gauges and meters .....................................................3-56
Gear shift indicator .....................................................3-61
Icy road warning light ................................................3-75
Instrument panel illumination ....................................3-56
LCD display control ...................................................3-88
LCD display messages ...............................................3-73
LCD modes (for cluster type A).................................3-90
LCD modes (for cluster type B).................................3-98
Shift indicator pop-up ................................................3-62
Warning and indicator lights ......................................3-62
Instrument panel fuse replacement .................................7-50
Interior care .....................................................................7-7\
1
Interior features Bottle holder .............................................................3-152
Cargo security screen ...............................................3-159
Clock ........................................................................\
3-157
Clothes hanger ..........................................................3-157
Cup holder ................................................................3-152
Floor mat anchor(s) ..................................................3-158
Mobile phone charging system ................................3-155
Power outlet..............................................................3-153
Sunvisor ....................................................................3-15\
3
USB charger .............................................................3-154
Wireless cellular phone charging system .................3-155
Interior lamp AUTO cut................................................3-124
I
Index
I
