2019 HYUNDAI I10 remote start

5-4
Convenient features
ACCESSING YOUR VEHICLE
Remote key (if equipped)
OIB034040
Your HYUNDAI uses a remote key,
which you can use to lock or unlock a
door (and tailgate) and even start the
engine.
(1) Door Lock
(2) Door Unlock
(3) Tailgate Unlock
Locking
To lock :
1. Close all doors, engine bonnet and
tailgate.
2. Press the Door Lock button (1) on
the remote key.
3. The doors will lock. The hazard
warning lights will blink once.
4. Make sure the door are locked by
pulling on the door handle.
WARNING
Do not leave the keys in your vehi-
cle with unsupervised children.
Unattended children could place
the key in the ignition switch and
may operate power windows or
other controls, or even make the
vehicle move, which could result
in serious injury or death.
Unlocking
To unlock:
1. Press the Door Unlock button (2)
on the remote key.
2. The doors will unlock. The hazard
warning lights will blink two times.
i Information
After unlocking the doors, the doors
will lock automatically after 30 sec-
onds unless a door is opened.
Tailgate unlocking
To unlock:
1. Press the Tailgate Unlock button
(3) on the remote key for more
than one second.
2. The hazard warning lights will blink
two times. Once the tailgate is
opened and then closed, the tail-
gate will lock automatically.
i Information
‡ After unlocking the tailgate, the tail-
gate will lock automatically.
‡ 7he word “+2L'” is written on the
button to inform you that you must
press and hold the button for more
than one second.

5-5
05
Start-up
For detailed information refer to “Key
Ignition Switch” in chapter 6.
NOTICE
To prevent damaging the remote
key:

5-7
05

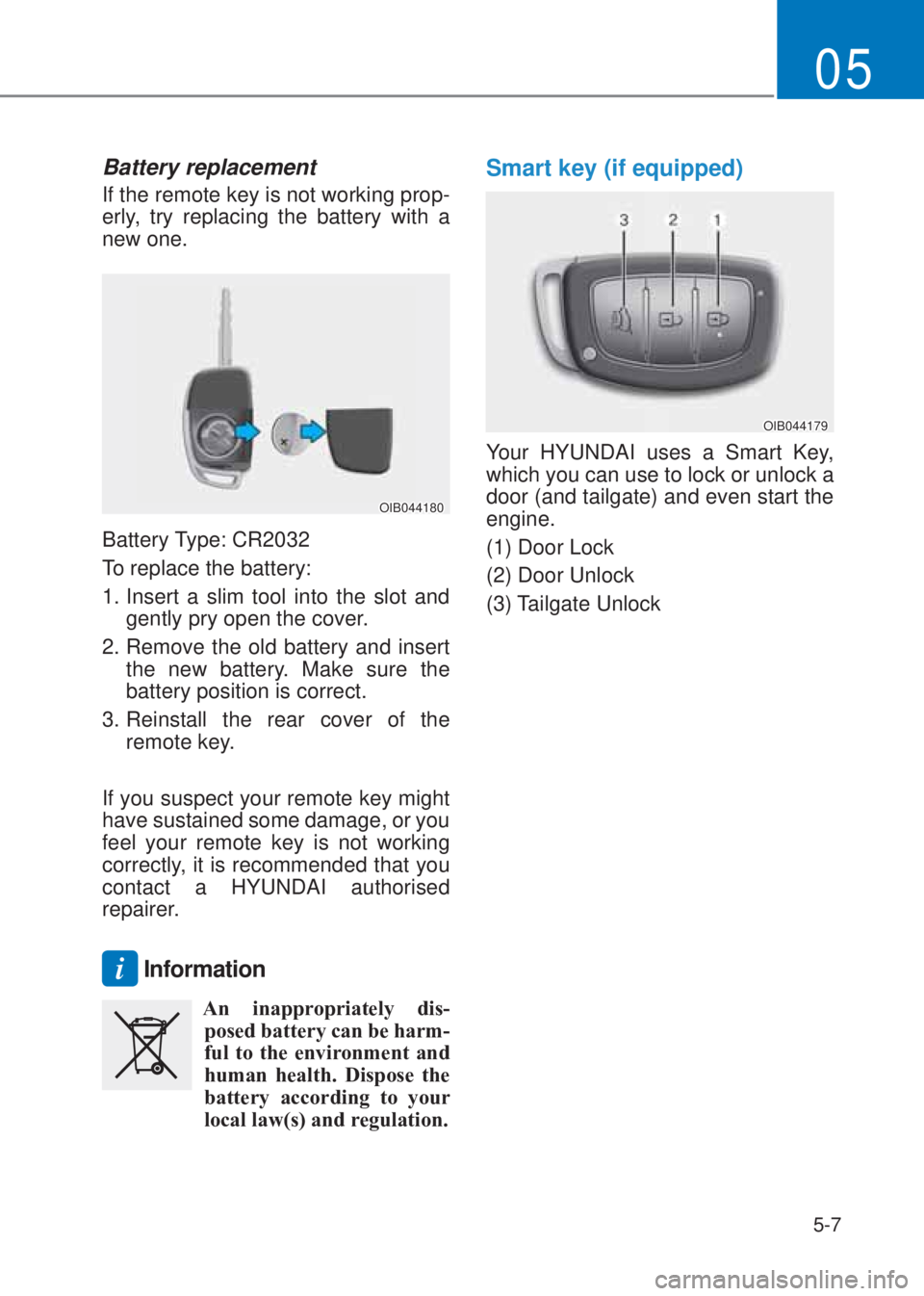

Battery replacement
If the remote key is not working prop-
erly, try replacing the battery with a
new one.
OIB044180
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Remove the old battery and insert
the new battery. Make sure the
battery position is correct.
3. Reinstall the rear cover of the
remote key.
If you suspect your remote key might
have sustained some damage, or you
feel your remote key is not working
correctly, it is recommended that you
contact a HYUNDAI authorised
repairer.
i Information
An inappropriately dis-
posed battery can be harm-
ful to the environment and
human health. 'ispose the
battery according to your
local law(s) and regulation.
Smart key (if equipped)
OIB044179
Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock a
door (and tailgate) and even start the
engine.
(1) Door Lock
(2) Door Unlock
(3) Tailgate Unlock

5-18
Convenient features
This system helps to protect your
vehicle and valuables. The horn will
sound and the hazard warning lights
will blink continuously if any of the fol-
lowing occur:
- A door is opened without using the
remote key or smart key.
- The tailgate is opened without
using the remote key or smart key.
- The engine bonnet is opened.
The alarm continues for 30 seconds,
then the system resets. To turn off
the alarm, unlock the doors with the
remote key or smart key.
The Theft Alarm System automati-
cally sets 30 seconds after you lock
the doors and the tailgate. For the
system to activate, you must lock the
doors and the tailgate from outside
the vehicle with the remote key or
smart key or by pressing the button
on the outside of the door handles
with the smart key in your posses-
sion.
The hazard warning lights will blink
and the chime will sound once to indi-
cate the system is armed.
Once the security system is set,
opening any door, the tailgate, or the
bonnet without using the remote key
or smart key will cause the alarm to
activate.
The Theft Alarm System will not set if
the bonnet, the tailgate, or any door is
not fully closed. If the system will not
set, check the bonnet, the tailgate, or
the doors are fully closed.
Do not attempt to alter this system or
add other devices to it.i Information
‡ 'o not lock the doors until all pas-
sengers have left the vehicle. If the
remaining passenger leaves the vehi-
cle when the system is armed, the
alarm will be activated.
‡ If the vehicle is not disarmed with
the remote key or smart key, open
the doors by using the mechanical
key and place the ignition switch in
the 21 position (for remote key) or
start the engine (for smart key) and
wait for 30 seconds.
‡ When the system is disarmed but a
door or tailgate is not opened within
30 seconds, the system will be
rearmed.
WARNING
Be sure to receive the services
related to the burglar alarm system
be checked by a HYUNDAI autho-
rised repairer. Arbitrary modifica-
tion or alteration of the burglar
alarm system may result in a mal-
function. A failure caused by arbi-
trary alteration or modification is
not covered by the warranty.
THEFT
ØALARM SYSTEM
