7-48
Maintenance

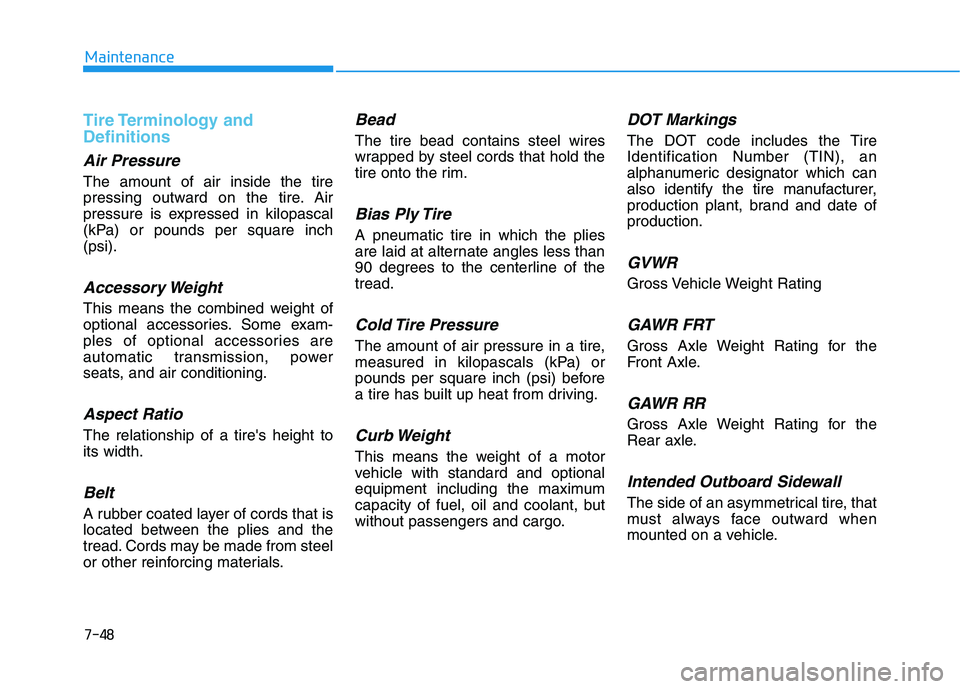

Tire Terminology and Definitions
Air Pressure
The amount of air inside the tire
pressing outward on the tire. Air
pressure is expressed in kilopascal
(kPa) or pounds per square inch(psi).
Accessory Weight
This means the combined weight of
optional accessories. Some exam-
ples of optional accessories are
automatic transmission, power
seats, and air conditioning.
Aspect Ratio
The relationship of a tire's height toits width.
Belt
A rubber coated layer of cords that is
located between the plies and the
tread. Cords may be made from steel
or other reinforcing materials.
Bead
The tire bead contains steel wires
wrapped by steel cords that hold the
tire onto the rim.
Bias Ply Tire
A pneumatic tire in which the plies
are laid at alternate angles less than
90 degrees to the centerline of thetread.
Cold Tire Pressure
The amount of air pressure in a tire,
measured in kilopascals (kPa) or
pounds per square inch (psi) before
a tire has built up heat from driving.
Curb Weight
This means the weight of a motor
vehicle with standard and optional
equipment including the maximum
capacity of fuel, oil and coolant, but
without passengers and cargo.
DOT Markings
The DOT code includes the TireIdentification Number (TIN), an
alphanumeric designator which can
also identify the tire manufacturer,
production plant, brand and date ofproduction.
GVWR
Gross Vehicle Weight Rating
GAWR FRT
Gross Axle Weight Rating for the
Front Axle.
GAWR RR
Gross Axle Weight Rating for the
Rear axle.
Intended Outboard Sidewall
The side of an asymmetrical tire, that
must always face outward when
mounted on a vehicle.

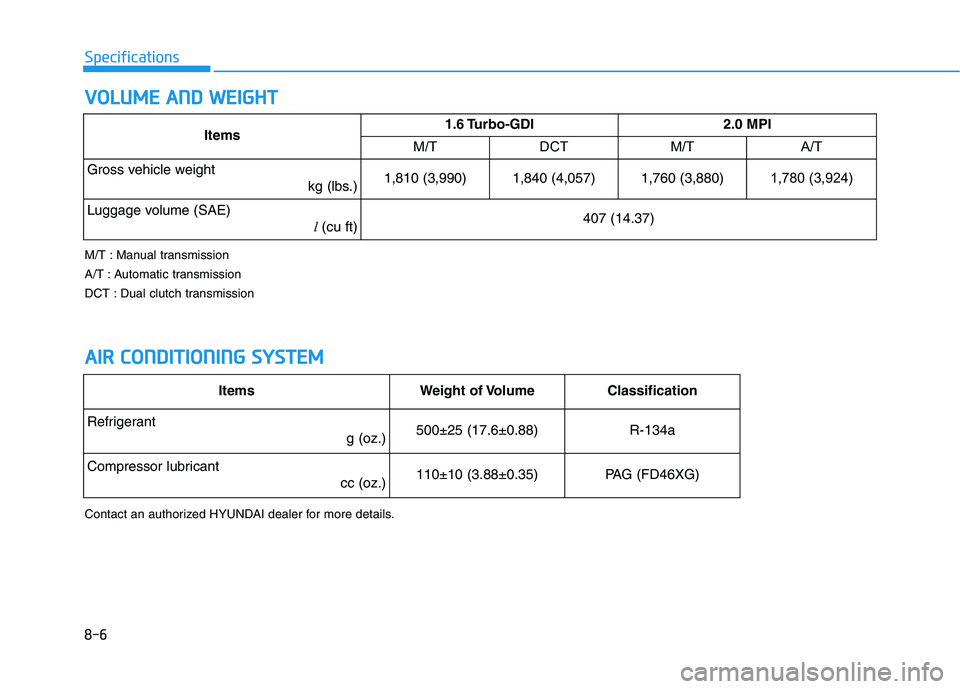

8-6
SpecificationsV
V OO LLUU MM EE AA NN DD WW EEIIGG HH TT
A
A IIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
Items1.6 Turbo-GDI2.0 MPI
M/TDCTM/TA/T
Gross vehicle weight
kg (lbs.)1,810 (3,990)1,840 (4,057)1,760 (3,880)1,780 (3,924)
Luggage volume (SAE) l(cu ft)407 (14.37)
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) 500±25 (17.6±0.88)R-134a
Compressor lubricantcc (oz.) 110±10 (3.88±0.35)PAG (FD46XG)

8-7
88
Specifications
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy. These lubricants and
fluids are recommended for use in your vehicle.
RREECCOO MM MMEENN DDEEDD LL UU BBRRIICC AA NN TTSS AA NN DD CC AA PPAA CCIITT IIEE SS
LubricantVolume Classification
Engine oil * 1
*2
(drain and refill)
Recommends
1.6 Turbo-GDI4.5 l(4.76 US qt.) API Latest (ILSAC Latest) or ACEA A5/B5
or above/SAE 5W-30
(SAE Viscosity Number)
2.0 MPI4.0
l(4.23 US qt.) API Latest (ILSAC Latest)/
SAE 5W-20 (SAE Viscosity Number)
Manual transmission fluid
1.6 Turbo-GDI/ 2.0 MPI1.5~1.6 l(1.6~1.7 US qt.) HK SYN MTF 70W (SK) SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Automatic transmission fluid2.0 MPI6.7
l(7.08 US qt.)
MICHANG ATF SP-IV,
SK ATF SP-IV, NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
Dual clutch transmission fluid1.6 Turbo-GDI1.9~2.0 l(2.01~2.11 US qt.)
HK DCTF 70W (SK) SPIRAX S6 GHME 70W DCTF(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)(API GL-4, SAE 70W)

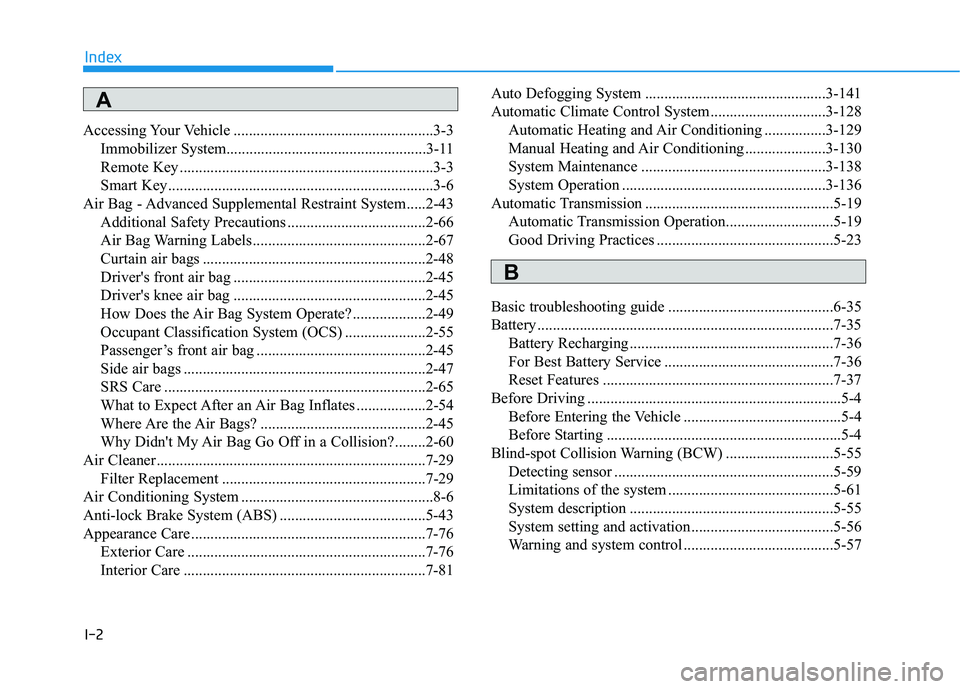

I-2
Accessing Your Vehicle ....................................................3-3
Immobilizer System....................................................3-11
Remote Key ..................................................................3-3
Smart Key.....................................................................3-6
Air Bag - Advanced Supplemental Restraint System.....2-43
Additional Safety Precautions ....................................2-66
Air Bag Warning Labels.............................................2-67
Curtain air bags ..........................................................2-48
Driver's front air bag ..................................................2-45
Driver's knee air bag ..................................................2-45
How Does the Air Bag System Operate? ...................2-49
Occupant Classification System (OCS) .....................2-55
Passenger’s front air bag ............................................2-45
Side air bags ...............................................................2-47
SRS Care ....................................................................2-65
What to Expect After an Air Bag Inflates ..................2-54
Where Are the Air Bags? ...........................................2-45
Why Didn't My Air Bag Go Off in a Collision?........2-60
Air Cleaner......................................................................7-29
Filter Replacement .....................................................7-29
Air Conditioning System ..................................................8-6
Anti-lock Brake System (ABS) ......................................5-43
Appearance Care .............................................................7-76
Exterior Care ..............................................................7-76
Interior Care ...............................................................7-81 Auto Defogging System ...............................................3-141
Automatic Climate Control System..............................3-128
Automatic Heating and Air Conditioning ................3-129
Manual Heating and Air Conditioning .....................3-130
System Maintenance ................................................3-138
System Operation .....................................................3-136
Automatic Transmission .................................................5-19
Automatic Transmission Operation............................5-19
Good Driving Practices ..............................................5-23
Basic troubleshooting guide ...........................................6-35
Battery .............................................................................7-35 Battery Recharging .....................................................7-36
For Best Battery Service ............................................7-36
Reset Features ............................................................7-37
Before Driving ..................................................................5-4
Before Entering the Vehicle .........................................5-4
Before Starting .............................................................5-4
Blind-spot Collision Warning (BCW) ............................5-55 Detecting sensor .........................................................5-59
Limitations of the system ...........................................5-61
System description .....................................................5-55
System setting and activation .....................................5-56
Warning and system control .......................................5-57
