2019 HYUNDAI ELANTRA SPORT bulb

888
Specifications & Consumer information
8
Specifications
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11

BBUU LLBB WW AATTTTAA GG EE
8-3
88

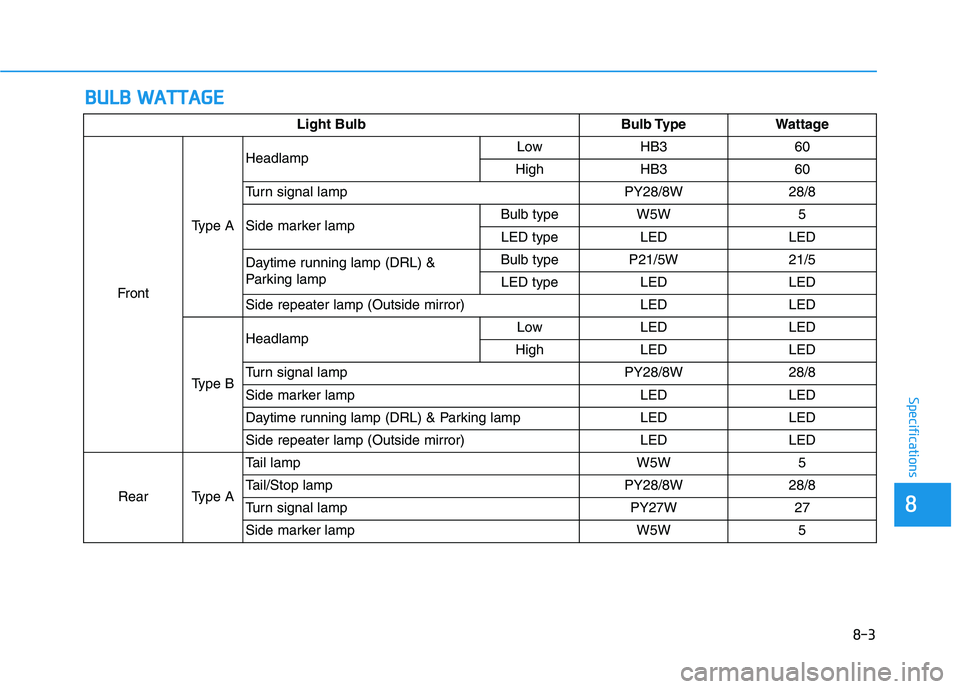

Specifications
Light Bulb Bulb Type Wattage
Front Type AHeadlamp
Low HB3 60
High HB3 60
Turn signal lamp PY28/8W 28/8
Side marker lamp Bulb type W5W 5
LED type LED LED
Daytime running lamp (DRL) &
Parking lamp Bulb type P21/5W 21/5
LED type LED LED
Side repeater lamp (Outside mirror) LED LED
Type B Headlamp
Low LED LED
High LED LED
Turn signal lamp PY28/8W 28/8
Side marker lamp LED LED
Daytime running lamp (DRL) & Parking lamp LED LED
Side repeater lamp (Outside mirror) LED LED
Rear Type A Tail lamp
W5W 5
Tail/Stop lamp PY28/8W 28/8
Turn signal lamp PY27W 27
Side marker lamp W5W 5

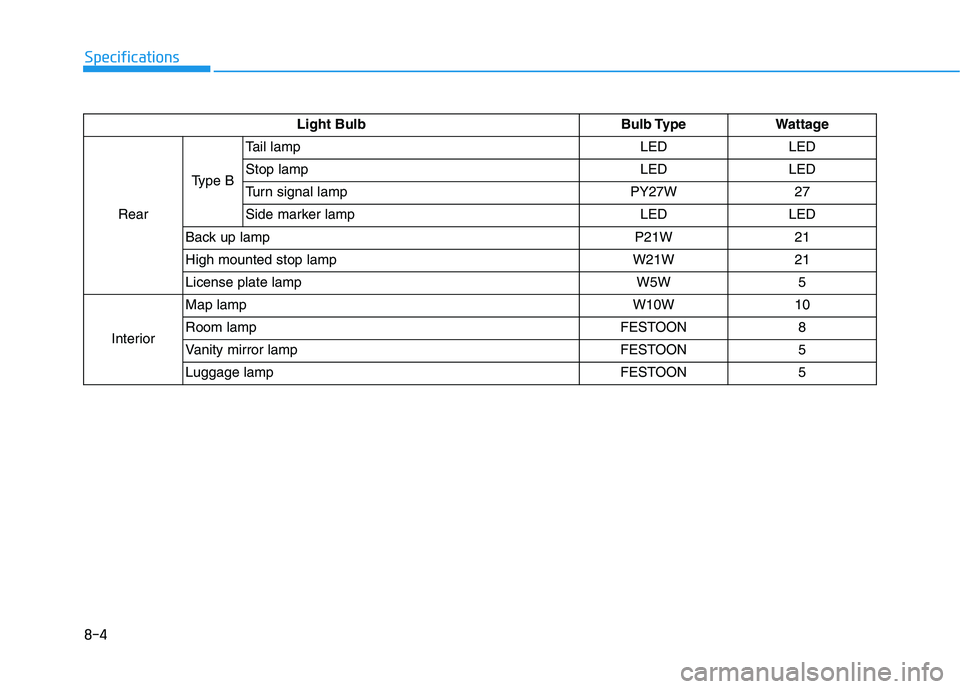

8-4
Specifications
Light BulbBulb Type Wattage
Rear Type B
Tail lamp
LED LED
Stop lamp LED LED
Turn signal lamp PY27W 27
Side marker lamp LED LED
Back up lamp P21W 21
High mounted stop lamp W21W 21
License plate lamp W5W 5
Interior Map lamp
W10W 10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Luggage lamp FESTOON 5

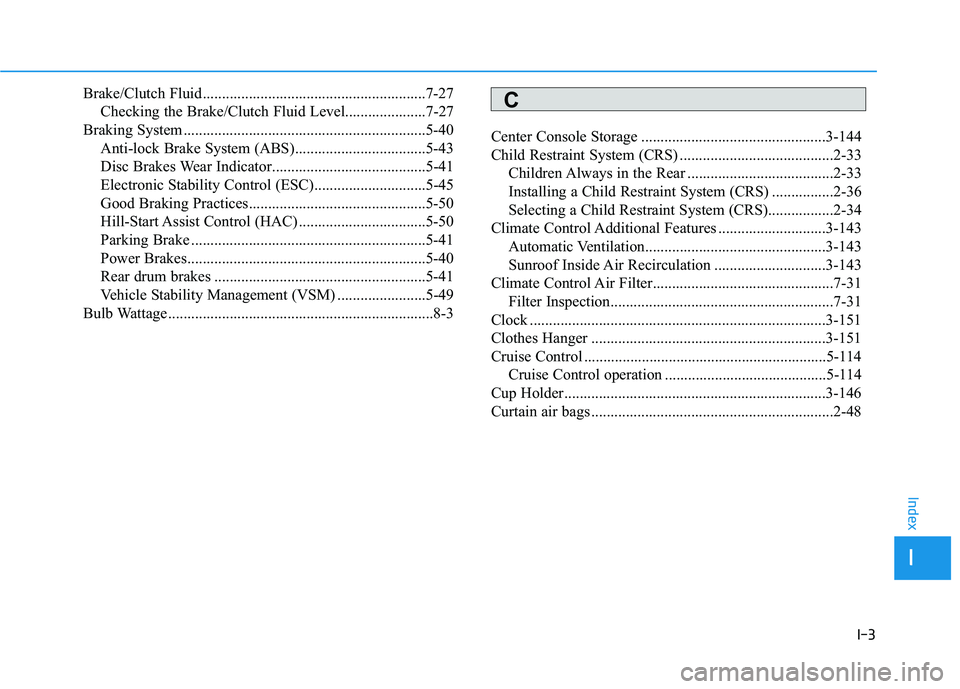

I-3
Brake/Clutch Fluid..........................................................7-27
Checking the Brake/Clutch Fluid Level.....................7-27
Braking System ...............................................................5-40
Anti-lock Brake System (ABS)..................................5-43
Disc Brakes Wear Indicator........................................5-41
Electronic Stability Control (ESC).............................5-45
Good Braking Practices..............................................5-50
Hill-Start Assist Control (HAC) .................................5-50
Parking Brake .............................................................5-41
Power Brakes..............................................................5-40
Rear drum brakes .......................................................5-41
Vehicle Stability Management (VSM) .......................5-49
Bulb Wattage .....................................................................8-3 Center Console Storage ................................................3-144
Child Restraint System (CRS) ........................................2-33
Children Always in the Rear ......................................2-33
Installing a Child Restraint System (CRS) ................2-36
Selecting a Child Restraint System (CRS).................2-34
Climate Control Additional Features ............................3-143
Automatic Ventilation...............................................3-143
Sunroof Inside Air Recirculation .............................3-143
Climate Control Air Filter...............................................7-31 Filter Inspection..........................................................7-31
Clock .............................................................................3-151
Clothes Hanger .............................................................3-151
Cruise Control ...............................................................5-114 Cruise Control operation ..........................................5-114
Cup Holder....................................................................3-146
Curtain air bags ...............................................................2-48
I
Index
C

I-6
If the Engine Overheats ....................................................6-7
If the Engine Will not Start...............................................6-4
If the Engine Doesn't Turn Over or Turns Over Slowly ....................................................6-4
If the Engine Turns Over Normally but Doesn't Start ..............................................................6-4
If you Have a Flat Tire .....................................................6-9 With Spare Tire ............................................................6-9
With Tire Mobility Kit (TMK) - Type A ...................6-16
With Tire Mobility Kit (TMK) - Type B ...................6-23
Ignition Switch..................................................................5-6 Engine Start/Stop Button ..............................................5-9
Key Ignition Switch .....................................................5-6
Immobilizer System ........................................................3-11
Important Safety Precautions............................................2-2 Air Bag Hazards ...........................................................2-2
Always Wear Your Seat Belt ........................................2-2
Control Your Speed ......................................................2-3
Driver Distraction.........................................................2-2
Keep Your Vehicle in Safe Condition ..........................2-3
Restrain All Children....................................................2-2
In Case of an Emergency While Driving .........................6-3
If the Engine Stalls at a Crossroad or Crossing ...........6-3
If the Engine Stalls While Driving...............................6-3
If you Have a Flat Tire While Driving.........................6-3
Inside Rearview Mirror...................................................3-26 Instrument Cluster...........................................................3-55
Gauges ........................................................................3-57
Instrument Cluster Control .........................................3-57
LCD Display Messages ..............................................3-75
Transmission Shift Indicator ......................................3-62
Warning and Indicator lights ......................................3-63
Instrument Panel Overview ..............................................1-5
Interior Care ....................................................................7-81
Interior Features ............................................................3-146 Clock ........................................................................3-151
Clothes Hanger .........................................................3-151
Cup Holder ...............................................................3-146
Floor Mat Anchor(s) .................................................3-152
Power Outlet.............................................................3-148
Sunvisor ....................................................................3-147
USB Charger ............................................................3-151
Wireless Cellular Phone Charging System ..............3-149
Interior Light Bulb Replacement ....................................7-75
Interior Lights ...............................................................3-108
Interior Overview..............................................................1-4
Jump Starting ....................................................................6-4
Key Ignition Switch ..........................................................5-6
Index
I
J
K

I-7
Lane Keeping Assist (LKA) system .............................5-101
Limitations of the System ........................................5-107
LKA System Function Change ................................5-109
LKA System Operation ............................................5-102
Warning Light and Message.....................................5-104
LCD Display (For Supervision Cluster) .........................3-81
LCD Display Control .................................................3-81
LCD Display Modes ..................................................3-82
User Settings Mode ....................................................3-84
LCD Display Messages ..................................................3-74
LCD Display Modes .......................................................3-82
License Plate Light Bulb Replacement ..........................7-74
Light ..............................................................................3-101 Exterior Lights..........................................................3-101
Interior Lights...........................................................3-108
Welcome System ......................................................3-110
Light Bulbs .....................................................................7-65 Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker .............................................................7-65
High Mounted Stop Light Replacement ....................7-74
Interior Light Bulb Replacement ...............................7-75
License Plate Light Bulb Replacement ......................7-74
Rear Combination Light Bulb Replacement ..............7-70
Side Repeater Lamp Replacement .............................7-69 Maintenance Services .......................................................7-4
Owner Maintenance Precautions..................................7-4
Owner's Responsibility.................................................7-4
Manual Climate Control System...................................3-119
Heating and Air Conditioning ..................................3-120
System Maintenance ................................................3-126
System Operation .....................................................3-124
Manual Transmission ......................................................5-16
Good Driving Practices ..............................................5-18
Manual Transmission Operation ................................5-16
Mirrors ............................................................................3-26 Inside Rearview Mirror ..............................................3-26
Reverse Parking Aid Function ...................................3-35
Side View Mirrors ......................................................3-33
Multimedia System ...........................................................4-2 Antenna ........................................................................4-2
Audio (Display Audio)/Video/Navigation System (AVN) ........................................................................4-4
AUX, USB and iPod ®
port ..........................................4-2
Bluetooth ®
Wireless Technology Hands-Free ..............4-4
Steering Wheel Audio Controls....................................4-3
I
Index
LM

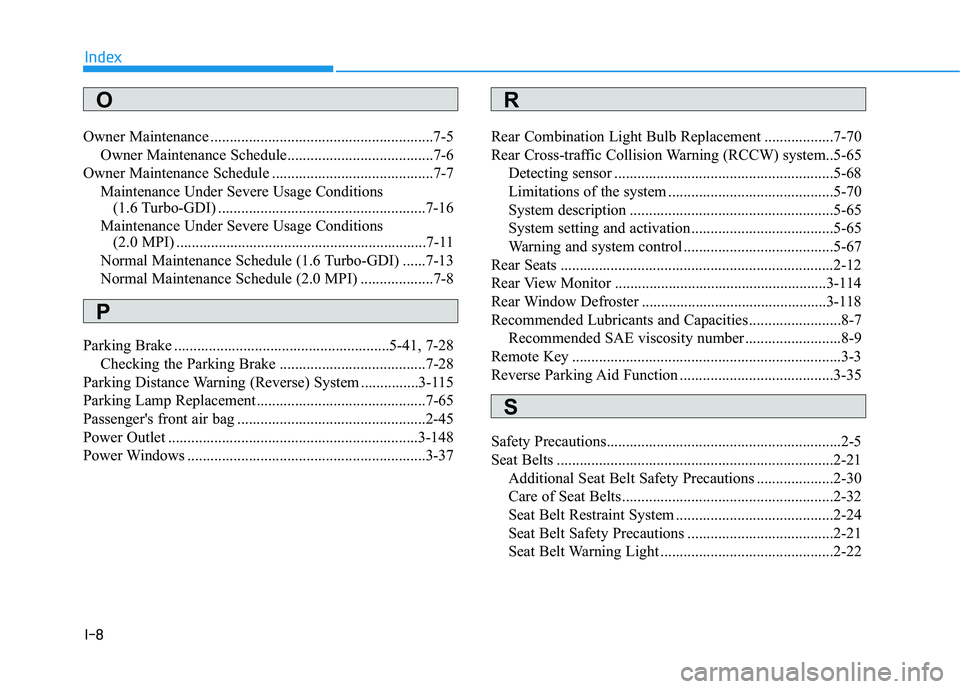

I-8
Owner Maintenance ..........................................................7-5
Owner Maintenance Schedule......................................7-6
Owner Maintenance Schedule ..........................................7-7 Maintenance Under Severe Usage Conditions (1.6 Turbo-GDI) ......................................................7-16
Maintenance Under Severe Usage Conditions (2.0 MPI) .................................................................7-11
Normal Maintenance Schedule (1.6 Turbo-GDI) ......7-13
Normal Maintenance Schedule (2.0 MPI) ...................7-8
Parking Brake ........................................................5-41, 7-28 Checking the Parking Brake ......................................7-28
Parking Distance Warning (Reverse) System ...............3-115
Parking Lamp Replacement............................................7-65
Passenger's front air bag .................................................2-45
Power Outlet .................................................................3-148
Power Windows ..............................................................3-37 Rear Combination Light Bulb Replacement ..................7-70
Rear Cross-traffic Collision Warning (RCCW) system..5-65
Detecting sensor .........................................................5-68
Limitations of the system ...........................................5-70
System description .....................................................5-65
System setting and activation .....................................5-65
Warning and system control .......................................5-67
Rear Seats .......................................................................2-12
Rear View Monitor .......................................................3-114
Rear Window Defroster ................................................3-118
Recommended Lubricants and Capacities ........................8-7 Recommended SAE viscosity number .........................8-9
Remote Key ......................................................................3-3
Reverse Parking Aid Function ........................................3-35
Safety Precautions.............................................................2-5
Seat Belts ........................................................................2-21 Additional Seat Belt Safety Precautions ....................2-30
Care of Seat Belts .......................................................2-32
Seat Belt Restraint System .........................................2-24
Seat Belt Safety Precautions ......................................2-21
Seat Belt Warning Light .............................................2-22
Index
S
O
P
R
