7-41
7
Maintenance

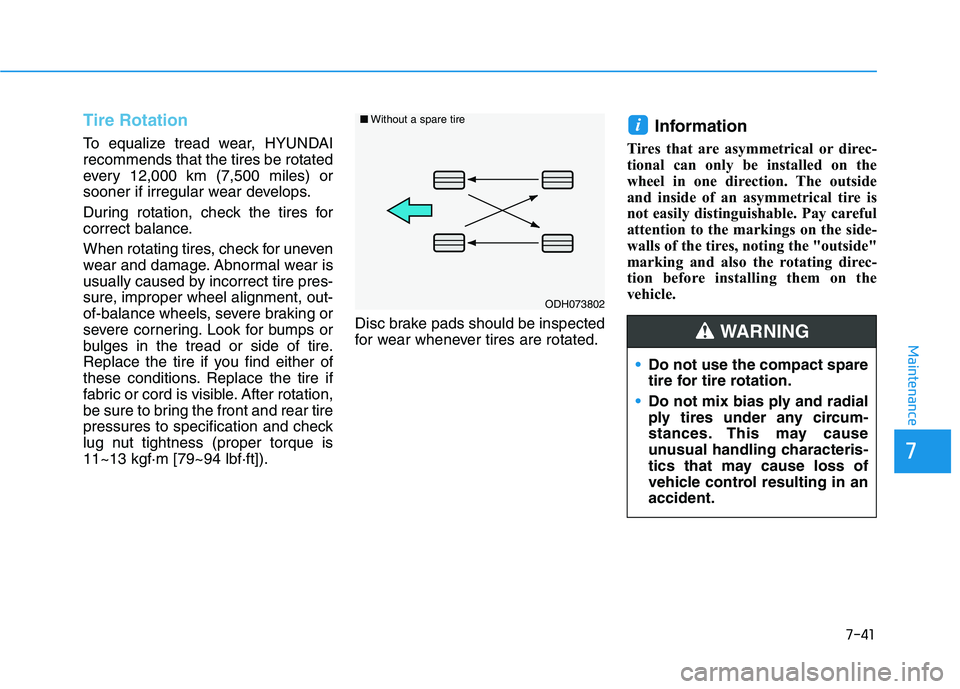

Tire Rotation
To equalize tread wear, HYUNDAI recommends that the tires be rotated
every 12,000 km (7,500 miles) or
sooner if irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out-
of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of tire.
Replace the tire if you find either of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check
lug nut tightness (proper torque is11~13 kgf·m [79~94 lbf·ft]).Disc brake pads should be inspected
for wear whenever tires are rotated. Information
Tires that are asymmetrical or direc-
tional can only be installed on the
wheel in one direction. The outside
and inside of an asymmetrical tire is
not easily distinguishable. Pay careful
attention to the markings on the side-
walls of the tires, noting the "outside"
marking and also the rotating direc-
tion before installing them on the
vehicle.
i
ODH073802
■ Without a spare tire
Do not use the compact spare
tire for tire rotation.
Do not mix bias ply and radial
ply tires under any circum-
stances. This may cause
unusual handling characteris-
tics that may cause loss of
vehicle control resulting in anaccident.
WARNING
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

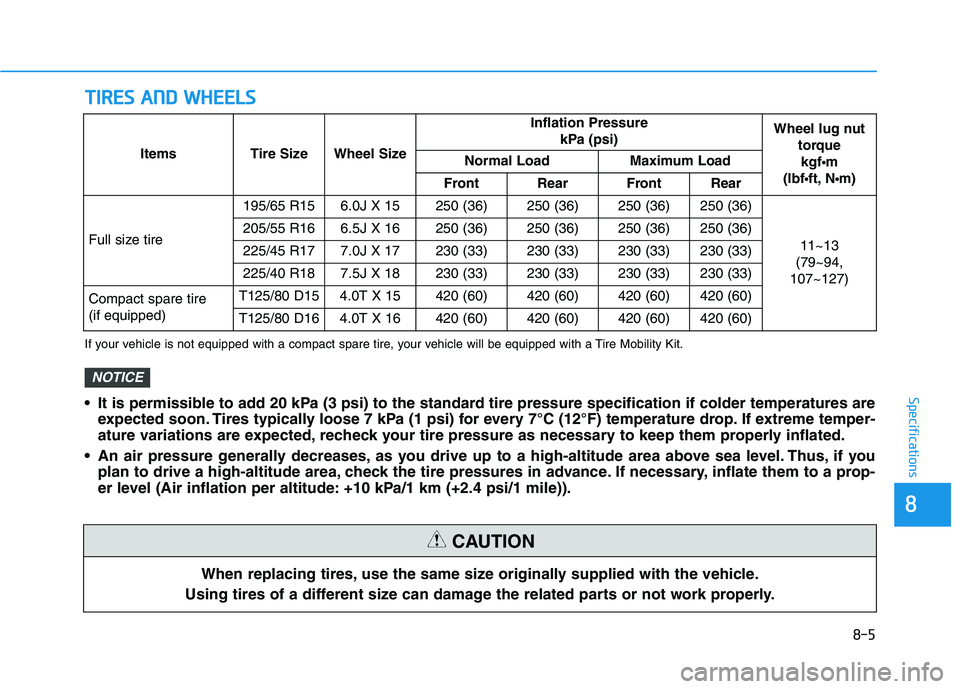

Items Tire SizeWheel Size
Inflation PressurekPa (psi)Wheel lug nuttorque kgf •m
(lbf ft, N m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire
195/65 R156.0J X 15250 (36)250 (36)250 (36)250 (36)
11~13
(79~94,
107~127)
205/55 R166.5J X 16250 (36)250 (36)250 (36)250 (36)
225/45 R177.0J X 17230 (33)230 (33)230 (33)230 (33)
225/40 R187.5J X 18230 (33)230 (33)230 (33)230 (33)
Compact spare tire (if equipped)T125/80 D154.0T X 15420 (60)420 (60)420 (60)420 (60)
T125/80 D164.0T X 16420 (60)420 (60)420 (60)420 (60)
TT IIRR EESS AA NN DD WW HHEEEELLSS
8-5
88
Specifications It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures are
expected soon. Tires typically loose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme temper-
ature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level (Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).
NOTICE
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
