Information

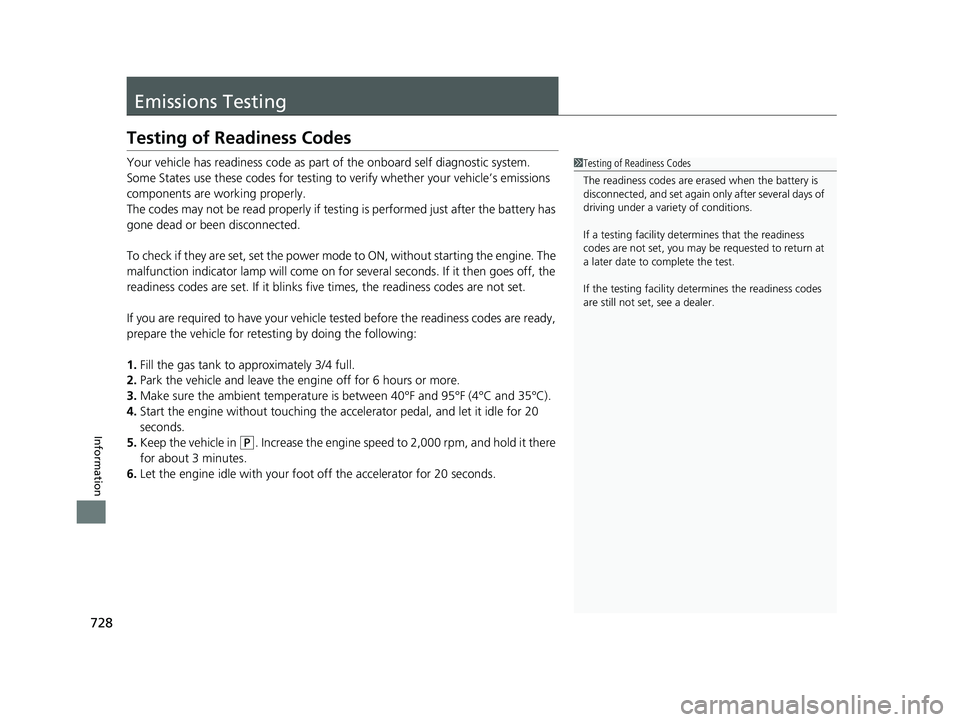

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 PILOT HMA ELP-31TG76310.book 728 ページ ２０１９年３月１５日　金曜日　午後６時８分

737
Index
Front Side Marker Lights ......................... 656
Front Turn Signal Lights .......................... 657
Headlights .............................................. 655
High-Mount Brake Light.......................... 659
Parking Lights ......................................... 656
Rear License Plate Lights ......................... 659
Rear Side Marker Lights .......................... 658
Rear Turn Signal Lights............................ 658
Side Turn Signal/Emergency Indicator Lights .................................................... 658
Bulb Specifications ................................... 722
C
CabinTalkTM.............................................. 505
Car Wash Mode ........................................ 541
Carbon Monoxide Gas ............................... 76
Carrying Cargo ................................. 509, 511
CD Player .................................................. 316
Certification Label ................................... 724
Changing Bulbs ........................................ 655
Charging System Indicator ................ 81, 707
Child Safety ................................................ 60
Childproof Door Locks ............................ 151
Child Seat ................................................... 60
Booster Seats ............................................ 75
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 69
Larger Children ......................................... 74 Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 682
Cleaning the Interior ................................ 680
Climate Control System ............................ 235
Changing the Mode ................................ 235
Defrosting the Windshield and
Windows ............................................... 236
Dust and Pollen Filter ............................... 679
Recirculation and Fresh Air Mode ............ 236
Sensors .................................................... 241
Synchronization Mode ............................. 238
Using Automatic Climate Control ............ 235
Clock .......................................................... 136
Coat Hook ................................................. 221
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 569
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 93, 94
Compact Spare Tire .......................... 689, 723
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 651
Adding to the Radiator ............................ 652
Adding to the Reserve Tank ..................... 651
Overheating ............................................ 705
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 534
Cross Traffic Monitor ................................ 622
Cup Holders .............................................. 215 Customer Service Information
................. 733
Customized Features ................ 125, 425, 432
D
Daytime Running Lights .......................... 182
Dead Battery ............................................. 702
Defaulting All the Settings ...................... 450
Defrosting the Windshield and Windows ......................................... 233, 236
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 725
Dimming
Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 647
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 667
Driver Information Interface ................... 111
Accessing Content .................................. 113
19 PILOT HMA ELP-31TG76310.book 737 ページ ２０１９年３月１５日　金曜日　午後６時８分

738
Index
Warning and Information Messages........... 96
Driving ....................................................... 507
Adaptive Cruise Control (ACC) ................ 581
Automatic Transmission ........................... 534
Braking .................................................... 611
Off-Highway Driving Guidelines ............... 525
Shifting Gear ........................................... 537
Starting the Engine .................................. 527
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 679
E
Eco Assist® System ....................................... 10
ECON Button ............................................. 550
Econ Mode
Indicator .................................................... 89
Electric Power Steering (EPS) System
Indicator ............................................ 86, 709
Electronic Stability Control (ESC) ............. 553
Emergency ................................................. 716
Emissions Testing (Readiness Codes) ....... 728
Engine Coolant ................................................... 651
Jump Starting .......................................... 702
Number ................................................... 724
Oil ........................................................... 646
Remote Engine Start ................................ 529
Starting ................................................... 527
Engine Compartment Cover .................... 645Engine Coolant
......................................... 651
Adding to the Radiator ............................ 652
Adding to the Reserve Tank..................... 651
Overheating ............................................ 705
Temperature Gauge ................................ 110
Engine Oil ................................................. 646
Adding .................................................... 648
Checking................................................. 647
Displaying Maintenance Minder Information ........................................... 638
Low Oil Pressure Symbol.......................... 707
Recommended Engine Oil ....................... 646
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 709
Exhaust Gas Hazard (Carbon Monoxide) .. 76
Exterior Care (Cleaning) ........................... 682
Exterior Mirrors ........................................ 193
F
Features.................................................... 243
File Manager ............................................. 290
Filters Dust and Pollen ....................................... 679
Oil ........................................................... 649
Flat Tire ..................................................... 689
Floor Mats ................................................. 681
Fluids Automatic Transmission .......................... 653
Brake ...................................................... 654
Engine Coolant ....................................... 651 Windshield Washer ................................. 654
FM/AM Radio ................................... 258, 302
Fog Light Indicator .................................... 88
Fog Lights ................................................. 178
Folding Down the Second Row Seat ...... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 612
Front Airbags (SRS) .................................... 50
Front Seats ................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 608
Fuel ..................................................... 25, 628
Economy................................................. 631
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator..................................... 84
Range ..................................................... 116
Recommendation.................................... 628
Refueling ................................................ 628
Fuel Economy ........................................... 631
Fuel Fill Cap .............................................. 630
Fuel Fill Door ...................................... 25, 629
Unable to Unlock .................................... 717
Fuses ......................................................... 711
Inspecting and Changing ........................ 715
Locations ........................ 711, 712, 713, 714
G
Gasoline (Fuel)
Economy................................................. 631
19 PILOT HMA ELP-31TG76310.book 738 ページ ２０１９年３月１５日　金曜日　午後６時８分

741
Index
M
Maintenance.................................... 118, 633
Battery .................................................... 673
Brake Fluid .............................................. 654
Cleaning ................................................. 680
Coolant .................................................. 651
Maintenance Minder
TM............................ 637
Oil .......................................................... 647
Precautions ............................................. 634
Radiator .................................................. 652
Remote Control ...................................... 676
Remote Transmitter ................................ 675
Replacing Light Bulbs .............................. 655
Safety ..................................................... 635
Service Items ........................................... 640
Tires........................................................ 664
Transmission Fluid ................................... 653
Under the Hood ...................................... 643
Wireless Headphone ............................... 677
Malfunction Indicator Lamp ............. 81, 708
Map Lights ................................................ 210
Maximum Load Limit ............................... 511
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 685
Moonroof ................................................. 169
MP3 ................................... 263, 316, 322, 325 MP3/WMA/AAC
................ 263, 316, 322, 325
Multi-View Rear Camera .......................... 626
My Honda Music ....................................... 325
N
Navigation................................................ 117
Now Playing .............................................. 120
Numbers (Identification) .......................... 724
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 525
Oil (Engine) ............................................... 646
Adding .................................................... 648
Checking ................................................. 647
Displaying Maintenance Minder Information ........................................... 638
Low Oil Pressure Symbol .......................... 707
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 646
Viscosity .................................................. 646
Open Source Licenses ............................... 371
Opening/Closing Hood ....................................................... 644
Moonroof................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the Steering Wheel ....................................... 171 Outside Temperature Display
.................. 112
Overheating .............................................. 705
P
Paddle Shifters (Sequential Mode) .... 23, 544
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 615
Parking Brake ........................................... 611
Parking Brake and Brake System Indicator .................................................. 709
Parking Brake and Brake System
Indicator (Amber) ..................................... 80
Parking Brake and Brake System Indicator (Red) .......................................... 80
Parking Sensor System ............................. 617
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 266, 329
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 533
Driving Guidelines for Your Utility Vehicle .................................................. 533
Rain ........................................................ 533
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 689
19 PILOT HMA ELP-31TG76310.book 741 ページ ２０１９年３月１５日　金曜日　午後６時８分

743
Index
Siri Eyes Free............................................. 340
SiriusXM ® Radio ....................................... 306
Snow Tires ................................................ 672
Social Playlist ............................................ 331
Spare Tire ......................................... 689, 723
Spark Plugs ............................................... 722
Specifications ........................................... 722
Specified Fuel ................................... 628, 722
Speedometer ............................................ 111
SRS Airbags (Airbags) ................................ 50
Starting Assist Brake Function ................ 549
Starting the Engine .................................. 527
Does Not Start ........................................ 697
Jump Starting ......................................... 702
Remote Engine Start ............................... 529
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 227
Stopping ................................................... 615
Summer Tires ............................................ 672
Sunglasses Holder .................................... 222
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ............................................ 4, 5, 171
SYNC Mode .............................................. 238
System Message Indicator ......................... 89
System Updates ........................................ 284T
Tachometer............................................... 111
Tailgate ..................................................... 153
Unable to Open ....................................... 719
Temperature
Gauge ..................................................... 110
Outside Temperature Display ................... 112
Temperature Gauge ................................. 110
Temperature Sensor ......................... 112, 241
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access .............................. 204
Tie-down Anchors .................................... 228
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 710
Tire Pressure .............................................. 118
Tire Pressure Moni toring System (TPMS)
Indicator .................................................... 87
Tires ........................................................... 664
Air Pressure ..................................... 665, 723
Checking and Maintaining ....................... 664
Inspection ................................................ 664
Labeling .................................................. 665
Puncture (Flat Tire) ................................... 689
Regulations ............................................. 667
Rotation .................................................. 671
Spare Tire ........................................ 689, 723
Summer .................................................. 672
Tire Chains .............................................. 672
Wear Indicators ....................................... 669
Winter ..................................................... 672
Tools .......................................................... 688 Towing a Trailer
....................................... 514
Equipment and Accessories ..................... 518
Load Limits .............................................. 514
Towing Your Vehicle ................................ 524
Emergency .............................................. 716
TPMS (Tire Pressure Monitoring System) Indicator.................................................... 87
TPMS with Tire Fill Assist ......................... 562
Indicator.................................................. 710
Tire Fill Assist ........................................... 710
Trailer Stability Assist ............................... 522
Transmission ......................... 22, 24, 535, 537
Automatic ........................... 22, 24, 535, 537
Fluid ........................................................ 653
Gear Position Indicator ...................... 81, 539
Number................................................... 724
Sequential Mode ..................................... 543
Transmission System Indicator ................... 82
Trip Computer .......................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 687
Blown Fuse...................... 711, 712, 713, 714
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 716
Engine Won’t Start .................................. 697
Noise When Braking .................................. 31
Overheating ............................................ 705
Puncture/Flat Tire .................................... 689
Rear Door Won’t Open...................... 30, 151
Shift Lever Does Not Move ...................... 701
19 PILOT HMA ELP-31TG76310.book 743 ページ ２０１９年３月１５日　金曜日　午後６時８分
