2019 HONDA INSIGHT Speed sensor

492
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Driving

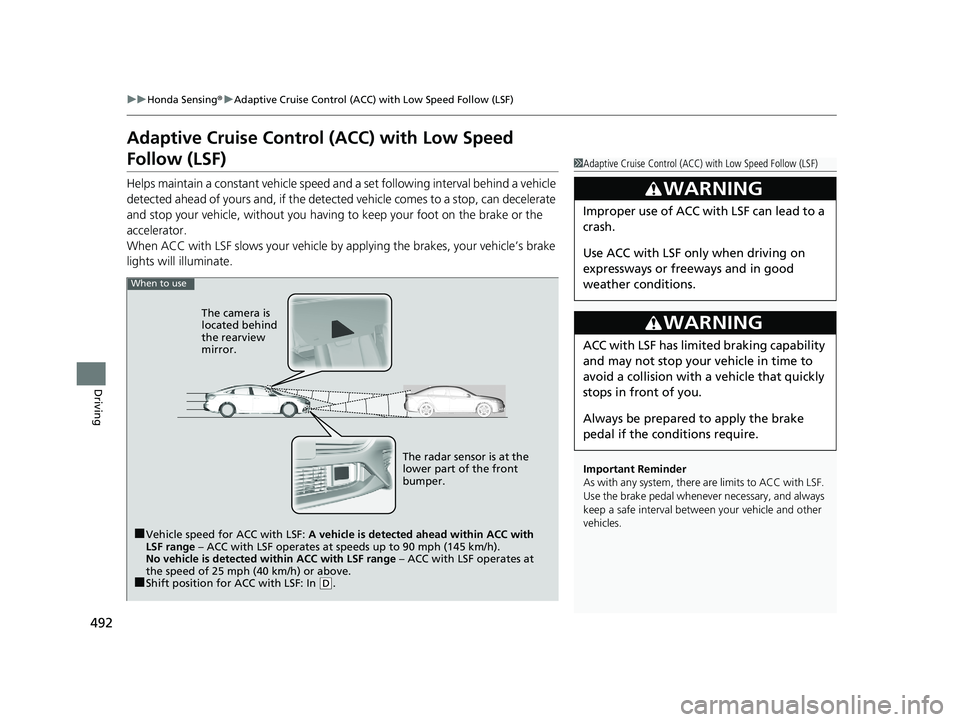

Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
Helps maintain a constant vehicle speed an d a set following interval behind a vehicle
detected ahead of yours and, if the detect ed vehicle comes to a stop, can decelerate
and stop your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with LSF slows your vehicle by applying the brakes, your vehicle’s brake
lights will illuminate.
1 Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Important Reminder
As with any system, there are limits to ACC with LSF.
Use the brake pedal whenever necessary, and always
keep a safe interval betw een your vehicle and other
vehicles.
3WARNING
Improper use of ACC wi th LSF can lead to a
crash.
Use ACC with LSF only when driving on
expressways or freeways and in good
weather conditions.
3WARNING
ACC with LSF has limited braking capability
and may not stop your vehicle in time to
avoid a collision with a vehicle that quickly
stops in front of you.
Always be prepared to apply the brake
pedal if the conditions require.
When to use
■Vehicle speed for ACC with LSF: A vehicle is detected ahead within ACC with
LSF range – ACC with LSF operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with LSF range – ACC with LSF operates at
the speed of 25 mph (40 km/h) or above.
■Shift position for ACC with LSF: In ( D. The radar sensor is at the
lower part of the front
bumper.
The camera is
located behind
the rearview
mirror.
19 INSIGHT HMIN-31TXM6000.book 492 ページ ２０１８年４月２０日　金曜日　午後４時２２分

uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
498
Driving
The system may automatically shut off and the ACC with LSF indicator will come on
under certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC with LSF functions.
■Environmental conditions
Driving in bad weather (r ain, fog, snow, etc.).
■Roadway conditions
Driving on a snowy or wet roadway (obscure d lane marking, vehicle tracks, reflected
lights, road spray, high contrast).
■Vehicle conditions
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wrong sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the radar sensor cover is dirty.
• The vehicle is tilted due to a heav y load or suspension modifications.
• When tire chains are installed.
■ACC with LSF Conditions and Limitations1ACC with LSF Conditions and Limitations
The radar sensor for ACC with LSF is shared with the
collision mitigation braking system (CMBS).
2 Collision Mitigation Braking System
TM
(CMBSTM) P. 483
For directions on the prop er handling of the radar
sensor, refer to the following page. 2 Radar Sensor P. 530
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 528
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 498 ページ ２０１８年４月２０日　金曜日　午後４時２２分

499
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Continued
Driving
■Detection limitations
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle ahead of you at high
speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehi cle and a vehicle in front of you is
significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
19 INSIGHT HMIN-31TXM6000.book 499 ページ ２０１８年４月２０日　金曜日　午後４時２２分

Continued505
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Driving
■Automatic ca ncellation
The beeper sounds and a message appears on the driver information interface when
ACC with LSF is automatically canceled. Any of these conditions may cause the ACC
with LSF to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor at the lower part of the front bumper gets dirty.
• The vehicle ahead of yo u cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the AC C with LSF range is too close to your
vehicle.
• When a detected vehicle goes out of the ACC with LSF range while your vehicle
is stationary.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• When the Maximum Load Limit is exceeded.
• When passing through an enclosed space, such as tunnel.
1Automatic cancellation
Even though ACC with LSF has been automatically
canceled, you can still resu me the prior set speed.
Wait until the condition that caused ACC with LSF to
cancel improves, then press the SET/– button.
19 INSIGHT HMIN-31TXM6000.book 505 ページ ２０１８年４月２０日　金曜日　午後４時２２分

509
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Continued
Driving
Lane Keeping Assist System (LKAS)
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual al erts if the vehicle is detected drifting out of its lane.1Lane Keeping Assist System (LKAS)
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take y our hands off the steering
wheel or fail to steer the vehicle.
2 Driver Information Interface Warning and
Information Messages P. 102
Do not place objects on the instrument panel.
Objects may reflect on th e windshield and prevent
correct detection of the traffic lanes.
The LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly or may work
improperly under the certain conditions:
2 LKAS Conditions and Limitations P. 514
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 528
When you operate the turn signals to chan ge lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operating the turn signals, the LKAS alerts
activate, and torque is applied to the steering.
■Front Sensor Camera
Monitors the lane
lines.■Tactile and visual alerts
Rapid vibrations on the steering
wheel and a warning display alert
you that the vehicle is drifting out of
a detected lane.
■Steering input assist
The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque become s stronger as the vehicle gets closer to
either of the lane lines.
19 INSIGHT HMIN-31TXM6000.book 509 ページ ２０１８年４月２０日　金曜日　午後４時２２分

517
uuHonda Sensing ®u Road Departure Mitigation (RDM) System
Continued
Driving
Road Departure Mitigation (RDM) System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close
to detected lane markings without a turn
signal activated, the system, in addition to a
visual alert, applies steering torque and alerts
you with rapid vibrations on the steering
wheel, to help you remain within the detected
lane.
2 Customized Features P. 153, 359, 366
As a visual alert, the Lane Departure
message appears on the driver information
interface.
If the system determines that its steering input is insufficient to keep your vehicle on
the roadway, it may apply braking. u Braking is applied only when the lane markings are solid continuous lines.
The system cancels assisting operations wh en you turn the steering wheel to avoid
crossing over detected lane markings.
If the system operates several times with out detecting driver response, the system
beeps to alert you.
■How the System Works
1 Road Departure Mitigation (RDM) System
Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.
The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all la ne markings or lane or
roadway departures; accu racy will vary based on
weather, speed and lane marker condition. It is
always your responsibilit y to safely operate the
vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 528
The RDM system may not wo rk properly or may work
improperly under the certain conditions: 2 RDM Conditions and Limitations P. 520
There are times when you may not notice RDM
functions due to your opera tion of the vehicle, or
road surface conditions.
In the following case, a beeper sounds, a message
related to the ACC with LSF appears on the driver
information interface, and the braking function
controlled by the RDM system is canceled.
•The vehicle has repeatedly applied the brakes to
maintain the set speed (for example, you are
descending a long slope).
19 INSIGHT HMIN-31TXM6000.book 517 ページ ２０１８年４月２０日　金曜日　午後４時２２分

Index
664
Index
Index
Numbers
12-Volt Battery.................................... 10, 591
Charging System Indicator ................. 88, 634
High Voltage ..................................... 10, 477
Jump Starting .......................................... 628
Maintenance (Checking the Battery) ........ 591
Maintenance (Replacing).......................... 593
A
ABS (Anti-lock Brake System) ................... 539
Accessories and Modifications ................. 601
Accessory Power Socket ........................... 221
Acoustic Vehicle Alerting System ............ 468
Adaptive Cruise Control (ACC) ............. 97, 98
Adaptive Cruise Control (ACC)
with Low Speed Follow (LSF) ..... 97, 98, 492
Additives
Coolant ................................................... 569
Engine Oil ................................................ 564
Washer .................................................... 574
Additives, Engine Oil ................................ 564
Adjusting Armrest ................................................... 214
Front Seats .............................................. 207
Head Restraints........................................ 212
Mirrors .................................................... 205
Rear Seats................................................ 210
Steering Wheel ........................................ 204
Adjusting the Sound ................................. 246
Agile Handling Assist ................................ 471 Air Conditioning System (Climate Control
System) .................................................... 225
Changing the Mode ................................ 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter............................... 594
Recirculation/Fresh Air Mode ................... 227
Sensors ................................................... 231
Synchronized Mode................................. 230
Using Automatic Climate Control ............ 225
Air Pressure ....................................... 583, 653
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ........................................ 54
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 54
Indicator.............................................. 61, 91
Passenger Front Airbag Off Indicator ......... 62
Sensors ..................................................... 51
Side Airbags .............................................. 58
Side Curtain Airbags.................................. 60
AM/FM Radio .................................... 248, 290
Android Auto
TM........................................ 328
Anti-lock Brake System (ABS) .................. 539
Indicator.................................................... 91
Apple CarPlay
TM........................................ 325
Armrest ..................................................... 214
Audio Remote Controls ........................... 237
Audio System .................................... 234, 241
Adjusting the Sound........................ 246, 284 AM/FM Radio.......................................... 248
Audio/Information Screen ............... 242, 263
Display Setup .................................. 247, 285
Error Messages ....................................... 332
General Information................................ 337
Home Screen .......................................... 271
How to Update Wirelessly ....................... 278
How to Update with a USB Device .......... 282
How to use Siri
® Eyes Free............... 261, 324
iPod ................................................ 250, 305
Limitations for Manual Operation ............ 286
MP3/WMA/AAC ............................. 255, 308
Pandora ®................................................ 253
Playing Bluetooth ® Audio........................ 258
Reactivating ............................................ 236
Remote Controls ..................................... 237
Security Code ......................................... 236
Selecting an Audio Source ...................... 286
Status Area ............................................. 276
System Updates ...................................... 278
Theft Protection ...................................... 236
USB Flash Drives...................... 255, 308, 338
USB Ports ................................................ 235
Wallpaper Setup ............................. 244, 269
Audio/Information Screen ............... 242, 263
Authorized Manuals ................................ 661
Auto Door Locking/Unlocking ................ 179
Customize ...................................... 159, 383
Auto High-Beam ...................................... 197
Indicator ................................................... 94
19 INSIGHT HMIN-31TXM6000.book 664 ページ ２０１８年４月２０日　金曜日　午後４時２２分

665
Index
Automatic Brake Hold............................. 536
Indicator ........................................... 84, 536
Automatic Brake Hold System Indicator ........................................... 84, 536
Automatic Intermittent Wipers .............. 201
Automatic Lighting .................................. 194
Average Fuel Economy ............................ 136
Average Fuel Economy Records .............. 149
Average Speed ......................................... 138
B
Belts (Seat).................................................. 44
Beverage Holders ..................................... 219
Bluetooth ® Audio ............................. 258, 311
Bluetooth ® HandsFreeLink ®............ 389, 414
Booster Seats (For Children) ...................... 76
Brake System ............................................ 531
Anti-lock Brake System (ABS) .................. 539
Automatic Brake Hold ............................. 536
Brake Assist System................................. 540
Fluid ....................................................... 573
Foot Brake .............................................. 535
Indicator ............................. 81, 82, 636, 637
Parking Brake.......................................... 531
Brightness Control (Instrument Panel) ... 203
Bulb Replacement .................................... 575
Back-Up Light ......................................... 577
Brake and Rear Side Marker Lights .......... 576
Fog Lights ............................................... 575 Front Turn Signal,
Parking/Daytime
Running and Front Side Marker Lights ... 575
Headlights ............................................... 575
High-Mount Brake Light .......................... 578
Rear License Plate Lights .......................... 578
Rear Turn Signal Light .............................. 576
Side Turn Signal/Em ergency Indicator
Lights .................................................... 575
Taillights .................................................. 577
Bulb Specifications ................................... 652C
Carbon Monoxide Gas ................................ 77
Carrying Cargo .................................. 443, 445
Certification Label .................................... 654
Changing Bulbs ......................................... 575
Charging System Indicator ................. 88, 634
Child Safety ................................................. 64
Childproof Door Locks ............................. 178
Emergency Trunk Opener ........................ 182
Child Seat .................................................... 64
Booster Seats ............................................. 76
Child Seat for Infants ................................. 66
Child Seat for Small Children ..................... 67
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Larger Children .......................................... 75
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 73 Childproof Door Locks
............................. 178
Cleaning the Exterior ............................... 597
Cleaning the Interior ................................ 595
Climate Control System ............................ 225
Changing the Mode ................................ 225
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter............................... 594
Recirculation and Fresh Air Mode ............ 227
Sensors ................................................... 231
Synchronized Mode................................. 230
Using Automatic Climate Control ............ 225
Clock .......................................................... 164
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 483
Coat Hooks ............................................... 222
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 483
Compact Spare Tire .......................... 605, 653
Console Compartment ............................. 218
Continuously Variable Transmission Creeping ................................................. 456
Fluid ........................................................ 572
Controls ..................................................... 163
Coolant (Engine) ...................................... 569
Adding to the Radiator ............................ 570
Adding to the Reserve Tank..................... 569
Overheating ............................................ 631
19 INSIGHT HMIN-31TXM6000.book 665 ページ ２０１８年４月２０日　金曜日　午後４時２２分
