2019 HONDA FIT display

97
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you clean the sensor
cover.
2 Adaptive Cruise Control (ACC)* P. 433
●Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●Have your vehicle checked by a dealer if the message
appears again after you cleaned the area around the
camera.
●Appears if the temperature inside the camera is too
high.
●ACC/LKAS has been automatically canceled.
●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Pressing
the MAIN/LKAS button can resume the system.
2Front Sensor Camera* P. 431
2 Adaptive Cruise Control (ACC)* P. 433
2 Lane Keeping Assist System (LKAS)* P. 452
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2 Indicators P. 76
●Appears when the camera has been cooled down
and LKAS is available.●Pressing the MAIN/LKAS button can resume the
system.
2 Front Sensor Camera* P. 431
* Not available on all models
19 FIT JAZZ-31T5A6400.book 97 ページ ２０１８年２月２６日　月曜日　午後４時３０分

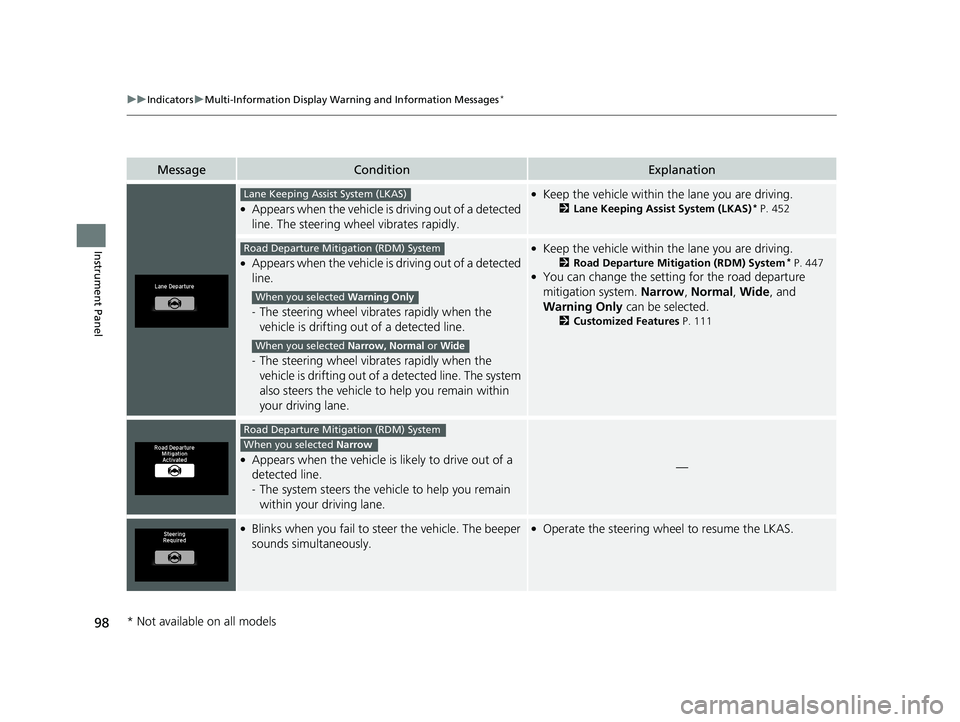

98
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS)* P. 452
●Appears when the vehicle is driving out of a detected
line.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System* P. 447●You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide , and
Warning Only can be selected.
2Customized Features P. 111
●Appears when the vehicle is likely to drive out of a
detected line.
-The system steers the vehicle to help you remain
within your driving lane.—
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
* Not available on all models
19 FIT JAZZ-31T5A6400.book 98 ページ ２０１８年２月２６日　月曜日　午後４時３０分

99
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears if the temperature inside the camera is too
high.
●The LKAS has been automatically canceled.
●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2Front Sensor Camera* P. 431
2 Lane Keeping Assist System (LKAS)* P. 452
●Appears once if the outside temperature is below
3°C while the ignition switch is in ON
(w*1.—
●Appears if not wearing a seat belt when you turn the
ignition switch to ON
(w*1.
●Goes off after you or the front passenger or both of you
have fastened your seat belts.
* Not available on all models
19 FIT JAZZ-31T5A6400.book 99 ページ ２０１８年２月２６日　月曜日　午後４時３０分

100
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the fuel gauge.●Blinks - Have your vehicle checked by a dealer.
●Appears when the fuel reserve is running low
(approximately 1.59 U.S. gal./6.0 Liter left).●Appears - Refuel your vehicle as soon as possible.
2Fuel Gauge P. 110
●Appears if any door is not completely closed.●The beeper sounds and th e message appears on if
any door or the tailgate is opened while driving.
●Goes off when all doors are closed.
●Appears if the tailgate is not completely closed.●Goes off when the tailgate is closed.
19 FIT JAZZ-31T5A6400.book 100 ページ ２０１８年２月２６日　月曜日　午後４時３０分

101
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.●Goes off when all doors and the tailgate are closed.
●Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button* P. 427
●Appears when approaching a intersection during
route guidance.
2Refer to the Navigation System Manual
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 510Canadian models
* Not available on all models
19 FIT JAZZ-31T5A6400.book 101 ページ ２０１８年２月２６日　月曜日　午後４時３０分

102
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with the high beam headlights when
this happens, the headlights are changed to low beams.
Models with auto high-beam
19 FIT JAZZ-31T5A6400.book 102 ページ ２０１８年２月２６日　月曜日　午後４時３０分

103
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph and km/h.
Shows the number of engine revolutions per minute.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Speedometer
■Tachometer
■Outside Temperature*1Outside Temperature*
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display's customized
features to correct the temperature.
2 Customized Features P. 111
* Not available on all models
19 FIT JAZZ-31T5A6400.book 103 ページ ２０１８年２月２６日　月曜日　午後４時３０分

104
uuGauges and Displays uInformation Display*
Instrument Panel
Information Display*
The information display shows the fuel gauge, odometer, tri p meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
■Switching the Display
1 Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Outside Temperature
Fuel Gauge
Select/Reset Knob
* Not available on all models
19 FIT JAZZ-31T5A6400.book 104 ページ ２０１８年２月２６日　月曜日　午後４時３０分
