2019 HONDA CR-V Turn signal

uuWhen Driving uLaneWatchTM*
514
Driving
■Customizing the LaneWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Display Time after Turn Signal Off : Changes the remaining Lane Watch
display time after you pull the turn signal lever back.
• Reference Line : Selects whether the reference lines appear on the LaneWatch
monitor.
• Display : Adjusts display settings.
2Customized Features P. 349
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 is farther away.
1 LaneWatchTM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen look slightly
different from what they are.
LaneWatch display does not come on when the shift
lever is in
( R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
23
1
1Reference Lines
The area around the reference line 1 (red) is very close to
your vehicle. As always, m ake sure to visually confirm
the safety of a lane chan ge before changing lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For ex ample, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:
•The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display doe s not come on at all.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 514 ページ ２０１８年８月２２日　水曜日　午後２時５９分

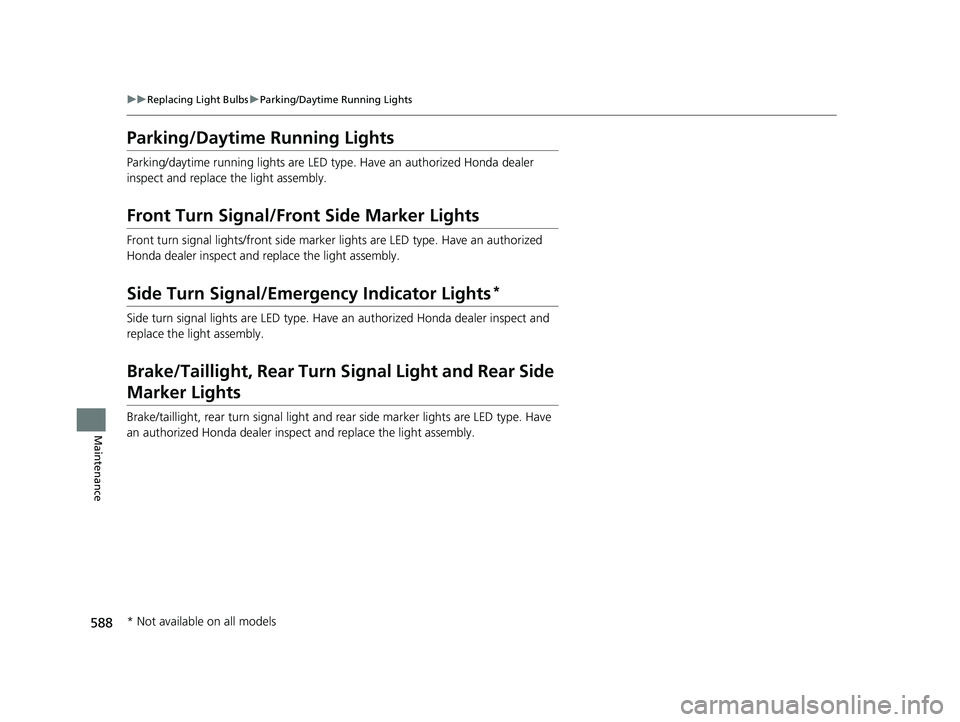

588
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal/Front Side Marker Lights
Front turn signal lights/front side marker lights are LED type. Have an authorized
Honda dealer inspect and re place the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Side turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Brake/Taillight, Rear Turn Signal Light and Rear Side
Marker Lights
Brake/taillight, rear turn signal light and rear side ma rker lights are LED type. Have
an authorized Honda dealer inspec t and replace the light assembly.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 588 ページ ２０１８年８月２２日　水曜日　午後２時５９分

648
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
■ Air Conditioning
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Specifications
*1: 2.4 L engine models
*2: 1.5 L engine models
■Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)*1
15.3 – 17.1 oz (435 – 485 g)*2
Lubricant TypeRB100EV-01*1
RL85HM (POE)*2
Quantity5.80 - 6.53 cu-in (95 - 107 cm3)*1
4.70 - 6.28 cu-in (77 – 103 cm3)*2
Displacement143.72 cu-in (2,356 cm3)*1
91.38 cu-in (1,498 cm3)*2
Spark PlugsNGKDILKAR7H11GS*1
DILKAR7G11GS*1
ILZKAR8J8SY*2
DENSODXE22HQR-D11S*1
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)*
LED*
Headlights (High Beam)60 W (HB3)*
LED*
Fog Lights*35 W (H8)
Front Turn Signal/
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Side Turn Signal Lights
(on Door Mirrors)
*LED
Tail and Brake/Rear Turn Signal/
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights
Map Lights 8 W
*
LED*
Ceiling Light8 W*
LED*
Cargo Area Lights 5 W
Vanity Mirror Lights*1.4 W
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 648 ページ ２０１８年８月２２日　水曜日　午後２時５９分

662
Index
Auto Door Locking/Unlocking................. 144
Customize ............................................... 145
Auto High-Beam System .......................... 179
Automatic Brake Hold .............................. 526
Indicator ............................................ 82, 526
Automatic Intermittent Wipers ............... 184
Automatic Lighting .................................. 176
Average Fuel Economy ..................... 118, 122
Average Speed .......................................... 122
AWD (All-Wheel Drive) ............................ 515
B
Battery....................................................... 604
Charging System Indicator ................. 83, 634
Jump Starting .......................................... 627
Maintenance (Checking the Battery) ........ 604
Maintenance (Replacing).......................... 606
Belts (Seat) .................................................. 40
Beverage Holders ...................................... 213
Blind spot information (BSI) System ........ 510
Indicator .................................................... 91
Bluetooth ® Audio ............................. 254, 310
Bluetooth ® HandsFreeLink ®............. 385, 408
Booster Seats (For Children) ....................... 75
Brake System ............................................. 522
Anti-lock Brake System (ABS) ................... 528
Automatic Brake Hold.............................. 526
Brake Assist System ................................. 529
Fluid ........................................................ 582
Foot Brake ............................................... 525 Indicator (Red) ........................... 80, 636, 637
Parking Brake .......................................... 522
Brightness Control (Instrument Panel).... 186
Bulb Replacement .................................... 584
Brake/Taillight, Rear Turn Signal Light and
Rear Side Marker Lights ......................... 588
Fog Lights ............................................... 586
Front Turn Signal/ Front Side Marker
Lights .................................................... 588
Headlights ............................................... 584
High-Mount Brake Light .......................... 590
Parking/Daytime Running Lights .............. 588
Rear License Plate Light ........................... 590
Side Turn Signal/Emergency Indicator
Lights .................................................... 588
Taillight and Back-Up Lights .................... 589
Bulb Specifications ................................... 648
C
Carbon Monoxide Gas ............................... 76
Cargo Hooks ............................................. 218
Carrying Cargo ................................. 447, 449
Certification Label .................................... 650
Changing Bulbs ........................................ 584
Charging System Indicator ................. 83, 634
Child Safety ................................................. 63
Childproof Door Locks............................. 143
Child Seat .................................................... 63
Booster Seats ............................................ 75
Child Seat for Infants................................. 65 Child Seat for Small Children .................... 66
Installing a Child Seat
with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 74
Rear-facing Child Seat............................... 65
Selecting a Child Seat ............................... 67
Childproof Door Locks ............................. 143
Cleaning the Exterior ............................... 611
Cleaning the Interior ............................... 609
Climate Control System ........................... 224
Changing the Mode................................ 224
Defrosting the Windshield and Windows .............................................. 225
Dust and Pollen Filter .............................. 608
Recirculation/Fresh Air Mode................... 225
Sensors ................................................... 228
Synchronization Mode ............................ 227
Using Automatic Climate Control............ 224
Clock ......................................................... 130
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 530
Coat Hook ................................................ 217
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 530
Compact Spare Tire .......................... 617, 649
Compass .................................................... 442
Continuously Variable Transmission ....... 466
Creeping................................................. 466
Fluid ....................................................... 581
Kickdown ............................................... 466
Operating the Shift Lever .................. 23, 468
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 662 ページ ２０１８年８月２２日　水曜日　午後２時５９分

663
Index
Shift Lever Does Not Move ...................... 630
Shifting ................................................... 467
Controls .................................................... 129
Coolant (Engine) .............................. 577, 579
Adding the Coolant ................................ 578
Adding to the Radiator ........................... 580
Adding to the Reserve Tank .................... 579
Overheating ............................................ 631
Creeping (Continuously Variable Transmission) .......................................... 466
Cross Traffic Monitor ............................... 542
Cruise Control .................................. 470, 473
Indicator ................................................... 92
Cup Holders .............................................. 213
Customer Service Information ................ 659
Customized Features ............................... 349
Customizing the Auto Door Locking/
Unlocking Setting .................................. 145
D
Daytime Running Lights .......................... 182
Dead Battery ............................................ 627
Defaulting All the Settings ...................... 381
Defrosting the Windshield and Windows ................................................. 225
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 652
Dimming Headlights .............................................. 175
Rearview Mirror ...................................... 193 Dipstick (Engine Oil)
................................. 571
Directional Signals (Turn Signals) ............ 174
Display Setup .................................... 243, 281
Display/Information Button ..................... 120
Door Mirrors ............................................. 194
Doors ......................................................... 132
Auto Door Locking .................................. 144
Auto Door Unlocking ............................... 144
Door Open Indicator ............................ 38, 87
Keys ........................................................ 132
Locking/Unlocking the Doors from the
Inside..................................................... 142
Locking/Unlocking the Doors from the Outside.................................................. 135
Lockout Prevention System ...................... 141
DOT Tire Quality Grading ........................ 598
Driver Information Interface ................... 120
Driver’s Seat Lumbar Support .................. 195
Driving ....................................................... 445
Braking .................................................... 522
Continuously Variable Transmission ......... 466
Cruise Control ................................. 470, 473
Off-Highway Driving Guidelines ............... 456
Shifting Gear ........................................... 467
Starting the Engine .......................... 458, 460
Driving Position Memory System ............. 190
Dust and Pollen Filter ............................... 608
E
Eco Assist® System ........................................ 9
ECON Button ............................................ 469
Elapsed Time ............................................. 122
Electric Power Steering (EPS) System
Indicator............................................ 87, 638
Electronic Stability Control (ESC) ............. 507
Emergency ................................................ 644
Emissions Testing (Readiness Codes) ....... 654
Engine Coolant ........................................... 577, 579
Jump Starting .......................................... 627
Number................................................... 650
Oil ........................................................... 570
Starting ........................................... 458, 460
Switch Buzzer.................................. 169, 172
Engine Coolant ................................. 577, 579
Adding the Coolant................................. 578
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 631
Temperature Gauge ................................ 116
Engine Oil ................................................. 570
Adding .................................................... 573
Checking................................................. 571
Displaying Oil Life ............................ 557, 562
Low Oil Pressure Indicator ................. 83, 634
Recommended Engine Oil ....................... 570
ENGINE START/STOP Button .................... 170
EPS (Electric Power Steering) System ...... 638
Exhaust Gas Hazard (Carbon Monoxide) .. 76
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 663 ページ ２０１８年８月２２日　水曜日　午後２時５９分

665
Index
Heating and Cooling SystemDust and Pollen Filter .............................. 608
HFL (HandsFreeLink ®) ...................... 385, 408
High Beam Indicator .................................. 89
Hill Start Assist System ..................... 459, 464
HomeLink ® Universal Transceiver ........... 382
Honda App License Agreement .............. 334
Honda Sensing ®......................................... 26
HondaLink ®.............................................. 312
I
Identification Numbers ............................ 650
Engine and Transmission ......................... 650
Vehicle Identification............................... 650
Ignition Switch ......................................... 169
Illumination Control ................................ 186
Knob ...................................................... 186
Immobilizer System .................................. 159
Immobilizer System Indicator..................... 90
Indicators .................................................... 80
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 96, 97, 479
Anti-lock Brake System (ABS) .................... 85
Automatic Brake Hold ....................... 82, 526
Blind spot information (BSI) ............... 91, 511
Brake Depressing ...................................... 93
Charging System............................... 83, 634
Collision Mitigati on Braking System
TM
(CMBSTM) .................................. 98, 99, 100
Cruise Control .......................... 92, 471, 474 Cruise Main ............................... 92, 470, 473
Door Open .......................................... 38, 87
ECON Mode ...................................... 92, 469
Electric Power Steering (EPS) System .. 87, 638
Fog Light ................................................... 90
High Beam ................................................ 89
Immobilizer System .................................... 90
Lane Keeping Assist System (LKAS) ............ 98
Lights On ................................................... 89
Low Fuel .................................................... 85
Low Oil Pressure ................................ 83, 634
Low Tire Pressure/TPMS ..................... 88, 520
Maintenance Minder ......................... 92, 557
Malfunction Indicator Lamp ............... 83, 635
Parking Brake and Brake System
(Amber) ............................................. 81, 82
Parking Brake and Brake System
(Red)........................................ 80, 636, 637
Road Departure Mitigation (RDM) .. 94, 95, 96
Seat Belt Reminder .............................. 42, 84
Security System Alarm ............................... 91
Shift Lever Position .................................... 84
Starter System ........................................... 93
Supplemental Restraint System ............ 60, 85
System Message ........................................ 89
Tailgate Open ............................................ 87
Transmission .............................................. 84
Turn Signal ................................................ 89
Vehicle Stability Assist (VSA ®)
System............................................. 86, 507
VSA ® OFF .......................................... 86, 508 Information
.............................................. 647
Information Display ................................. 117
Instant Fuel Economy ....................... 118, 126
Instrument Panel ........................................ 79
Brightness Control................................... 186
Interior Lights ........................................... 205
Interior Rearview Mirror .......................... 193
iPod ................................................... 246, 298
J
Jack (Wheel Nut Wrench) ........................ 620
Jump Starting ........................................... 627
K
Key Number Tag ....................................... 133
Keyless Lockout Prevention ..................... 141
Keys ........................................................... 132
Lockout Prevention.................................. 141
Master Keys ............................................ 132
Number Tag ............................................ 133
Rear Door Won’t Open............................ 143
Remote Transmitter ................................. 139
Types and Functions ................................ 132
Valet Key................................................. 133
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 466
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 665 ページ ２０１８年８月２２日　水曜日　午後２時５９分

666
Index
L
Lane Keeping Assist System (LKAS)......... 499
LaneWatchTM............................................. 513
LATCH (Child Seats) .............................. 68, 72
Lights ................................................. 175, 584
Automatic ............................................... 176
Bulb Replacement .................................... 584
Daytime Running Lights ........................... 182
Fog Lights ................................................ 178
High Beam Indicator .................................. 89
Interior .................................................... 205
Light Switches ......................................... 175
Lights On Indicator .................................... 89
Turn Signals ............................................. 174
Load Limits ................................................ 449
Locking/Unlocking .................................... 132
Auto Door Locking/Unlocking .................. 144
Childproof Door Locks ............................. 143
From Inside .............................................. 142
From Outside ........................................... 135
Keys ........................................................ 132
Using a Key ............................................. 140
Lockout Prevention System ...................... 141
Low Battery Charge .................................. 634
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 83, 634
Low Smart Entry Remote Signal Strength ................................................... 134
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 449
Lumbar Support ........................................ 196 Lumbar Support Adjustment Switch
....... 196M
Maintenance............................................. 553
Adding the Coolant................................. 578
Battery .................................................... 604
Brake Fluid .............................................. 582
Cleaning ................................................. 609
Coolant ........................................... 577, 579
Maintenance Minder
TM............................ 557
Oil ........................................................... 571
Precautions ............................................. 554
Radiator .................................................. 580
Remote Transmitter ................................. 606
Replacing Light Bulbs .............................. 584
Safety...................................................... 555
Service Items ................................... 559, 564
Tires ........................................................ 595
Transmission Fluid ................................... 581
Under the Hood ...................................... 567
Malfunction Indicator Lamp .............. 83, 635
Map Lights ................................................ 207
Maximum Load Limit ............................... 449
Meters, Gauges ......................................... 116
Mirrors ...................................................... 193
Adjusting ................................................ 193
Door ....................................................... 194
Exterior ................................................... 194
Interior Rearview ..................................... 193
Modifications (and Accessories) .............. 614Moonroof
................................................. 165
MP3 ................................................... 251, 307
Multi-View Rear Camera ......................... 546
N
Numbers (Identification)......................... 650
O
Odometer......................................... 117, 121
Off-Highway Driving Guidelines ............. 456
Oil (Engine) .............................................. 570
Adding ................................................... 573
Checking ................................................ 571
Displaying Oil Life ........................... 557, 562
Low Oil Pressure Indicator ................. 83, 634
Recommended Engine Oil ....................... 570
Viscosity.................................................. 570
Open Source Licenses .............................. 348
Opening/Closing Hood ...................................................... 569
Moonroof ............................................... 165
Power Windows...................................... 162
Tailgate................................................... 148
Outside Temperature Display ......... 119, 126
Overheating ............................................. 631
P
Pandora®.......................................... 249, 305
Panic Mode ............................................... 161
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 666 ページ ２０１８年８月２２日　水曜日　午後２時５９分

668
Index
Smart Entry System................................... 135
Snow Tires ................................................. 603
Song By Voice
TM (SBV) .............................. 301
Spare Tire .......................................... 617, 649
Spark Plugs ................................................ 648
Specifications ............................................ 648
Specified Fuel .................................... 548, 648
Speedometer ............................................. 116
SRS Airbags (Airbags) ................................. 52
Starter System Indicator ............................. 93
Starting the Engine .......................... 458, 460
Does Not Start ......................................... 624
Engine Switch Buzzer....................... 169, 172
Jump Starting .......................................... 627
Steering Wheel ......................................... 192
Adjusting ................................................. 192
Stopping .................................................... 540
Summer Tires ............................................ 603
Sunglasses Holder ..................................... 219
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering Wheel) ............................................. 4, 5, 169
System Message Indicator .......................... 89
T
Tachometer............................................... 116
Tailgate ..................................................... 148
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 645 Temperature
Outside Temperature Display ........... 119, 126
Temperature Sensor ......................... 119, 126
Theft Protection ....................................... 232
Time (Setting) ........................................... 130
Tire Pressure Monitoring System (TPMS) ..................................................... 516
Button..................................................... 516
Indicator.................................................... 88
Tires ........................................................... 595
Air Pressure ..................................... 596, 649
Checking and Maintaining ...................... 595
Inspection ............................................... 595
Labeling .................................................. 596
Puncture (Flat Tire) .................................. 617
Regulations ............................................. 598
Rotation .................................................. 602
Spare Tire ........................................ 617, 649
Summer .................................................. 603
Tire Chains .............................................. 603
Wear Indicators ....................................... 600
Winter..................................................... 603
Tonneau Cover ......................................... 223
Tools .......................................................... 616
Towing a Trailer ....................................... 451
Equipment and Accessories ..................... 452
Load Limits .............................................. 451
Towing Your Vehicle ................................ 455
Behind a Motorhome .............................. 455
Emergency .............................................. 644 TPMS (Tire Pressure Monitoring
System) .................................................... 516
Button .................................................... 516
Indicator ................................................... 88
Transmission ............................................. 467
Continuously Variable ............................. 467
Fluid ....................................................... 581
Number .................................................. 650
Shift Lever Position Indicator ............. 84, 468
TRIP Knob ......................................... 117, 121
Trip Meter ........................................ 117, 121
Troubleshooting ...................................... 615
Blown Fuse ..................................... 640, 641
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 644
Engine Won’t Start ................................. 624
Noise When Braking ................................. 31
Overheating ............................................ 631
Puncture/Flat Tire .................................... 617
Rear Door Won’t Open ..................... 30, 143
Select Lever Won’t Move ........................ 630
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 552
Turn Signals .............................................. 174
Indicators (Instru ment Panel) ..................... 89
U
Under-floor Storage Area ....................... 212
Unlocking the Doors ................................ 135
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 668 ページ ２０１８年８月２２日　水曜日　午後２時５９分
