2019 HONDA CLARITY PLUG-IN child restraint

22
Quick Reference Guide
Safe Driving (P 41)
Airbags (P 54)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 69)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Before Driving Checklist (P 46)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 47)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
Exhaust Gas Hazard (P 82)
● Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined
spaces where carbon monoxide gas can accumulate.
19 CLARITY PHEV-31TRW6100.book 22 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

46
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive. Check if the ch arging cable is connected to the vehicle
and disconnect it if it is. The vehicle will not operate with the cable connected.
• After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 146
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 175
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front Head Restraints Positions P. 178
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 50
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 69
1Safety Checklist
If the door and/or trunk open message appears on
the driver information inte rface, a door and/or the
trunk is not completely cl osed. Close all doors and
the trunk tightly until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 113
19 CLARITY PHEV-31TRW6100.book 46 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

55
uuAirbags uAirbag System Components
Continued
Safe Driving
The front, driver’s knee, front side, and side
curtain airbags are de ployed according to
the direction and severity of impact. Both
side curtain airbags are deployed in a
rollover. The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bDriver’s knee airbag. The knee airbag is
stored under the steer ing column. It is
marked SRS AIRBAG .
cTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
dTwo side curtain ai rbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, abov e the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
eAn electronic control unit that, when the
power mode is in ON, continually
monitors information about the various
impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat
belt tensioners, and other vehicle
information. During a crash event the
unit can record such information.
fAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
gA driver’s seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
hWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
iImpact sensors that can detect a
moderate-to-severe front or side impact.
jAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
kAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
lA rollover sensor that can detect if your
vehicle is about to ro ll over and signal the
control unit to deploy both side curtain
airbags.
19 CLARITY PHEV-31TRW6100.book 55 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

Continued75
uuChild Safety uSafety of Infants and Small Children
Safe Driving
3. Open the tether anchor cover behind the
head restraint.
4. Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor.
Route the tether strap around the head
restraint and secure the tether strap hook
to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
Flexible Type
1 Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
rear center seat
Each outer rear seat is equi pped with a pair of lower
anchors which are used to secure a LATCH-
compatible child seat. The rear center seat, however,
is not equipped with anchors of any kind.
The inner and outer anchors are spaced apart at a
standard distance of 11 inches (280 mm). The
distance between the two inner anchors is 15.7
inches (400 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
3WARNING
Do not use the lower inner anchors of the
outer rear seats to secure a LATCH-
compatible child seat to the rear center
seat, unless the manufacturer’s instructions
for that system permit the use of inner
anchors with the stated spacing.
Tether
Strap
Hook
Anchor
Straight Top Tether Type
Tether
Strap
Hook
Anchor
Other Top Tether Type
Straight Top Tether Type
Other Top Tether Type
19 CLARITY PHEV-31TRW6100.book 75 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uuChild Safety uSafety of Infants and Small Children
78
Safe DrivingA tether anchorage point is provided behind
each rear seating position.
If you have a child seat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.
■Using an outer anchor
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
Route the tether strap around the head
restraint. Make sure the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
■Adding Security with a Tether1Adding Security with a Tether
Always use a tether for forward-facing child seats
when using the seat be lt or lower anchors.
Tether Anchorage Points
CoverAnchor
Tether
Strap
Hook
Anchor
Straight Top Tether Type
Other Top Tether TypeTether
Strap
Hook
Anchor
Straight Top Tether Type
Other Top Tether Type
19 CLARITY PHEV-31TRW6100.book 78 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

79
uuChild Safety uSafety of Infants and Small Children
Safe Driving

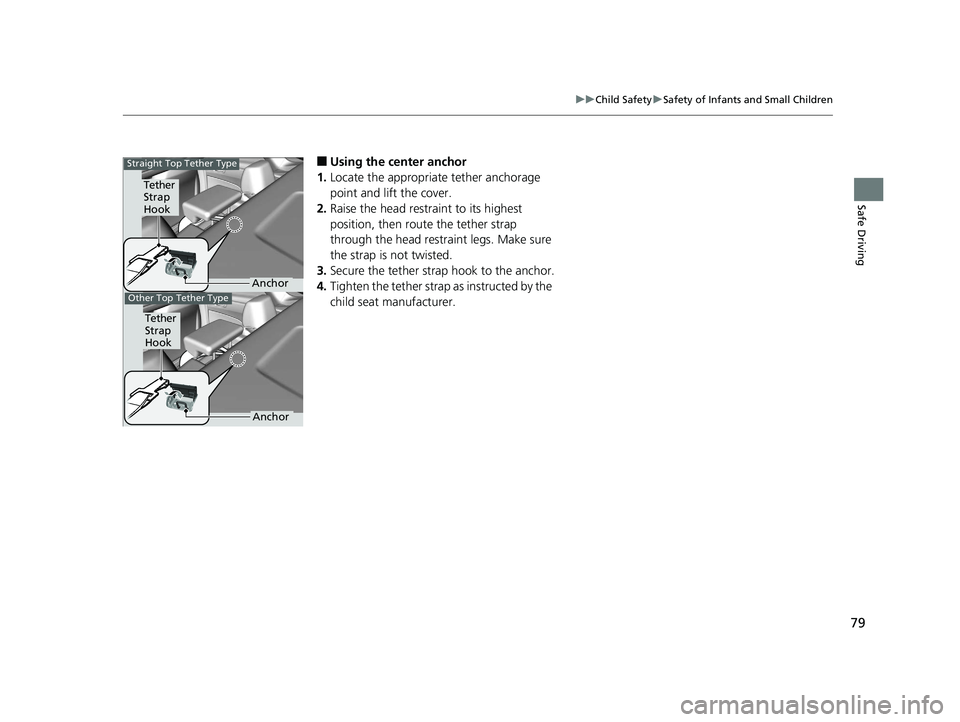

■Using the center anchor
1. Locate the appropriate tether anchorage
point and lift the cover.
2. Raise the head restraint to its highest
position, then route the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether
Strap
Hook
Anchor
Other Top Tether Type
Tether
Strap
Hook
Anchor
Straight Top Tether Type
19 CLARITY PHEV-31TRW6100.book 79 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

584
Index
I
Identification NumbersEngine, Motor, and Transmission ............. 570
Vehicle Identification ............................... 570
Immobilizer System .................................. 153
Indicator .................................................... 97
Indicators ..................................................... 86
12-Volt Battery Charging System ....... 90, 548
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................. 100, 403
Anti-lock Brake System (ABS) ..................... 93
Automatic Brake Hold........................ 87, 438
Automatic Brake Hold System ............ 87, 438
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 101, 102
Deceleration Paddle Selector ...................... 91
ECON Mode .............................................. 98
Electric Power Steering (EPS) System .. 94, 551
EV ............................................................. 89
Gear Position ............................................. 91
High Beam................................................. 97
HV ............................................................. 89
HV Charge................................................. 89
Immobilizer System .................................... 97
Lane Keeping Assist System (LKAS) .. 101, 420
Lights On ................................................... 97
Low Fuel .................................................... 91
Low Tire Pressure/TPMS ............. 96, 428, 430
Malfunction Indicator Lamp ....................... 90
Parking Brake and Brake System (Amber) ........................................... 88, 552 Parking Brake and Brake
System (Red)...................... 86, 87, 550, 552
POWER SYSTEM ........................................ 88
READY ...................................................... 90
Road Departure Mitigation (RDM) ............. 99
Seat Belt Reminder .............................. 49, 93
Security System Alarm ............................... 98
SPORT Mode ..................................... 98, 391
Supplemental Restraint System ............ 66, 94
System Message ........................................ 98
Transmission System.................................. 92
Turn Signal and Hazard Warning ............... 97
Vehicle Stability Assist ® (VSA ®) OFF .... 95, 426
Vehicle Stability Assist ® (VSA ®)
System ............................................ 95, 425
Information .............................................. 567
Instant Fuel Economy ............................... 127
Instrument Panel ........................................ 85
Interior Lights ........................................... 183
Interior Rearview Mirror .......................... 173
iPod ........................................................... 255
J
Jacking Points ........................................... 536
Jump Starting ........................................... 541
K
Key Number Tag ....................................... 138
Keyless Lockout Prevention ..................... 145Keys
........................................................... 137
Lockout Prevention ................................. 145
Number Tag............................................ 138
Rear Door Won’t Open ........................... 148
Remote Transmitter ................................ 143
Types and Functions................................ 137
Kickdown .................................................. 383
L
Lane Keeping Assist System (LKAS) ........ 418
LaneWatchTM............................................ 432
LATCH (Child Seats) ................................... 74
Lights ................................................ 162, 496
Automatic............................................... 163
Bulb Replacement ................................... 496
Daytime Running Lights .......................... 165
High Beam Indicator ................................. 97
Interior.................................................... 183
Light Switches......................................... 162
Lights On Indicator.................................... 97
Turn Signals ............................................ 161
Load Limits ............................................... 375
Locking/Unlocking ................................... 137
Auto Door Locking/Unlocking ................. 149
Childproof Door Locks ............................ 148
From Inside ............................................. 146
From Outside .......................................... 139
Keys........................................................ 137
Using a Key............................................. 144
Lockout Prevention System ..................... 145
19 CLARITY PHEV-31TRW6100.book 584 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

586
Index
R
Radiator..................................................... 491
Radio (FM/AM) .......................................... 243
Radio (SiriusXM ®)...................................... 247
Radio Data System (RDS) .......................... 245
Range ................................................ 121, 129
RDS (Radio Data System) .......................... 245
Readiness Codes (Emissions Testing) ....... 573
READY Indicator ......................................... 90
Rear Defogger Button .............................. 169
Rear Seats .................................................. 181
Rearview Mirror ........................................ 173
Refueling ................................................... 454
Fuel Gauge .............................................. 121
Gasoline .......................................... 454, 568
Low Fuel Indicator ..................................... 91
Regulations ....................... 430, 467, 504, 571
Remote Transmitter .................................. 143
Replacement
Battery..................................................... 512
Bulbs ....................................................... 496
Fuses ............................................... 555, 558
Tires ........................................................ 507
Wiper Blade Rubber ................................. 498
Reporting Safety Defects ......................... 572
Resetting a Trip Meter ............................. 126
Road Departure Mitigation (RDM) .......... 398
On and Off .............................................. 400
S
Safe Driving ................................................ 41
Safety Checklist .......................................... 46
Safety Labels ............................................... 83
Safety Message ............................................. 3
Seat Belts .................................................... 47
Adjusting the Shoulder Anchor.................. 51
Automatic Seat Belt Tensioners ................. 49
Checking................................................... 53
Fastening .................................................. 50
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 76
Pregnant Women ...................................... 52
Reminder ............................................ 49, 93
Warning Indicator ............................... 49, 93
Seat Heaters .............................................. 191
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats .............................................. 175
Rear Seats ............................................... 181
Seat Heaters ............................................ 191
Security System ......................................... 153
Immobilizer System Indicator ..................... 97
Security System Alarm Indicator................. 98
Selecting a Child Seat ................................. 73
Setting the Clock ...................................... 136
Shift Button ........................................ 31, 384
Operation................................................ 386
Shifting (Transmission) ....................... 31, 384
Shoulder Anchor ........................................ 51
Side Airbags ................................................ 63 Side Curtain Airbags
.................................. 65
Siri Eyes Free ............................................. 276
SiriusXM ® Radio ............................... 247, 288
Smart Entry System .................................. 139
Snow Tires ................................................ 509
Song By Voice
TM (SBV) .............................. 258
Specifications ........................................... 568
Specified Fuel ................................... 454, 568
SPORT HYBRID i-MMD Plug-in (Intelligent Multi-mode Drive Plug-in) ....................... 11
SPORT Mode ............................................. 391
SPORT Mode Indicator ....................... 98, 391
SRS Airbags (Airbags) ................................ 57
Status Area ............................................... 232
Steering Wheel Adjusting ................................................ 172
Stopping ................................................... 450
Summer Tires ............................................ 509
Sunglasses Holder .................................... 192
Supplemental Restraint System (SRS) ....... 57
Switches (Around the Steering Wheel) ............................................ 6, 7, 158
Synchronization Mode ............................ 198
System Message Indicator ......................... 98
T
Telematics Control Unit........................... 133
Temperature Sensor ................................ 201
Temporary Tire Repair Kit ....................... 525
Time (Setting) ........................................... 136
19 CLARITY PHEV-31TRW6100.book 586 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
