2019 HONDA CLARITY FUEL CELL stop start

uuBraking uBrake System
428
Driving

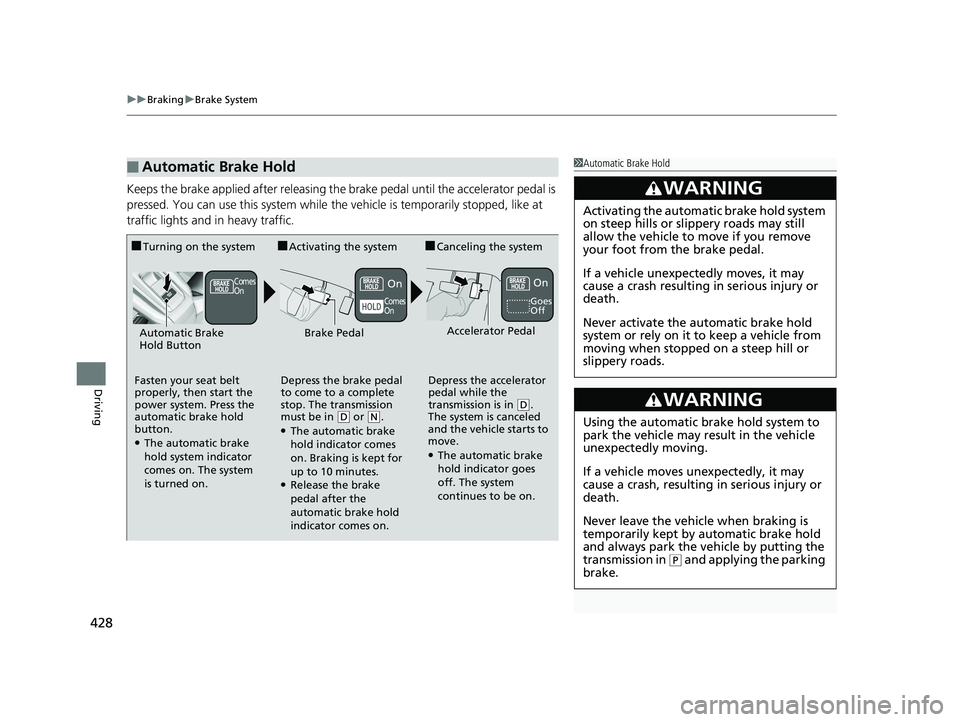

Keeps the brake applied after releasing the br ake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake
pedal after the
automatic brake hold
indicator comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission is in
( D.
The system is canceled
and the vehicle starts to
move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On OnComes
On
Comes
On
19 CLARITY FCV CSS-31TRT6200.book 428 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

432
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Driving

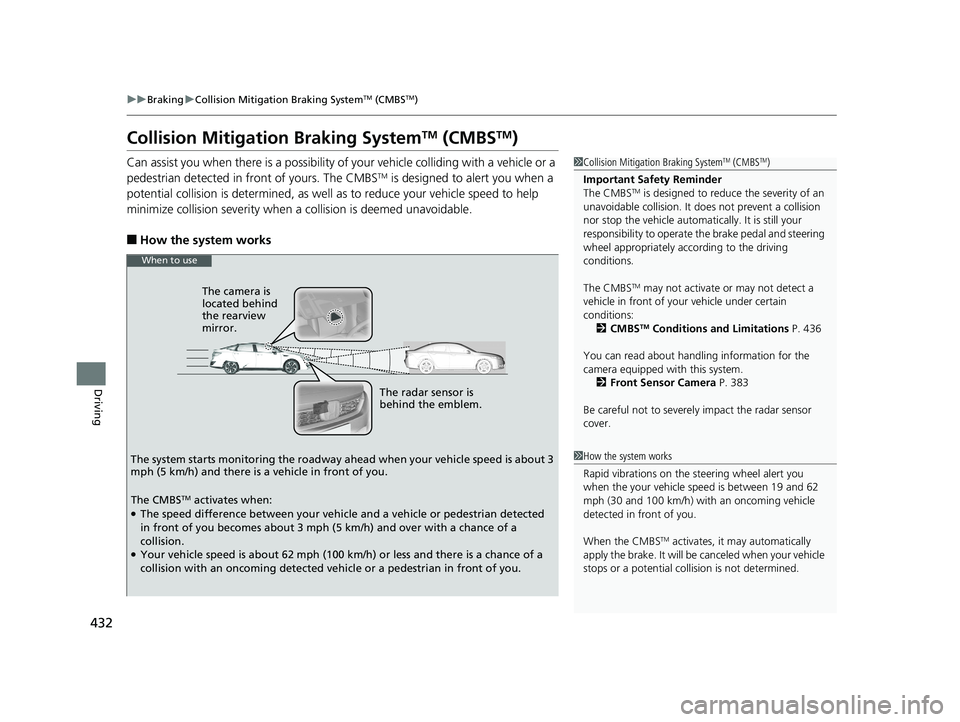

Collision Mitigati on Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 436
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 383
Be careful not to severely impact the radar sensor
cover.
1 How the system works
Rapid vibrations on the steering wheel alert you
when the your vehicle speed is between 19 and 62
mph (30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
The radar sensor is
behind the emblem.
The camera is
located behind
the rearview
mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about 3
mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you.
19 CLARITY FCV CSS-31TRT6200.book 432 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

505
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected

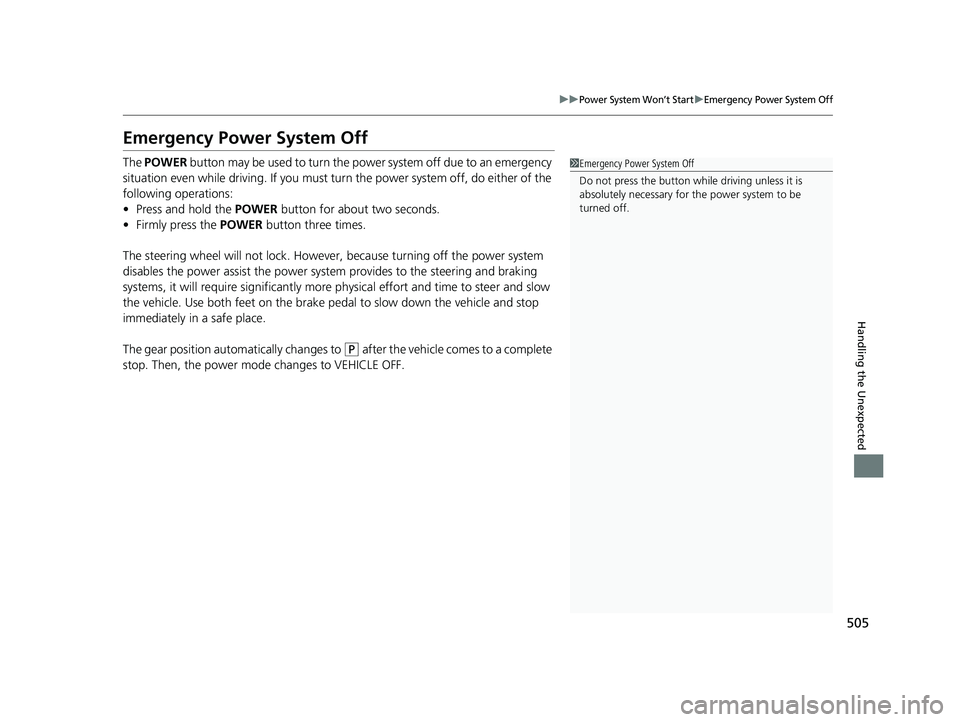

Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The gear position auto matically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the button while driving unless it is
absolutely necessary for the power system to be
turned off.
19 CLARITY FCV CSS-31TRT6200.book 505 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

uuOverheating uHow to Handle Overheating
510
Handling the Unexpected
■Next thing to do
Inspect the coolant level, and check the
cooling system components for leaks.u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
expansion tank cap with a heavy cloth
and open the cap. If necessary, add
coolant up to the base of the filler neck,
and put the cap back on.
■Last thing to do
Turn the power system on, if the message Power System Problem. Stop Driving
When Safe disappears from the driver informatio n interface after you have started
the power system, resume driving.
If the message does not disappear, contact an authorized Honda Clarity Fuel Cell
dealer.
1 How to Handle Overheating
If the coolant is leaking, contact an authorized Honda
Clarity Fuel Cell dealer for repairs.
Continuing to drive with the Power System
Problem. Stop Driving When Safe message on the
driver information interf ace may damage the motor.
3WARNING
Removing the expansion tank cap while the
power system is hot can cause the coolant
to spray out, seriously scalding you.
Always let the motor and radiator cool
down before removing the expansion tank
cap.
3CAUTION
Never pour water or other commercial
coolants into the inve rter coolant reserve
tank. Doing so will cause damage to the
motor.
MAX
Inverter Coolant
Reserve TankMIN
19 CLARITY FCV CSS-31TRT6200.book 510 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

513
Handling the Unexpected

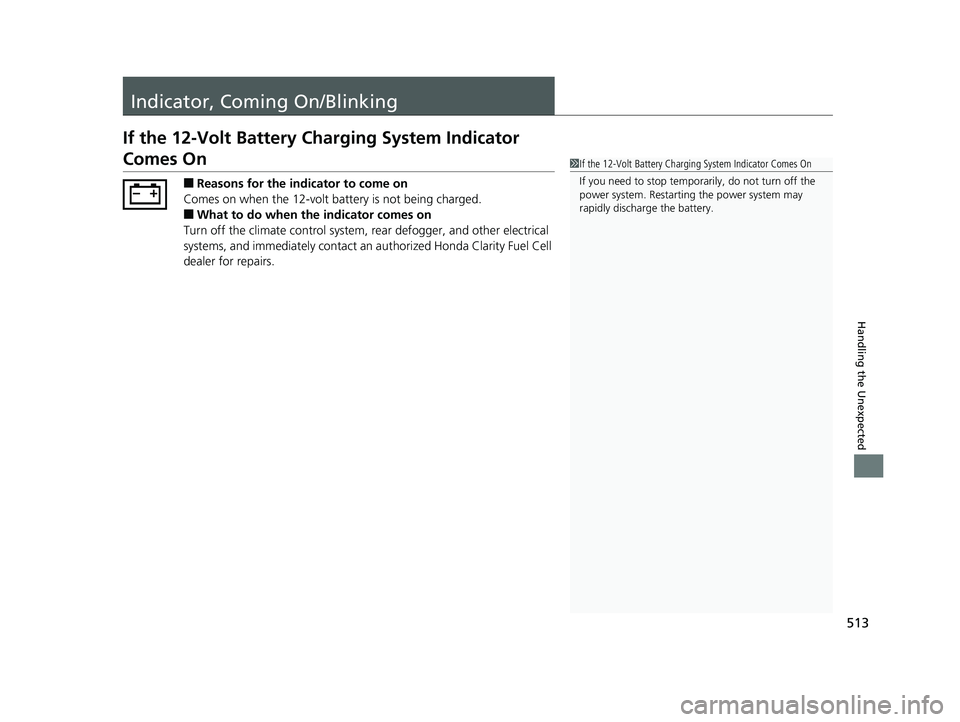

Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact an authorized Honda Clarity Fuel Cell
dealer for repairs.
1 If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
19 CLARITY FCV CSS-31TRT6200.book 513 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

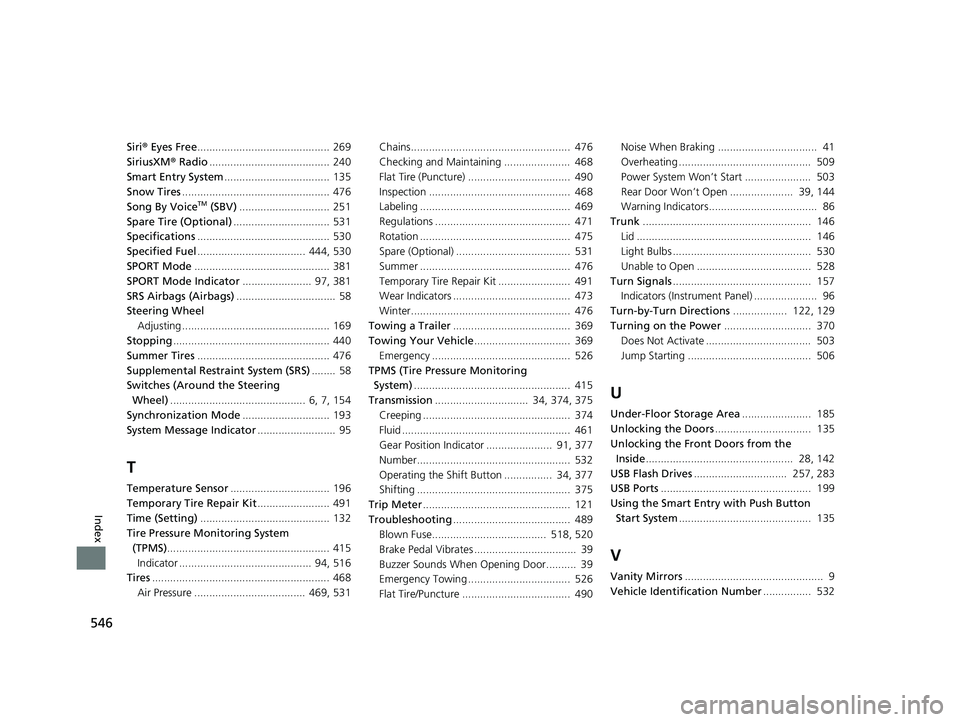

546
Index
Siri® Eyes Free ............................................ 269
SiriusXM ® Radio ........................................ 240
Smart Entry System ................................... 135
Snow Tires ................................................. 476
Song By Voice
TM (SBV) .............................. 251
Spare Tire (Optional) ................................ 531
Specifications ............................................ 530
Specified Fuel .................................... 444, 530
SPORT Mode ............................................. 381
SPORT Mode Indicator ....................... 97, 381
SRS Airbags (Airbags) ................................. 58
Steering Wheel Adjusting ................................................. 169
Stopping .................................................... 440
Summer Tires ............................................ 476
Supplemental Restraint System (SRS) ........ 58
Switches (Around the Steering
Wheel) ............................................. 6, 7, 154
Synchronization Mode ............................. 193
System Message Indicator .......................... 95
T
Temperature Sensor................................. 196
Temporary Tire Repair Kit ........................ 491
Time (Setting) ........................................... 132
Tire Pressure Monitoring System
(TPMS) ...................................................... 415
Indicator ............................................ 94, 516
Tires ........................................................... 468
Air Pressure ..................................... 469, 531 Chains..................................................... 476
Checking and Maintaining ...................... 468
Flat Tire (Puncture) .................................. 490
Inspection ............................................... 468
Labeling .................................................. 469
Regulations ............................................. 471
Rotation .................................................. 475
Spare (Optional) ...................................... 531
Summer .................................................. 476
Temporary Tire Re
pair Kit ........................ 491
Wear Indicators ....................................... 473
Winter..................................................... 476
Towing a Trailer ....................................... 369
Towing Your Vehicle ................................ 369
Emergency .............................................. 526
TPMS (Tire Pressure Monitoring System) .................................................... 415
Transmission ............................... 34, 374, 375
Creeping ................................................. 374
Fluid ........................................................ 461
Gear Position Indicator ...................... 91, 377
Number................................................... 532
Operating the Shift Button ................ 34, 377
Shifting ................................................... 375
Trip Meter ................................................. 121
Troubleshooting ....................................... 489
Blown Fuse...................................... 518, 520
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door.......... 39
Emergency Towing .................................. 526
Flat Tire/Puncture .................................... 490 Noise When Braking ................................. 41
Overheating ............................................ 509
Power System Won’t Start ...................... 503
Rear Door Won’t Open ..................... 39, 144
Warning Indicators.................................... 86
Trunk ........................................................ 146
Lid .......................................................... 146
Light Bulbs .............................................. 530
Unable to Open ...................................... 528
Turn Signals .............................................. 157
Indicators (Instru ment Panel) ..................... 96
Turn-by-Turn Directions .................. 122, 129
Turning on the Power ............................. 370
Does Not Activate ................................... 503
Jump Starting ......................................... 506
U
Under-Floor Storage Area ....................... 185
Unlocking the Doors ................................ 135
Unlocking the Fron t Doors from the
Inside ................................................. 28, 142
USB Flash Drives ............................... 257, 283
USB Ports .................................................. 199
Using the Smart Entr y with Push Button
Start System ............................................ 135
V
Vanity Mirrors .............................................. 9
Vehicle Identification Number ................ 532
19 CLARITY FCV CSS-31TRT6200.book 546 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分
