2019 HONDA CIVIC HATCHBACK sensor

543
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wrong size, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved, winding or und ulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in fr ont of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 543 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

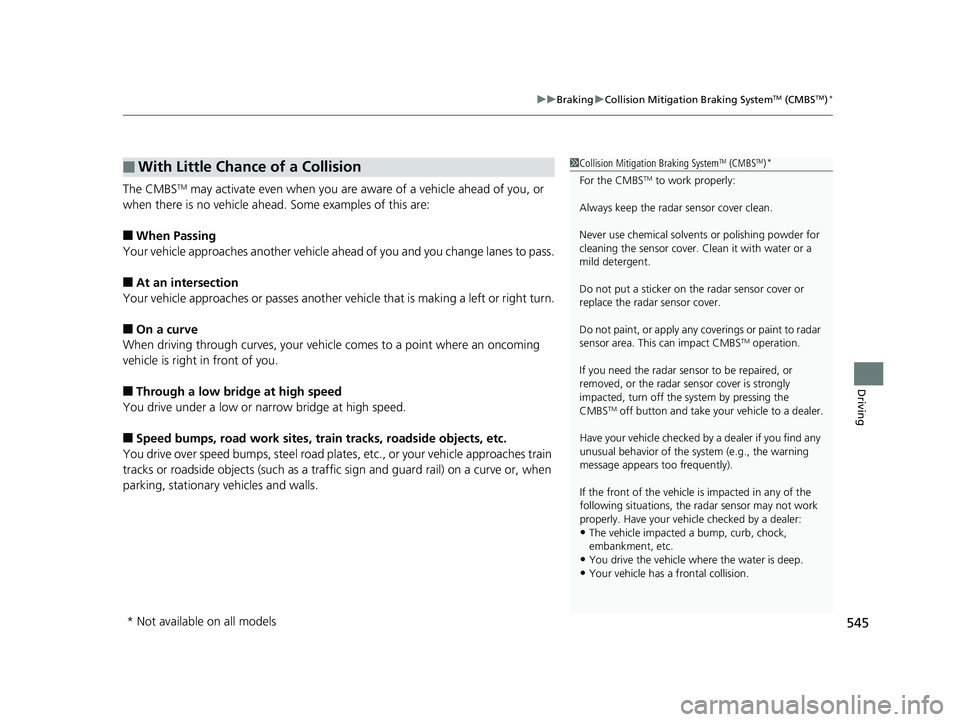

545
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
The CMBSTM may activate even when you are aware of a vehicle ahead of you, or
when there is no vehicle ahead. Some examples of this are:
■When Passing
Your vehicle approaches another vehicle ah ead of you and you change lanes to pass.
■At an intersection
Your vehicle approaches or passes another ve hicle that is making a left or right turn.
■On a curve
When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
■Through a low bridge at high speed
You drive under a low or na rrow bridge at high speed.
■Speed bumps, road work sites, train tracks, roadside objects, etc.
You drive over speed bumps, st eel road plates, etc., or your vehicle approaches train
tracks or roadside objects (such as a traffic sign and guard rail) on a curve or, when
parking, stationary vehicles and walls.
■With Little Chance of a Collision1 Collision Mitigation Braking SystemTM (CMBSTM)*
For the CMBSTM to work properly:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
Do not paint, or apply any coverings or paint to radar
sensor area. This can impact CMBS
TM operation.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the
CMBS
TM off button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
•The vehicle impacted a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 545 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

608
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have you
vehicle inspected by a dealer.
Check the battery te rminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 225
•The clock* resets.
2 Adjusting the Clock P. 142
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 91
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
Canadian models only
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 608 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuCleaning uInterior Care
614
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over the floor
anchors, which keep the mat from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
2 Automatic Operation (automatic lighting
control) P. 175
2 Automatic Intermittent Wipers
* P. 182
2 Front Sensor Camera* P. 472
Models with front sensor camera
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock Unlock
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 614 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

623Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface, and apply the parking
brake.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations
(Instead, contact a dealer or roadside assistance to
have the vehicle towed):
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Use Kit
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 623 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

664
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 664 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Index
685
Index
Index
Numbers
7-Speed Manual Shift Mode................... 459
A
ABS (Anti-lock Brake System) .................. 535
Accelerator Position Meter ..................... 126
Accessories and Modifications ................ 619
Accessory Power Socket ........................... 204
Adaptive Cruise Control (ACC) ................ 490
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) ................... 96, 474
Adding the Coolant ................................. 578
Additives Coolant .................................................. 577
Engine Oil ............................................... 570
Washer ................................................... 581
Additives, Engine Oil ............................... 570
Adjusting Armrest .................................................. 196
Clock ...................................................... 142
Front Head Restraints .............................. 192
Front Seats.............................................. 189
Mirrors.................................................... 187
Rear Seats ............................................... 195
Steering Wheel ....................................... 186
Temperature ........................................... 124
Adjusting the Clock ................................. 142
Adjusting the Sound ................................ 234
Agile Handling Assist ............................... 519 Air Conditioning System (Climate Control
System) .................................................... 213
Changing the Mode ................................ 216
Defrosting the Windshield and Windows ............................................... 217
Dust and Pollen Filter ............................... 612
Recirculation/Fresh Air Mode ................... 216
Sensor ..................................................... 220
Using Automatic Climate Control ............ 213
Air Pressure ....................................... 598, 673
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 86
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio ............................................ 276
Android Auto ............................................ 313
Anti-lock Brake System (ABS) .................. 535
Indicator .................................................... 86
Apple CarPlay ........................................... 310
Armrest ..................................................... 196
Audio Remote Controls ............................ 226
Audio System .................................... 222, 247
Adjusting the Sound ........................ 234, 269
Android Auto .......................................... 313 Apple CarPlay.......................................... 310
Audio/Information Screen........................ 248
Bluetooth
® Audio ............................ 244, 300
Changing the Home Screen Icon Layout .. 252
Changing the Screen Interface ................ 266
Closing Apps ........................................... 268
Customizing the Meter............................ 252
Display Setup .......................................... 270
Error Messages ........................................ 317
General Information ................................ 321
Home Screen........................................... 258
HondaLink ®............................................. 302
iPod ................................................ 238, 288
Limitations for Manual Operation ............ 271
Menu Customize ..................................... 267
MP3/WMA/AAC .............................. 241, 297
Pandora ®................................................. 295
Reactivating ............................................ 225
Recommended Devices............................ 323
Remote Controls ..................................... 226
Security Code .......................................... 225
Selecting an Audio Source ....................... 271
Siri Eyes Free ........................................... 309
SiriusXM ® Radio ...................................... 280
Song By Voice
TM (SBV) ............................. 291
Status Area ............................................. 265
Theft Protection ...................................... 225
USB Flash Drives ...................... 241, 297, 323
USB Port(s) .............................................. 223
Voice Control Operation.......................... 272
Wallpaper Setup...................................... 256
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 685 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

686
Index
Wi-Fi Connection ..................................... 307
Audio/Information Screen ................ 230, 248
Authorized Manuals ................................. 682
Auto Door Locking/Unlocking ................. 157
Customize ............................................... 136
Auto High-Beam ....................................... 178
Automatic Brake Hold .............................. 532
Indicator ............................................ 81, 532
Automatic Brake Hold System Indicator ............................................ 81, 532
Automatic Lighting .................................. 175
Average Fuel Economy ............................. 123
Average Speed .......................................... 123
B
Battery....................................................... 608
Charging System Indicator ................. 82, 655
Jump Starting .......................................... 649
Maintenance (Checking the Battery) ........ 608
Maintenance (Replacing).......................... 610
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 201
Bluetooth ® Audio ..................................... 300
Bluetooth ® HandsFreeLink ®............. 376, 403
Booster Seats (For Children) ....................... 73
Brake System ............................................. 528
Anti-lock Brake System (ABS) ................... 535
Automatic Brake Hold.............................. 532
Brake Assist System ................................. 536
Fluid ........................................................ 580 Foot Brake............................................... 531
Indicator (Red) ........................... 78, 657, 658
Parking Brake .......................................... 528
Braking Pressure Meter ............................ 126
Brightness Control (Instrument Panel) .... 184
Bulb Replacement .................................... 582
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 590
Fog Lights ............................................... 584
Front Side Marker Lights.......................... 587
Front Turn Signal Lights ........................... 586
Headlights ............................................... 582
High-Mount Brake Light .......................... 591
Parking/Daytime Running Lights .............. 589
Rear License Plate Light ........................... 591
Side Turn Signal/Emergency Indicator Lights .................................................... 589
Taillights.................................................. 591
Taillights/Rear Side Marker Lights ............ 591
Bulb Specifications ................................... 672
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 209
Cargo Hook ............................................... 208
Carrying Cargo ................................. 439, 441
Certification Label .................................... 674
Changing Bulbs ........................................ 582
Charging System Indicator ................. 82, 655Child Safety
................................................ 60
Childproof Door Locks ............................ 156
Child Seat ................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 156
Cleaning the Exterior ............................... 616
Cleaning the Interior ............................... 613
Climate Control System ........................... 213
Changing the Mode................................ 213
Defrosting the Windshield and Windows .............................................. 217
Dust and Pollen Filter .............................. 612
Recirculation/Fresh Air Mode................... 216
Sensors ................................................... 220
Using Automatic Climate Control............ 213
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 537
Coat Hooks ............................................... 207
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 537
Compact Spare Tire .......................... 636, 673
Console Compartment ............................. 200
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 686 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
