635
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 635 ページ 2018年10月25日 木曜日 午後4時12分
636
uuIf a Tire Goes FlatuChanging a Flat Tire
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possibl e to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Vehicles with a compact spare tire
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
The subwoofer
*, a large black enclosure, is located
on the rear right side. Do not store anything in this
area. Doing so may compromise vehicle audio
performance.
Continuously variable transmission models
Manual transmission models
All models
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 636 ページ 2018年10月25日 木曜日 午後4時12分
646
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the dr iver information interface.●If the To Start, Hold Remote Near Start Button message appears2If the Smart Entry Remote Battery is Weak P. 647
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 170
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 608●If the interior lights come on normally2 Fuses P. 661
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 445
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 161
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 117
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 665
If the problem continues:2Emergency Towing P. 666
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 649
Models with smart entry system
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 646 ページ 2018年10月25日 木曜日 午後4時12分
666
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage to the vehicle. The bumpers
are not designed to suppor t the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported with flat bed equipment.
2 Parking Brake P. 528
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 666 ページ 2018年10月25日 木曜日 午後4時12分
667
Handling the Unexpected

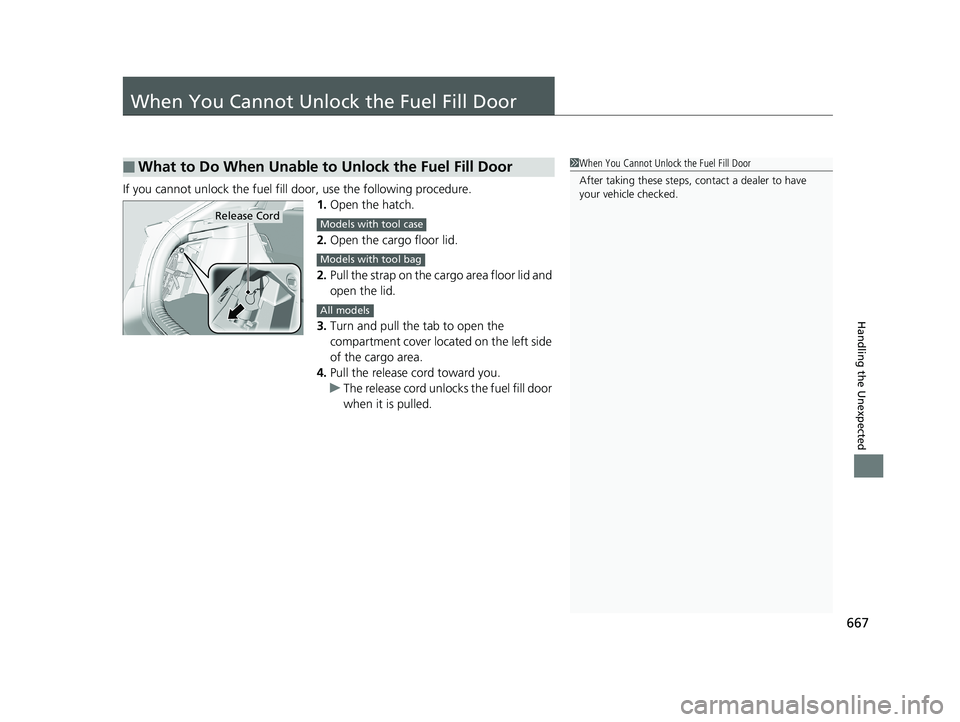

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the hatch.
2. Open the cargo floor lid.
2. Pull the strap on the cargo area floor lid and
open the lid.
3. Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
4. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release CordModels with tool case
Models with tool bag
All models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 667 ページ 2018年10月25日 木曜日 午後4時12分
692
Index
Song By VoiceTM (SBV).............................. 291
Spare Tire .......................................... 636, 673
Spark Plugs ................................................ 672
Specifications ............................................ 672
Specified Fuel .................................... 550, 672
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 445, 448
Does Not Start ......................................... 646
Engine Switch Buzzer............................... 169
Jump Starting .......................................... 649
Remote Engine Start ................................ 450
Steering Wheel Adjusting ................................................. 186
Stopping .................................................... 546
Stopwatch ................................................. 127
Summer Tires ............................................ 605
Supplemental Restraint System (SRS) ........ 49
Switches (Around the Steering
Wheel) ............................................. 4, 5, 169
System Message Indicator .......................... 89
T
Tachometer............................................... 117
Temperature Outside Temperature Display ................... 124
Temperature Sensor ................................. 124
Temporary Tire Repair Kit ........................ 624
Tie-down Anchors ..................................... 208
Time (Setting) ........................................... 142 Tire Pressure Monitoring System
(TPMS) ..................................................... 523
Indicator............................................ 88, 660
Tires ........................................................... 597
Air Pressure ..................................... 598, 673
Checking and Maintaining ...................... 597
Inspection ............................................... 597
Labeling .................................................. 598
Puncture (Flat Tire) .................................. 623
Regulations ............................................. 600
Rotation .................................................. 604
Spare Tire ........................................ 636, 673
Summer .................................................. 605
Temporary Tire Re pair Kit ........................ 624
Tire Chains .............................................. 605
Wear Indicators ....................................... 602
Winter..................................................... 605
Tools .......................................................... 622
Towing Your Vehicle
Emergency .............................................. 666
TPMS (Tire Pressure Monitoring
System) .................................................... 523
Indicator............................................ 88, 660
Transmission ..................................... 455, 462
Continuously Variable Transmission ......... 455
Fluid ........................................................ 579
Manual ................................................... 462
Shift Lever Position Indicator...... 83, 456, 458
Trip Meter ................................................. 122
Troubleshooting ....................................... 621
Blown Fuse...................................... 661, 663 Brake Pedal Vibrates ................................. 28
Buzzer Sounds When Opening Door ......... 29
Emergency Towing ................................. 666
Engine Won’t Start ................................. 646
Noise When Braking ................................. 30
Overheating ............................................ 653
Premium Gasoline ................................... 672
Puncture/Flat Tire .................................... 623
Rear Door Won’t Open ..................... 29, 156
Select Lever Won’t Move ........................ 652
Warning Indicators.................................... 78
Turbo Engine Vehicle .............................. 555
Turbo Meter ............................................. 124
Turn Signals .............................................. 174
Indicators (Instru ment Panel) ..................... 89
Turn-by-Turn Directions .......................... 125
U
Unlocking the Doors................................ 145
Unlocking the Fron t Doors from the
Inside ....................................................... 154
USB Adapter Cable .................................. 222
USB Flash Drives ............................... 297, 323
USB Port(s) ................................................ 223
Using the Smart Entr y with Push Button
Start System ............................................ 145
V
Vanity Mirrors .............................................. 7
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 692 ページ 2018年10月25日 木曜日 午後4時12分
