2019 HONDA CIVIC HATCHBACK check engine light

646
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the dr iver information interface.●If the To Start, Hold Remote Near Start Button message appears2If the Smart Entry Remote Battery is Weak P. 647
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 170
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 608●If the interior lights come on normally2 Fuses P. 661
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 445
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 161
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 117
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 665
If the problem continues:2Emergency Towing P. 666
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 649
Models with smart entry system
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 646 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

649Continued
Handling the Unexpected
Jump Starting
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jumper cable to your
vehicle’s battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
1.5 L engine models
2.0 L engine models
Booster Battery
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 649 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuJump Starting uJump Starting Procedure
650
Handling the Unexpected
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not conn ect this jumper cable
to any other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.1Jump Starting
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.1.5 L engine models
2.0 L engine models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 650 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

655
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 571
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Immediately stop
the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 655 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

657
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 658
If you repeatedly operate th e electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada
(Red)
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 657 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

665
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 661 to P. 664
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 665 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

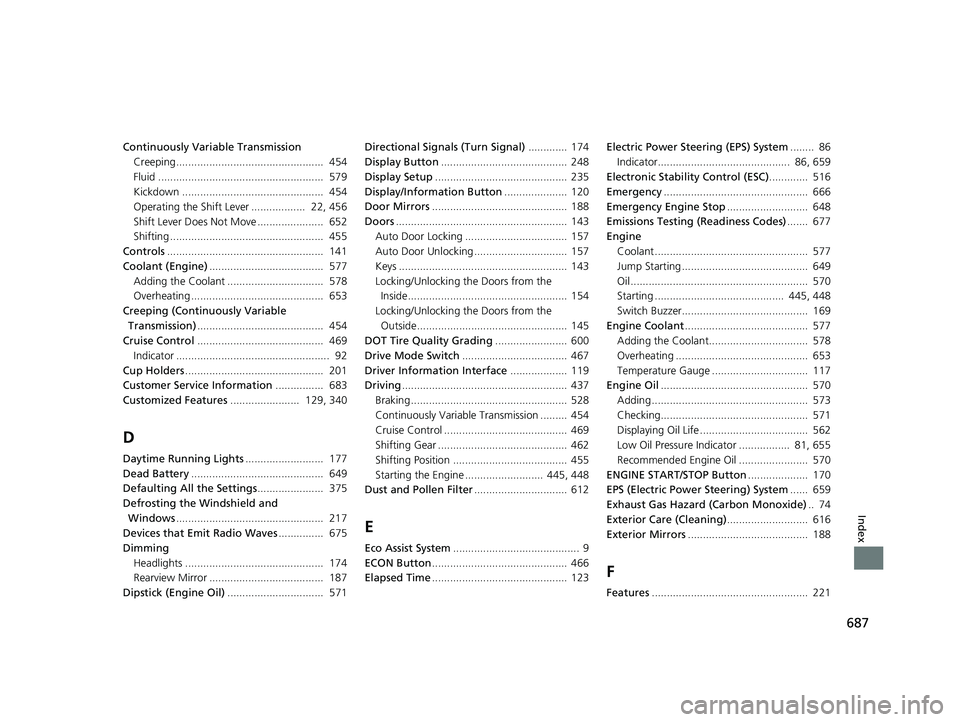

687
Index
Continuously Variable TransmissionCreeping................................................. 454
Fluid ....................................................... 579
Kickdown ............................................... 454
Operating the Shift Lever .................. 22, 456
Shift Lever Does Not Move ...................... 652
Shifting ................................................... 455
Controls .................................................... 141
Coolant (Engine) ...................................... 577
Adding the Coolant ................................ 578
Overheating ............................................ 653
Creeping (Continuously Variable Transmission) .......................................... 454
Cruise Control .......................................... 469
Indicator ................................................... 92
Cup Holders .............................................. 201
Customer Service Information ................ 683
Customized Features ....................... 129, 340
D
Daytime Running Lights .......................... 177
Dead Battery ............................................ 649
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 675
Dimming Headlights .............................................. 174
Rearview Mirror ...................................... 187
Dipstick (Engine Oil) ................................ 571 Directional Signals (Turn Signal)
............. 174
Display Button .......................................... 248
Display Setup ............................................ 235
Display/Information Button ..................... 120
Door Mirrors ............................................. 188
Doors ......................................................... 143
Auto Door Locking .................................. 157
Auto Door Unlocking ............................... 157
Keys ........................................................ 143
Locking/Unlocking the Doors from the Inside..................................................... 154
Locking/Unlocking the Doors from the Outside.................................................. 145
DOT Tire Quality Grading ........................ 600
Drive Mode Switch ................................... 467
Driver Information Interface ................... 119
Driving ....................................................... 437
Braking .................................................... 528
Continuously Variable Transmission ......... 454
Cruise Control ......................................... 469
Shifting Gear ........................................... 462
Shifting Position ...................................... 455
Starting the Engine .......................... 445, 448
Dust and Pollen Filter ............................... 612
E
Eco Assist System.......................................... 9
ECON Button ............................................. 466
Elapsed Time ............................................. 123 Electric Power Steering (EPS) System
........ 86
Indicator............................................ 86, 659
Electronic Stability Control (ESC) ............. 516
Emergency ................................................ 666
Emergency Engine Stop ........................... 648
Emissions Testing (Readiness Codes) ....... 677
Engine Coolant ................................................... 577
Jump Starting .......................................... 649
Oil ........................................................... 570
Starting ........................................... 445, 448
Switch Buzzer.......................................... 169
Engine Coolant ......................................... 577
Adding the Coolant................................. 578
Overheating ............................................ 653
Temperature Gauge ................................ 117
Engine Oil ................................................. 570
Adding .................................................... 573
Checking................................................. 571
Displaying Oil Life .................................... 562
Low Oil Pressure Indicator ................. 81, 655
Recommended Engine Oil ....................... 570
ENGINE START/STOP Button .................... 170
EPS (Electric Power Steering) System ...... 659
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 616
Exterior Mirrors ........................................ 188
F
Features.................................................... 221
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 687 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

690
Index
Lights................................................. 174, 582
Automatic ............................................... 175
Bulb Replacement .................................... 582
Daytime Running Lights ........................... 177
Fog Lights ................................................ 177
High Beam Indicator .................................. 89
Interior .................................................... 197
Light Switches ......................................... 174
Lights On Indicator .................................... 89
Turn Signals ............................................. 174
Limited Slip Differential (LSD) ................. 520
Load Limits ................................................ 441
Locking/Unlocking .................................... 143
Auto Door Locking/Unlocking .................. 157
Childproof Door Locks ............................. 156
From Inside .............................................. 154
From Outside ........................................... 145
Keys ........................................................ 143
Using a Key ............................................. 152
Low Battery Charge .................................. 655
Low Fuel Indicator ...................................... 85
Low Oil Pressure Indicator ................. 81, 655
Low Smart Entry Remote Signal Strength ................................................... 144
Lower Anchors ............................................ 65
Luggage (Maximum Load Limit) .............. 441
M
Maintenance............................................. 557
Adding the Coolant ................................. 578 Battery .................................................... 608
Brake/Clutch Fluid ................................... 580
Cleaning ................................................. 613
Climate Control System ........................... 612
Coolant ................................................... 577
Maintenance Minder
TM............................ 561
Oil ........................................................... 571
Precautions ............................................. 558
Remote Transmitter ................................. 610
Replacing Light Bulbs .............................. 582
Safety...................................................... 559
Service Items ........................................... 564
Tires ........................................................ 597
Transmission Fluid ................................... 579
Under the Hood ...................................... 567
Malfunction Indicator Lamp .............. 82, 656
Manual Transmission ............................... 462
Map Lights ................................................ 198
Maximum Load Limit ............................... 441
Meters, Gauges ......................................... 117
Mirrors ...................................................... 187
Adjusting ................................................ 187
Door ....................................................... 188
Exterior ................................................... 188
Interior Rearview ..................................... 187
Modifications (and Accessories) .............. 619
Moonroof ................................................. 168
MP3 ................................................... 241, 297
Multi-View Rear Camera .......................... 548
N
Numbers (Identification) ......................... 674
O
Odometer................................................. 122
Oil (Engine) .............................................. 570
Adding ................................................... 573
Checking ................................................ 571
Displaying Oil Life ................................... 562
Low Oil Pressure Indicator ................. 81, 655
Recommended Engine Oil ....................... 570
Viscosity.................................................. 570
Open Source Licences .............................. 338
Opening Hatch...................................................... 668
Opening/Closing Hatch...................................................... 158
Hood ...................................................... 569
Moonroof ............................................... 168
Power Windows...................................... 165
Outside Temperature Display ................. 124
Overheating ............................................. 653
P
Paddle Shifters (7-Speed
Manual Shift Mode) ................. 23, 459, 460
Pandora® .................................................. 295
Panic Mode ............................................... 164
Parking ..................................................... 546
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 690 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
