2019 HONDA CIVIC COUPE jump start

Contents
Child Safety P. 60Exhaust Gas Hazard P. 73Safety Labels P. 74
Opening and Closing the Trunk P. 150 Security System P. 153 Opening and Closing the Windows P. 156
Operating the Switches Around the Steering Wheel P. 160 Adjusting the Mirrors P. 178
Interior Lights/Interior Convenience It ems P. 190 Climate Control System P. 202
Audio Error Messages P. 307General Information on the Audio System P. 310
Bluetooth ® HandsFreeLink ® P. 365, 391
When Driving P. 432 Honda Sensing®* P. 468 Braking P. 527
Refueling P. 539 Fuel Economy and CO
2 Emissions P. 542 Turbo Engine Vehicle* P. 543
Maintenance Under the Hood P. 555 Replacing Light Bulbs P. 570
Checking and Maintaining Tires P. 582 Battery P. 592 Remote Transmitter Care P. 594
Cleaning P. 597 Accessories and Modifications P. 602
Engine Does Not Start P. 626 Jump Starting P. 629 Shift Lever Does Not Move P. 632
Fuses P. 641 Emergency Towing P. 645 When You Cannot Unlock the Fuel Fill Door P. 646
Devices that Emit Radio Waves P. 655 Reporting Safety Defects P. 656
Authorized Manuals P. 661 Customer Service Information P. 662
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 75
ControlsP. 133
FeaturesP. 211
DrivingP. 425
MaintenanceP. 545
Handling the UnexpectedP. 605
InformationP. 649
IndexP. 663
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 3 ページ ２０１８年９月４日　火曜日　午後１時３８分

Quick Reference Guide
27
Handling the Unexpected (P 605)
Flat Tire (P 607, 614)
● Park in a safe location and replace the
flat tire with the compact spare tire
* in
the trunk, or repair the flat tire using the
tire repair kit
*.
Indicators Come On
(P 635)
● Identify the indica tor and consult the
owner's manual.
Engine Won’t Start
(P 626)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 641)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 633)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 645)
●Call a professional towing service if you
need to tow your vehicle.
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 27 ページ ２０１８年９月４日　火曜 日　午後１時３８分

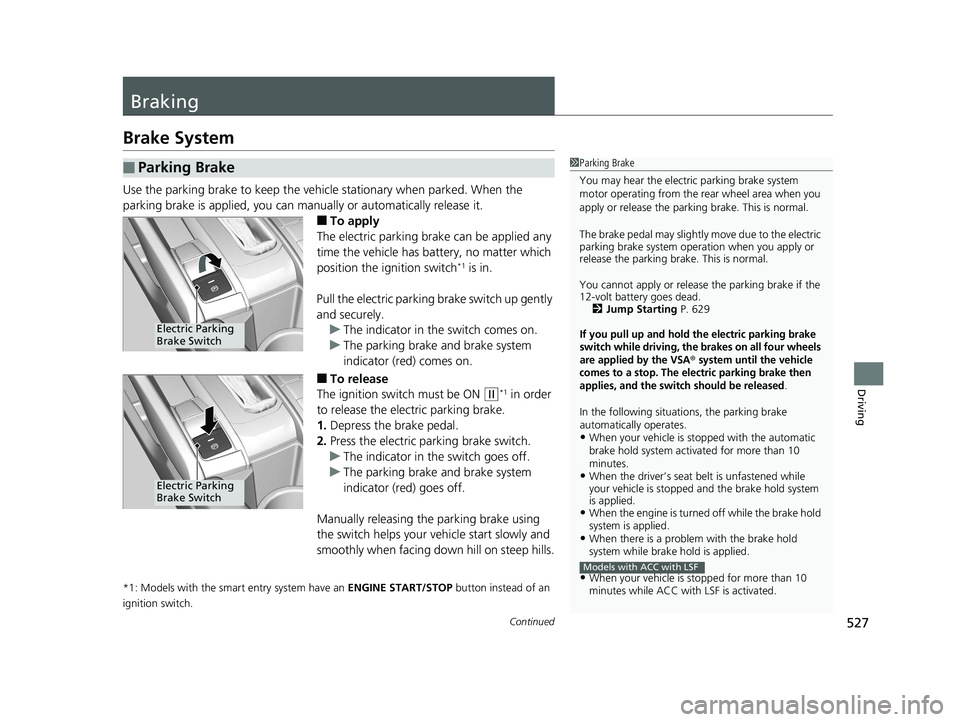

527Continued
Driving
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manu ally or automatically release it.
■To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the ignition switch
*1 is in.
Pull the electric parking brake switch up gently
and securely. u The indicator in the switch comes on.
u The parking brake and brake system
indicator (red) comes on.
■To release
The ignition switch must be ON
(w*1 in order
to release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The indicator in the switch goes off.
u The parking brake and brake system
indicator (red) goes off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Parking Brake1 Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parki ng brake. This is normal.
The brake pedal may slightly move due to the electric
parking brake system opera tion when you apply or
release the parking br ake. This is normal.
You cannot apply or release the parking brake if the
12-volt battery goes dead. 2 Jump Starting P. 629
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four wheels
are applied by the VSA
® system until the vehicle
comes to a stop. The electric parking brake then
applies, and the switch should be released
.
In the following situations, the parking brake
automatically operates.
•When your vehicle is stopped with the automatic
brake hold system activated for more than 10
minutes.
•When the driver’s seat belt is unfastened while
your vehicle is stopped and the brake hold system
is applied.
•When the engine is turned off while the brake hold
system is applied.
•When there is a problem with the brake hold
system while brake hold is applied.
•When your vehicle is stopped for more than 10
minutes while ACC with LSF is activated.Models with ACC with LSF
Electric Parking
Brake Switch
Electric Parking
Brake Switch
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 527 ページ ２０１８年９月４日　火 曜日　午後１時３８分

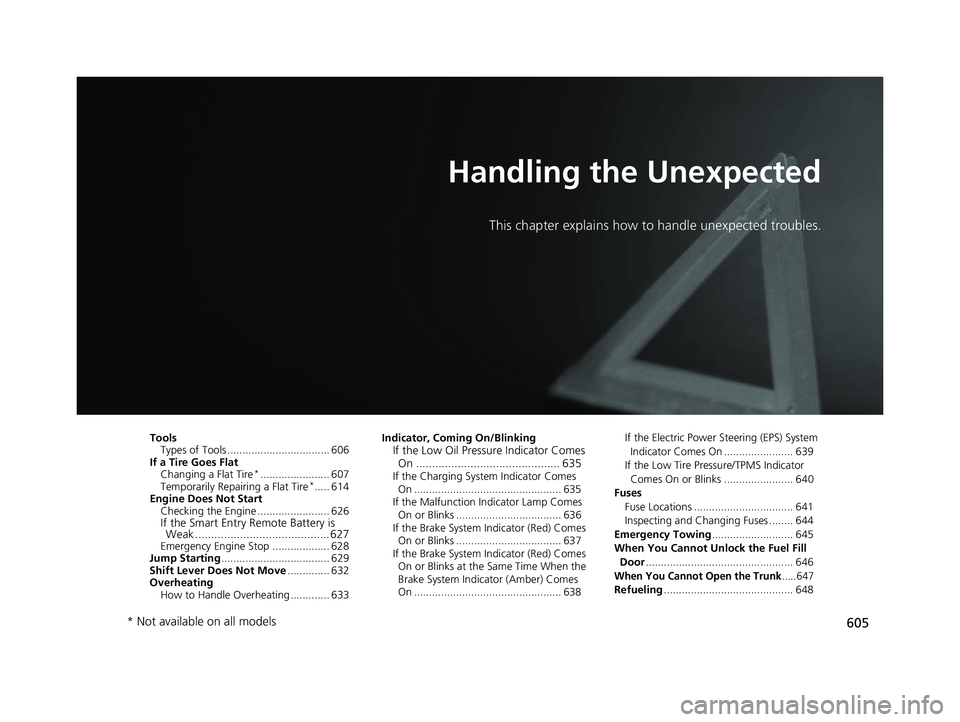

605
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 606
If a Tire Goes Flat Changing a Flat Tire
*....................... 607
Temporarily Repair ing a Flat Tire*..... 614
Engine Does Not Start Checking the Engine ........................ 626
If the Smart Entry Remote Battery is Weak .......................................... 627
Emergency Engine Stop ................... 628
Jump Starting .................................... 629
Shift Lever Does Not Move .............. 632
Overheating How to Handle Overheating ............. 633 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 635
If the Charging System Indicator Comes
On ................................................. 635
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 636
If the Brake System Indicator (Red) Comes On or Blinks ................................... 637
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes
On ................................................. 638 If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 639
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 640
Fuses Fuse Locations ................................. 641
Inspecting and Changing Fuses ........ 644
Emergency Towing ........................... 645
When You Cannot Unlock the Fuel Fill Door ................................................. 646
When You Cannot Open the Trunk.....647
Refueling ........................................... 648
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 605 ページ ２０１８年９月４日　火 曜日　午後１時３８分

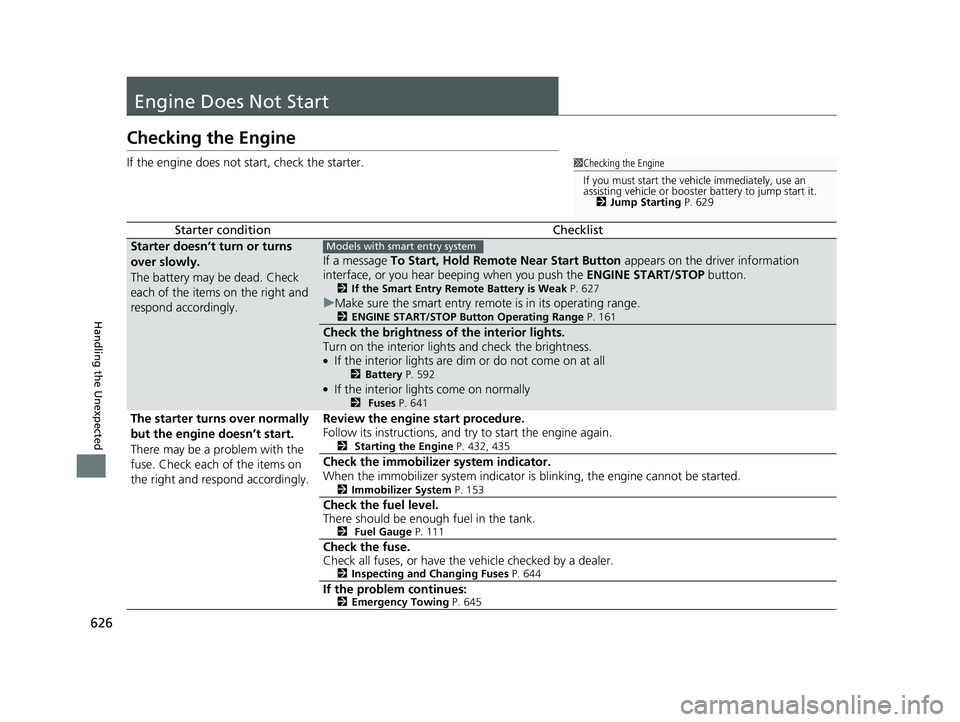

626
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
If a message To Start, Hold Remote Near Start Button appears on the driver information
interface, or you hear beeping when you push the ENGINE START/STOP button.
2If the Smart Entry Remote Battery is Weak P. 627
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 161
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 592●If the interior lights come on normally2 Fuses P. 641
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and resp ond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 432, 435
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 153
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 111
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 644
If the problem continues:2Emergency Towing P. 645
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 629
Models with smart entry system
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 626 ページ ２０１８年９月４日　火 曜日　午後１時３８分

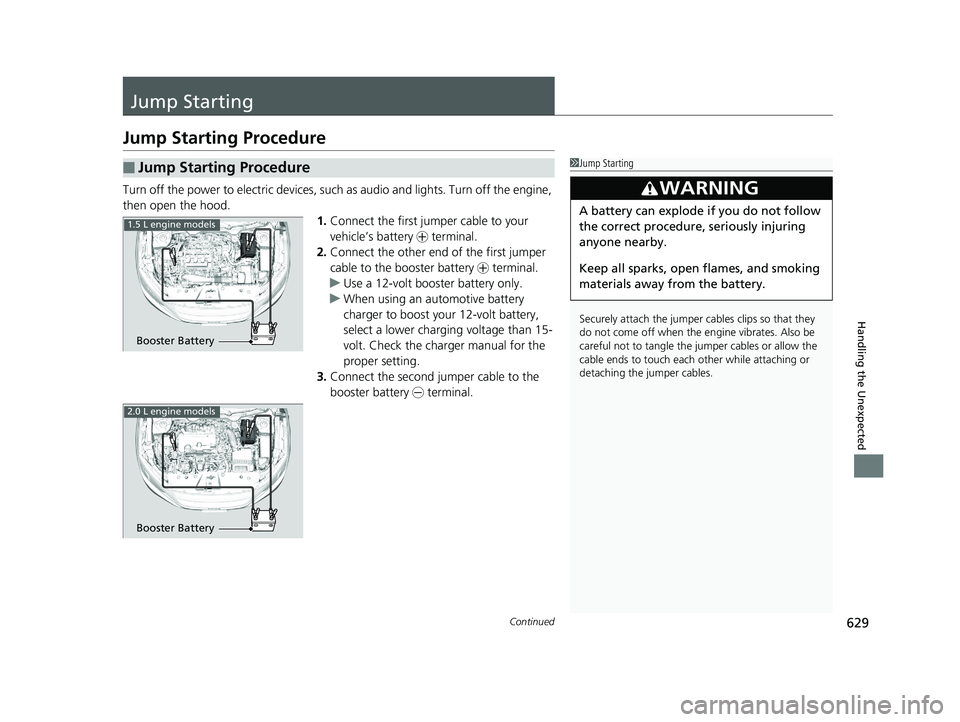

629Continued
Handling the Unexpected
Jump Starting
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jumper cable to your
vehicle’s battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
1.5 L engine models
2.0 L engine models
Booster Battery
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 629 ページ ２０１８年９月４日　火 曜日　午後１時３８分

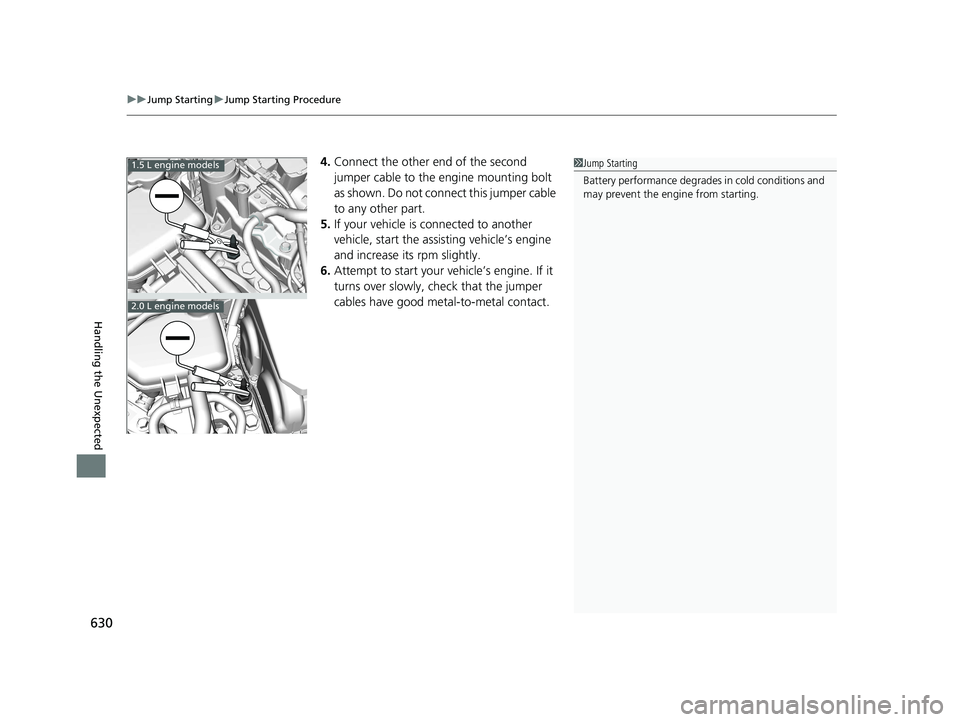

uuJump Starting uJump Starting Procedure
630
Handling the Unexpected
4. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not conn ect this jumper cable
to any other part.
5. If your vehicle is connected to another
vehicle, start the assi sting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.1Jump Starting
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.1.5 L engine models
2.0 L engine models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 630 ページ ２０１８年９月４日　火 曜日　午後１時３８分

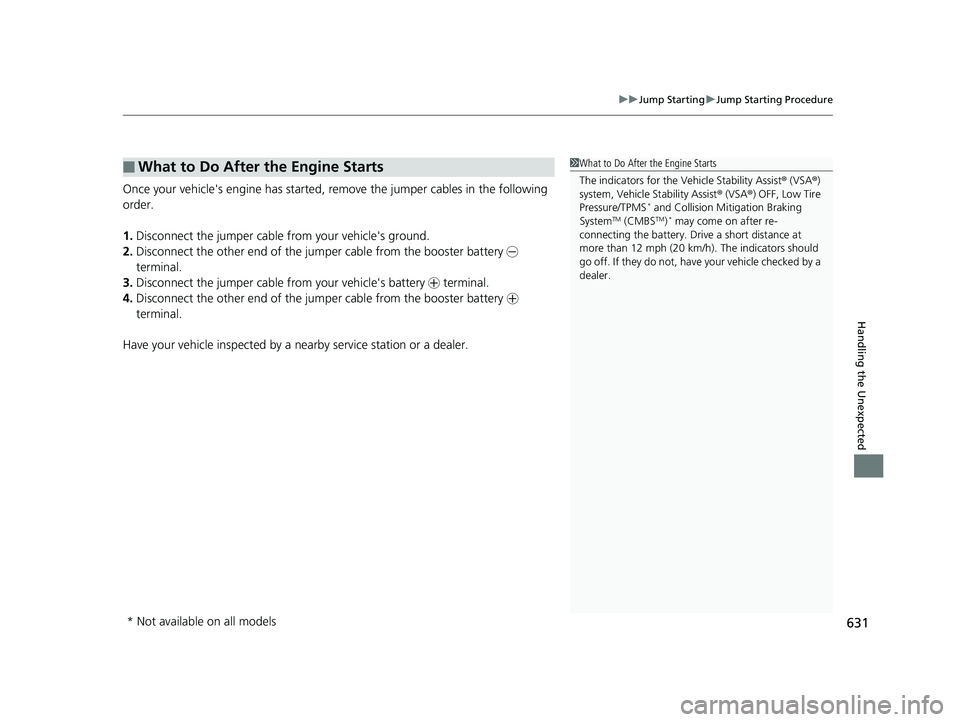

631
uuJump Starting uJump Starting Procedure
Handling the Unexpected
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jump er cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jump er cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The indicators for the Vehicle Stability Assist ® (VSA ®)
system, Vehicle Stability Assist ® (VSA ®) OFF, Low Tire
Pressure/TPMS
* and Collision Mi tigation Braking
SystemTM (CMBSTM)* may come on after re-
connecting the battery. Drive a short distance at
more than 12 mph (20 km/h ). The indicators should
go off. If they do not, have your vehicle checked by a
dealer.
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 631 ページ ２０１８年９月４日　火 曜日　午後１時３８分
