2019 HONDA CIVIC COUPE stop start

579Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w*1, then to LOCK (0*1.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 579 ページ ２０１８年９月４日　火 曜日　午後１時３８分

581
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Turn the ignition switch to ON
(w*1 and
hold the wiper switch in the MIST position
until both wiper arms return to the
standard position.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Cap Blade
Holder
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 581 ページ ２０１８年９月４日　火
曜日　午後１時３８分

593
uuBattery uCharging the Battery
Maintenance
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.1Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
*, Road Departur e Mitigation*, Vehicle
Stability Assist ® (VSA ®) system, Vehicle Stability
Assist ® (VSA ®) OFF, Low Tire Pressure/TPMS
*, and
Collision Mitigati on Braking SystemTM (CMBSTM)*
indicators may come on when you turn the ignition
switch to ON
( w*1 after re-connect ing the battery.
Drive a short distance at more than 12 mph (20 km/
h). The indicators should go off. If they do not, have
your vehicle checked by a dealer.
*1: Models with the smart entry system have an ENGINE
START/STOP
button instead of an ignition switch.
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 593 ページ ２０１８年９月４日　火 曜日　午後１時３８分

605
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 606
If a Tire Goes Flat Changing a Flat Tire
*....................... 607
Temporarily Repair ing a Flat Tire*..... 614
Engine Does Not Start Checking the Engine ........................ 626
If the Smart Entry Remote Battery is Weak .......................................... 627
Emergency Engine Stop ................... 628
Jump Starting .................................... 629
Shift Lever Does Not Move .............. 632
Overheating How to Handle Overheating ............. 633 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 635
If the Charging System Indicator Comes
On ................................................. 635
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 636
If the Brake System Indicator (Red) Comes On or Blinks ................................... 637
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes
On ................................................. 638 If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 639
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 640
Fuses Fuse Locations ................................. 641
Inspecting and Changing Fuses ........ 644
Emergency Towing ........................... 645
When You Cannot Unlock the Fuel Fill Door ................................................. 646
When You Cannot Open the Trunk.....647
Refueling ........................................... 648
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 605 ページ ２０１８年９月４日　火 曜日　午後１時３８分

607Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire*
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire*
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.Continuously variable transmission models
Manual transmission models
All models
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 607 ページ ２０１８年９月４日　火 曜日　午後１時３８分

626
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
If a message To Start, Hold Remote Near Start Button appears on the driver information
interface, or you hear beeping when you push the ENGINE START/STOP button.
2If the Smart Entry Remote Battery is Weak P. 627
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 161
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2Battery P. 592●If the interior lights come on normally2 Fuses P. 641
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and resp ond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 432, 435
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 153
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 111
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 644
If the problem continues:2Emergency Towing P. 645
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 629
Models with smart entry system
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 626 ページ ２０１８年９月４日　火 曜日　午後１時３８分

627
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected

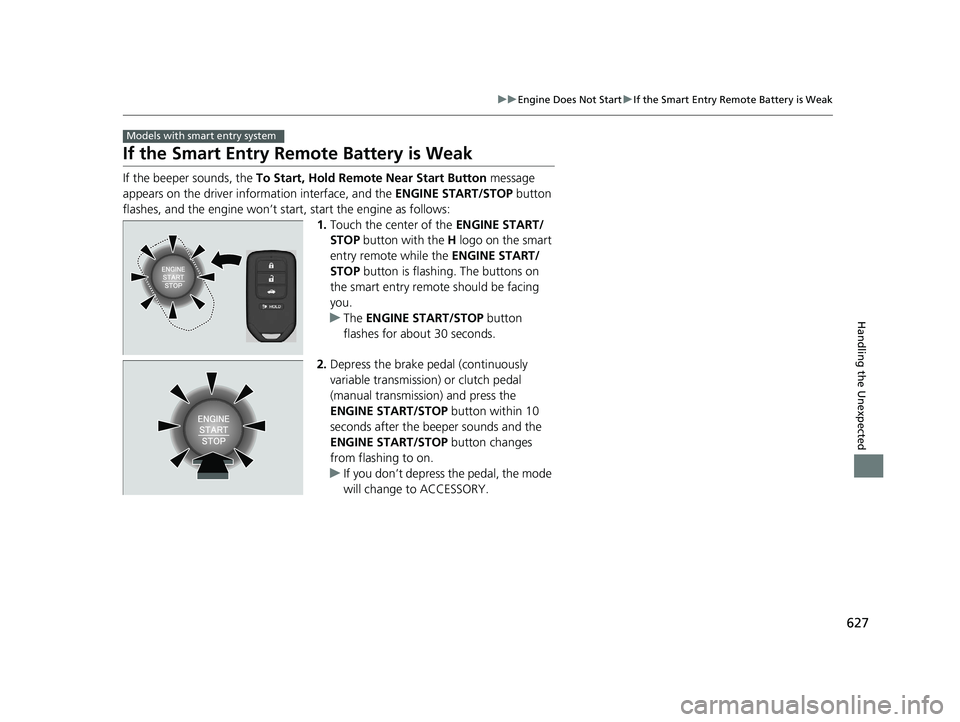

If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, and the ENGINE START/STOP button
flashes, and the engine won’t start, start the engine as follows: 1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 627 ページ ２０１８年９月４日　火 曜日　午後１時３８分

628
uuEngine Does Not StartuEmergency Engine Stop
Handling the Unexpected

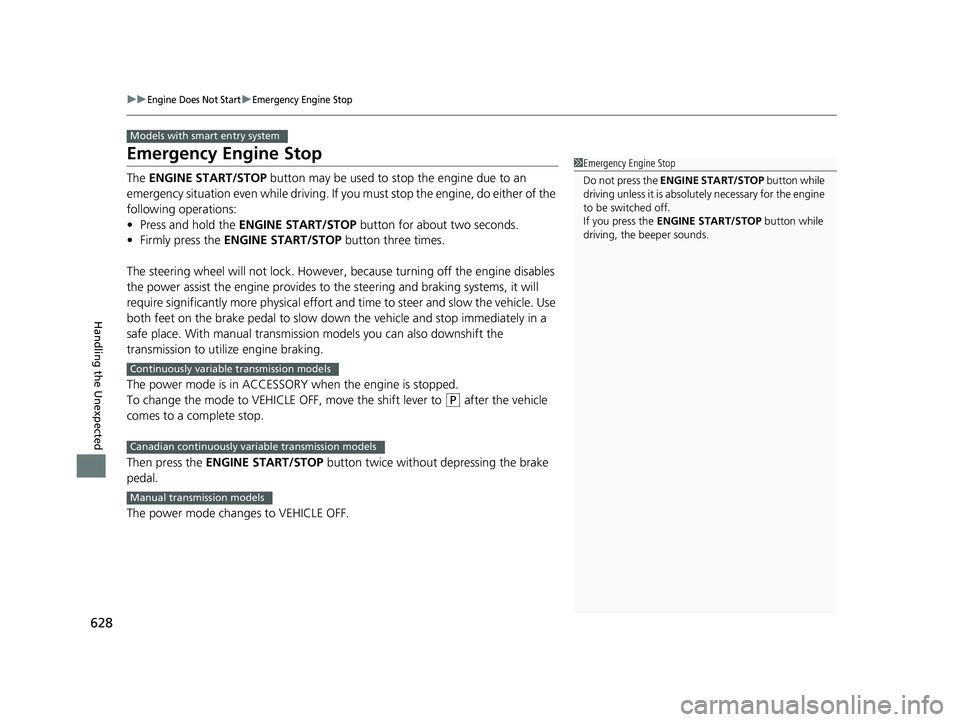

Emergency Engine Stop
The ENGINE START/STOP button may be used to st op the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to
(P after the vehicle
comes to a complete stop.
Then press the ENGINE START/STOP button twice without depressing the brake
pedal.
The power mode changes to VEHICLE OFF.
Models with smart entry system
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be switched off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
Continuously variable transmission models
Canadian continuously variable transmission models
Manual transmission models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 628 ページ ２０１８年９月４日　火 曜日　午後１時３８分
