2019 HONDA ACCORD SEDAN sensor

Continued591
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on.
2 Cross Traffic Monitor On and Off P. 593
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestri ans, bicycles, or stationary objects.
■How the System Works1Cross Traffic Monitor*
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilt ed due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the se nsors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models

uuParking Your Vehicle uCross Traffic Monitor*
592
Driving
An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.
■When the System Detects a Vehicle1When the System Detects a Vehicle
If the on the lower right changes to in amber
when the transmission is in
( R, mud snow or ice may
have accumulated in the vi cinity of the sensor. The
system is temporarily canceled. Check the bumper
corners for any obstructions, and thoroughly clean
the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
( R, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Wide View
Normal View Arrow IconTop Down View

651
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have you
vehicle inspected by a dealer.
Check the battery term inals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 247
•The clock resets.
2 Clock P. 164
•The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 95
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models

655Continued
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle. If a silicone based spray is inadvertently
used on electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Opening
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
* Not available on all models

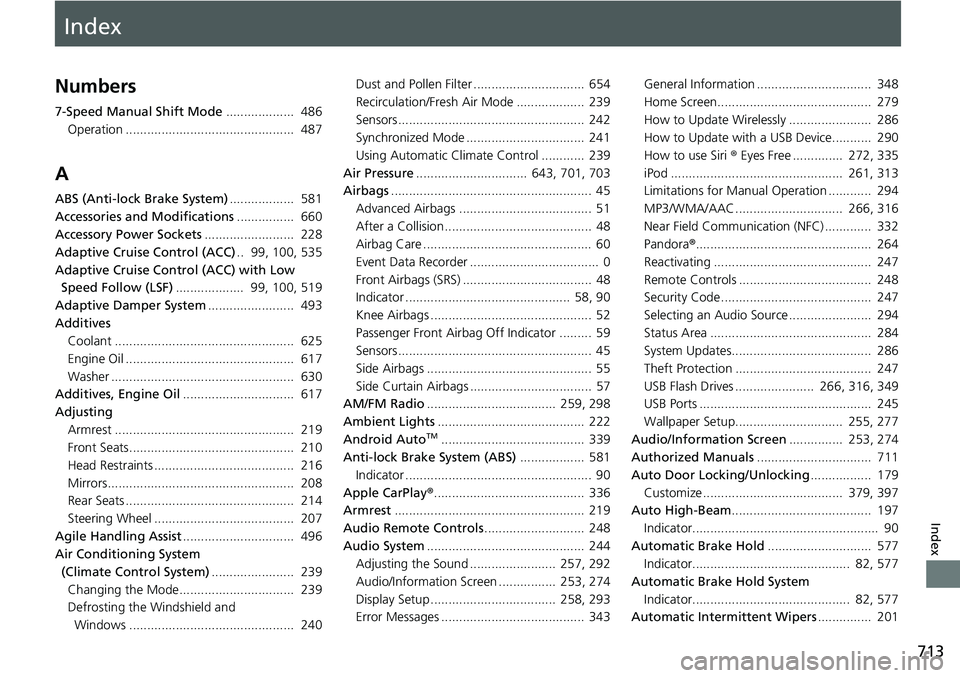

Index
713
Index
Index
Numbers
7-Speed Manual Shift Mode................... 486
Operation ............................................... 487
A
ABS (Anti-lock Brake System) .................. 581
Accessories and Modifications ................ 660
Accessory Power Sockets ......................... 228
Adaptive Cruise Control (ACC) .. 99, 100, 535
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ................... 99, 100, 519
Adaptive Damper System ........................ 493
Additives Coolant .................................................. 625
Engine Oil ............................................... 617
Washer ................................................... 630
Additives, Engine Oil ............................... 617
Adjusting Armrest .................................................. 219
Front Seats.............................................. 210
Head Restraints ....................................... 216
Mirrors.................................................... 208
Rear Seats ............................................... 214
Steering Wheel ....................................... 207
Agile Handling Assist ............................... 496
Air Conditioning System
(Climate Control System) ....................... 239
Changing the Mode................................ 239
Defrosting the Windshield and
Windows .............................................. 240 Dust and Pollen Filter ............................... 654
Recirculation/Fresh Air Mode ................... 239
Sensors .................................................... 242
Synchronized Mode ................................. 241
Using Automatic Climate Control ............ 239
Air Pressure ............................... 643, 701, 703
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 48
Airbag Care ............................................... 60
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 58, 90
Knee Airbags ............................................. 52
Passenger Front Airbag Off Indicator ......... 59
Sensors ...................................................... 45
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
AM/FM Radio .................................... 259, 298
Ambient Lights ......................................... 222
Android Auto
TM........................................ 339
Anti-lock Brake System (ABS) .................. 581
Indicator .................................................... 90
Apple CarPlay ®.......................................... 336
Armrest ..................................................... 219
Audio Remote Controls ............................ 248
Audio System ............................................ 244
Adjusting the Sound ........................ 257, 292
Audio/Information Screen ................ 253, 274
Display Setup ................................... 258, 293
Error Messages ........................................ 343 General Information ................................ 348
Home Screen........................................... 279
How to Update Wirelessly ....................... 286
How to Update with a USB Device........... 290
How to use Siri
® Eyes Free .............. 272, 335
iPod ................................................ 261, 313
Limitations for Manual Operation ............ 294
MP3/WMA/AAC .............................. 266, 316
Near Field Communication (NFC) ............. 332
Pandora ®................................................. 264
Reactivating ............................................ 247
Remote Controls ..................................... 248
Security Code .......................................... 247
Selecting an Audio Source ....................... 294
Status Area ............................................. 284
System Updates....................................... 286
Theft Protection ...................................... 247
USB Flash Drives ...................... 266, 316, 349
USB Ports ................................................ 245
Wallpaper Setup.............................. 255, 277
Audio/Information Screen ............... 253, 274
Authorized Manuals ................................ 711
Auto Door Locking/Unlocking ................. 179
Customize ....................................... 379, 397
Auto High-Beam ....................................... 197
Indicator.................................................... 90
Automatic Brake Hold ............................. 577
Indicator............................................ 82, 577
Automatic Brake Hold System Indicator............................................ 82, 577
Automatic Intermittent Wipers ............... 201

714
Index
Automatic Lighting.................................. 194
Automatic Transmission
Creeping ................................................. 474
Fluid ........................................................ 628
Kickdown ................................................ 474
Shift Operation ........................................ 476
Shifting.................................................... 475
Average Fuel Economy ............................. 143
Average Speed .......................................... 145
B
Battery....................................................... 651
Charging System Indicator ................. 84, 681
Jump Starting .......................................... 674
Maintenance (Checking the Battery) ........ 651
Maintenance (Replacing).......................... 653
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 226
Blind spot information System ................ 502
Bluetooth ® Audio ............................. 269, 319
Bluetooth ® HandsFreeLink ®............. 403, 427
Booster Seats (For Children) ....................... 74
Brake System ............................................. 571
Anti-lock Brake System (ABS) ................... 581
Automatic Brake Hold.............................. 577
Brake Assist System ................................. 582
Fluid ........................................................ 629
Foot Brake ............................................... 576
Indicator .............................. 79, 80, 683, 684
Parking Brake .......................................... 571 Brightness Control
(Instrument Panel).... 203
Bulb Replacement .................................... 631
Brake, Taillight, Rear Si de Marker Lights and
Rear Turn Signal Light............................ 634
Fog Lights ............................................... 633
Front Side Marker Lights.......................... 633
Front Turn Signal Lights ........................... 633
Headlights ............................................... 631
High-Mount Brake Light .......................... 638
Parking/Daytime Running Lights .............. 633
Rear License Plate Lights .......................... 638
Side Turn Signal/Emergency Indicator Lights .................................................... 633
Taillight, Brake Light and Back-Up Light... 636
Bulb Specifications ........................... 700, 702
C
Carbon Monoxide Gas ............................... 75
Cargo Hooks ............................................. 233
Carrying Cargo ................................. 455, 457
Center Pocket ........................................... 223
Certification Label .................................... 704
Changing Bulbs ........................................ 631
Charging System Indicator ................. 84, 681
Child Safety ................................................. 61
Childproof Door Locks............................. 178
Emergency Trunk Opener ........................ 182
Child Seat .................................................... 61
Booster Seats ............................................ 74
Child Seat for Infants................................. 63 Child Seat for Small Children .................... 64
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 69
Larger Children ......................................... 73
Rear-facing Child Seat............................... 63
Selecting a Child Seat ............................... 65
Using a Tether .......................................... 71
Childproof Door Locks ............................. 178
Cleaning the Exterior ............................... 657
Cleaning the Interior ............................... 655
Climate Control System ........................... 239
Changing the Mode................................ 239
Defrosting the Windshield and Windows .............................................. 240
Dust and Pollen Filter .............................. 654
Recirculation and Fresh Air Mode ............ 239
Sensors ................................................... 242
Synchronized Mode ................................ 241
Using Automatic Climate Control............ 239
Clock ......................................................... 164
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 510
Coat Hook ................................................ 233
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 510
Compact Spare Tire .................. 665, 701, 703
Console Compartment ............................. 224
Continuously Variable Transmission
Creeping................................................. 474
Fluid ....................................................... 627
Kickdown ............................................... 474

716
Index
Exterior Care (Cleaning)........................... 657
Exterior Mirrors ......................................... 209
F
Features..................................................... 243
Filters
Dust and Pollen ....................................... 654
Oil ........................................................... 621
Flat Tire ..................................................... 665
Floor Mats ................................................. 656
Fluids Automatic Transmission ........................... 628
Brake/Clutch ............................................ 629
Continuously Variable Transmission ......... 627
Engine Coolant ........................................ 625
Manual Transmission ............................... 627
Windshield Washer .................................. 630
FM/AM Radio .................................... 259, 298
Fog Lights .................................................. 195
Indicator .................................................... 94
Folding Down the Rear Seat .................... 214
Foot Brake ................................................. 576
Front Airbags (SRS) ..................................... 48
Front Seat Heaters .................................... 236
Front Seat Heaters and Seat Ventilation .............................................. 237
Front Seats Adjusting ................................................. 210
Front Sensor Camera ................................ 568
Fuel ...................................................... 24, 597 Economy ................................................. 600
Gauge ..................................................... 137
Instant Fuel Economy .............................. 143
Low Fuel Indicator ..................................... 89
Range ..................................................... 143
Recommendation .................................... 597
Refueling................................................. 597
Fuel Economy and CO
2 Emissions ............ 600
Fuel Fill Door ...................................... 24, 598
Unable to Unlock .................................... 694
Fuses .......................................................... 688
Inspecting and Changing......................... 692
Locations......................................... 688, 690
G
Gasoline (Fuel) Economy ................................................. 600
Gauge ..................................................... 137
Information ............................................. 597
Instant Fuel Economy .............................. 143
Low Fuel Indicator ..................................... 89
Refueling................................................. 597
Gauges ...................................................... 137
Gear Position Indicator .............................. 84
Gear Shift Lever Positions Continuously Variable
Transmission.................................. 482, 484
Manual Transmission ............................... 488
Glass (care) ........................................ 655, 658
Glove Box .................................................. 223
H
Halogen Bulbs .......................................... 631
Handling the Unexpected ....................... 663
HandsFreeLink® (HFL)...................... 403, 427
Automatic Import of Cellular Phonebook and
Call History ................................... 417, 436
Automatic Transferring ................... 415, 435
Displaying Messages ............................... 446
Favorite Contacts .................................... 437
HFL Buttons .................................... 403, 427
HFL Menus...................................... 405, 430
HFL Status Display ........................... 404, 429
In Case of Emergency ..................... 325, 450
Limitations for Manual Operation .... 404, 429
Making a Call ................................. 421, 439
Options During a Call...................... 426, 442
Phone Setup ................................... 409, 432
Receiving a Call............................... 425, 442
Receiving a Text Message........................ 444
Ring Tone ....................................... 415, 435
Selecting a Phone ................................... 445
Speed Dial .............................................. 418
To Clear the System ................................ 416
To Set Up a Text Message Options .......... 443
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 301
Head Restraints ........................................ 216

719
Index
O
Odometer................................................. 140
Oil (Engine) .............................................. 617
Adding ................................................... 620
Checking ................................................ 618
Displaying Oil Life ................................... 608
Low Oil Pressure Warning ....................... 681
Oil Life .................................................... 147
Recommended Engine Oil ....................... 617
Viscosity.................................................. 617
Open Source Licenses .............................. 364
Opening Trunk ...................................................... 695
Opening/Closing
Hood ...................................................... 616
Moonroof ............................................... 189
Power Windows...................................... 186
Trunk ...................................................... 180
Outside Temperature Display ................. 141
Overheating ............................................. 679
P
Paddle Shifters
(7-Speed Manual Shift Mode) ............... 486
Pandora ®.................................................. 264
Panic Mode ............................................... 185
Parking ..................................................... 583
Parking Brake ........................................... 571
Parking Brake and Brake System Indicator
(Amber) ..................................................... 80 Parking Brake and Brake System Indicator
(Red) .......................................... 79, 683, 684
Parking Sensor System ............................. 585
Passenger Front Airb ag Off Indicator....... 59
Passing Indicators ..................................... 193
Phone ........................................................ 148
Playing Bluetooth ® Audio ................ 269, 319
Power Windows ........................................ 186
Precautions While Driving ....................... 473
Rain ......................................................... 473
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 665
R
Radiator.................................................... 626
Radio (AM/FM) .................................. 259, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) .................. 260, 300
Range ........................................................ 143
RDS (Radio Data System) .................. 260, 300
Readiness Codes (Emissions Testing) ....... 707
Rear Defogger/Heated Door Mirror Button ..................................................... 202
Rear Seat (Folding Down) ........................ 214
Rear Seat Heaters ..................................... 238
Rearview Mirror ........................................ 208
Refueling ................................................... 597
Fuel Gauge .............................................. 137
Gasoline .................................. 597, 700, 702
Low Fuel Indicator ..................................... 89 Regulations
............................... 500, 645, 705
Remote Engine Start with Vehicle
Feedback ................................................. 469
Remote Transmitter ................................. 173
Replacement
Battery .................................................... 653
Bulbs ....................................................... 631
Fuses ............................................... 688, 690
Tires ........................................................ 648
Wiper Blade Rubber ................................ 639
Reporting Safety Defects ......................... 706
Resetting a Trip Meter ..................... 141, 143
Road Departure Mitigation (RDM) ......... 558
On and Off.............................................. 560S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 76
Safety Message ............................................. 1
Safety Support .......................................... 156
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor.................. 42
Automatic Seat Belt Tensioners ................. 40
Checking................................................... 44
Fastening .................................................. 41
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 69
Pregnant Women ...................................... 43
Reminder .................................................. 39
