692 uu Fuses u Inspecting and Changing Fuses
Handling the Unexpected Inspecting and Changing Fuses 1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Open the fuse box cover in the engine
compartment.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one. 1 Inspecting and Changing Fuses NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 688
There is a fuse puller on the back of the engine
compartment fuse box cover.Combined
Fuse Blown Fuse
Fuse Puller

707Continued
Information
Emissions TestingTesting of Readiness Codes Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power m ode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in ( P
(automatic transmission/continuously variable
transmission) or neutral (manual transm ission). Increase the engine speed to
2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds. 1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

715
Index
Operating the Shift Lever .......... 23, 483, 485
Shift Lever Does Not Move ...................... 677
Shifting ........................................... 482, 484
Controls .................................................... 163
Coolant (Engine) ...................................... 625
Adding to the Engine Coolant Reserve
Tank ..................................................... 625
Adding to the Radiator ........................... 626
Overheating ............................................ 679
Creeping (Automatic Transmission/
Continuously Variable Transmission) .... 474
Cross Traffic Monitor ............................... 590
Cup Holders .............................................. 226
Customer Service Information ................ 712
Customized Features ....................... 370, 381
D Daytime Running Lights .......................... 196
Dead Battery ............................................ 674
Defaulting All the Settings ...................... 399
Defrosting the Windshield and
Windows ................................................. 240
Devices that Emit Radio Waves ............... 705
Dimming
Headlights .............................................. 193
Rearview Mirror ...................................... 208
Dipstick (Engine Oil) ................................ 618
Directional Signals (Turn Signal) ............. 193
Door Mirrors ............................................. 209 Doors ......................................................... 166
Auto Door Locking .................................. 179
Auto Door Unlocking ............................... 179
Door and Trunk Open Message ................. 37
Keys ........................................................ 166
Locking/Unlocking the Doors
from the Inside ...................................... 176
Locking/Unlocking the Doors
from the Outside ................................... 169
Lockout Prevention System ...................... 175
DOT Tire Quality Grading ........................ 645
Driver Attention Monitor ........................ 152
Driver Information Interface ................... 138
Switching the Display .............................. 138
Warning and Information Messages ........ 105
Driving ....................................................... 453
Automatic Transmission/
Continuously Variable Transmission ....... 474
Braking .................................................... 571
Shifting Gear ................................... 475, 488
Shifting Position .............................. 482, 484
Starting the Engine .................................. 465
Driving Position Memory System ............. 205
Driving Support Information ................... 155
Dust and Pollen Filter ............................... 654
E Eco Assist ® System ........................................ 9
ECON Button ............................................. 492 Econ Mode
Indicator.................................................... 97
Elapsed Time ............................................. 145
Electric Power Steering (EPS) System
Indicator............................................ 92, 685
Electronic Stability Control (ESC) ............. 494
Emergency ................................................ 693
Emergency Engine Stop ........................... 673
Emergency Trunk Opener ........................ 182
Emissions Testing (Readiness Codes) ....... 707
Engine ....................................................... 704
Coolant ................................................... 625
Jump Starting .......................................... 674
Oil ........................................................... 617
Starting ................................................... 465
Engine Coolant ......................................... 625
Adding to the Engine Coolant Reserve
Tank ...................................................... 625
Adding to the Radiator ............................ 626
Overheating ............................................ 679
Temperature Gauge ................................ 137
Engine Oil ................................................. 617
Adding .................................................... 620
Checking................................................. 618
Displaying Oil Life .................................... 608
Low Oil Pressure Warning........................ 681
Recommended Engine Oil ....................... 617
ENGINE START/STOP Button .................... 190
EPS (Electric Power Steering) System ...... 685
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 75

719
Index
O Odometer ................................................. 140
Oil (Engine) .............................................. 617
Adding ................................................... 620
Checking ................................................ 618
Displaying Oil Life ................................... 608
Low Oil Pressure Warning ....................... 681
Oil Life .................................................... 147
Recommended Engine Oil ....................... 617
Viscosity.................................................. 617
Open Source Licenses .............................. 364
Opening
Trunk ...................................................... 695
Opening/Closing
Hood ...................................................... 616
Moonroof ............................................... 189
Power Windows...................................... 186
Trunk ...................................................... 180
Outside Temperature Display ................. 141
Overheating ............................................. 679
P Paddle Shifters
(7-Speed Manual Shift Mode) ............... 486
Pandora ® .................................................. 264
Panic Mode ............................................... 185
Parking ..................................................... 583
Parking Brake ........................................... 571
Parking Brake and Brake System Indicator
(Amber) ..................................................... 80 Parking Brake and Brake System Indicator
(Red) .......................................... 79, 683, 684
Parking Sensor System ............................. 585
Passenger Front Airb ag Off Indicator ....... 59
Passing Indicators ..................................... 193
Phone ........................................................ 148
Playing Bluetooth ® Audio ................ 269, 319
Power Windows ........................................ 186
Precautions While Driving ....................... 473
Rain ......................................................... 473
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 665
R Radiator .................................................... 626
Radio (AM/FM) .................................. 259, 298
Radio (SiriusXM ® ) ..................................... 302
Radio Data System (RDS) .................. 260, 300
Range ........................................................ 143
RDS (Radio Data System) .................. 260, 300
Readiness Codes (Emissions Testing) ....... 707
Rear Defogger/Heated Door Mirror
Button ..................................................... 202
Rear Seat (Folding Down) ........................ 214
Rear Seat Heaters ..................................... 238
Rearview Mirror ........................................ 208
Refueling ................................................... 597
Fuel Gauge .............................................. 137
Gasoline .................................. 597, 700, 702
Low Fuel Indicator ..................................... 89 Regulations ............................... 500, 645, 705
Remote Engine Start with Vehicle
Feedback ................................................. 469
Remote Transmitter ................................. 173
Replacement
Battery .................................................... 653
Bulbs ....................................................... 631
Fuses ............................................... 688, 690
Tires ........................................................ 648
Wiper Blade Rubber ................................ 639
Reporting Safety Defects ......................... 706
Resetting a Trip Meter ..................... 141, 143
Road Departure Mitigation (RDM) ......... 558
On and Off.............................................. 560
S Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 76
Safety Message ............................................. 1
Safety Support .......................................... 156
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor.................. 42
Automatic Seat Belt Tensioners ................. 40
Checking................................................... 44
Fastening .................................................. 41
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 69
Pregnant Women ...................................... 43
Reminder .................................................. 39

720
Index Warning Indicator ................................ 39, 89
Seat Heaters .............................. 236, 237, 238
Seat Ventilation ........................................ 237
Seats .......................................................... 210
Adjusting ................................................. 210
Front Seats .............................................. 210
Rear Seats................................................ 214
Seat Heaters ............................ 236, 237, 238
Seat Ventilation ....................................... 237
Security System ......................................... 183
Immobilizer System Indicator ..................... 95
Security System Alarm Indicator ................. 96
Select Buttons ..................................... 20, 475
Operation ................................................ 476
Selecting a Child Seat ................................. 65
Selector Knob (Audio) .............................. 252
Shift Lever ........................... 23, 482, 484, 488
Operation .......................... 23, 483, 485, 488
Releasing ................................................. 677
Won’t Move ............................................ 677
Shifting (Transmission) ..... 475, 482, 484, 488
Shoulder Anchor ......................................... 42
Side Airbags ................................................ 55
Side Curtain Airbags ................................... 57
Siri ® Eyes Free .................................... 272, 335
SiriusXM ® Radio ........................................ 302
Smart Entry with Push Button Start
System ...................................................... 169
Snow Tires ................................................. 650
Spare Tire .................................. 665, 701, 703
Spark Plugs ........................................ 700, 702 Specifications ............................................ 700
Specified Fuel ........................... 597, 700, 702
Speedometer ............................................ 137
SPORT Mode ............................................. 491
Indicator.................................................... 98
SRS Airbags (Airbags) ................................. 48
Starting the Engine .................................. 465
Does Not Start......................................... 671
Jump Starting .......................................... 674
Steering Wheel
Adjusting ................................................ 207
Stopping ................................................... 583
Summer Tires ............................................ 650
Sunglasses Holder ..................................... 234
Supplemental Restraint System (SRS) ........ 48
Switches
(Around the Steering Wheel) ........ 4, 5, 190
System Message Indicator .......................... 96
System Updates ........................................ 286
T Tachometer ............................................... 149
Temperature
Gauge ..................................................... 137
Outside Temperature Display ................... 141
Temperature Sensor ......................... 141, 242
Time (Adjusting) ....................................... 164
Tire Pressure Monitoring System
(TPMS) ..................................................... 497
Indicator............................................ 93, 686 Tires .......................................................... 642
Air Pressure............................. 643, 701, 703
Checking and Maintaining ...................... 642
Inspection ............................................... 642
Labeling .................................................. 643
Puncture (Flat Tire) .................................. 665
Regulations ............................................. 645
Rotation.................................................. 649
Spare Tire ............................... 665, 701, 703
Summer .................................................. 650
Tire Chains.............................................. 650
Wear Indicators....................................... 647
Winter .................................................... 650
Tools ......................................................... 664
Towing a Trailer ....................................... 459
Equipment and Accessories ..................... 461
Load Limits ............................................. 459
Towing Your Vehicle ............................... 463
Emergency .............................................. 693
TPMS
(Tire Pressure Monitoring System) ........ 497
Indicator ........................................... 93, 686
Traffic Sign Recognition System ............. 562
Transmission ..................... 475, 482, 484, 488
Automatic............................................... 475
Continuously Variable ..................... 482, 484
Fluid ............................................... 627, 628
Gear Position Indicator .............................. 84
Manual ................................................... 488
Number .................................................. 704

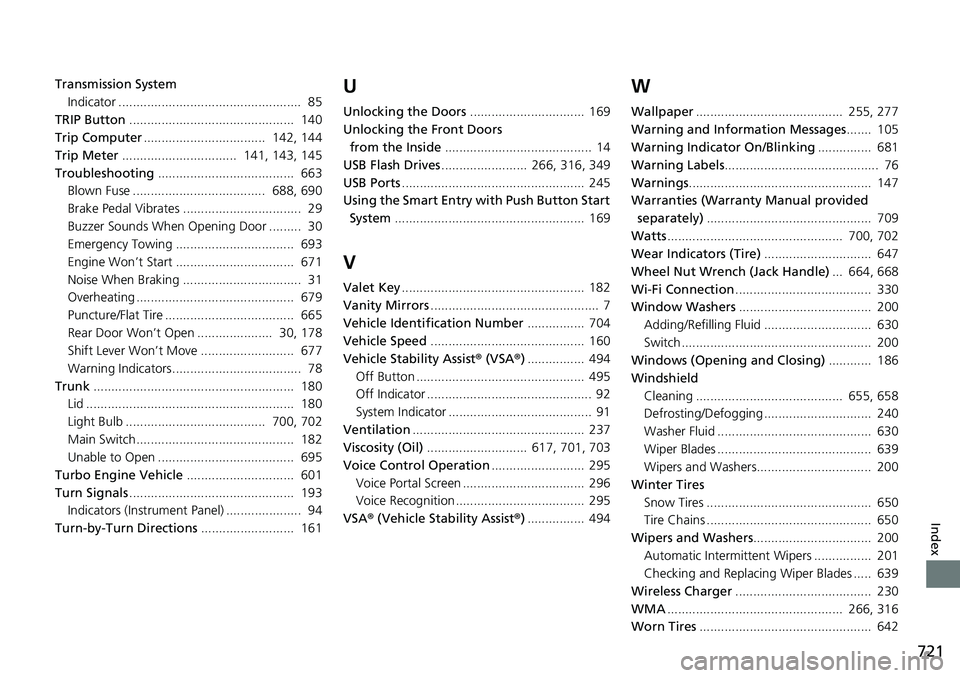

721
Index
Transmission System
Indicator ................................................... 85
TRIP Button .............................................. 140
Trip Computer .................................. 142, 144
Trip Meter ................................ 141, 143, 145
Troubleshooting ...................................... 663
Blown Fuse ..................................... 688, 690
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 693
Engine Won’t Start ................................. 671
Noise When Braking ................................. 31
Overheating ............................................ 679
Puncture/Flat Tire .................................... 665
Rear Door Won’t Open ..................... 30, 178
Shift Lever Won’t Move .......................... 677
Warning Indicators.................................... 78
Trunk ........................................................ 180
Lid .......................................................... 180
Light Bulb ....................................... 700, 702
Main Switch............................................ 182
Unable to Open ...................................... 695
Turbo Engine Vehicle .............................. 601
Turn Signals .............................................. 193
Indicators (Instrume nt Panel) ..................... 94
Turn-by-Turn Directions .......................... 161 U Unlocking the Doors ................................ 169
Unlocking the Front Doors
from the Inside ......................................... 14
USB Flash Drives ........................ 266, 316, 349
USB Ports ................................................... 245
Using the Smart Entry wi th Push Button Start
System ..................................................... 169
V Valet Key ................................................... 182
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 704
Vehicle Speed ........................................... 160
Vehicle Stability Assist ® (VSA ® ) ................ 494
Off Button ............................................... 495
Off Indicator .............................................. 92
System Indicator ........................................ 91
Ventilation ................................................ 237
Viscosity (Oil) ............................ 617, 701, 703
Voice Control Operation .......................... 295
Voice Portal Screen .................................. 296
Voice Recognition .................................... 295
VSA ® (Vehicle Stability Assist ® ) ................ 494W Wallpaper ......................................... 255, 277
Warning and Info rmation Messages ....... 105
Warning Indicator On/Blinking ............... 681
Warning Labels ........................................... 76
Warnings ................................................... 147
Warranties (Warranty Manual provided
separately) .............................................. 709
Watts ................................................. 700, 702
Wear Indicators (Tire) .............................. 647
Wheel Nut Wrench (Jack Handle) ... 664, 668
Wi-Fi Connection ...................................... 330
Window Washers ..................................... 200
Adding/Refilling Fluid .............................. 630
Switch ..................................................... 200
Windows (Opening and Closing) ............ 186
Windshield
Cleaning ......................................... 655, 658
Defrosting/Defogging .............................. 240
Washer Fluid ........................................... 630
Wiper Blades ........................................... 639
Wipers and Washers................................ 200
Winter Tires
Snow Tires .............................................. 650
Tire Chains .............................................. 650
Wipers and Washers ................................. 200
Automatic Intermittent Wipers ................ 201
Checking and Replacing Wiper Blades ..... 639
Wireless Charger ...................................... 230
WMA ................................................. 266, 316
Worn Tires ................................................ 642
