GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
Service and Maintenance 423
Additional Required ServicesMaintenance Schedule
Additional Required
Services - Normal
12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed. Check
engine air filter life percentage and status.
Change engine air filter, if needed.
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
If the vehicle is not equipped with the engine air
filter life system, replace engine air cleaner
filter. (2)@ @@
Inspect evaporative control system. (3)@@@
Replace spark plugs. Inspect spark plug wires.
(Except 2.7L L4 Turbo Engine)@
Replace spark plugs. Inspect spark plug wires.
(2.7L L4 Turbo Engine Only)@ @
Change transfer case fluid, if equipped with
4WD. (4)@
Drain and fill engine cooling system. (5)@
Visually inspect accessory drive belts. (6)@
Replace brake fluid. (7)
Replace windshield wiper blades. (8)
@ @@
@@ @
@ @@ @
Replace hood and/or body lift support gas struts.@
@

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
424 Service and Maintenance

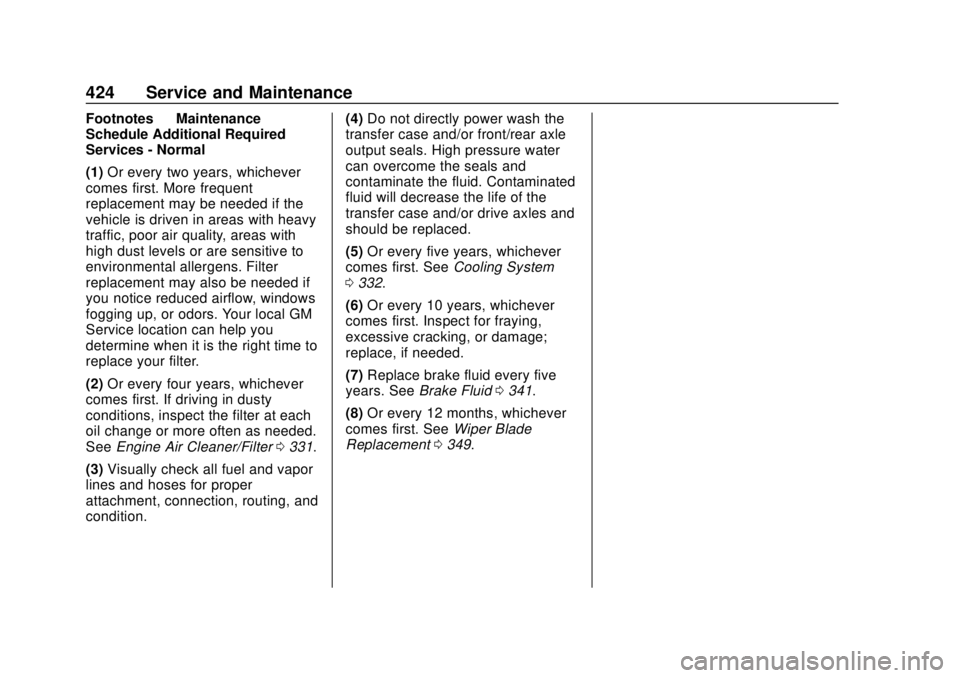

Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
replacement may be needed if the
vehicle is driven in areas with heavy
traffic, poor air quality, areas with
high dust levels or are sensitive to
environmental allergens. Filter
replacement may also be needed if
you notice reduced airflow, windows
fogging up, or odors. Your local GM
Service location can help you
determine when it is the right time to
replace your filter.
(2) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
See Engine Air Cleaner/Filter 0331.
(3) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition. (4)
Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water
can overcome the seals and
contaminate the fluid. Contaminated
fluid will decrease the life of the
transfer case and/or drive axles and
should be replaced.
(5) Or every five years, whichever
comes first. See Cooling System
0 332.
(6) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(7) Replace brake fluid every five
years. See Brake Fluid 0341.
(8) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0349.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
Service and Maintenance 425
Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed. Check
engine air filter life percentage and status.
Change engine air filter, if needed.
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
If the vehicle is not equipped with the engine air
filter life system, replace engine air cleaner
filter. (2)@ @@
Inspect evaporative control system. (3)@@@
Replace spark plugs. Inspect spark plug wires.
(Except 2.7L L4 Turbo Engine)@
Replace spark plugs. Inspect spark plug wires.
(2.7L L4 Turbo Engine Only)@ @
Change automatic transmission fluid and filter.@@@
Change transfer case fluid, if equipped with
4WD. (4)@@@
Drain and fill engine cooling system. (5)@
Visually inspect accessory drive belts. (6)@
Replace brake fluid. (7)
Replace windshield wiper blades. (8)
@ @@
@@ @
@ @@ @
Replace hood and/or body lift support gas struts.@
@

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
426 Service and Maintenance

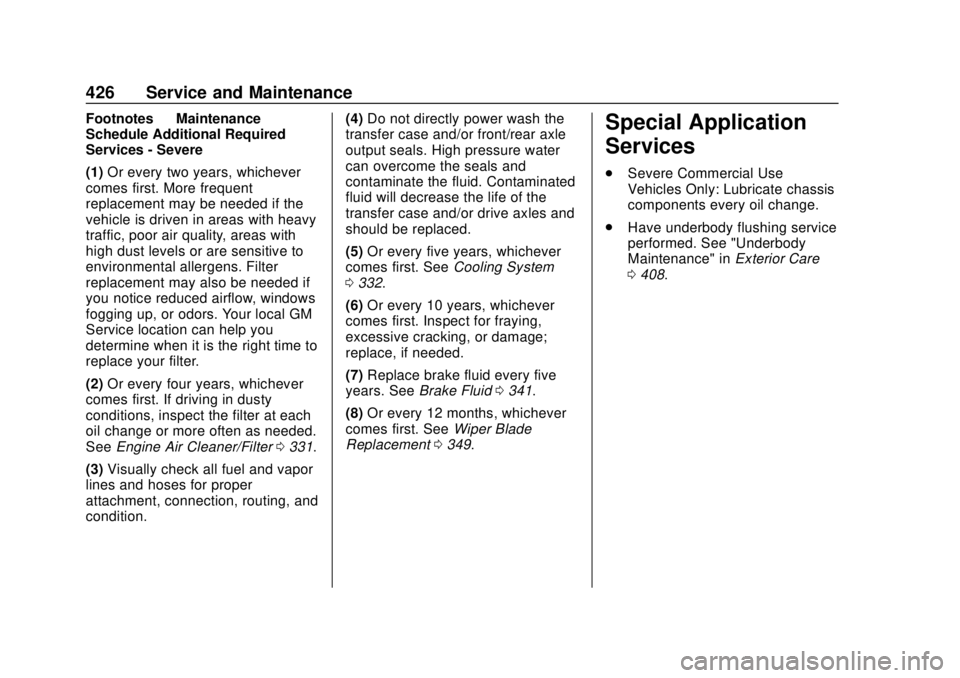

Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent
replacement may be needed if the
vehicle is driven in areas with heavy
traffic, poor air quality, areas with
high dust levels or are sensitive to
environmental allergens. Filter
replacement may also be needed if
you notice reduced airflow, windows
fogging up, or odors. Your local GM
Service location can help you
determine when it is the right time to
replace your filter.
(2) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
See Engine Air Cleaner/Filter 0331.
(3) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition. (4)
Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water
can overcome the seals and
contaminate the fluid. Contaminated
fluid will decrease the life of the
transfer case and/or drive axles and
should be replaced.
(5) Or every five years, whichever
comes first. See Cooling System
0 332.
(6) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(7) Replace brake fluid every five
years. See Brake Fluid 0341.
(8) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0349.Special Application
Services
.
Severe Commercial Use
Vehicles Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 408.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
Service and Maintenance 427
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services—their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories. .
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0430 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
436 Technical Data
ApplicationCapacities
Metric English
5.3L V8; 6.2L V8 1500 Series 7.6 L 8.0 qt
Fuel Tank 1500 Series Standard and Short Box (Gas & 4WD Diesel) 90.9 L 24.0 gal
1500 Series Standard and Short Box (2WD Diesel) 83.3 L 22.0 gal
1500 Series Long Box 106.0 L 28.0 gal
Transfer Case Fluid 1.5 L 1.6 qt
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeSpark Plug Gap
2.7L L4 (L3B) K0.65–0.75 mm (0.026–0.030 in)
4.3L V6 (LV3) H0.95–1.10 mm (0.037–0.043 in)
5.3L V8 (L82) F0.95–1.10 mm (0.037–0.043 in)
5.3L V8 (L84) D0.95–1.10 mm (0.037–0.043 in)
6.2L V8 (L87) L0.95–1.10 mm (0.037–0.043 in)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
464 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 318
Accessory Power . . . . . . . . . . . . . . . 228
Active Fuel Management . . . . . . . 231
Add-On Electrical Equipment . . . 311
Adding a Snow Plow or Similar Equipment . . . . . . . . . . . . . 312
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 454
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 427
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 72
Air Cleaner/Filter, Engine . . . . . . . 331
Air Conditioning . . . . . . . . . . . 191, 193
Air Filter Life System . . . . . . . . . . . . . . . . . . . 330
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 197
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 197
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 99
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 91
Passenger Sensing System . . . . 93
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 91 Airbag System (cont'd)
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . . . 92
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 90
Where Are the Airbags? . . . . . . . . 89
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 98
Passenger Status Indicator . . . 150
Readiness Light . . . . . . . . . . . . . . 149
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 97
System Check . . . . . . . . . . . . . . . . . . 87
Alarm Vehicle Security . . . . . . . . . . . . . . . . 55
Alert Lane Change . . . . . . . . . . . . . . . . . 272
Side Blind Zone (SBZA) . . . . . . 271
All-Season Tires . . . . . . . . . . . . . . . . 364
All-Terrain Tires . . . . . . . . . . . . . . . . . 365
Antilock Brake System (ABS) . . . 244 Warning Light . . . . . . . . . . . . . . . . . 155
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 408
Interior . . . . . . . . . . . . . . . . . . . . . . . . 413
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 442

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-1500-11698638) - 2019 - CRC - 5/13/19
466 Index
ChargingWireless . . . . . . . . . . . . . . . . . . . . . . 137
Charging System Light . . . . . . . . . 151
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 151
Ignition Transmission Lock . . . 348
Child Restraints Infants and Young Children . . . 101
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . 107
Older Children . . . . . . . . . . . . . . . . 100
Securing . . . . . . . . . . . . . . . . . 118, 122
Systems . . . . . . . . . . . . . . . . . . . . . . 104
Circuit Breakers . . . . . . . . . . . . . . . . 355
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 408
Interior Care . . . . . . . . . . . . . . . . . . 413
Climate Control Systems . . . . . . . 191 Air Conditioning . . . . . . . . . . . . . . 191
Dual Automatic . . . . . . . . . . . . . . . 193
Heating . . . . . . . . . . . . . . . . . . . . . . . 191
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cluster, Instrument . . . . . . . . . . . . . 140
Collision Damage Repair . . . . . . . 445
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 126
Compass . . . . . . . . . . . . . . . . . . . . . . . 134 Connected Services
Connections . . . . . . . . . . . . . . . . . . 461
Diagnostics . . . . . . . . . . . . . . . . . . . 463
Navigation . . . . . . . . . . . . . . . . . . . . 460
Connections Connected Services . . . . . . . . . . 461
Control
Hill Descent . . . . . . . . . . . . . . . . . . 249
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 247
Control Light
Hill Descent . . . . . . . . . . . . . . . . . . 156
Control of a Vehicle . . . . . . . . . . . . . 201
Convex Mirrors . . . . . . . . . . . . . . . . . . 57
Coolant Engine Temperature Gauge . . 147
Engine Temperature
Warning Light . . . . . . . . . . . . . . . 158
Cooling . . . . . . . . . . . . . . . . . . . . 191, 193
Cooling System . . . . . . . . . . . . . . . . . 332
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 444
Cruise Control . . . . . . . . . . . . . . . . . . 255 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Cupholders . . . . . . . . . . . . . . . . . . . . . 126
Customer Assistance . . . . . . . . . . . 441
Offices . . . . . . . . . . . . . . . . . . . . . . . . 440 Customer Assistance (cont'd)
Text Telephone (TTY)
Users . . . . . . . . . . . . . . . . . . . . . . . 441
Customer Information
Publications OrderingInformation . . . . . . . . . . . . . . . . . . 447
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 438
D
Damage Repair, Collision . . . . . . . 445
Danger, Warning, and Caution . . . . 3
Data CollectionInfotainment System . . . . . . . . . . 451
OnStar . . . . . . . . . . . . . . . . . . . . . . . 451
Data Recorders, Event . . . . . . . . . 450
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 182
Defensive Driving . . . . . . . . . . . . . . . 201
Delayed Locking . . . . . . . . . . . . . . . . . 46
Diagnostics
Connected Services . . . . . . . . . . 463
Differential, Limited-Slip . . . . . . . . 255
Distracted Driving . . . . . . . . . . . . . . . 200
Dome Lamps . . . . . . . . . . . . . . . . . . . 186
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . 161
Delayed Locking . . . . . . . . . . . . . . . . 46
