GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
Service and Maintenance 321

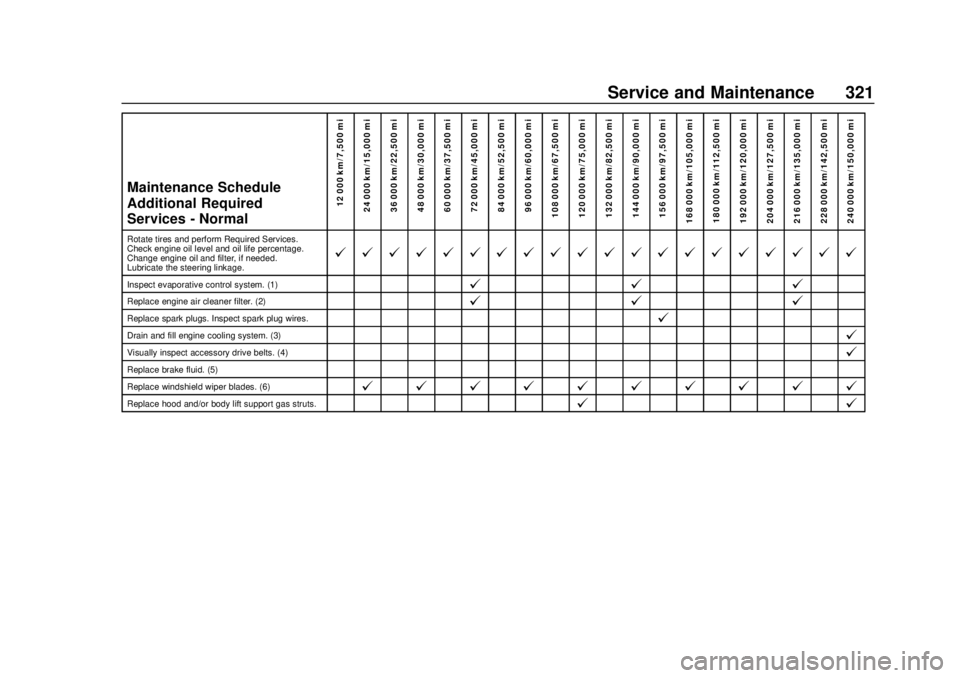

Maintenance Schedule
Additional Required
Services - Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.
Lubricate the steering linkage.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Inspect evaporative control system. (1)@ @@
Replace engine air cleaner filter. (2)@@@
Replace spark plugs. Inspect spark plug wires.@
Drain and fill engine cooling system. (3)@
Visually inspect accessory drive belts. (4)@
Replace brake fluid. (5)
Replace windshield wiper blades. (6)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts.@ @

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
Service and Maintenance 323
Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.
Lubricate the steering linkage.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Inspect evaporative control system. (1)@ @@
Replace engine air cleaner filter. (2)@@@
Change automatic transmission fluid and filter.@@@
Replace spark plugs. Inspect spark plug wires.@
Drain and fill engine cooling system. (3)@
Visually inspect accessory drive belts. (4)@
Replace brake fluid. (5)
Replace windshield wiper blades. (6)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts.@ @

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
Service and Maintenance 325
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories.
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary. Brakes
Brakes stop the vehicle and are
crucial to safe driving.
.
Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
. Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0327 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled. Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
Technical Data 333
ApplicationCapacities
Metric English
Fuel Tank
Cutaway (Optional Tank)* 215.7 L 57.0 gal
Cutaway (Standard Tank) 124.9 L 33.0 gal
Passenger and Cargo 117.3 L 31.0 gal
* 4 039 mm (159 in) wheelbase or 4 496 mm (177 in) wheelbase only
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
4.3L V6 (LV1) PAutomatic 0.95–1.10 mm (0.037–
0.043 in)
6.0L V8 (L96) GAutomatic 0.95–1.10 mm (0.037–
0.043 in)
6.0L V8 (LC8) (Capable of
Being Upfit for Gaseous Fuel) B
Automatic 0.95–1.10 mm (0.037–
0.043 in)

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
Index 361
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 230
Accessory Power . . . . . . . . . . . . . . . 181
Add-On Electrical Equipment . . . 227
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 351
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 324
Air Cleaner/Filter, Engine . . . . . . . 242
Air Conditioning . . . . . . . . . . . 159, 162
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 164
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 70
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 65
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 65
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . . . 65
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 64
Where Are the Airbags? . . . . . . . . 62
Airbags
Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 70
Light On-Off . . . . . . . . . . . . . . . . . . 106
On-Off Light . . . . . . . . . . . . . . . . . . 106 Airbags (cont'd)
On-Off Switch . . . . . . . . . . . . . . . . . . 67
Readiness Light . . . . . . . . . . . . . . 105
Servicing Airbag-Equipped
Vehicles . . . . . . . . . . . . . . . . . . . . . . . 69
System Check . . . . . . . . . . . . . . . . . . 60
Alarm Vehicle Security . . . . . . . . . . . . . . . . 36
Alert
Side Blind Zone (SBZA) . . . . . . 202
All-Season Tires . . . . . . . . . . . . . . . . 270
AM-FM Radio . . . . . . . . . . . . . . . . . . . 138
Antenna Fixed Mast . . . . . . . . . . . . . . . . . . . 141
Multi-band . . . . . . . . . . . . . . . . . . . . 141
Antilock Brake System (ABS) . . . 190 Warning Light . . . . . . . . . . . . . . . . . .110
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 307
Interior . . . . . . . . . . . . . . . . . . . . . . . . 312
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . 100
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 339
Audio Theft-Deterrent Feature . . . . . . . 133
Audio Players CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
362 Index
AutomaticDoor Locks . . . . . . . . . . . . . . . . . . . . . 32
Headlamp System . . . . . . . . . . . . 127
Transmission . . . . . . . . . . . . . . . . . 186
Transmission Fluid . . . . . . 238, 241
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 189
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 256
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 146
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . 141
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 254
B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 131
Load Management . . . . . . . . . . . . 130
Power Protection . . . . . . . . . . . . . 131
Battery - North America . . . . 253, 301
Blade Replacement, Wiper . . . . . 257
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . . 151
Brake
System Warning Light . . . . . . . . 109 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Antilock . . . . . . . . . . . . . . . . . . . . . . . 190
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Parking . . . . . . . . . . . . . . . . . . . . . . . 191
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 167
Break-In, New Vehicle . . . . . . . . . . 176
Bulb Replacement Center High-MountedStoplamp (CHMSL) . . . . . . . . . 261
Front Turn Signal,
Sidemarker, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 260
Halogen Bulbs . . . . . . . . . . . . . . . . 259
Headlamp Aiming . . . . . . . . . . . . . 259
Headlamps . . . . . . . . . . . . . . . . . . . 259
License Plate Lamps . . . . . . . . . 262
Taillamps . . . . . . . . . . . . . . . . . . . . . 260
Buying New Tires . . . . . . . . . . . . . . . 285
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 96
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 230 California
Proposition
65 Warning . . . . . . . . . .229, 253, 301,
Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . 198
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 332
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 185
Winter Driving . . . . . . . . . . . . . . . . 170
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . 92
Cargo Door Relocking . . . . . . . . . . . 31
Caution, Danger, and Warning . . . . 3
CD Player . . . . . . . . . . . . . . . . . . . . . . 141
Center High-Mounted Stoplamp (CHMSL) . . . . . . . . . . . 261
Chains, Tire . . . . . . . . . . . . . . . . . . . . 290
Charging System Light . . . . . . . . . 107
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 107
Ignition Transmission Lock . . . 256
Child Restraints Infants and Young Children . . . . . 73

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
364 Index
Driving (cont'd)Defensive . . . . . . . . . . . . . . . . . . . . . 166
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 167
For Better Fuel Economy . . . . . . . 23
Hill and Mountain Roads . . . . . . 170
If the Vehicle is Stuck . . . . . . . . . 172
Loss of Control . . . . . . . . . . . . . . . 168
Off-Road Recovery . . . . . . . . . . . 168
Vehicle Load Limits . . . . . . . . . . . 172
Wet Roads . . . . . . . . . . . . . . . . . . . 169
Winter . . . . . . . . . . . . . . . . . . . . . . . . 170
Dual Tire Rotation . . . . . . . . . . . . . . . . . . . . . . 284
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 207
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 227
Electrical System
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 264
Floor Console Fuse Block . . . . 267
Fuses and Circuit Breakers . . . 263
Overload . . . . . . . . . . . . . . . . . . . . . 263
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 350
Engine Air Cleaner/Filter . . . . . . . . . . . . . 242 Engine (cont'd)
Check Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 107
Compartment Overview . . . . . . . 232
Coolant Heater . . . . . . . . . . . . . . . 181
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 104
Cooling System . . . . . . . . . . . . . . . 244
Drive Belt Routing . . . . . . . . . . . . 334
Exhaust . . . . . . . . . . . . . . . . . . . . . . 185
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Oil Life System . . . . . . . . . . . . . . . 237
Oil Pressure Gauge . . . . . . . . . . 103
Oil Pressure Light . . . . . . . . . . . . .112
Overheating . . . . . . . . . . . . . . . . . . 248
Power Messages . . . . . . . . . . . . . .119
Running While Parked . . . . . . . . 185
Starting . . . . . . . . . . . . . . . . . . . . . . . 179
Enhanced Technology Glass . . . . 42
Entry Lighting . . . . . . . . . . . . . . . . . . . 130
Entry/Exit Lighting . . . . . . . . . . . . . . 130
Equipment, Towing . . . . . . . . . . . . . 222
Event Data Recorders . . . . . . . . . . 347
Exit Lighting . . . . . . . . . . . . . . . . . . . . 130
Extender, Seat Belt . . . . . . . . . . . . . . 58
Exterior Lamp Controls . . . . . . . . . 125
Exterior Lamps Off Reminder . . . 126 Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 131
F
Fan
Engine . . . . . . . . . . . . . . . . . . . . . . . . 249
Fast Idle System . . . . . . . . . . . . . . . . 180
Filter,
Engine Air Cleaner . . . . . . . . . . . 242
Fixed Mast Antenna . . . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 126
Flashers, Hazard Warning . . . . . . 128
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 290 Changing . . . . . . . . . . . . . . . . . . . . . 292
FlexFuel E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 315
Fluid
AutomaticTransmission . . . . . . . . . . . 238, 241
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 252
Power Steering . . . . . . . . . . . . . . . 249
Washer . . . . . . . . . . . . . . . . . . . . . . . 250
Folding Mirrors . . . . . . . . . . . . . . . . . . 39
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 201
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 345

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-12146167) -
2019 - CRC - 11/26/18
Index 365
Front SeatsAdjustment . . . . . . . . . . . . . . . . . . . . . 44
Front Storage . . . . . . . . . . . . . . . . . . . . 91
Front Turn Signal Bulb Replacement . . . . . . . . . . . . 260
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 207
Economy Driving . . . . . . . . . . . . . . . 23
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 209
Filling the Tank . . . . . . . . . . . . . . . 208
Foreign Countries . . . . . . . . . . . . 207
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 102
Low Fuel Warning Light . . . . . . . .113
Prohibited Fuels . . . . . . . . . . . . . . 206
Recommended . . . . . . . . . . . . . . . 206
Top Tier . . . . . . . . . . . . . . . . . . . . . . 206
Full-Size Spare Tire . . . . . . . . . . . . 301
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 264
Floor Console Fuse Block . . . . 267
Fuses and Circuit Breakers . . . 263
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 258 Gauges
Engine Coolant
Temperature . . . . . . . . . . . . . . . . 104
Engine Oil Pressure . . . . . . . . . . 103
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Odometer . . . . . . . . . . . . . . . . . . . . . 102
Speedometer . . . . . . . . . . . . . . . . . 102
Trip Odometer . . . . . . . . . . . . . . . . 102
Voltmeter . . . . . . . . . . . . . . . . . . . . . 104
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 100
General Information Service and Maintenance . . . . . 317
Towing . . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle Care . . . . . . . . . . . . . . . . . . 229
Glass, Enhanced Technology . . . . 42
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 339
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 259
Hazard Warning Flashers . . . . . . . 128
Head Restraints . . . . . . . . . . . . . . . . . 44
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 259
Automatic . . . . . . . . . . . . . . . . . . . . . 127
Bulb Replacement . . . . . . . . . . . . 259 Headlamps (cont'd)
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 127
Flash-to-Pass . . . . . . . . . . . . . . . . . 126
High-Beam On Light . . . . . . . . . . .113
High/Low Beam Changer . . . . . 126
Heated Mirrors . . . . . . . . . . . . . . . . . . . 39
Heater Engine Coolant . . . . . . . . . . . . . . . 181
Heating . . . . . . . . . . . . . . .159, 161, 162
High-Beam On Light . . . . . . . . . . . . 113
Hill and Mountain Roads . . . . . . . . 170
Hill Start Assist (HSA) . . . . . . . . . . 192
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 51
HVAC . . . . . . . . . . . . . . . . .159, 161, 162
I
Idle System
Fast . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Ignition Positions . . . . . . . . . . . . . . . 177
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 256
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 37
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . . 111
