2019 FORD GT technical specifications

Vehicle Care
General Information
...................................168
Cleaning Products ......................................
168
Cleaning the Exterior ..................................
168
Waxing .............................................................
170
Cleaning the Engine ....................................
170
Cleaning the Windows and Wiper Blades ........................................................................\
..
171
Cleaning the Interior .....................................
171
Cleaning the Instrument Panel and Instrument Cluster Lens ........................
172
Cleaning Leather Seats ..............................
172
Repairing Minor Paint Damage ...............
173
Cleaning the Wheels ...................................
173
Vehicle Storage .............................................
173
Wheels and Tires
Tire Sealant and Inflator Kit .....................
176
Tire Care ..........................................................
182
Using Summer Tires ...................................
194
Using Snow Chains .....................................
194
Tire Pressure Monitoring System ..........
194
Changing a Road Wheel ...........................
198
Driving at High Speed ................................
198
Technical Specifications ..........................
199
Capacities and Specifications
Engine Specifications ...............................
200
Motorcraft Parts ...........................................
201
Vehicle Dimensions ...................................
202
Vehicle Identification Number ...............
203
Vehicle Certification Label ......................
204
Transmission Code Designation ...........
204
Capacities and Specifications ...............
205
Audio System
Audio Unit .....................................................
208
USB Port ........................................................
208SYNC™ 3
General Information
..................................
209
Home Screen ................................................
219
Using Voice Recognition ..........................
220
Entertainment ..............................................
227
Phone ...............................................................
231
Navigation .....................................................
236
Apps ................................................................
244
Settings ..........................................................
245
SYNC™ 3 Troubleshooting .....................
256
Accessories
Accessories ...................................................
270
Scheduled Maintenance
General Maintenance Information ........
271
Normal Scheduled Maintenance ..........
272
Special Operating Conditions Scheduled Maintenance .............................................
273
Scheduled Maintenance Record ...........
274
Appendices
End User License Agreement ................
285
4
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
One of the following could cause a
decrease in operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
Other short-distance radio transmitters,
such as amateur radios, medical
equipment, wireless headphones, remote
controls and alarm systems may operate
on the same frequency as your remote
control. If other transmitters are operating
on those frequencies, you may not be able
to use your remote control. Using your
remote control near some types of
electronic equipment, such as USB devices,
computers or cell phones can interfere with
remote operation. Operating your remote
control near metal or metallic-finished
purses, bags or clothing can interfere with
remote operation. Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You push the exterior door release
panel within
3 ft (1 m) proximity of an
intelligent access key.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the engine
cover to access a pull strap to manually
unlock the driver door in this situation. See
Remote Control
(page 41).
40
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Keys and Remote Controls

WARNING: Do not use tire
sealants as they may damage the tire
pressure monitoring system. WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function. Each tire should be checked
monthly when cold and inflated
to the inflation pressure
recommended by the vehicle manufacturer
on the vehicle placard or tire inflation
pressure label. (If your vehicle has tires of
a different size than the size indicated on
the vehicle placard or tire inflation pressure
label, you should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle ’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver ’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale. Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale flashes for
approximately one minute and then
remains illuminated. This sequence
continues upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
This device complies with Part 15 of the
FCC Rules and with Licence exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
•
This device may not cause harmful
interference, and
• This device must accept any
interference received, including
interference that may cause undesired
operation. WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
195
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Wheels and Tires

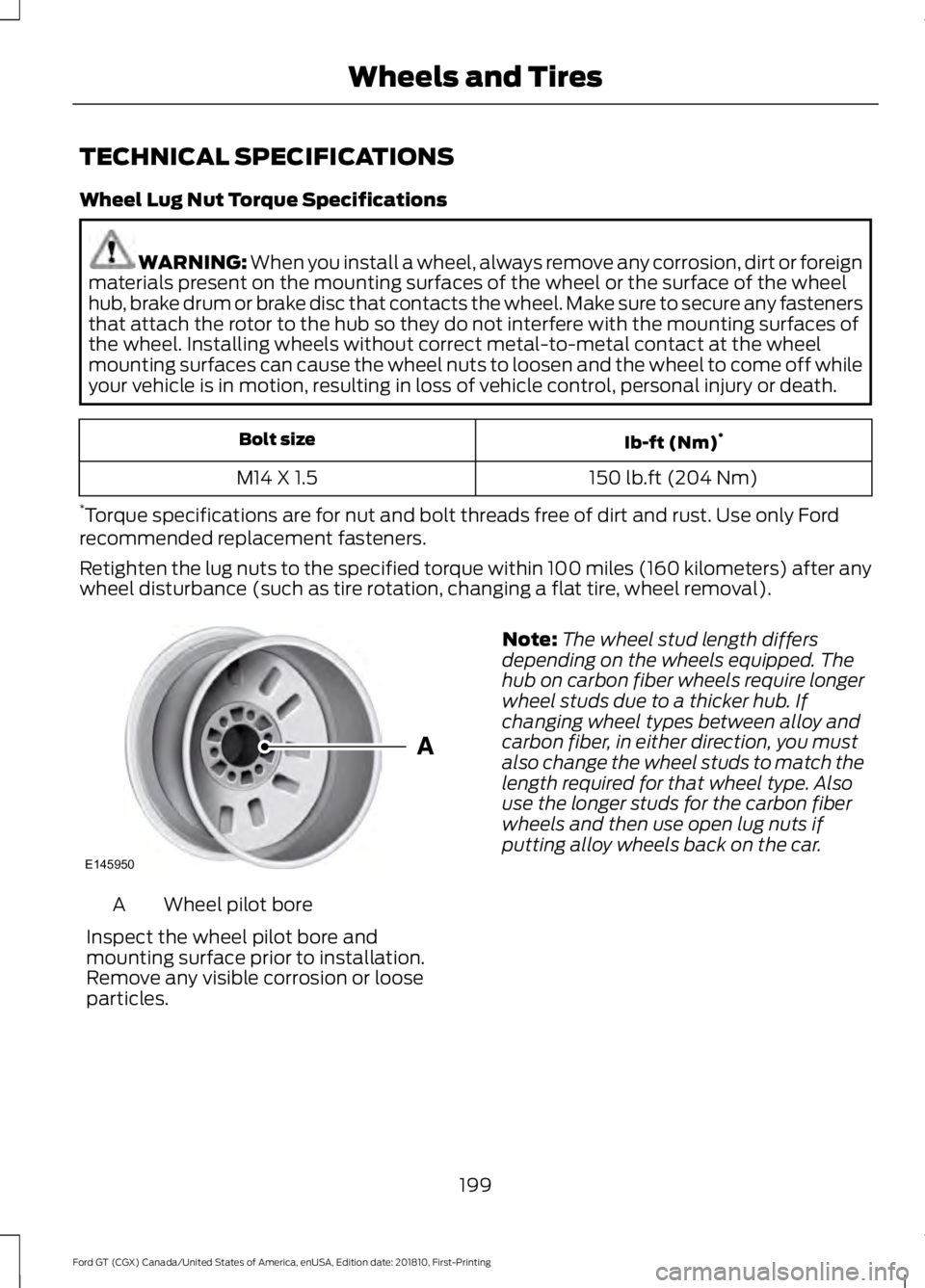

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)
*
Bolt size
150 lb.ft (204 Nm)
M14 X 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles. Note:
The wheel stud length differs
depending on the wheels equipped. The
hub on carbon fiber wheels require longer
wheel studs due to a thicker hub. If
changing wheel types between alloy and
carbon fiber, in either direction, you must
also change the wheel studs to match the
length required for that wheel type. Also
use the longer studs for the carbon fiber
wheels and then use open lug nuts if
putting alloy wheels back on the car.
199
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Wheels and TiresE145950

Before Operating Your Vehicle at High
Speeds:
•
Verify your tires have the correct
pressures See Technical
Specifications (page 199).
• Inspect wheels and tires for wear and
damage. Replace any damaged wheels
and tires.
• Check and set lug nut torque. See
Technical Specifications (page 199).
• Verify fluid levels for oil, coolant, brake,
and hydraulic fluid. See Maintenance
(page
150).
• Change the oil and filter prior to use on
the track. After Operating Your vehicle at High
Speeds and Track Day Driving, Do the
Following:
•
Set tire pressures to specification.
• Check and set lug nut torque. See
Technical Specifications (page 199).
• Check all fluid levels.
• If you drive your car for an extended
period of time at high speed or on the
track for an extended time, change the
oil and filter.
SCHEDULED MAINTENANCE RECORD 274
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

including any copyrighted material or
music file information. You agree that
Gracenote may enforce its respective
rights, collectively or separately, under this
agreement against you, directly in each
company's own name.
Gracenote uses a unique identifier to track
queries for statistical purposes. The
purpose of a randomly assigned numeric
identifier is to allow Gracenote to count
queries without knowing anything about
who you are. For more information, see the
web page at www.gracenote.com for the
Gracenote Privacy Policy.
THE GRACENOTE SOFTWARE, EACH ITEM
OF GRACENOTE DATA AND THE
GRACENOTE CONTENT ARE LICENSED
TO YOU "AS IS". NEITHER GRACENOTE
MAKES ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED,
REGARDING THE ACCURACY OF ANY
GRACENOTE DATA FROM THE
GRACENOTE SERVERS OR GRACENOTE
CONTENT. GRACENOTE COLLECTIVELY
AND SEPARATELY RESERVE THE RIGHT
TO DELETE DATA AND/OR CONTENT
FROM THE COMPANIES' RESPECTIVE
SERVERS OR, IN THE CASE OF
GRACENOTE, CHANGE DATA
CATEGORIES FOR ANY CAUSE THAT
GRACENOTE DEEMS SUFFICIENT. NO
WARRANTY IS MADE THAT EITHER
GRACENOTE CONTENT OR THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS ARE ERROR-FREE
OR THAT THE FUNCTIONING OF THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE
TO DISCONTINUE ITS ONLINE SERVICES
AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
Radio Frequency Statement
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
308
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Appendices

Filling a Portable Fuel Container.....................
91
S
Safety Precautions........................................90
Scheduled Maintenance Record............274
Scheduled Maintenance............................271
Seatbelt Extension.........................................31
Seatbelt Reminder
........................................29
Belt-Minder™........................................................ 29
Seatbelts...........................................................26 Principle of Operation........................................ 26
Seatbelt Warning Lamp and Indicator Chime
..............................................................29
Conditions of operation..................................... 29
Seats...................................................................82
Security..............................................................49
Settings
...........................................................245
911 Assist............................................................... 250
Bluetooth............................................................... 247
Camera Settings................................................ 255
Clock....................................................................... 247
Display................................................................... 255
General.................................................................. 254
Media Player........................................................ 246
Mobile Apps......................................................... 252
Navigation............................................................ 250
Phone...................................................................... 247
Radio...................................................................... 250
Sound..................................................................... 245
Valet Mode........................................................... 256
Voice Control....................................................... 256
Wi-Fi....................................................................... 254
Side Airbags......................................................37
Sitting in the Correct Position...................82
Snow Chains See: Using Snow Chains.................................. 194
Spare Wheel See: Changing a Road Wheel........................ 198
Special Notices
................................................10
Additional Warranty Information.................... 10
Certified Ford GT Service Dealer...................... 11
New Vehicle Limited Warranty........................ 10
On Board Diagnostics Data Link Connector........................................................... 10
Special Instructions............................................. 10Special Operating Conditions Scheduled
Maintenance
...............................................273
Engine Air Filter and Cabin Air Filter
Replacement.................................................. 273
Hot Climate Oil Change Intervals................273
Operating at High Speeds and Track Days.................................................................... 273
Speed Control See: Cruise Control.............................................. 114
Stability Control...........................................109 Principle of Operation...................................... 109
Starting and Stopping the Engine...........86 General Information........................................... 86
Starting the Engine
........................................87
Failure to Start...................................................... 88
Fast Restart............................................................ 88
Guarding Against Exhaust Fumes.................89
Important Ventilating Information................89
Stopping the Engine When Your Vehicle is Moving................................................................. 88
Stopping the Engine When Your Vehicle is Stationary.......................................................... 88
Steering.............................................................115
Steering Wheel Lock
.....................................87
Steering Wheel.................................................51
Storage Compartments..............................85
Supplementary Restraints System.........33 Principle of Operation......................................... 33
Symbols Glossary.............................................5
SYNC™ 3
........................................................209
General Information......................................... 209
SYNC™ 3 Troubleshooting......................256
T
Technical Specifications See: Capacities and Specifications...........200
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................134
Tire Care
...........................................................182
Glossary of Tire Terminology......................... 184
Information About Uniform Tire Quality Grading.............................................................. 182
Information Contained on the Tire Sidewall............................................................ 185
Temperature A B C............................................. 183
Traction AA A B C............................................... 183
Treadwear............................................................. 183
316
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Index

Carbon Ceramic Brakes.....................................
65
Cruise Control........................................................ 65
Damper Comfort Mode..................................... 65
Direction Indicator............................................... 65
Door Ajar.................................................................. 65
Electric Park Brake............................................... 65
Engine Coolant Temperature.......................... 65
Engine Oil................................................................ 65
Fasten Seatbelt.................................................... 66
Front Airbag........................................................... 66
Front Lift Mode Active........................................ 66
Frost Warning Lamp........................................... 66
Hatch Ajar............................................................... 66
High Beam.............................................................. 66
Hood Ajar................................................................ 66
Hydraulic System Fault..................................... 66
Launch Control..................................................... 66
Low Beam Malfunction Warning Lamp.................................................................... 66
Low Fuel Level...................................................... 66
Low Tire Pressure Warning.............................. 66
Parking Lamps....................................................... 67
Powertrain Fault.................................................... 67
Rear Fog Lamp...................................................... 67
Ride Height System Fault.................................. 67
Service Engine Soon............................................ 67
Stability Control.................................................... 67
Stability Control Off............................................ 67
Transmission Fault............................................... 67
Washer Fluid Check.....................................159
Washers See: Cleaning the Exterior............................... 168
Waxing..............................................................170
Wheel Nuts See: Changing a Road Wheel........................ 198
Wheels and Tires
..........................................176
Technical Specifications................................. 199
Windows and Mirrors...................................60
Windshield Washers.....................................56
Windshield Wipers
........................................56
Wiper and Washer Control.........................53
Wiper Blades See: Checking the Wiper Blades................... 162
Wipers and Washers
.....................................56
318
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Index
