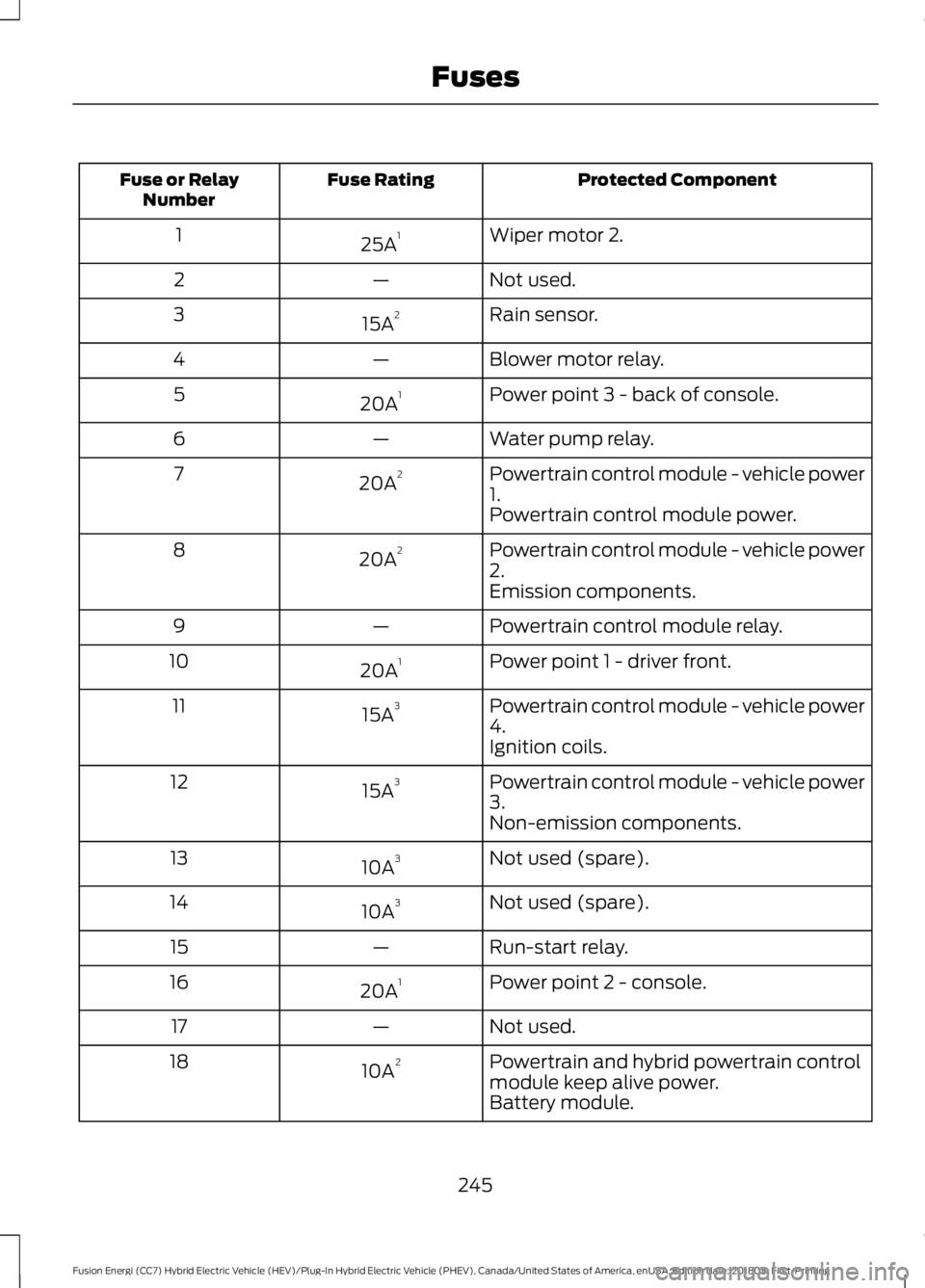

2019 FORD FUSION HYBRID relay

Protected Component
Fuse Rating
Fuse or Relay
Number
Wiper motor 2.
25A 1
1
Not used.
—
2
Rain sensor.
15A 2
3
Blower motor relay.
—
4
Power point 3 - back of console.
20A 1
5
Water pump relay.
—
6
Powertrain control module - vehicle power
1.
20A 2
7
Powertrain control module power.
Powertrain control module - vehicle power
2.
20A 2
8
Emission components.
Powertrain control module relay.
—
9
Power point 1 - driver front.
20A 1
10
Powertrain control module - vehicle power
4.
15A 3
11
Ignition coils.
Powertrain control module - vehicle power
3.
15A 3
12
Non-emission components.
Not used (spare).
10A 3
13
Not used (spare).
10A 3
14
Run-start relay.
—
15
Power point 2 - console.
20A 1
16
Not used.
—
17
Powertrain and hybrid powertrain control
module keep alive power.
10A 2
18
Battery module.
245
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay
Number
Run/start electronic power assist steering.
10A 2
19
Adaptive cruise control.
10A 2
20
Run-start transmission switch.
15A 2
21
HEV inverter.
Not used (spare).
5A 2
22
Run-start, blind spot information system,
rear view camera, adaptive cruise control,
head-up display, shifter.
15A
2
23
PHEV Run-start transmission oil pump.
10A 2
24
Run-start anti-lock brake system.
10A 3
25
Run-start powertrain control module.
10A 3
26
Fuel door solenoid.
10A 2
27
Not used (spare).
20A 2
28
Not used (spare).
20A 2
29
Not used.
—
30
Not used.
—
31
HEV/PHEV pulse width modulated fan
relay.
—
32
Not used.
—
33
Not used.
—
34
Charger fan.
15A 2
35
HEV battery electronic control module fan.
15A 2
36
Not used.
—
37
Vacuum pump #1 relay.
—
38
Vacuum pump #2 relay.
—
39
246
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay
Number
Fuel pump relay.
—
40
Horn relay.
—
41
Not used.
—
42
Not used.
—
43
Not used.
—
44
Vacuum pump monitor.
5A 2
45
Charge port light ring.
10A 3
46
Brake on-off switch.
10A 3
47
Horn.
20A 2
48
Air flow monitor.
5A 2
49
Hybrid content vehicle power 5.
15A 2
50
Battery energy control module fan.
Hybrid content vehicle power 1.
15A 3
51
Hybrid powertrain control module.
Hybrid content vehicle power 2.
15A 3
52
Battery energy control module.
Not used (spare).
10A 2
53
Hybrid content vehicle power 3.
10A 3
54
Coolant pump.
Hybrid content vehicle power 4.
10A 3
55
Air conditioning compressor.
Positive temperature coefficient heater
(PHEV).
Humidity sensor (PHEV).
1 M-Case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
247
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Fuel pump feed.
30A 1
56
Not used.
—
57
Not used.
—
58
Vacuum pump relay.
40A 1
59
Pulse width modulated fan.
40A 2
60
Not used.
—
61
Body control module 1.
50A 2
62
Not used.
—
63
PHEV charger.
40A 1
64
249
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing FusesE144949

Protected Component
Fuse Rating
Fuse or Relay Number
Front heated seat.
20A 2
65
Not used.
—
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Water pump.
50A 2
71
Panoramic roof #1.
30A 1
72
Not used (spare).
50A 1
73
Driver seat module.
30A 1
74
Transmission oil pump (PHEV).
20A 1
75
e-Shifter (transmission range control
module).
20A 1
76
Front climate controlled seats.
30A 1
77
Not used.
—
78
Blower motor.
40A 2
79
Wiper motor 2.
25A 1
80
Not used.
—
81
Anti-lock brake system pump.
60A 2
82
Wiper motor 1.
25A 1
83
250
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
—
84
Not used (spare).
30A 1
85
1 M Case fuse.
2 J Case fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located under the
instrument panel to the left of the steering
column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece. Protected Component
Fuse Rating
Fuse or Relay
Number
Not used.
—
1
Lumbar.
7.5A 1
2
Driver door unlock.
20A 1
3
Not used (spare).
5A 1
4
251
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing FusesE145984

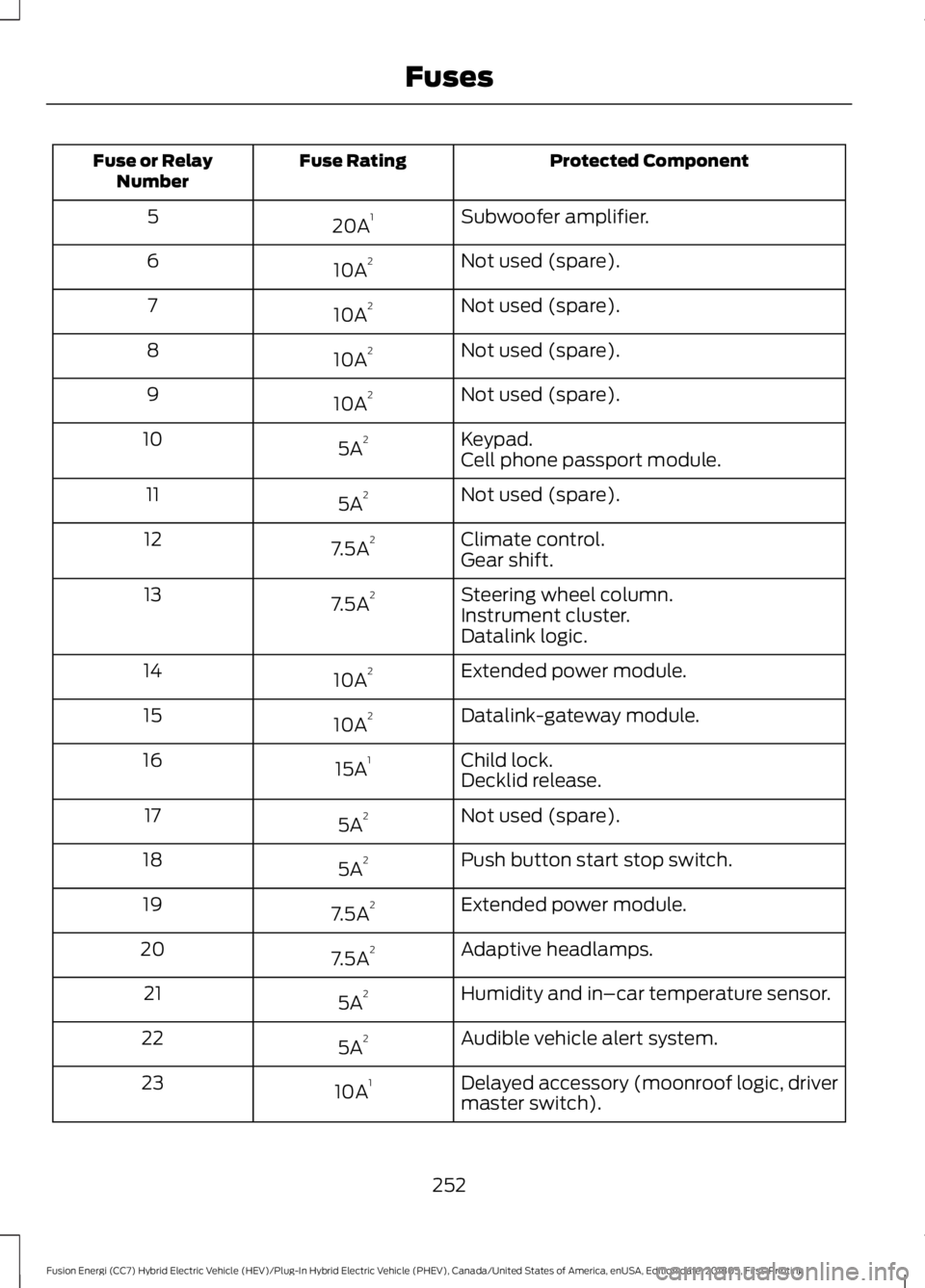

Protected Component
Fuse Rating
Fuse or Relay
Number
Subwoofer amplifier.
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Keypad.
5A 2
10
Cell phone passport module.
Not used (spare).
5A 2
11
Climate control.
7.5A 2
12
Gear shift.
Steering wheel column.
7.5A 2
13
Instrument cluster.
Datalink logic.
Extended power module.
10A 2
14
Datalink-gateway module.
10A 2
15
Child lock.
15A 1
16
Decklid release.
Not used (spare).
5A 2
17
Push button start stop switch.
5A 2
18
Extended power module.
7.5A 2
19
Adaptive headlamps.
7.5A 2
20
Humidity and in–car temperature sensor.
5A 2
21
Audible vehicle alert system.
5A 2
22
Delayed accessory (moonroof logic, driver
master switch).
10A 1
23
252
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay
Number
Central lock unlock
20A 1
24
Driver door (window, mirror).
30A 1
25
Front passenger door (window, mirror).
30A 1
26
Moonroof.
30A 1
27
Amplifier.
20A 1
28
Rear driver side door (window).
30A 1
29
Rear passenger side door (window).
30A 1
30
Not used (spare).
15A 1
31
GPS.
10A 1
32
Voice control.
Display.
Radio frequency receiver.
Radio.
20A 1
33
Active noise control.
Run-start (fuse #19, 20, 21, 22, 35, 36, 37,
circuit breaker).
30A 1
34
Not used (spare).
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Heated steering wheel.
20A 1
37
Not used.
—
38
1 Micro 2 fuse.
2 Micro 3 fuse.
253
