2019 FORD FUSION ENERGI traction control

the government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of their
use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.
Traction AA A B C
WARNING: The traction
grade assigned to this tire is based
on straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning or peak traction
characteristics.
The traction grades, from highest
to lowest are AA, A, B, and C. The
grades represent the tire ’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance. Temperature A B C WARNING: The temperature
grade for this tire is established for
a tire that is properly inflated and
not overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
The temperature grades are A
(the highest), B and C,
representing the tire ’s resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled conditions
on a specified indoor laboratory
test wheel. Sustained high
temperature can cause the
material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden
tire failure. The grade C
corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Vehicle Safety
Standard No. 139. Grades B and A
represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law.
Glossary of Tire Terminology
*
Tire label: A label showing the
original equipment tire sizes,
recommended inflation pressure
and the maximum weight the
vehicle can carry.
289
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Wheels and Tires

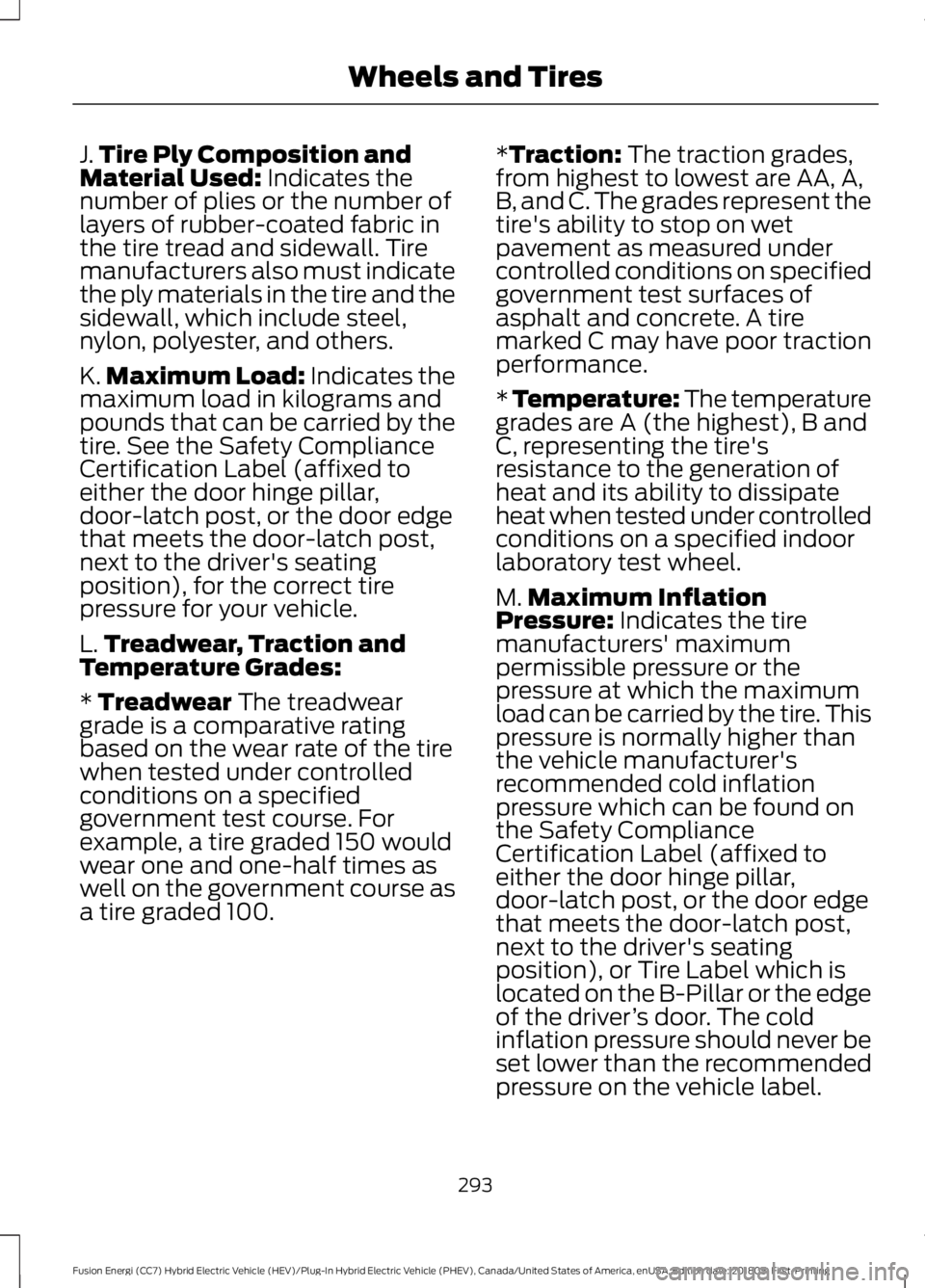

J.
Tire Ply Composition and
Material Used: Indicates the
number of plies or the number of
layers of rubber-coated fabric in
the tire tread and sidewall. Tire
manufacturers also must indicate
the ply materials in the tire and the
sidewall, which include steel,
nylon, polyester, and others.
K. Maximum Load: Indicates the
maximum load in kilograms and
pounds that can be carried by the
tire. See the Safety Compliance
Certification Label (affixed to
either the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver's seating
position), for the correct tire
pressure for your vehicle.
L. Treadwear, Traction and
Temperature Grades:
*
Treadwear The treadwear
grade is a comparative rating
based on the wear rate of the tire
when tested under controlled
conditions on a specified
government test course. For
example, a tire graded 150 would
wear one and one-half times as
well on the government course as
a tire graded 100. *
Traction: The traction grades,
from highest to lowest are AA, A,
B, and C. The grades represent the
tire's ability to stop on wet
pavement as measured under
controlled conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.
* Temperature: The temperature
grades are A (the highest), B and
C, representing the tire's
resistance to the generation of
heat and its ability to dissipate
heat when tested under controlled
conditions on a specified indoor
laboratory test wheel.
M. Maximum Inflation
Pressure:
Indicates the tire
manufacturers' maximum
permissible pressure or the
pressure at which the maximum
load can be carried by the tire. This
pressure is normally higher than
the vehicle manufacturer's
recommended cold inflation
pressure which can be found on
the Safety Compliance
Certification Label (affixed to
either the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver's seating
position), or Tire Label which is
located on the B-Pillar or the edge
of the driver ’s door. The cold
inflation pressure should never be
set lower than the recommended
pressure on the vehicle label.
293
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Wheels and Tires

USING SUMMER TIRES
Summer tires provide superior
performance on wet and dry roads.
Summer tires do not have the Mud and
Snow (M+S or M/S) tire traction rating on
the tire side wall. Since summer tires do
not have the same traction performance
as All-season or Snow tires, we do not
recommend using summer tires when
temperatures drop to approximately 45°F
(7°C) or below (depending on tire wear
and environmental conditions) or in snow
and ice conditions. Like any tire, summer
tire performance is affected by tire wear
and environmental conditions. If you must
drive in those conditions, we recommend
using Mud and Snow (M+S, M/S),
All-season or Snow tires.
Always store your summer tires indoors at
temperatures above
19°F (-7°C). The
rubber compounds used in these tires lose
flexibility and may develop surface cracks
in the tread area at temperatures below
19°F (-7°C)
. If the tires have been
subjected to 19°F (-7°C) or less, warm
them in a heated space to at least 41°F
(5°C) for at least 24 hours before installing
them on a vehicle, or moving the vehicle
with the tires installed, or checking tire
inflation. Do not place tires near heaters
or heating devices used to warm the room
where the tires are stored. Do not apply
heat or blow heated air directly on the tires.
Always inspect the tires after storage
periods and before use. USING SNOW CHAINS WARNING:
If you choose to install
snow tires on your vehicle, they must be
the same size, construction, and load range
as the original tires listed on the tire
placard, and they must be installed on all
four wheels. Mixing tires of different size
or construction on your vehicle can
adversely affect your vehicle's handling
and braking, and may lead to loss of
vehicle control.
Do not use snow chains or cables on this
vehicle as they may cause damage to your
vehicle which may lead to loss of vehicle
control.
Snow chains or cables have not been
approved for use on your vehicle.
The original equipment tires on your vehicle
may have an all-weather tread design to
provide traction, handling, and braking
performance in year-round driving. You
may install snow tires for improved traction
when driving in areas with sustained
periods of snow or icy driving conditions
TIRE PRESSURE MONITORING
SYSTEM WARNING:
The tire pressure
monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to correctly
maintain tire pressures could increase the
risk of tire failure, loss of control, vehicle
rollover and personal injury.
Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.
303
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Wheels and Tires

SYNC® Automotive Important Safety
Information Read and follow
instructions:
•
Before using your SYNC® system, read
and follow all instructions and safety
information provided in this end user
manual ("Owner Guide".) Not
following precautions found in the
Owner Guide can lead to an accident
or other serious injuries.
General Operation
• Voice Command Control: Certain
functions within the SYNC® system
may be accomplished using voice
commands. Using voice commands
while driving helps you to operate the
system without removing your hands
from the wheel or eyes from the road.
• Prolonged Views of Screen:
Do not
access any function requiring a
prolonged view of the screen while you
are driving. Pull over in a safe and legal
manner before attempting to access a
function of the system requiring
prolonged attention.
• Volume Setting:
Do not raise the
volume excessively. Keep the volume
at a level where you can still hear
outside traffic and emergency signals
while driving. Driving while unable to
hear these sounds could cause an
accident.
• Navigation Features:
Any navigation
features included in the system are
intended to provide turn by turn
instructions to get you to a desired
destination. Please make certain all
persons using this system carefully
read and follow instructions and safety
information fully. •
Distraction Hazard:
Any navigation
features may require manual
(non-verbal) setup. Attempting to
perform such set-up or insert data
while driving can distract your attention
and could cause an accident or other
serious injury. Stop the vehicle in a safe
and legal manner before attempting
these operations.
• Let Your Judgment Prevail:
Any
navigation features are provided only
as an aid. Make your driving decisions
based on your observations of local
conditions and existing traffic
regulations. Any such feature is not a
substitute for your personal judgment.
Any route suggestions made by this
system should never replace any local
traffic regulations or your personal
judgment or knowledge of safe driving
practices.
• Route Safety: Do not follow the route
suggestions if doing so would result in
an unsafe or illegal maneuver, if you
would be placed in an unsafe situation,
or if you would be directed into an area
that you consider unsafe. The driver is
ultimately responsible for the safe
operation of the vehicle and therefore,
must evaluate whether it is safe to
follow the suggested directions.
• Potential Map Inaccuracy:
Maps
used by this system may be inaccurate
because of changes in roads, traffic
controls or driving conditions. Always
use good judgment and common sense
when following the suggested routes.
• Emergency Services:
Do not rely on
any navigation features included in the
system to route you to emergency
services. Ask local authorities or an
emergency services operator for these
locations. Not all emergency services
such as police, fire stations, hospitals
and clinics are likely to be contained in
the map database for such navigation
features.
495
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Appendices

H
Hazard Flashers...........................................230
Headlamp Adjusting See: Adjusting the Headlamps..................... 267
Headlamp Exit Delay
....................................79
Headlamp Removal See: Removing a Headlamp......................... 268
Headrest See: Head Restraints......................................... 126
Head Restraints.............................................126 Adjusting the Head Restraint.......................... 127
Tilting Head Restraints .................................... 128
Heated Exterior Mirrors...............................124
Heated Rear Window..................................124
Heated Seats..................................................132
Heated Steering Wheel................................74
Heating See: Climate Control......................................... 120
High Voltage Battery Cut-Off Switch.............................................................172
High Voltage Battery
...................................166
General Information.......................................... 166
Hill Start Assist..............................................179 Switching the System On and Off...............180
Using Hill Start Assist....................................... 180
Hints on Controlling the Interior Climate..........................................................123
Defogging the Side Windows in Cold Weather............................................................. 123
General Hints........................................................ 123
Quickly Cooling the Interior............................. 123
Quickly Heating the Interior............................ 123
Recommended Settings for Cooling...........123
Recommended Settings for Heating...........123
Hints on Driving With Anti-Lock Brakes.............................................................177
Home Screen................................................383
Hood Lock See: Opening and Closing the Hood..........256
Hybrid Vehicle Frequently Asked Questions......................................................152
Hybrid Vehicle Operation..........................148 Battery:................................................................... 149
Braking:................................................................... 149
Driving:.................................................................... 148
Driving to Optimize Fuel Economy..............149
Engine:.................................................................... 149Starting:.................................................................
148
Stopping:............................................................... 148
Transmission Operation:................................. 148
I
In California (U.S. Only)............................238
Information Display Control.......................74
Information Displays
....................................98
General Information........................................... 98
Information Messages................................107 Active Park............................................................. 107
Adaptive Cruise Control.................................. 108
AdvanceTrac ™.................................................... 108
Airbag..................................................................... 109
Alarm...................................................................... 109
Automatic Engine Shutdown........................ 109
Battery and Charging System (12 volt)..................................................................... 110
Battery and Charging System (High Voltage)............................................................. 110
Blind Spot Information and Cross Traffic Alert System...................................................... 111
Doors and Locks.................................................... 111
Driver Alert.............................................................. 112
Fuel........................................................................\
.... 112
Hill Start Assist..................................................... 113
Keys and Intelligent Access............................. 113
Lane Keeping System........................................ 114
Maintenance.......................................................... 114
MyKey....................................................................... 115
Park Aid................................................................... 116
Park Brake.............................................................. 116
Power Steering...................................................... 117
Pre-Collision Assist............................................. 117
Remote Start......................................................... 117
Seats........................................................................\
. 117
Starting System .................................................. 118
Tire Pressure Monitoring System................... 118
Traction Control................................................... 118
Transmission......................................................... 119
Installing Child Restraints
............................18
Child Seats............................................................... 18
Using Lap and Shoulder Belts.......................... 19
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 24
Using Tether Straps............................................. 25
Instrument Cluster
........................................90
532
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Index

Guarding Against Exhaust Fumes...............146
Important Ventilating Information..............146
Switching Off Your Vehicle When It Is
Moving............................................................... 145
Switching Off Your Vehicle When It Is Stationary......................................................... 145
Starting and Stopping the Engine..........143 General Information.......................................... 143
Steering............................................................216 Electric Power Steering.................................... 216
Steering Wheel.................................................71
Storage Compartments.............................142
Sunroof See: Moonroof...................................................... 88
Sun Visors.........................................................88 Illuminated Vanity Mirror................................... 88
Supplementary Restraints System..........41 Principle of Operation......................................... 41
Symbols Glossary.............................................7
SYNC™ 3........................................................370 General Information......................................... 370
SYNC™ 3 Troubleshooting......................454
SYNC™ Applications and Services........................................................348
911 Assist............................................................... 348
SYNC Mobile Apps............................................ 350
SYNC™
............................................................332
General Information.......................................... 332
SYNC™ Troubleshooting
.........................362
T
Technical Specifications See: Capacities and Specifications...........309
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................239
Tire Care
..........................................................288
Glossary of Tire Terminology........................ 289
Information About Uniform Tire Quality Grading............................................................. 288
Information Contained on the Tire Sidewall........................................................... 290
Temperature A B C............................................ 289
Traction AA A B C.............................................. 289
Treadwear............................................................ 288
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................282 Tire Pressure Monitoring System..........303
Changing Tires With a Tire Pressure
Monitoring System....................................... 305
Understanding Your Tire Pressure Monitoring System ...................................... 305
Tire Repair Kit See: Tire Sealant and Inflator Kit.................282
Tire Sealant and Inflator Kit....................282 First Stage: Reinflating the Tire with Sealing
Compound and Air....................................... 284
General Information......................................... 283
Second Stage: Checking Tire Pressure........................................................... 286
Tips for Use of the Kit...................................... 283
What to do after the Tire has been Sealed............................................................... 286
What to do when a Tire Is Punctured........284
Tires See: Wheels and Tires..................................... 282
Towing a Trailer
.............................................225
Towing Points................................................235
Installing the Recovery Hook......................... 235
Recovery Hook Location................................. 235
Towing the Vehicle on Four Wheels..........................................................225
Emergency Towing............................................ 225
Recreational Towing......................................... 225
Towing..............................................................225
Traction Control
.............................................181
Principle of Operation........................................ 181
Transmission Code Designation.............312
Transmission...................................................173
Transporting the Vehicle
...........................235
Type Approvals..............................................517 Radio Frequency Certification Logos for
Blind Spot Information System...............524
Radio Frequency Certification Logos for Mid Range Radar.................................................... 519
Radio Frequency Certification Logos for Passive Anti-Theft System....................... 520
Radio Frequency Certification Logos for Radio Transceiver Module......................... 523
Radio Frequency Certification Logos for SYNC 3.............................................................. 526
Radio Frequency Certification Logos for Tire Pressure Monitoring Sensor(s).................517
Radio Frequency Certification Logos for Wireless Charging......................................... 525
536
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Index

U
Under Hood Overview................................257
Unique Driving Characteristics................148
Universal Garage Door Opener...............135
HomeLink Wireless Control System............135
USB Port...........................................................331
Using Adaptive Cruise Control................199 Automatic Cancellation.................................. 202
Blocked Sensor.................................................. 204
Canceling the Set Speed................................ 202
Changing the Set Speed................................. 202
Detection Issues................................................ 203
Following a Vehicle............................................ 201
Following a Vehicle to a Complete Stop.................................................................... 201
Hilly Condition Usage....................................... 203
Overriding the Set Speed............................... 202
Park Brake Application.................................... 203
Resuming the Set Speed................................ 202
Setting the Adaptive Cruise Speed............200
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary......................... 200
Setting the Gap Distance................................ 201
Switching Adaptive Cruise Control Off...................................................................... 203
Switching Adaptive Cruise Control On......................................................................\
.200
Switching to ECO Cruise................................. 205
Switching to Normal Cruise Control..........205
System Not Available...................................... 204
Using Cruise Control...................................198 Canceling the Set Speed................................. 199
Changing the Set Speed................................. 198
Resuming the Set Speed................................. 199
Setting the Cruise Speed................................ 198
Switching Cruise Control Off......................... 199
Switching Cruise Control On.......................... 198
Switching to ECO Cruise.................................. 199
Using MyKey With Remote Start Systems..........................................................60
Using Snow Chains
.....................................303
Using Stability Control...............................183
Using Summer Tires...................................303
Using SYNC™ With Your Media Player.............................................................353
Accessing Your USB Song Library................357 Bluetooth Devices and System
Settings............................................................ 359
Connecting Your Digital Media Player to the USB Port........................................................... 353
Media Menu Features...................................... 356
Media Voice Commands................................ 354
USB 2
...................................................................... 359
Voice Commands for Audio Sources.........360
Using SYNC™ With Your Phone............336 Accessing Features through the Phone
Menu................................................................... 341
Accessing Your Phone Settings................... 344
Bluetooth Devices............................................. 345
Making Calls........................................................ 340
Pairing a Phone for the First Time...............337
Pairing Subsequent Phones.......................... 338
Phone Options during an Active Call.........340
Phone Voice Commands................................ 338
Receiving Calls................................................... 340
System Settings................................................. 346
Text Messaging................................................... 342
Using Traction Control
.................................181
Switching the System Off................................ 181
System Indicator Lights and Messages........................................................... 181
Using a Switch...................................................... 181
Using the Information Display Controls.............................................................. 181
Using Voice Recognition...........................334 Audio Voice Commands................................. 385
Climate Voice Commands............................. 386
Initiating a Voice Session................................ 334
Mobile App Voice Commands...................... 389
Navigation Voice Commands....................... 387
Phone Voice Commands............................... 386
SiriusXM Traffic and Travel Link Voice Commands..................................................... 389
System Interaction and Feedback..............335
Voice Settings Commands............................ 390
Utilizing the Mediation/Arbitration Program (Canada Only)........................240
V
Vehicle Care
...................................................274
General Information.......................................... 274
Vehicle Certification Label........................312
Vehicle Identification Number..................311
537
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing Index
