Severe Climates
If you drive in extremely cold climates:
•
It may be necessary to increase the
coolant concentration above 50%.
• A coolant concentration of 60%
provides improved freeze point
protection. Coolant concentrations
above 60% decrease the overheat
protection characteristics of the
coolant and may cause engine
damage.
If you drive in extremely hot climates:
• You can decrease the coolant
concentration to 40%.
• Coolant concentrations below 40%
decrease the freeze and corrosion
protection characteristics of the
coolant and may cause engine
damage.
Vehicles driven year-round in non-extreme
climates should use prediluted engine
coolant for optimum cooling system and
engine protection.
Coolant Change
Follow the specific mileage intervals, as
listed in the scheduled maintenance
information, to change the coolant. The
information display may display a message
to change coolant at this time. Add
prediluted coolant approved to the correct
specification. See Capacities and
Specifications (page 419). Engine-driven Cooling Fan
Your vehicle may have an engine driven
cooling fan drive also called a fan clutch.
This fan drive changes the fan speed to
match the vehicle
’s changing cooling air
flow requirements. Fan speed, fan noise
level and fuel consumption all will increase
based on the driving conditions that
include trailer towing, hill climbing, heavy
loads, high speed and high ambient
temperature, individually or in combination.
The fan drive is designed to provide the
minimum fan speed and resulting
minimum fan noise and fuel consumption
required to meet the ever-changing vehicle
cooling air flow requirements. You can hear
the amount of fan noise increasing and
decreasing as the engine power
requirements and vehicle driving conditions
change as you drive. This is normal to the
operation of your vehicle. You may also
hear high levels of the fan when the engine
is first started and should normally
decrease after driving for a short time.
AUTOMATIC TRANSMISSION
FLUID CHECK
Have an authorized dealer check and
change the transmission fluid and filter at
the correct service interval. See
Scheduled Maintenance
(page 580).
Do not use supplemental transmission
fluid additives, treatments or cleaning
agents. The use of these materials may
affect transmission operation and result
in damage to internal transmission
components. See
Scheduled
Maintenance (page 580).
The automatic transmission does not have
a transmission fluid dipstick.
Note: Only applies to 6R100 transmission.
346
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing Maintenance

Refer to your scheduled maintenance
information for scheduled intervals for fluid
checks and changes. Your transmission
does not consume fluid. However, if the
transmission slips, slowly shifts or if you
notice a sign of leaking fluid, contact an
authorized dealer.
Checking Automatic Transmission
Fluid (If Equipped)
For scheduled intervals of the fluid checks
and changes, See
Scheduled
Maintenance (page 580). Your
transmission does not consume fluid.
However, the fluid level should be checked
if the transmission is not working properly,
i.e., if the transmission slips or shifts slowly
or if you notice some sign of fluid leakage.
Automatic transmission fluid expands
when warmed. To obtain an accurate fluid
check, drive the vehicle until it is at normal
operating temperature (approximately
19 mi (30 km)
). Verify that the
transmission fluid temperature gauge,
located on the instrument cluster, is within
normal range.
1. Drive the vehicle
19 mi (30 km) until it
reaches normal operating temperature.
2. Park the vehicle on a level surface and
engage the parking brake.
3. With the engine running, parking brake
engaged and your foot on the brake
pedal, move the gearshift lever through
all of the gear ranges. Allow sufficient
time for each gear to engage.
4. Latch the gearshift lever in park (P) and
leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer to the Under Hood
Overview in this chapter for the
location of the dipstick. 6.
Install the dipstick making sure it is fully
seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in the
designated area for normal operating
temperature or ambient temperature.
Low Fluid Level
Type A Type B
Do not drive the vehicle if there is no
indication of fluid on the dipstick and the
ambient temperature is above
50°F
(10°C).
Correct Fluid Level
Type A
347
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing MaintenanceE163739 E163740

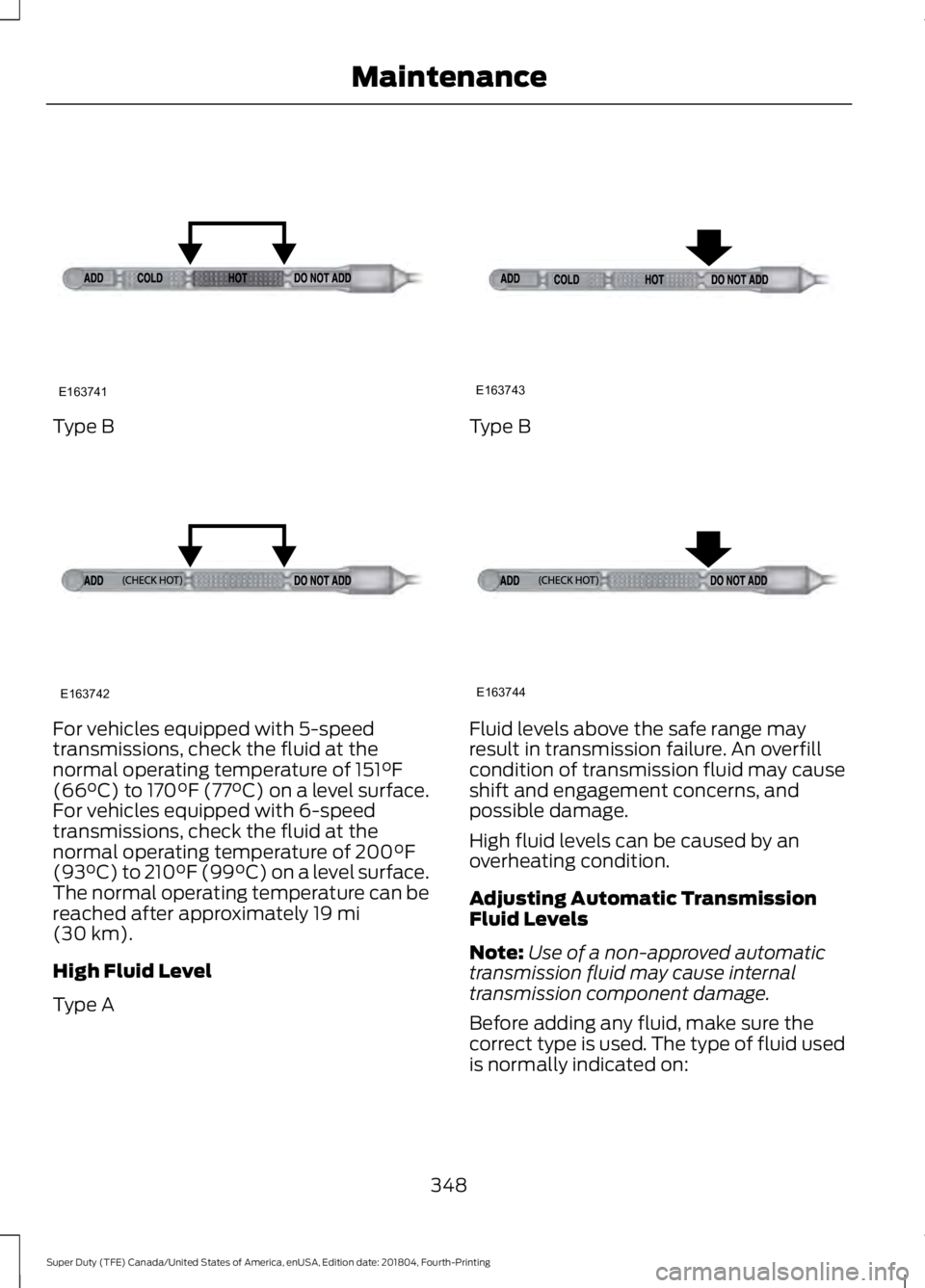

Type B
For vehicles equipped with 5-speed
transmissions, check the fluid at the
normal operating temperature of 151°F
(66°C) to 170°F (77°C) on a level surface.
For vehicles equipped with 6-speed
transmissions, check the fluid at the
normal operating temperature of 200°F
(93°C) to 210°F (99°C) on a level surface.
The normal operating temperature can be
reached after approximately
19 mi
(30 km).
High Fluid Level
Type A Type B
Fluid levels above the safe range may
result in transmission failure. An overfill
condition of transmission fluid may cause
shift and engagement concerns, and
possible damage.
High fluid levels can be caused by an
overheating condition.
Adjusting Automatic Transmission
Fluid Levels
Note:
Use of a non-approved automatic
transmission fluid may cause internal
transmission component damage.
Before adding any fluid, make sure the
correct type is used. The type of fluid used
is normally indicated on:
348
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing MaintenanceE163741 E163742 E163743 E163744

•

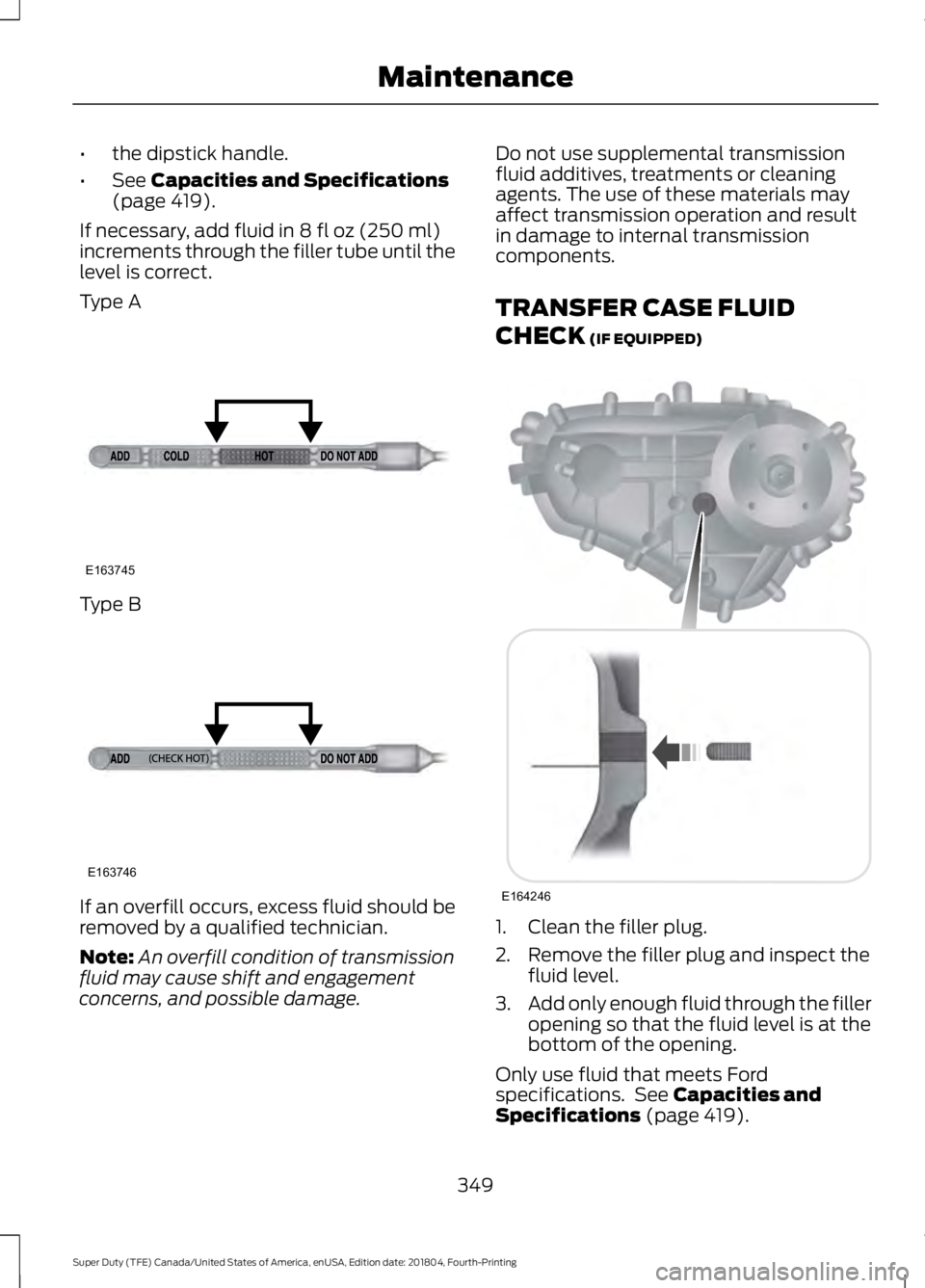

the dipstick handle.
• See Capacities and Specifications
(page 419).
If necessary, add fluid in
8 fl oz (250 ml)
increments through the filler tube until the
level is correct.
Type A Type B
If an overfill occurs, excess fluid should be
removed by a qualified technician.
Note:
An overfill condition of transmission
fluid may cause shift and engagement
concerns, and possible damage. Do not use supplemental transmission
fluid additives, treatments or cleaning
agents. The use of these materials may
affect transmission operation and result
in damage to internal transmission
components.
TRANSFER CASE FLUID
CHECK
(IF EQUIPPED)
1. Clean the filler plug.
2. Remove the filler plug and inspect the
fluid level.
3. Add only enough fluid through the filler
opening so that the fluid level is at the
bottom of the opening.
Only use fluid that meets Ford
specifications. See
Capacities and
Specifications (page 419).
349
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing MaintenanceE163745 E163746 E164246

Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.Multi-Point Inspection
Hazard warning system operation
Accessory drive belt or belts
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires including the spare for wear andproper pressure 2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
583
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing Scheduled Maintenance

Audio Unit - Vehicles With: AM/FM/
Touchscreen Display...............................446
Adjusting the Volume...................................... 446
Changing Radio Stations............................... 446
Selecting the Audio Modes............................ 447
Setting a Memory Preset................................ 447
Switching the Audio Unit On and Off.........447
Using Seek, Fast Forward and Reverse............................................................. 447
Audio Unit - Vehicles With: AM/ FM..................................................................444
Accessing the Auxiliary Media Sources............................................................ 444
Accessing the Menu......................................... 444
Adjusting the Volume...................................... 445
Changing Radio Stations................................ 445
Displaying the Clock......................................... 445
Selecting the Audio Modes........................... 445
Setting the Memory Presets......................... 445
Switching the Audio Unit On and Off........445
Using Seek, Fast Forward and Reverse............................................................. 445
Autolamps
........................................................92
Windshield Wiper Activated
Headlamps........................................................ 92
Automatic Climate Control......................146 Directing the Airflow.......................................... 146
Setting the Blower Motor Speed................... 147
Setting the Temperature.................................. 147
Switching Auto Mode On and Off.................147
Switching Dual Zone Mode On and Off........................................................................\
147
Switching Maximum Air Conditioning On and Off............................................................... 147
Switching Maximum Defrost On and Off....................................................................... 148
Switching Recirculated Air On and Off....................................................................... 148
Switching the Air Conditioning On and Off........................................................................\
147
Switching the Climate Control On and Off........................................................................\
147
Automatic High Beam Control..................93 Automatic High Beam Indicator..................... 94
Switching the System On and Off.................94
Automatic Transmission
..........................206
Brake-Shift Interlock........................................ 209If Your Vehicle Gets Stuck In Mud or
Snow.................................................................. 210
Understanding the Shift Positions of Your Automatic Transmission........................... 206
Understanding your SelectShift Automatic ™ transmission........................ 208
Automatic Transmission Fluid Check............................................................346
Checking Automatic Transmission Fluid.................................................................... 347
Autowipers.......................................................89
Auxiliary Power Points...............................168 400 Watt AC Power Point.............................. 168
DC Power Point................................................... 168
Locations............................................................... 169
Auxiliary Switches
........................................574
Upfitter Interface Module................................ 577
B
Battery See: Changing the 12V Battery..................... 354
Bed Extender
....................................................76
Grocery mode......................................................... 77
Tailgate mode........................................................ 76
Bed Ramps
.....................................................270
Installing the Ramp Holder............................ 272
Stowing the Bed Ramp.................................... 272
Using the Bed Ramp.......................................... 271
Blind Spot Information System..............253 Blind Spot Information System with Trailer
Tow..................................................................... 255
Switching the System Off and On...............257
System Errors....................................................... 257
Using the System............................................... 254
BLIS See: Blind Spot Information System..........253
Bonnet Lock See: Opening and Closing the Hood..........329
Booster Seats..................................................33 Types of Booster Seats...................................... 33
Brake Fluid Check........................................350
Brakes...............................................................223 General Information.......................................... 223
Breaking-In....................................................299
Bulb Specification Chart..........................442
650
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing Index

Starting and Stopping the Engine..........173
General Information........................................... 173
Steering...........................................................260 Adaptive Learning............................................. 262
Adaptive Steering.............................................. 262
Electronic Variable Overlay Power Steering............................................................. 261
Hydraulic Power Steering............................... 260
Steering Wheel
...............................................84
Storage Compartments.............................170
Sunroof See: Moonroof..................................................... 102
Sun Visors
........................................................101
Illuminated Vanity Mirror................................. 102
Supplementary Restraints System..........47 Principle of Operation......................................... 47
Switching Off the Engine - 6.7L Diesel...............................................................181
Symbols Glossary.............................................8
SYNC™ 3........................................................495 General Information......................................... 495
SYNC™ 3 Troubleshooting......................558
SYNC™ Applications and Services
.......473
911 Assist............................................................... 473
SYNC Mobile Apps............................................ 475
SYNC™............................................................457 General Information.......................................... 457
SYNC™ Troubleshooting
.........................487
T
Tailgate Lock
....................................................74
Tailgate Step....................................................75
Closing the Step.................................................... 76
Opening the Step................................................. 75
Tailgate...............................................................74
Technical Specifications See: Capacities and Specifications.............419
Terrain Control
...............................................231
Principle of Operation....................................... 231
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................313
Tire Care
...........................................................381
Glossary of Tire Terminology......................... 382
Information About Uniform Tire Quality Grading.............................................................. 381
Information Contained on the Tire Sidewall........................................................... 383Temperature A B C............................................
382
Traction AA A B C............................................... 381
Treadwear............................................................. 381
Tire Pressure Monitoring System..........398 Trailer Tire Pressure Monitoring
System............................................................. 405
Vehicle Tire Pressure Monitoring System............................................................. 398
Tires See: Wheels and Tires..................................... 379
Towing a Trailer.............................................273 Load Placement................................................. 274
Towing Points
...............................................309
Towing the Vehicle on Four Wheels.........................................................296
Emergency Towing........................................... 296
Recreational Towing........................................ 296
Towing..............................................................273
Traction Control
............................................227
Principle of Operation....................................... 227
Trailer Reversing Aids
..................................275
Principle of Operation...................................... 275
Setting Up Trailer Reverse Guidance..........275
Trailer Reverse Guidance................................. 275
Troubleshooting................................................. 279
Using Trailer Reverse Guidance.................... 278
Trailer Sway Control...................................282
Transfer Case Fluid Check
.......................349
Transmission Code Designation............425
Transmission.................................................206
Transporting the Vehicle
..........................308
Type Approvals............................................636
China...................................................................... 646
Radio Frequency Certification for Keys and Remote Controls.......................................... 646
Radio Frequency Certifications for Blind Spot Information System.......................... 644
Radio Frequency Certifications for Body Control Module............................................. 646
Radio Frequency Certifications for Cruise Control Module............................................. 646
Radio Frequency Certifications for Mid Range Radar................................................... 638
Radio Frequency Certifications for Passive Anti-Theft System....................................... 639
Radio Frequency Certifications for Radio Transceiver Module...................................... 642
660
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing Index

Phone Voice Commands................................
463
Receiving Calls................................................... 465
System Settings.................................................. 471
Text Messaging................................................... 467
Using Traction Control................................227 Switching the System Off............................... 227
System Indicator Lights and Messages.......................................................... 227
Using Voice Recognition...........................459
Audio Voice Commands................................. 509
Climate Voice Commands.............................. 510
Initiating a Voice Session................................ 459
Mobile App Voice Commands....................... 513
Navigation Voice Commands........................ 512
Phone Voice Commands................................ 510
SiriusXM Traffic and Travel Link Voice Commands...................................................... 513
System Interaction and Feedback.............460
Voice Settings Commands............................. 514
Utilizing the Mediation/Arbitration Program (Canada Only)
.........................314
V
Vehicle Care
...................................................369
General Information......................................... 369
Vehicle Certification Label.......................425
Vehicle Identification Number................424
Vehicle Storage.............................................376 Battery.................................................................... 377
Body........................................................................\
376
Brakes..................................................................... 377
Cooling system.................................................... 377
Engine..................................................................... 377
Fuel system........................................................... 377
General.................................................................. 376
Miscellaneous...................................................... 377
Removing Vehicle From Storage.................. 377
Tires........................................................................\
. 377
Ventilation See: Climate Control......................................... 145
VIN See: Vehicle Identification Number............424
Voice Control
...................................................86 W
Warning Lamps and Indicators
...............107
4X2........................................................................\
..... 111
4X4 HIGH................................................................. 111
4X4 LOW.................................................................. 111
Adaptive Cruise Control................................... 107
Adaptive Steering............................................... 107
Anti-Lock Braking System............................... 107
Automatic High Beam...................................... 107
Battery.................................................................... 108
Blind Spot Monitor............................................ 108
Brake System Warning Lamp........................ 108
Check 4X4............................................................ 108
Check Fuel Cap................................................... 108
Cruise Control...................................................... 108
Diesel Engine Brake........................................... 108
Diesel Exhaust Fluid.......................................... 108
Direction Indicator............................................. 109
Door Ajar................................................................ 109
Electronic Locking Differential...................... 109
Engine Coolant Temperature........................ 109
Engine Oil.............................................................. 109
Fasten Seatbelt.................................................. 109
Front Airbag......................................................... 109
Front Fog Lamps................................................ 109
High Beam............................................................ 109
Hill Descent.......................................................... 109
Low Fuel Level..................................................... 109
Low Tire Pressure Warning............................. 109
Powertrain Malfunction/Reduced Power/Electronic Throttle Control..........110
Service Engine Soon........................................... 110
Stability Control................................................... 110
Stability Control Off........................................... 110
Transmission Tow/Haul.................................... 110
Wait To Start......................................................... 110
Water In Fuel......................................................... 110
Warning Triangle
.........................................305
Washer Fluid Check.....................................351
Washers See: Cleaning the Exterior.............................. 369
See: Wipers and Washers................................. 89
Waxing..............................................................371
Wheel Nuts See: Changing a Road Wheel....................... 406
Wheels and Tires.........................................379 General Information.......................................... 379
662
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201804, Fourth-Printing Index
