2019 FIAT FIORINO service schedule

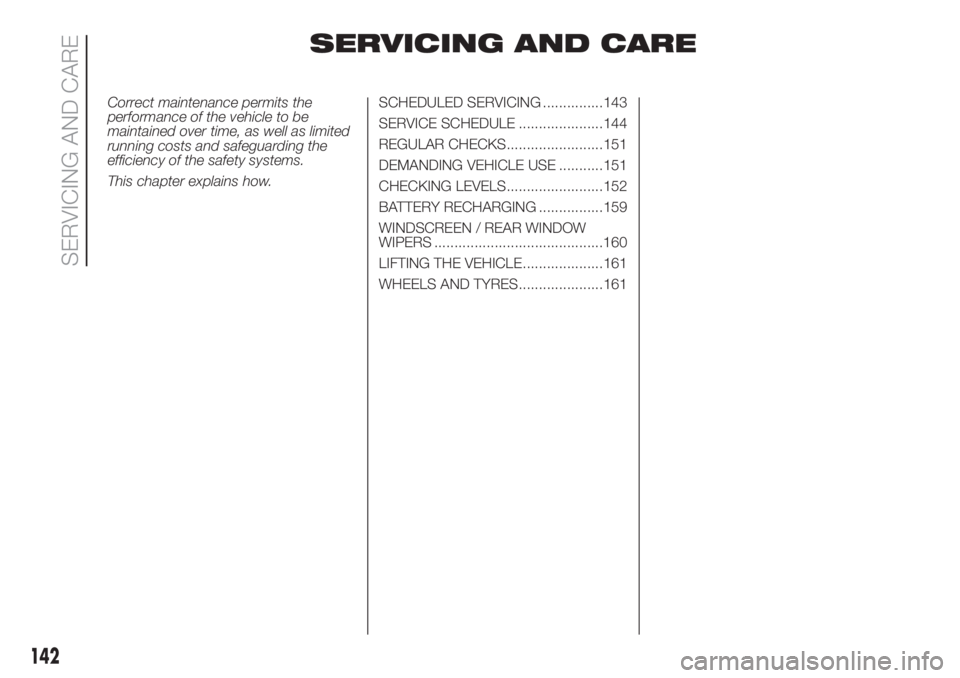

SERVICING AND CARE
Correct maintenance permits the
performance of the vehicle to be
maintained over time, as well as limited
running costs and safeguarding the
efficiency of the safety systems.
This chapter explains how.SCHEDULED SERVICING ...............143
SERVICE SCHEDULE .....................144
REGULAR CHECKS........................151
DEMANDING VEHICLE USE ...........151
CHECKING LEVELS........................152
BATTERY RECHARGING ................159
WINDSCREEN / REAR WINDOW
WIPERS ..........................................160
LIFTING THE VEHICLE....................161
WHEELS AND TYRES.....................161
142
SERVICING AND CARE

SCHEDULED
SERVICING
Correct servicing is crucial for
guaranteeing a long life for the vehicle
under the best conditions.
This is why Fiat has planned a series of
checks and services every 30,000/
35,000 km.
The scheduled maintenance
programme does not, however, cover
all the vehicle requirements; during
the initial period, before the
30,000/35,000 kilometre service and
later on, between services, routine
operations must be carried out
like systematically checking and
topping up fluid levels, checking the
tyre inflation pressure, etc.
IMPORTANT Scheduled Servicing
interventions are set out by the
Manufacturer. Failure to carry them out
can cause the guarantee to decline.
Scheduled Servicing can be carried out
by any Fiat Dealership, at pre-
established times.
If during each operation, in addition to
the ones scheduled, the need arises for
further replacements or repairs, these
may only be carried out with the
express agreement of the Customer.IMPORTANT It is advisable to inform a
Fiat Dealership of any small operating
irregularities without waiting for the next
service.
If your vehicle is used frequently for
towing, the interval between service
coupons must be reduced.
143

SERVICE SCHEDULE
EURO 6 PETROL VERSIONS - NATURAL POWER VERSIONS
The checks listed in the Service Schedule, after reaching 180,000 km/12 years, must be cyclically repeated starting from the
first interval, thus following the same intervals as before.
Thousands of kilometres 30 60 90 120 150 180
Thousands of miles 18 36 54 72 90 108
Years 2 4 6 8 10 12
Check battery charge status and possibly recharge●●●●●●
Check tyre condition/wear and adjust pressure, if necessary; check
the condition/expiry date of the “Fix&Go Automatic” repair kit (for
versions/markets, where provided)●●●●●●
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, luggage compartment, passenger
compartment, glove compartment, instrument panel warning lights,
etc.)●●●●●●
Check and, if necessary, top up fluid levels (1)●●●●●●
Check exhaust emissions●●●●●●
Use the diagnosis socket to check supply/engine management
system operation, emissions and, for versions/markets, where
provided, engine oil degradation●●●●●●
Visually inspect condition of: exterior bodywork, underbody
protection, pipes and hoses (exhaust - fuel system - brakes), rubber
elements (boots, sleeves, bushes, etc.)●●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
144
SERVICING AND CARE

DIESEL EURO 6 VERSIONS
The checks listed in the Service Schedule, after reaching 175,000 km/10 years, must be cyclically repeated starting from the
first interval, thus following the same intervals as before.
Thousands of kilometres 35 70 105 140 175
Thousands of miles 21 42 63 84 105
Years 2 4 6 8 10
Check battery charge status and possibly recharge●●●●●
Check tyre condition/wear and adjust pressure, if necessary; check the
condition/expiry date of the “Fix&Go Automatic” repair kit (for versions/
markets, where provided)●●●●●
Check operation of lighting system (headlamps, direction indicators, hazard
warning lights, luggage compartment, passenger compartment, glove
compartment, instrument panel warning lights, etc.)●●●●●
Check and, if necessary, top up fluid levels (engine coolant, brake/hydraulic
clutch fluid, windscreen washer, battery, and if present, additive for
emissions - UREA) (1) (2)●●●●●
Check exhaust emissions●●●●●
Use the diagnosis socket to check supply/engine management system
operation, emissions and, for versions/markets, where provided, engine oil
degradation●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
(2) Consumption of additive for emissions (UREA) depends on the condition of use of the vehicle and is indicated by LED and message on the instrument panel
148
SERVICING AND CARE

BRAKE FLUID
Unscrew the cap 5 and check that the
fluid in the reservoir is at the maximum
level.
The fluid level in the reservoir must not
exceed the MAX mark.
Use the brake fluid shown in the "Fluids
and lubricants" table (see "Technical
Specifications"). When opening the cap
A, make sure that no dirt gets into the
reservoir.
Always use a funnel with a built-in filter
with a mesh of 0.12 mm or less.
IMPORTANT Brake fluid absorbs
moisture. For this reason, if the vehicle
is mainly used in areas with a high
degree of atmospheric humidity, the
fluid should be replaced at more
frequent intervals than specified in the
“Scheduled Servicing Plan”.
144) 145)
39)
POWER STEERING FLUID
Unscrew the cap 6 and check that the
fluid in the reservoir is between the
MIN and MAX marks on the reservoir.
The level may exceed the MAX mark
when the oil is hot.If topping up is required, make sure the
oil you use has the same specifications
as that already in the system.
146)
3)
AdBlue®(UREA)
ADDITIVE FOR DIESEL
EMISSIONS
To top up the UREA reservoir, see the
"Topping upAdBlue® diesel emissions
additive (UREA)" in the "Starting and
driving" chapter
COMFORT-MATIC
TRANSMISSION
HYDRAULIC SYSTEM
FLUID
To check the transmission oil level and
to check/change the clutch hydraulic
system fluid, go to a Fiat Dealership.
4)
BATTERY
The battery does not require the
electrolyte to be topped up with distilled
water. A periodic check carried out at
a Fiat Dealership is, however, necessary
to check efficiency.IMPORTANT If the charge level remains
under 50% for a long time, the battery
is damaged by sulphation, reducing
its capacity and efficiency at start-up.
147) 148)
Replacing the battery
If required, replace the battery with an
original spare part with the same
specifications.
If a battery with different specifications
is fitted, the service intervals given in
the “Scheduled Servicing Plan” will no
longer be valid.
Follow the battery manufacturer's
instructions for maintenance.
149)
40) 41)
5)
WARNING
139)Never smoke while working in the
engine compartment: inflammable gases
and vapours may be present, constituting
a fire risk.
140)Be very careful working in the engine
compartment when the engine is hot:
you may get burned. Remember that the
fan may start up if the engine is hot: this
could injure you. Scarves, ties and other
loose clothing might be pulled by moving
parts.
157

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption
and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
43)
Use Features SpecificationOriginal fluids and
lubricantsApplications /
Replacement
frequency
Lubricants for petrol
enginesSAE 5W-40 ACEA C3.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricants for diesel
engines without UREASAE 0W-30 ACEA C2.9.55535-DS1SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricants for diesel
engines with UREASAE 0W-20 ACEA C5.9.55535-DM1SELENIA ECO2
Contractual Technical
Reference N° F049.C18
Lubricants for petrol/
methane enginesSAE 5W-40 ACEA C39.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference N° F922.E09According to annual
maintenance and
inspection plan
182
TECHNICAL DATA

Procedure for petrol versions.........98
Radio.............................189
Rear ceiling light...................131
Rear fog lights.......................23
Rear fog lights
(changing a bulb)................128
Rear light clusters..................128
Rear light clusters (bulb
replacement)....................128
Rear view mirrors
Door mirrors.....................21
Rear view mirrors
Interior mirror....................21
Rear window washer................26
Rear Window Wiper............26-160
Refuelling..........................178
Refuelling the vehicle...............110
Repair procedure..................122
Replacing a bulb...................124
Replacing an exterior bulb..........127
Replacing an interior bulb...........130
Replacing interior bulbs.............130
Replacing the rear window wiper
blade...........................161
Replacing the windscreen wiper
blades..........................160
SBR system........................80
Seat belts
Use .............................79Seats
Foldaway passenger seat........18
Front seats......................17
Rear seats......................18
Service schedule...................144
Setup menu.........................44
Side airbags
Side bag........................94
Side bags...........................94
Side lights.........................127
Side lights (changing a bulb)........127
Side lights/rear fog light
(changing a bulb)................128
Side/tail lights.......................22
Sliding side doors...................14
Speed block.......................105
Start&Stop system.................108
Starting the engine..................98
Steering lock........................11
Steering wheel......................20
Symbols.............................4
Third brake lights..................129
Third brake lights (changing a
bulb)............................129
Topping up Adblue diesel
emissions additive (UREA)........110
Towing the vehicle..................140
Towing trailers.....................115
Traction Plus system.................78
Transmission.......................102Trip computer.......................46
Vehicle summary identification
and paintwork plate..............164
Version with methane system
(Natural Power)...................35
Warning lights and messages.......48
Weights and loads.................176
Wheel replacement procedure......118
Wheels............................169
Wheels and tyres...................161
Rims and tyres.................161
Window washing....................26
Windscreen wiper...............26-160
Windscreen/rear window washer
fluid.............................156
