2019 FIAT FIORINO key

DOORS
DOOR CENTRAL
LOCKING/UNLOCKING
Door locking from the outside
The doors will only be locked if all doors
are shut. If one or more of the doors is
open after button
is pressed on
the remote control fig. 7, the direction
indicators will flash quickly for around
three seconds. You can lock all the
doors by turning the key clockwise in
the driver's door.
Door unlocking from the outside
Press button
to remotely unlock
only the front doors (Cargo version);
press button
to unlock the load
compartment (Cargo version).Press button
briefly to unlock all the
doors (Combi version), switch on the
ceiling lights temporarily and
double-flash the direction indicators.
Turn the key anticlockwise in the
driver's door to unlock all the doors.
Unlocking the load compartment from
inside the vehicle (Cargo version)
Press the button fig. 8 (Cargo version)
to unlock or lock the load compartment
(rear swing doors and sliding side
doors) from the inside. Press again to
lock all doors of the vehicle.
SLIDING SIDE DOORS
(for versions/markets, where provided)
5) 6)
2)
The sliding side door is fitted with a
spring-loaded latch that stops the door
from opening any further.To lock it, simply push the door as far
as it will go; to unlock it, pull forward
firmly.
In any case, make sure that the door is
correctly attached to the device that
holds it fully open.
7) 8)
Opening/closing from the outside
Opening: turn the key in the lock and
pull handle A fig. 9 in the direction
shown by the arrow, then slide the door
towards the rear of the vehicle until it
locks into place and can go no further.
Closing: push the handle A fig. 9
towards the front of the vehicle. Turn
the key with metal insert in the closing
direction.
7F0T0242
8F0T0322
9F0T0136
14
KNOWING YOUR VEHICLE

11)When closing, shut the right-hand door
2 fig. 13fully before you close the left-hand
door 1 fig. 13. Never shut the two doors
at the same time.
WARNING
2)Make sure that the right sliding side
door is all closed before refuelling to
prevent damage to the door and to the
sliding locking system with fuel filler cap
open, activated during refuelling
operations.
SEATS
12)
FRONT SEATS
Lengthwise adjustment
Lift lever A fig. 19 and push the seat
forwards or backwards: in the driving
position your arms should rest on
the steering wheel rim.
13)
Backrest angle adjustment
Turn knob B fig. 19.
Driver seat height adjustment
(for versions/markets, where provided)
Operate lever C fig. 19 to lift or lower
the rear part of the cushion to achieve
the most comfortable driving position.IMPORTANT Adjustment must be
carried out only when seated in the
relevant seat.
Driver seat lumbar adjustment
(for versions/markets, where provided)
Turn knob D fig. 19 to adjust the
backrest support.
Heated seats
(for versions/markets, where provided)
With the key turned to MAR, press
button A fig. 20 to switch the function
on/off.
When the function is enabled, the LED
on the button turns on.
B
D
C
A
19F0T0153
20F0T0205
17

WARNING
17)All adjustments must be carried out
only with the vehicle stationary and the
engine off.
18)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could adversely affect
performance, invalidate the warranty, cause
serious safety problems and also result in
the car not meeting type-approval
requirements.
REAR VIEW
MIRRORS
INTERIOR MIRROR
(for versions/markets, where provided)
The mirror is fitted with a safety device
that causes its release in the event of
a violent impact with the passenger.
Lever A fig. 30 can be used to move
the mirror to two different positions:
normal or antiglare.
DOOR MIRRORSManual mirror folding
When required (for example when the
shape causes difficulty in narrow
spaces), the mirrors can be folded by
moving them from position A fig. 31
to position B.
19) 20)
Manual adjustment
From inside, use device A fig. 32.
Electric adjustment
(for versions/markets, where provided)
Door mirrors can be adjusted only if the
ignition key is in MAR position.
Proceed as follows:
select the required mirror with switch
A fig. 33 (right or left);
move switch A to position B and
manipulate it to adjust the left door
mirror;
30F0T0027
31F0T0042
32F0T0194
21

move switch A to position D and
manipulate it to adjust the right door
mirror.
Once you have finished the adjustment,
return switch A to intermediate locking
position C.
WARNING
19)When driving, the mirrors shall always
be in position A fig. 31.
20)As door mirrors are curved, they may
slightly alter the perception of distance.
EXTERIOR LIGHTS
The left stalk fig. 34 includes the
exterior light controls.
The exterior lights can only be switched
on when the ignition key is at
MAR-ON.
The instrument panel and the various
dashboard controls will come on with
the external lights.
LIGHTS OFF
Ring turned to position
.
SIDE LIGHTS
Turn the ring to position
. The
warning light switches on in the
instrument panel.PARKING LIGHTS
These lights can only be turned on with
the ignition key at STOP or extracted
by turning the ring on the left stalk first
to the
position and then to theor
position.
The
warning light switches on in the
instrument panel. Operate the direction
indicator stalk to select the side (right
or left).
DIPPED BEAM
HEADLIGHTS
Turn the ring to position
. The
warning light switches on in the
instrument panel.
MAIN BEAM HEADLIGHTS
With the ring in the
position, pull the
stalk towards the steering wheel (2nd
unstable position). The
warning
light on the instrument panel turns on.
To turn the main beams off, pull the
stalk towards the steering wheel again
(dipped beams will turn on).
FLASHING
Pull the stalk towards the steering
wheel (1st unstable position) regardless
of the position of the ring.
The
warning light switches on in
the instrument panel.
33F0T0041
34F0T0430
22
KNOWING YOUR VEHICLE

DIRECTION INDICATORS
Bring the stalk to the fig. 35 position
(stable):
up (position 1): to activate the right
direction indicator;
down (position 2): to activate the left
direction indicator.
The
orwarning light will blink on
the instrument panel.
Direction indicators switch off
automatically when the vehicle is back
in a straight line.
If you want the indicator to flash briefly
to show that you are about to change
lane, move the stalk up or down
without it clicking into position. When
released the stalk will return to its initial
position.Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the side
selected will be activated for 3 flashes
and then go out automatically.
FOG LIGHTS
(for versions/markets, where provided)
With the side lights on, press the
fig.
36 button to turn the fog lights on. The
warning light on the instrument
panel turns on.
Press the button again to switch the
lights off.REAR FOG LIGHTS
Press the
fig. 36 button with the
dipped beam headlights or front fog
lights on to turn the rear fog lights on.
The
warning light on the instrument
panel turns on.
Press the button again to turn the lights
off or turn off the dipped beam
headlights and/or the front fog lights
(for versions/markets, where provided).
"FOLLOW ME HOME"
DEVICE
This device lights up the space in front
of the vehicle for a short time.
Activation
With the ignition key in the STOP
position or extracted, pull the stalk
towards the steering wheel and move it
within 2 minutes of the engine switching
off.
Each time the stalk is moved, the lights
stay on for an extra 30 seconds up to
a maximum of 210 seconds; then
the lights are switched off automatically.
35F0T0431
36F0T0501
23

Switch A can be set to three different
positions:
switch in central position (position 0),
light comes on when a door is opened;
switch pushed up (position 1), light
is always on;
switch pushed down (position 2 -
AUTO OFF), light is always off.
TORCH FUNCTION
(for versions/markets, where provided)
This is located on the right side of
the load compartment. It is used as
both a fixed light and a portable electric
torch.
To use the removable torch A fig. 39,
push button B and remove the torch in
the direction shown by the arrow.
Then press switch C to switch the light
on/off.
When the removable light is secured to
its fixed support, the electric torch
battery is automatically recharged.With the vehicle stationary and the
ignition key either turned to STOP or
removed, the roof light is recharged for
a maximum of 15 minutes.
SWITCHING ROOF
LIGHTS ON/OFF
Cargo versions
The ceiling lights switch on/off in the
following ways:
Ceiling lights on without locking the
doors
Front ceiling light: comes on when the
front doors are opened.
Rear ceiling light: on manually.
Removable ceiling light (alternative to
rear ceiling light): on manually (fixed
part).
Ceiling lights off when locking the doors
Front and rear ceiling light (also with
optional removable ceiling light): off
(faded out) when the sliding side doors,
rear swing doors or front doors are
closed.
With independent load compartment
Front ceiling light: fades out when
the front doors are closed.
Rear ceiling light (also with optional
removable ceiling light): off (faded out)
closing the rear doors.Combi versions
The ceiling lights switch on/off in the
following ways:
Ceiling lights on without locking the
doors
Front ceiling light: comes on when the
front doors are opened.
Rear ceiling light: on manually.
Ceiling lights off when locking the doors
Front and rear ceiling light (also with
optional removable ceiling light): off
(faded out) when the sliding side doors,
rear swing doors or front doors are
closed.
A
UT
O
39F0T0115
25

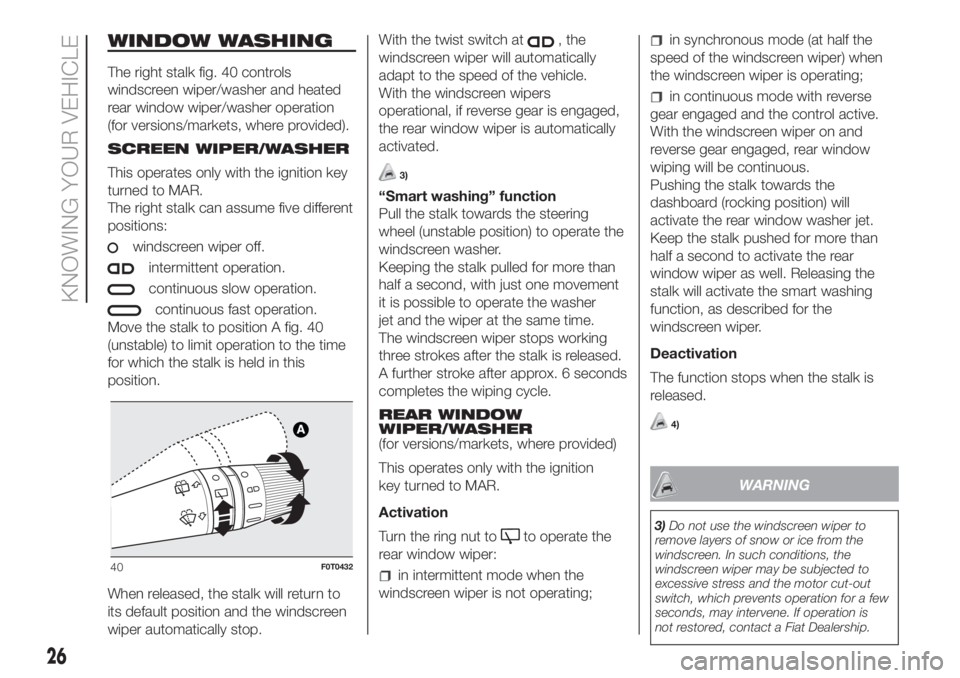

WINDOW WASHING
The right stalk fig. 40 controls
windscreen wiper/washer and heated
rear window wiper/washer operation
(for versions/markets, where provided).
SCREEN WIPER/WASHER
This operates only with the ignition key
turned to MAR.
The right stalk can assume five different
positions:
windscreen wiper off.
intermittent operation.
continuous slow operation.
continuous fast operation.
Move the stalk to position A fig. 40
(unstable) to limit operation to the time
for which the stalk is held in this
position.
When released, the stalk will return to
its default position and the windscreen
wiper automatically stop.With the twist switch at
, the
windscreen wiper will automatically
adapt to the speed of the vehicle.
With the windscreen wipers
operational, if reverse gear is engaged,
the rear window wiper is automatically
activated.
3)
“Smart washing” function
Pull the stalk towards the steering
wheel (unstable position) to operate the
windscreen washer.
Keeping the stalk pulled for more than
half a second, with just one movement
it is possible to operate the washer
jet and the wiper at the same time.
The windscreen wiper stops working
three strokes after the stalk is released.
A further stroke after approx. 6 seconds
completes the wiping cycle.
REAR WINDOW
WIPER/WASHER
(for versions/markets, where provided)
This operates only with the ignition
key turned to MAR.
Activation
Turn the ring nut to
to operate the
rear window wiper:
in intermittent mode when the
windscreen wiper is not operating;
in synchronous mode (at half the
speed of the windscreen wiper) when
the windscreen wiper is operating;
in continuous mode with reverse
gear engaged and the control active.
With the windscreen wiper on and
reverse gear engaged, rear window
wiping will be continuous.
Pushing the stalk towards the
dashboard (rocking position) will
activate the rear window washer jet.
Keep the stalk pushed for more than
half a second to activate the rear
window wiper as well. Releasing the
stalk will activate the smart washing
function, as described for the
windscreen wiper.
Deactivation
The function stops when the stalk is
released.
4)
WARNING
3)Do not use the windscreen wiper to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor cut-out
switch, which prevents operation for a few
seconds, may intervene. If operation is
not restored, contact a Fiat Dealership.
40F0T0432
26
KNOWING YOUR VEHICLE

CLIMATIC COMFORT
Knob D enables the air introduced into
the vehicle to reach all areas of the
passenger compartment through five
distribution options:
delivers air from central and side
vents
warms the feet and keeps the face
cool (bi-level function)
warms up the passenger
compartment faster
warms up the passenger
compartment and demists the
windscreen at the same time
demists and defrosts the
windscreen and front side
windows.
ADDITIONAL HEATER
(for versions/markets, where provided)
This device warms up the passenger
compartment more quickly when it
is very cold and the engine coolant
temperature is low.
The additional heater comes on
automatically when the engine is
started, if knob A is turned to the last
red sector and the fan (knob C) is
at least at the first speed level.
The additional heater turns off
automatically after the required comfort
conditions are achieved.IMPORTANT The heater will not turn on
if the battery voltage is too low.
WARNING
2)The air conditioning system uses R134a
or R1234yf refrigerant compatible with
the regulations in force in the countries
where the vehicle is sold. When charging,
only use the gas indicated on the
dedicated plate in the engine
compartment. The use of other coolants
affects the efficiency and condition of
the system. The lubricant used for the
compressor is also strictly linked to the
type of cooling gas, please refer to a Fiat
Dealership.
ELECTRIC WINDOWS
ELECTRIC FRONT
WINDOWS
(for versions/markets, where provided)
There are buttons fig. 43 on the driver
side door panel trim which control
the following functions, with the ignition
key turned to MAR:
TO: Opening/closing of left-hand
window
B: Opening/closing of right-hand
window
Push button A or B to open the
appropriate window.
Lift button A or B to close the
appropriate window.
When one of the two buttons is
pressed briefly, the window moves in
stages; if the button is held down,
"continuous automatic" operation is
activated both for closing and opening.
Press button A or B again to stop the
window in its current position.
The electric windows are fitted with a
security system (for versions/markets,
where provided) that can detect the
presence of an obstacle whilst the
window is closing; when this happens,
the system kicks in and the movement
of the glass is immediately reversed.
28
KNOWING YOUR VEHICLE
