2019 DODGE GRAND CARAVAN oil dipstick

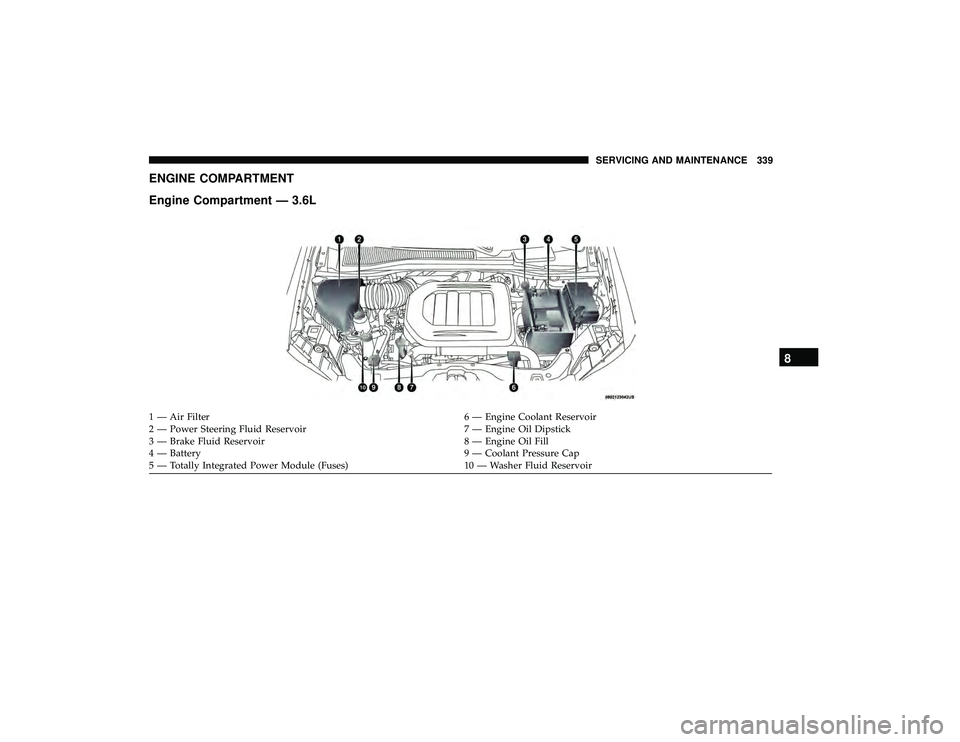

ENGINE COMPARTMENT
Engine Compartment — 3.6L
1 — Air Filter6 — Engine Coolant Reservoir
2 — Power Steering Fluid Reservoir 7 — Engine Oil Dipstick
3 — Brake Fluid Reservoir 8 — Engine Oil Fill
4 — Battery 9 — Coolant Pressure Cap
5 — Totally Integrated Power Module (Fuses) 10 — Washer Fluid Reservoir
8
SERVICING AND MAINTENANCE 339

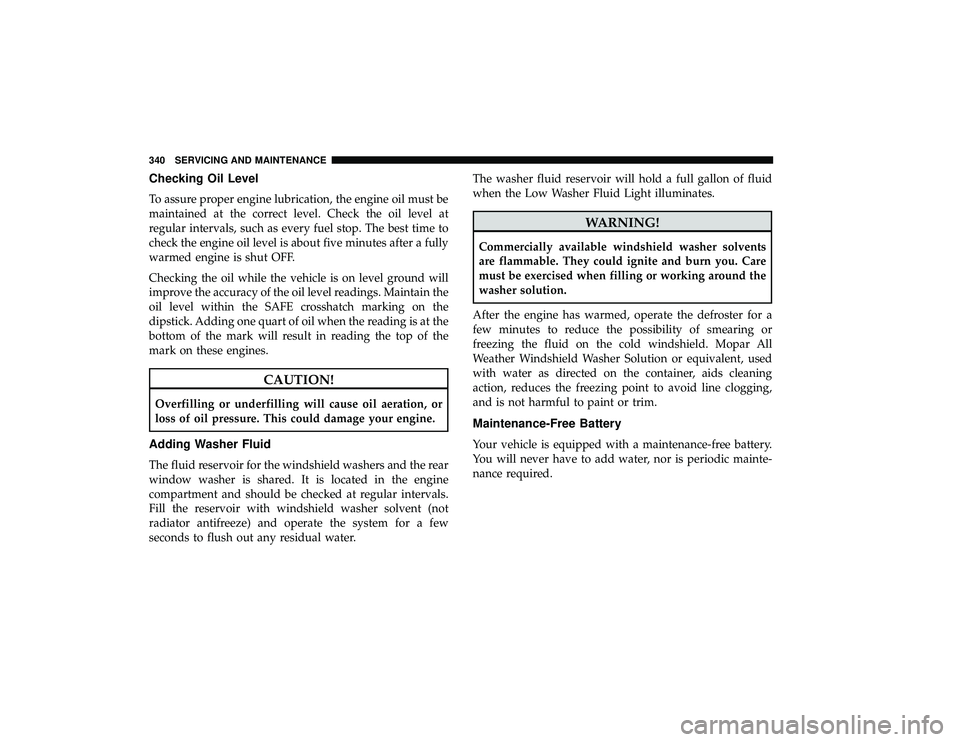

Checking Oil Level
To assure proper engine lubrication, the engine oil must be
maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a fully
warmed engine is shut OFF.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain the
oil level within the SAFE crosshatch marking on the
dipstick. Adding one quart of oil when the reading is at the
bottom of the mark will result in reading the top of the
mark on these engines.
CAUTION!
Overfilling or underfilling will cause oil aeration, or
loss of oil pressure. This could damage your engine.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the rear
window washer is shared. It is located in the engine
compartment and should be checked at regular intervals.
Fill the reservoir with windshield washer solvent (not
radiator antifreeze) and operate the system for a few
seconds to flush out any residual water.The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
After the engine has warmed, operate the defroster for a
few minutes to reduce the possibility of smearing or
freezing the fluid on the cold windshield. Mopar All
Weather Windshield Washer Solution or equivalent, used
with water as directed on the container, aids cleaning
action, reduces the freezing point to avoid line clogging,
and is not harmful to paint or trim.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic mainte-
nance required.
340 SERVICING AND MAINTENANCE

Cupholders...........................113,385
Customer Assistance ....................... .466
Cybersecurity ............................ .403
Daytime Brightness, Interior Lights ...............66
Daytime Running Lights ................... .61, 62
Dealer Service ............................ .341
Defroster, Windshield ....................... .235
Delay (Intermittent) Wipers ....................67
Diagnostic System, Onboard ...................153
Dimmer Switch Headlight ........................... .61, 62
Dipsticks Automatic Transmission ................... .357
Oil (Engine) ........................... .340
Power Steering ......................... .254
Disabled Vehicle Towing .................... .330
Disposal Antifreeze (Engine Coolant) .................353
Door Ajar ............................ .146, 147
Door Ajar Light ....................... .146, 147
Door Locks Automatic ..............................29
Doors ....................................27
Driver ’s Seat Back Tilt .................... .32, 33Driving
Through Flowing, Rising, Or Shallow Standing
Water ................................ .283
DVD Player (Video Entertainment System) .........411
E-85 Fuel ............................... .394
Economy (Fuel) Mode ...................... .247
Electrical Power Outlets ......................115
Electric Brake Control System ..................159
Anti-Lock Brake System ................... .158
Traction Control System ................... .163
Electric Remote Mirrors .......................59
Electronic Speed Control (Cruise Control) .........255
Electronic Stability Control (ESC) ...............163
Electronic Throttle Control Warning Light .........146
Emergency, In Case Of Freeing Vehicle When Stuck .................329
Hazard Warning Flasher ...................286
Jacking ........................ .297,
303, 357
Jump Starting .......................... .324
Emission Control System Maintenance ............154
Engine ................................. .339
Air Cleaner ............................ .344
Block Heater ........................... .242
Break-In Recommendations .................242
12
INDEX 475
