Refrigerant Recovery And Recycling — R–1234yf
R–1234yf Air Conditioning Refrigerant is a hydrofluo-
roolefin (HFO) that is endorsed by the Environmental
Protection Agency and is an ozone-friendly substance with
a low global-warming potential. The manufacturer recom-
mends that air conditioning service be performed by an
authorized dealer using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.
A/C Air Filter
The filter is located in the fresh air inlet under the hood,
behind a removable panel in the cowl on the passenger side
of the vehicle, next to the windshield wipers. When install-
ing a new filter, ensure its proper orientation.
1. Remove the access door in the cowl screen by pressing the retaining clips. 2. Unsnap both ends and lift the filter access cover.Access Door
340 SERVICING AND MAINTENANCE

•Noise (objectionable squeal, squeak, or rumble is heard
or felt while drive belt is in operation)
Some conditions can be caused by a faulty component such
as a belt pulley. Belt pulleys should be carefully inspected
for damage and proper alignment.
Belt replacement on some models requires the use of
special tools, we recommend having your vehicle serviced
at an authorized dealer.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
8
SERVICING AND MAINTENANCE 343

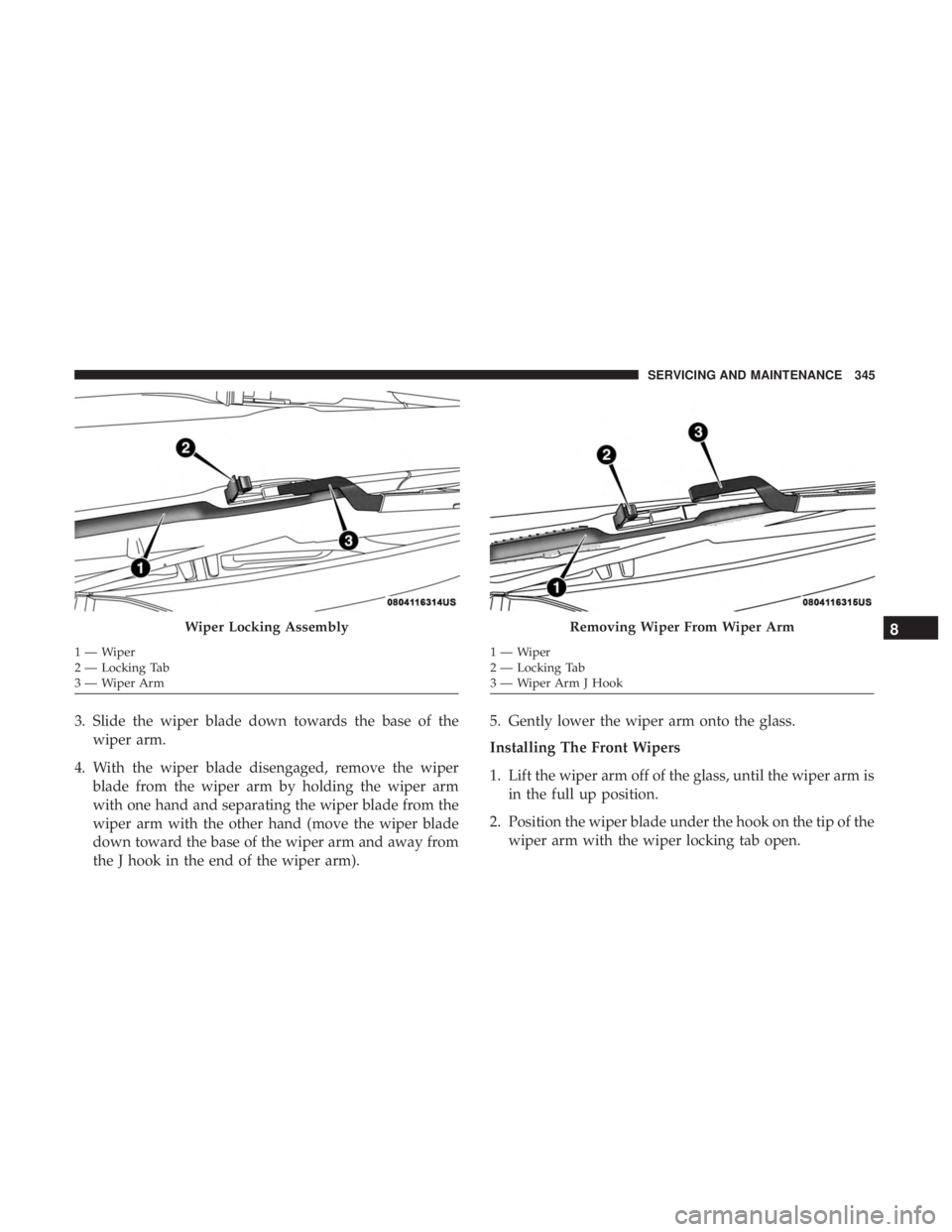

3. Slide the wiper blade down towards the base of thewiper arm.
4. With the wiper blade disengaged, remove the wiper blade from the wiper arm by holding the wiper arm
with one hand and separating the wiper blade from the
wiper arm with the other hand (move the wiper blade
down toward the base of the wiper arm and away from
the J hook in the end of the wiper arm). 5. Gently lower the wiper arm onto the glass.
Installing The Front Wipers
1. Lift the wiper arm off of the glass, until the wiper arm is
in the full up position.
2. Position the wiper blade under the hook on the tip of the wiper arm with the wiper locking tab open.
Wiper Locking Assembly
1—Wiper
2 — Locking Tab
3—WiperArm
Removing Wiper From Wiper Arm
1—Wiper
2 — Locking Tab
3 — Wiper Arm J Hook
8
SERVICING AND MAINTENANCE 345

Customer Programmable Features — Uconnect
4C/4C NAV Settings
Press the “Apps” button (if equipped), and then
press the “Settings” button on the touchscreen to dis-
play the menu setting screen. In this mode, the
Uconnect system allows you to access programmable
features that may be equipped such as Language, Dis-
play, Units, Voice, Clock & Date, Safety & Driving
Assistance, Mirrors & Wipers, Lights, Doors & Locks,
Auto-On Comfort, Key Off Options, Audio, Phone/
Bluetooth, SiriusXM Setup, Reset, and System Informa-
tion.
NOTE: Depending on the vehicle’s options, feature set-
tings may vary. When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting “option” until
a check-mark appears next to the setting, showing that
setting has been selected. Once the setting is complete,
press the “X” button on the touchscreen to close out of the
settings screen. Pressing the up or down arrow button on
the right side of the screen will allow you to toggle up or
down through the available settings.
Language
After pressing the “Language” button on the touchscreen,
the following settings will be available:
Setting Name
Selectable Options
Set Language EnglishFrançais Español
402 MULTIMEDIA

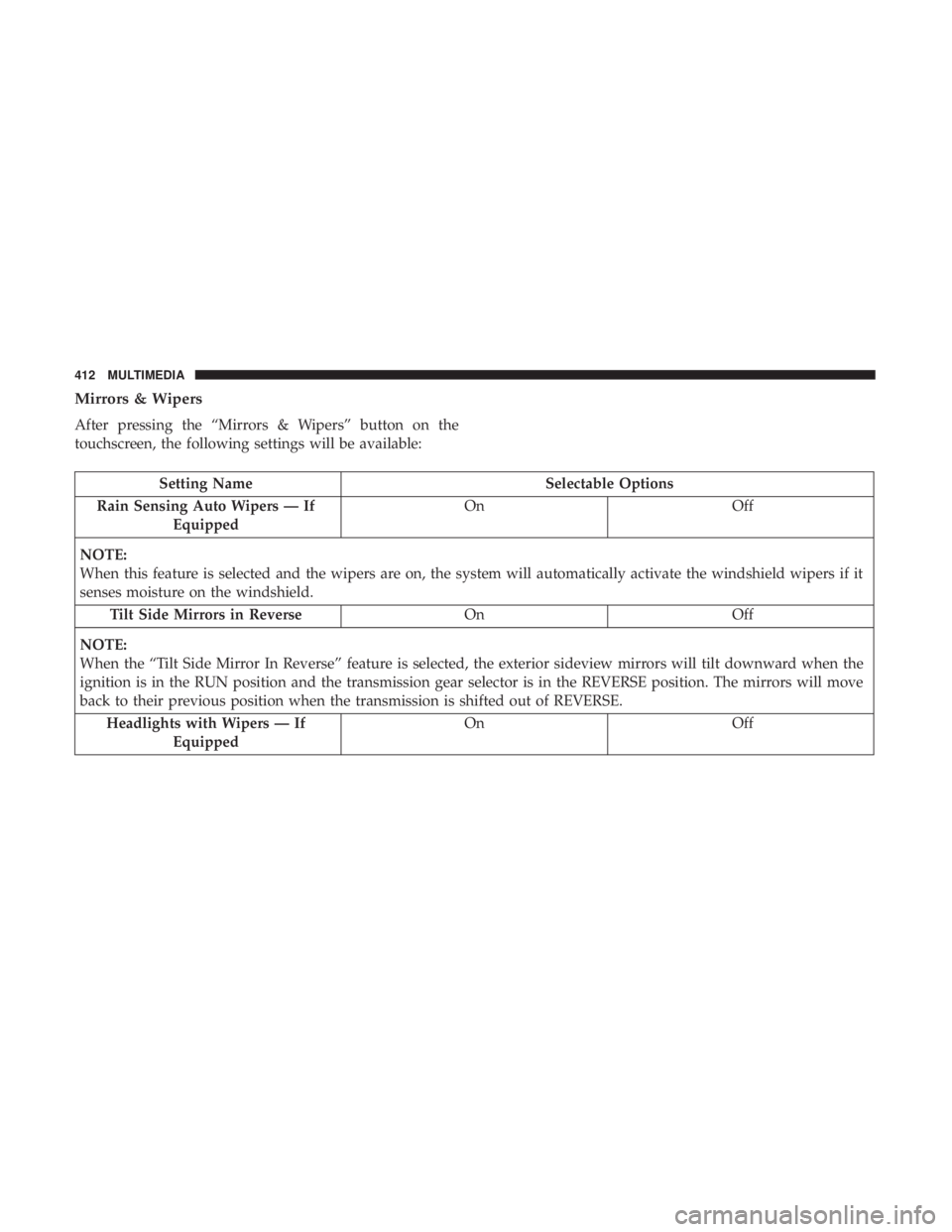

Mirrors & Wipers
After pressing the “Mirrors & Wipers” button on the
touchscreen, the following settings will be available:
Setting NameSelectable Options
Rain Sensing Auto Wipers — If Equipped On
Off
NOTE:
When this feature is selected and the wipers are on, the system will automatically activate the windshield wipers if it
senses moisture on the windshield. Tilt Side Mirrors in Reverse OnOff
NOTE:
When the “Tilt Side Mirror In Reverse” feature is selected, the exterior sideview mirrors will tilt downward when the
ignition is in the RUN position and the transmission gear selector is in the REVERSE position. The mirrors will move
back to their previous position when the transmission is shifted out of REVERSE. Headlights with Wipers — If Equipped On
Off
412 MULTIMEDIA

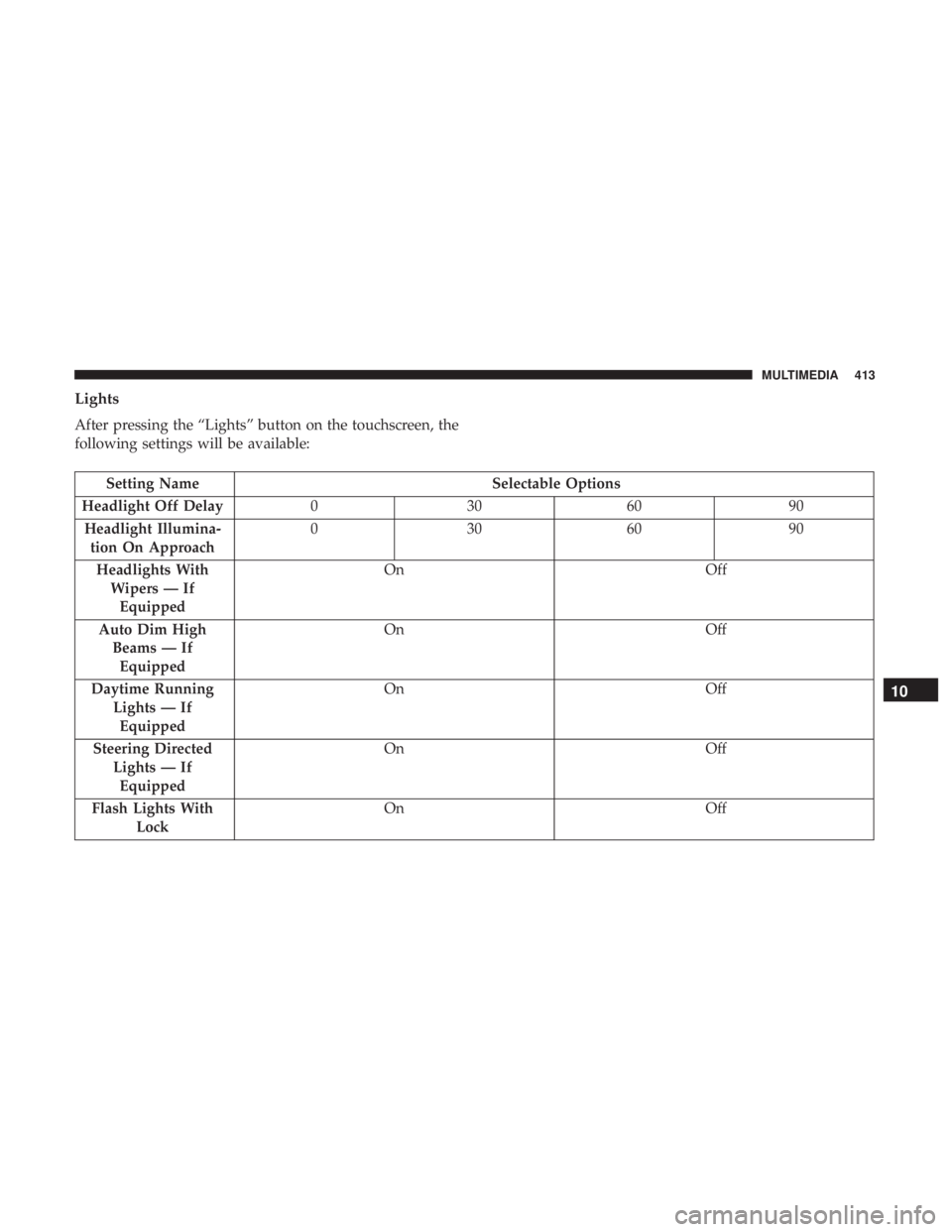

Lights
After pressing the “Lights” button on the touchscreen, the
following settings will be available:
Setting NameSelectable Options
Headlight Off Delay 030609 0
Headlight Illumina- tion On Approach 03
0609 0
Headlights With Wipers — IfEquipped On
Off
Auto Dim High Beams — IfEquipped On
Off
Daytime Running Lights — IfEquipped On
Off
Steering Directed Lights — IfEquipped On
Off
Flash Lights With Lock On
Off
10
MULTIMEDIA 413

Pressure Cap........................... .351
Radiator Cap .......................... .351
Selection Of Coolant (Antifreeze) .......349, 392, 393
Corrosion Protection ....................... .379
Cruise Control (Speed Control) ..............236, 239
Cruise Light .......................... .131, 132
Cupholders .............................. .101
Customer Assistance ....................... .472
Cybersecurity ............................ .400
Daytime Running Lights ......................64
Dealer Service ............................ .336
Deck Lid Power Release ...........................89
Defroster, Windshield ....................... .205
Delay (Intermittent) Wipers ....................72
Diagnostic System, Onboard ...................133
Dimmer Switch Headlight ...............................64
Dipsticks Oil (Engine) ........................... .334
Power Steering ......................... .235
Disposal Antifreeze (Engine Coolant) .................351
Do Not Disturb ........................... .467Door Ajar
............................... .124
Door Ajar Light ........................... .124
Door Locks Automatic ..............................42
Child-Protection Door Lock — Rear Doors .......42
Doors ....................................37
Drag And Drop Menu ...................... .399
Drive Modes ............................. .230
Driver ’s Seat Back Tilt ........................43
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .279
Electric Brake Control System ..................139
Anti-Lock Brake System ....................138
Electronic Roll Mitigation ...............140, 147
Electric Remote Mirrors .......................61
Electronic Power Distribution Center (Fuses) .......293
Electronic Speed Control (Cruise Control) .........236
Electr

onic Stability Control (ESC) ...............141
Electronic Throttle Control Warning Light .........124
Emergency, In Case Of Freeing Vehicle When Stuck .................323
Hazard Warning Flasher ...................283
Jacking ............................... .356
12
INDEX 481

Fog Lights................................66
Fold-Flat Seats .............................43
Folding Rear Seats ..........................44
Forward Collision Warning ....................155
Four-Way Hazard Flasher .....................283
Freeing A Stuck Vehicle ..................... .323
Fuel ................................... .388
Additives ............................. .389
Clean Air ............................. .389
Ethanol .............................. .390
Gasoline .............................. .388
Materials Added ........................ .389
Methanol ............................. .390
Octane Rating ....................... .388, 393
Requirements ....................... .388, 392
Specifications .......................... .393
Tank Capacity .......................... .392
Fuses .................................. .292
Garage Door Opener (HomeLink) ................92
Gasoline, Clean Air ........................ .389
Gasoline, Reformulated ..................... .389
Gear Ranges ............................. .223
Glass Cleaning ........................... .383
Gross Axle Weight Rating .....................276 Gross Vehicle Weight Rating
...................276
GVWR ................................. .276
Hazard Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .279
Hazard Warning Flashers .....................283
Headlights Automatic ..............................65
Cleaning .............................. .380
High Beam/Low Beam Select Switch ...........64
Lights On Reminder .......................66
On With Wipers ..........................65
Passing ................................65
Switch .................................63
Time Delay ..............................66
Washers .............................. .334
Head

Restraints ......................... .54, 55
Head Rests ............................ .54, 55
Heated Mirrors .............................61
Heater, Engine Block ....................... .217
High Beam/Low Beam Select (Dimmer) Switch ......64
Hill Start Assist ........................... .145
Holder, Coin ...............................99
HomeLink (Garage Door Opener) ................92
12
INDEX 483
