Page 318 of 560

DODGE CHARGER 2019  Owners Manual General Information
The fuses protect electrical systems against excessive current.
When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.
Also, please be

Page 321 of 560

DODGE CHARGER 2019  Owners Manual Cavity Cartridge FuseMini-FuseDescription
29 –15 Amp Blue Transmission Control Module (Challenger / Char-
ger Police) / Electronic Shift Module (Challenger)
30 – – Fuse – Spare
31 –25 Amp Cl

Page 322 of 560

DODGE CHARGER 2019  Owners Manual Cavity Cartridge FuseMini-FuseDescription
51 –20 Amp Yellow Vacuum Pump
52 –5 Amp Tan Adaptive Cruise – If Equipped
53 – – Fuse – Spare
Rear Interior Fuses
There is also a power distributi

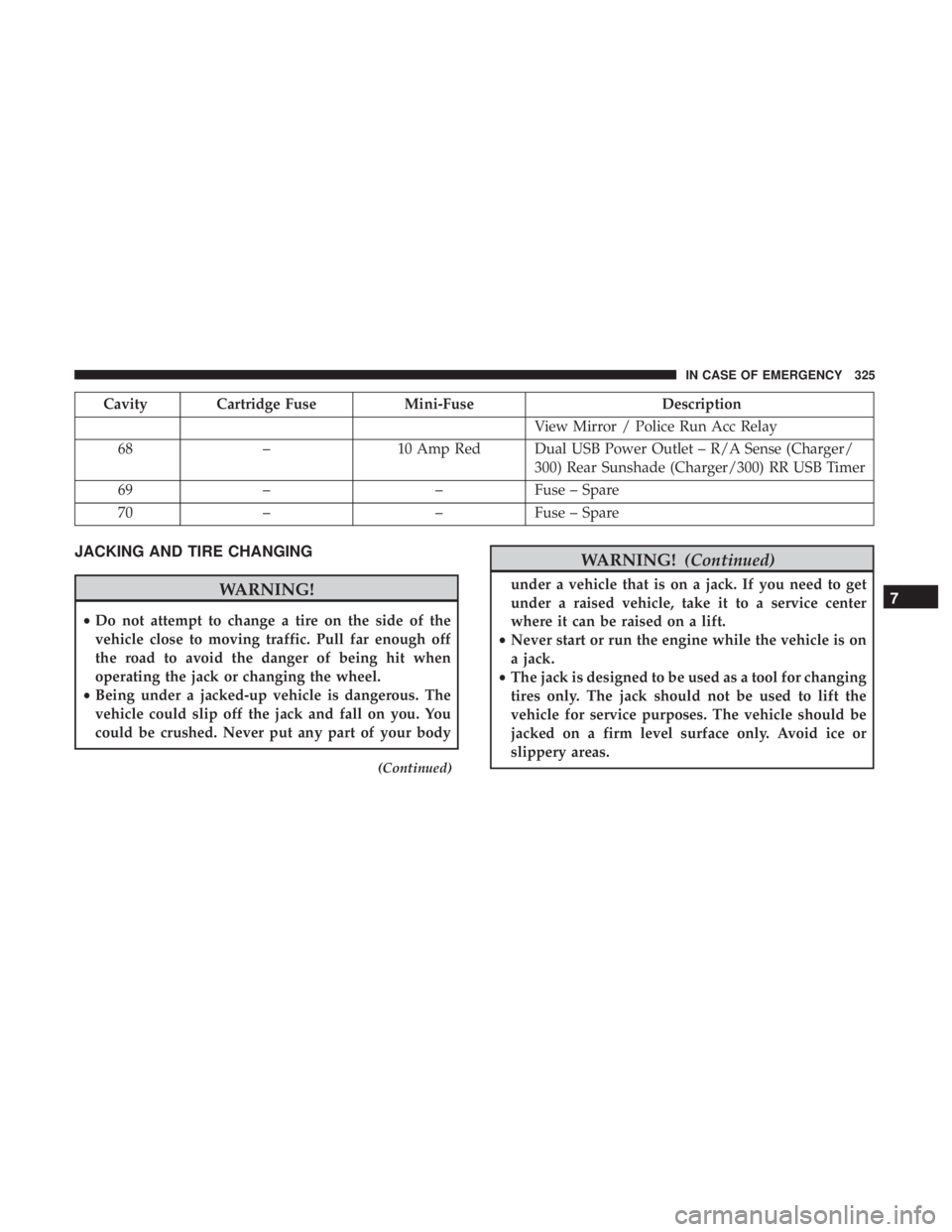

Page 327 of 560

DODGE CHARGER 2019  Owners Manual Cavity Cartridge FuseMini-FuseDescription
View Mirror / Police Run Acc Relay
68 –10 Amp Red Dual USB Power Outlet – R/A Sense (Charger/
300) Rear Sunshade (Charger/300) RR USB Timer
69 – –Fuse

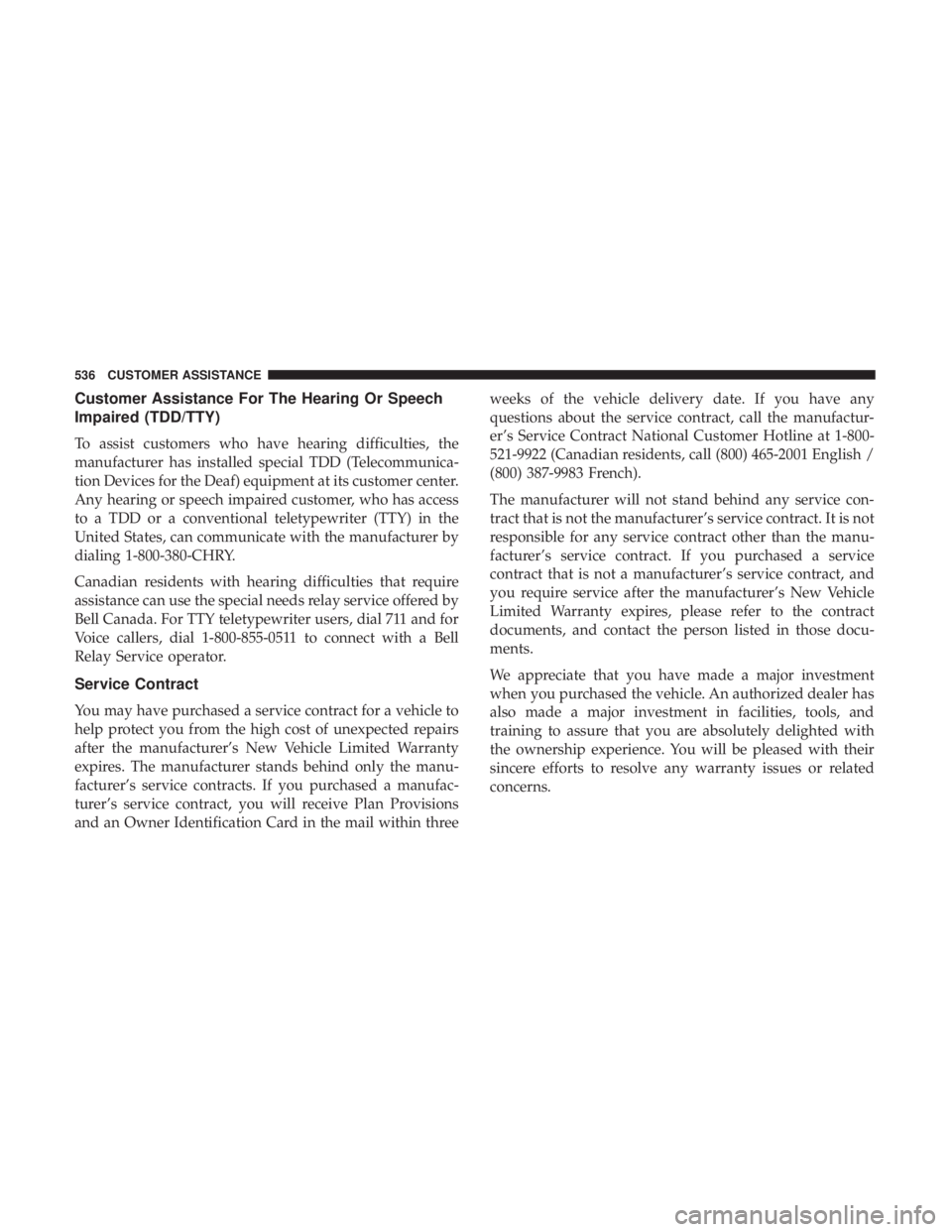

Page 538 of 560

DODGE CHARGER 2019  Owners Manual Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommunica-
tion Devices for the Deaf
