2019 DODGE CHARGER engine coolant

U.S.Metric
Engine Oil With Filter
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
6.4L Engine (SAE 0W-40, Synthetic API Certified) 7 Quarts6.6 Liters
Cooling System*
3.6L Engine (Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile
(240,000 km) Formula or equivalent) 10 Quarts
9.5 Liters
5.7L Engine – without Severe Duty II Cooling System (Mopar
Antifreeze/Engine Coolant 10 Year/150,000 Mile (240,000 km)
Formula or equivalent) 14.5 Quarts
13.9 Liters
5.7L Engine – with Severe Duty II Cooling System (Mopar Antifreeze/
Engine Coolant 10 Year/150,000 Mile (240,000 km) Formula or equiva-
lent)15 Quarts14.3 Liters
6.4L Engine (Mopar Antifreeze/Engine Coolant (OAT coolant con-
forming to MS.90032) 10 Year/150,000 Mile (240,000 km) Formula or
equivalent) 15.2 Quarts
14.4 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
9
TECHNICAL SPECIFICATIONS 437

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
(240,000 km) Formula OAT (Organic Additive Technology).
Engine Oil – 3.6L/5.7L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting
the requirements of FCA Material Standard MS-6395 such as Mopar,
Pennzoil, and Shell Helix Ultra. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil – 6.4L Engine
For best performance and maximum protection under all types of operat-
ing conditions, the manufacturer only recommends full synthetic engine
oils.
The manufacturer recommends the use of Pennzoil Ultra Platinum
0W-40 or equivalent Mopar engine oil meeting the requirements of FCA
Material Standard MS-12633 for use in all operating temperatures
Engine Oil Filter We recommend you use a Mopar Engine Oil Filter.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection – 3.6L Engine 87 Octane, 0-15% Ethanol.
438 TECHNICAL SPECIFICATIONS

ComponentFluid, Lubricant, or Genuine Part
Fuel Selection – 3.6L Flex Fuel (E-85)
Engine 87 Octane, Up to 85% Ethanol.
Fuel Selection – 5.7L Engine 89 Octane Recommended – 87 Octane Acceptable, 0-15% Ethanol.
Fuel Selection – 6.4L Engine 91 Octane or higher, 0-15% Ethanol.
CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.
(Continued)
CAUTION! (Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
9
TECHNICAL SPECIFICATIONS 439

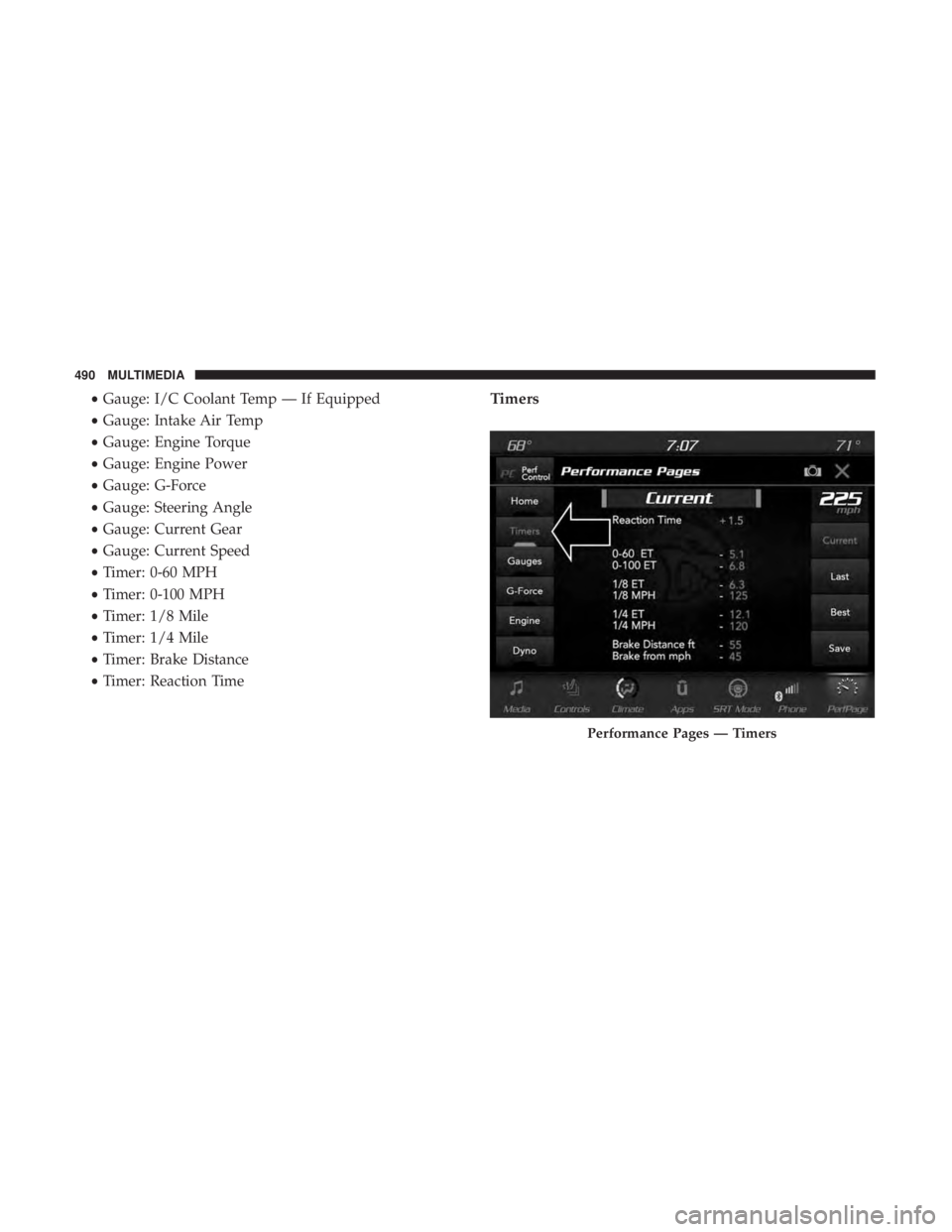

•Gauge: I/C Coolant Temp — If Equipped
• Gauge: Intake Air Temp
• Gauge: Engine Torque
• Gauge: Engine Power
• Gauge: G-Force
• Gauge: Steering Angle
• Gauge: Current Gear
• Gauge: Current Speed
• Timer: 0-60 MPH
• Timer: 0-100 MPH
• Timer: 1/8 Mile
• Timer: 1/4 Mile
• Timer: Brake Distance
• Timer: Reaction TimeTimers
Performance Pages — Timers
490 MULTIMEDIA

About Your Brakes........................ .428
Adaptive Cruise Control (ACC) (Cruise Control) . . . .253
Adding Engine Coolant (Antifreeze) .............390
Adding Fuel ............................. .287
Adding Washing Fluid ...................... .374
Additives, Fuel ........................... .431
Adjust Forward ................................48
Rearward ...............................48
AirBag ................................ .191
Advance Front Air Bag ....................191
Air Bag Operation ....................... .193
Air Bag Warning Light .....................190
Driver Knee Air Bag ..................... .194
Enhanced Accident Response .............200, 358
Event Data Recorder (EDR) .................358
FrontAirBag .......................... .191
If Deployment Occurs .....................199
Knee Impact Bolsters ..................... .193
Maintaining Your Air Bag System .............201
Maintenance ........................... .201
Redundant Air Bag Warning Light ............191
Side Air Bags .......................... .194
Transporting Pets ....................... .219
Air Bag Light ...................... .136, 190, 220Air Cleaner, Engine (Engine Air Cleaner Filter)
......379
Air Conditioner Maintenance ..................380
Air Conditioner Refrigerant ................380, 381
Air Conditioner System ..................... .380
Air Conditioning ...................... .79, 85, 91
Air Conditioning Filter ....................93, 381
Air Conditioning, Operating Tips ................92
Air Filter ............................... .379
Air Pressure Tires................................. .407
Alarm Arm The System ...................... .35, 36
Panic ..................................22
Rearm The System ........................36
Security

Alarm....................... .34, 140
Alarm System Security Alarm ...........................34
All Wheel Drive Towing ............................... .357
All Wheel Drive (AWD) ..................... .396
Alterations/Modifications Vehicle .................................5
Android Auto ............................ .529
Antifreeze (Engine Coolant) ................389, 436
Disposal .............................. .392
540 INDEX

Bulb Replacement......................... .312
Bulbs, Light .......................... .223, 312
Camera, Rear ............................ .285
Capacities, Fluid .......................... .436
Caps, Filler Oil (Engine) ........................ .370, 378
Radiator (Coolant Pressure) .................391
Carbon Monoxide Warning ................219, 433
Cargo Vehicle Loading ......................... .291
Cargo Area Cover ......................... .104
Cargo Compartment ....................... .104
Car Washes .............................. .421
Cellular Phone ............................511
Certification Label ......................... .291
Chains, Tire ............................. .417
Changing A Flat Tire ....................... .397
Charging Wireless ...............................118
Chart, Tire Sizing .......................... .398
Check Engine Light (Malfunction Indicator Light). . . .148
Checking Your Vehicle For Safety ...............219
Checks, Safety ............................ .219
Child Restraint ........................... .202Child Restraints
Booster Seats ........................... .206
Child Seat Installation .....................215
How To Stow An unused ALR Seat Belt ........212
Infant And Child Restraints .................204
Lower Anchors And Tethers For Children .......208
Older Children And Child Restraints ...........205
Seating Positions ........................ .207
Child Safety Locks ..........................42
Clean Air Gasoline ........................ .431
Cleaning Wheels ............................... .416
Climate Control ............................78
Automatic ..............................85
Manual ................................79
Coin Holder ..............................112
Cold

Weather Operation ..................... .232
Compact Spare Tire ........................ .414
Console Floor .................................112
Contract, Service .......................... .536
Cooling Pressure Cap (Radiator Cap) ............391
Cooling System ........................... .389
Adding Coolant (Antifreeze) .................390
Coolant Level ....................... .389, 392
542 INDEX

Cooling Capacity........................ .436
Disposal Of Used Coolant ..................392
Drain, Flush, And Refill ....................389
Inspection ............................. .392
Points To Remember ..................... .392
Pressure Cap ........................... .391
Radiator Cap .......................... .391
Selection Of Coolant (Antifreeze) .......389, 436, 438
Corrosion Protection ....................... .420
Cruise Control (Speed Control) ..............250, 253
Cruise Light .......................... .145, 146
Cupholders ...............................113
Customer Assistance ....................... .534
Cybersecurity ............................ .444
Daytime Running Lights ......................67
Dealer Service ............................ .376
Deck Lid Power Release .......................... .101
Defroster, Windshield ....................... .221
Delay (Intermittent) Wipers ....................76
Diagnostic System, Onboard ...................147
Dimmer Switch Headlight ...............................67 Dipsticks
Oil (Engine) ........................... .373
Disabled Vehicle Towing .....................356
Disposal Antifreeze (Engine Coolant) .................392
Do Not Disturb ........................... .528
Door Ajar ............................... .138
Door Ajar Light ........................... .138
Door Locks Automatic ..............................42
Child-Protection Door Lock — Rear Doors .......42
Doors ....................................36
Drag And Drop Menu ...................... .443
Drive Modes ............................. .498
Driver ’s Seat Back Tilt .....................43, 44
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .303
E-85 Fuel ............................... .434
Electric
Brake Control System ..................153
Anti-Lock Brake System ....................152
Electronic Roll Mitigation ...............154, 161
Electric Remote Mirrors .......................64
Electronic Power Distribution Center (Fuses) .......31612
INDEX 543

Electronic Speed Control (Cruise Control).........251
Electronic Stability Control (ESC) ...............155
Electronic Throttle Control Warning Light .........138
Emergency, In Case Of Freeing Vehicle When Stuck .................355
Hazard Warning Flasher ...................307
Jacking ........................... .325, 397
Jump Starting ....................... .349, 351
Towing ............................... .356
Emission Control System Maintenance ............148
Engine .......................... .370, 371, 372
Air Cleaner ............................ .379
Block Heater ........................... .233
Break-In Recommendations .................233
Checking Oil Level ...................... .373
Compartment ....................370, 371, 372
Compartment Identification .................370
Coolant (Antifreeze) ...................389, 438
Cooling .............................. .389
Exhaust Gas Caution ...................219, 433
Fails To Start ........................... .232
Flooded, Starting ........................ .232
Fuel Requirements ....................429, 436
Jump Starting ....................... .349, 351
Oil ........................... .376, 436, 438Oil Filler Cap
....................... .370, 378
Oil Filter .............................. .379
Oil Selection ........................ .377, 436
Oil Synthetic ........................... .378
Overheating ........................... .352
Starting ........................... .228, 229
Engine Oil Viscosity .....................377, 378
Engine Oil Viscosity Chart ....................377
Enhanced Accident Response Feature .........200, 358
Ethanol ............................. .431, 434
Exhaust

Gas Cautions ....................219, 433
Exhaust System ....................... .219, 387
Exterior Lighting ............................66
Exterior Lights ......................... .66, 223
Filters Air Cleaner ............................ .379
Air Conditioning ..................... .93, 381
Engine Oil ......................... .379, 438
Engine Oil Disposal ...................... .379
Flashers ................................ .307
Hazard Warning ........................ .307
Turn Signals ..................... .71, 146, 223
Flash-To-Pass ..............................68
544 INDEX
