2019 DODGE CHALLENGER SRT wiper fluid

Intermittent Wiper System
Use the intermittent wiper when weather conditions make
a single wiping cycle with a variable pause between cycles
desirable. Rotate the end of the multifunction lever to the
first detent position, and then turn the end of the lever to
select the desired delay interval. There are four delay
settings, which allow you to regulate the wipe interval
from a minimum of one cycle every second to a maximum
of approximately 36 seconds between cycles. The delay
intervals will double in duration when the vehicle speed is
10 mph (16 km/h) or less.
Windshield Washers
To use the washer, push the multifunction lever inward
(toward the steering column) and hold it for as long as
washer spray is desired.
If you activate the washer while the windshield wiper
control is in the delay range, the wipers will operate for
two wipe cycles after releasing the lever and then resume
the intermittent interval previously selected.
If you activate the washer while the windshield wiper is
turned off, the wipers will operate for three wipe cycles
and then turn off.
WARNING!
Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.
Mist Feature
Rotate the end of the lever downward to the MIST position
to activate a single wipe cycle to clear off road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the multifunction lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Rain Sensing Wipers — If Equipped
This feature senses rain or snowfall on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
68 GETTING TO KNOW YOUR VEHICLE

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................333
▫ 6.2L Supercharged Engine .................333
 ENGINE COMPARTMENT .................337
▫ 6.2L Supercharged Engine ................337
▫ Checking Oil Level .....................338
▫ Adding Washer Fluid ...................338
▫ Maintenance-Free Battery .................338
 DEALER SERVICE .......................340
▫ Engine Oil .......................... .340
▫ Engine Oil Filter .......................342
▫ Engine Air Cleaner Filter .................342
▫ Air Conditioner Maintenance ..............343
▫ Accessory Drive Belt Inspection ............346
▫ Body Lubrication ..................... .347▫
Windshield Wiper Blades .................347
▫ Exhaust System ........................349
▫ Cooling System ........................351
▫ Brake System ........................ .356
▫ Clutch Hydraulic System — Manual Transmission
(If Equipped) ..........................357
▫ Manual Transmission — If Equipped ........357
▫ Automatic Transmission — If Equipped ......358
▫ Rear Axle ............................359
 RAISING THE VEHICLE ..................360
 TIRES ............................... .360
▫ Tire Safety Information ..................360
▫ Tires — General Information .............
.370
▫ Tire Types ............................376
8

Checking Oil Level
To assure proper engine lubrication, the engine oil must be
maintained at the correct level. Check the oil level at
regular intervals, such as once a month. The best time to
check the engine oil level is about five minutes after a fully
warmed engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain the
oil level in the “SAFE” range. Adding 1.0 quart (1 liter) of
oil when the reading is at the bottom of the “SAFE” range
will result in an oil level at the top of the “SAFE” range on
these engines.
CAUTION!
Overfilling or underfilling the crankcase will cause
aeration or loss of oil pressure. This could damage your
engine.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
front of the engine compartment. Be sure to check the fluid
level at regular intervals. Fill the reservoir with windshield
washer solvent (not radiator antifreeze) and operate the
system for a few seconds to flush out the residual water.When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper blades
clean. This will help blade performance.
To prevent freeze-up of your windshield washer system in
cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This rating
information can be found on most washer fluid containers.
The fluid reservoir will hold nearly 1 gallon (4 liters) of
washer fluid when the message “Low Washer Fluid”
appears in the instrument cluster.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic mainte-
nance required.
338 SERVICING AND MAINTENANCE

•Noise (objectionable squeal, squeak, or rumble is heard
or felt while drive belt is in operation)
Some conditions can be caused by a faulty component such
as a belt pulley. Belt pulleys should be carefully inspected
for damage and proper alignment.
Belt replacement on some models requires the use of
special tools, we recommend having your vehicle serviced
at an authorized dealer.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
Mopar Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
8
SERVICING AND MAINTENANCE 347

Ignition..................................27
Switch .................................27
Information Center, Vehicle ...................105
Inside Rearview Mirror ....................57, 283
Instrument Cluster Descriptions ........................ .102, 126
Display ............................105, 108
Instrument Panel Lens Cleaning ................388
Interior Appearance Care .....................387
Interior Lights ..............................65
Intermittent Wipers (Delay Wipers) ...............68
Introduction ................................4
In Vehicle Help Vehicle User Guide ........................17
iPod/USB/MP3 Control ..................... .457
Bluetooth Streaming Audio .................457
Jack Operation ............................360
Jump Starting ..................... .319, 320, 321
Key Fob Arm The System ..........................36
Panic Alarm .............................23
Programming Additional Key Fobs ..........26, 34
Unlatch The Trunk ........................22 Key Fob Battery Service (Remote Keyless Entry)
.....23
Key Fob Programming (Remote Keyless Entry) ......26
Key-In Reminder ............................29
Keyless Enter-N-Go ..........................39
Enter The Trunk ..........................22
Keys ....................................19
Replacement ..........................26, 34
Lane Change And Turn Signals .................64
Lane Change Assist ..........................65
Lap/Shoulder Belts ........................ .163
Latches ................................. .208
Hood ..................................82
Lead Free Gasoline ........................ .392
Leaks, Fluid ............................. .209
Life Of Tires ............................. .374
Light Bulbs .......................... .208, 288
Lights .................................. .208
AirBag .........................118, 172, 206
Automatic Headlights ......................63
Brake Assist Warning ..................... .140
Brake W

arning .......................118,390
Bulb Replacement ........................288
Courtesy/Reading .........................65
Cruise ............................... .127
488 INDEX

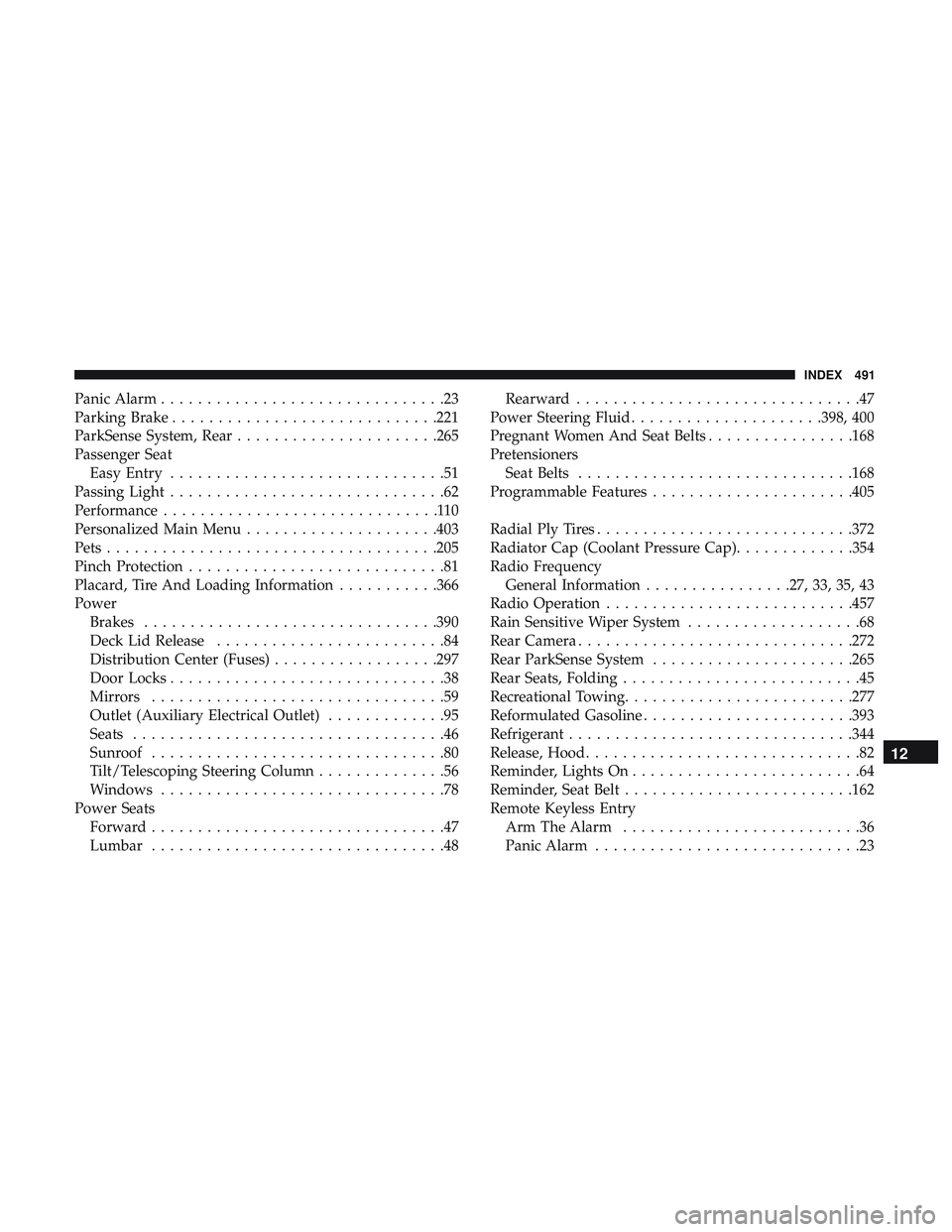

Panic Alarm...............................23
Parking Brake ............................ .221
ParkSense System, Rear ..................... .265
Passenger Seat Easy Entry ..............................51
Passing Light ..............................62
Performance ..............................110
Personalized Main Menu .....................403
Pets ................................... .205
Pinch Protection ............................81
Placard, Tire And Loading Information ...........366
Power Brakes ............................... .390
Deck Lid Release .........................84
Distribution Center (Fuses) ..................297
Door Locks ..............................38
Mirrors ................................59
Outlet (Auxiliary Electrical Outlet) .............95
Seats ..................................46
Sunroof ................................80
Tilt/Telescoping Steering Column ..............56
Windows ...............................78
Power Seats Forward ................................47
Lumbar ................................48 Rearward
...............................47
Power Steering Fluid .....................398, 400
Pregnant Women And Seat Belts ................168
Pretensioners Seat Belts ............................. .168
Programmable Features ..................... .405
Radial Ply Tires ............................372
Radiator Cap (Coolant Pressure Cap) .............354
Radio Frequency General Information ................27, 33, 35, 43
Radio Operation .......................... .457
Rain Sensitive Wiper System ...................68
Rear Camera ............................. .272
Rear ParkSense System ..................... .265
Rear Seats, Folding ..........................45
Recreational Towing ........................ .277
Reformulated Gasoline .......................393
Refrigerant ...............................344
Release, Hood .............................. 8
2
Reminder, Lights On .........................64
Reminder, Seat Belt ........................ .162
Remote Keyless Entry Arm The Alarm ..........................36
Panic Alarm .............................2312
INDEX 491

WaterDriving Through ........................ .279
Wheel And Wheel Tire Care ...................380
Wheel And Wheel Tire Trim ...................380
Wind Buffeting ..........................79, 81
Window Fogging ...........................77
Windows .................................78
Power .................................78
Windshield Defroster ........................207
Windshield Washers .......................67, 68
Fluid .................................338
Windshield Wiper Blades .....................347
Windshield Wipers ..........................67
Wipers Blade Replacement ....................347
Wipers, Intermittent .........................68
Wipers, Rain Sensitive ........................68
Wireless Charging Pad ........................98
496 INDEX
