2019 CHRYSLER 300 seat memory

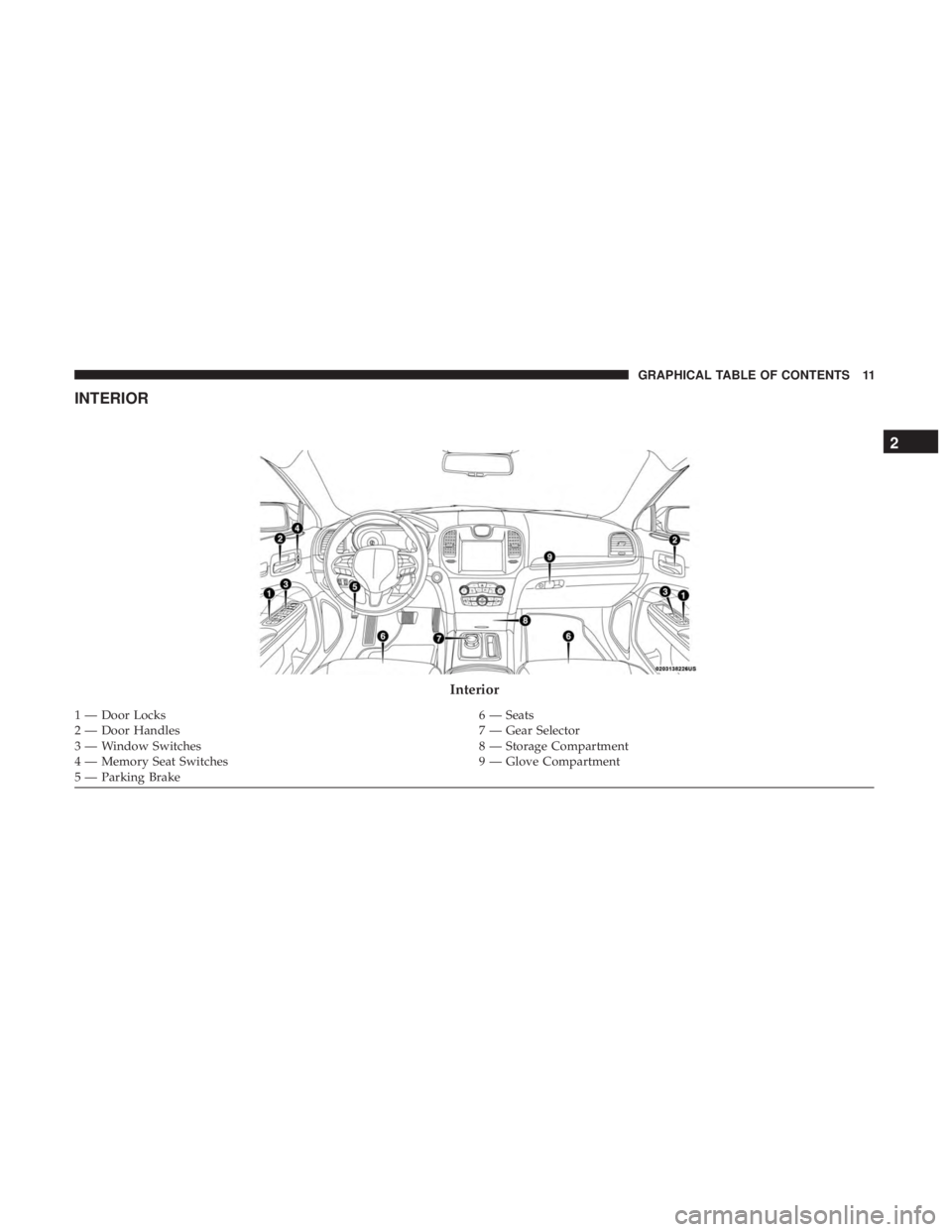

INTERIOR
Interior
1 — Door Locks6 — Seats
2 — Door Handles 7 — Gear Selector
3 — Window Switches 8 — Storage Compartment
4 — Memory Seat Switches 9 — Glove Compartment
5 — Parking Brake
2
GRAPHICAL TABLE OF CONTENTS 11

▫Keyless Enter-N-Go — Passive Entry .........39
▫ Automatic Unlock Doors On Exit ............42
▫ Automatic Door Locks — If Equipped ........43
▫ Child-Protection Door Lock System
— Rear Doors .........................43
 SEATS ................................44
▫ Manual Adjustment (Rear Seats) .............45
▫ Power Front Seats .......................46
▫ Driver Memory Seat — If Equipped ..........48
▫ Heated Seats — If Equipped ................52
▫ Front Ventilated Seats — If Equipped .........54
 HEAD RESTRAINTS ......................55
▫ Reactive Head Restraints — Front Seats .......55
▫ Rear Head Restraints ....................56
▫ Front Head Restraint Removal ..............57
 STEERING WHEEL .......................58
▫ Manual Tilt/Telescoping Steering Column
— If Equipped .........................58 ▫
Power Tilt/Telescoping Steering Column — If
Equipped .............................58
▫ Heated Steering Wheel — If Equipped .........59
 MIRRORS ..............................60
▫ Automatic Dimming Mirror — If Equipped .....60
▫ Outside Mirrors ........................61
▫ Driver’s Outside Automatic Dimming Mirror
— If Equipped ..........................61
▫ Outside Mirrors With Turn Signal And Approach
Lighting — If Equipped ...................62
▫ Power Mirrors .........................62
▫ Power Folding Outside Mirrors — If Equipped. . .63
▫ Heated Mirrors — If Equipped .............64
▫ Tilt Side Mirrors In Reverse — If Equipped .....64
▫ Illuminated Vanity Mirrors — If Equipped .....65
 EXTERIOR LIGHTS .......................66
▫ Multifunction Lever .....................66
▫ Headlight Switch .......................66
14 GETTING TO KNOW YOUR VEHICLE

CAUTION!
Do not place any article under a power seat or impede
its ability to move as it may cause damage to the seat
controls. Seat travel may become limited if movement
is stopped by an obstruction in the seat’s path.
Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted up or down.
Pull upward or push downward on the front of the seat
switch. The front of the seat cushion will move in the
direction of the switch. Release the switch when the
desired position has been reached.
Power Lumbar — If Equipped
Vehicles equipped with power driver or passenger seats
may also be equipped with power lumbar. The power
lumbar switch is located on the outboard side of the power
seat. Push the switch forward or rearward to increase or
decrease the lumbar support. Push the switch upward or
downward to raise or lower the lumbar support.
Driver Memory Seat — If Equipped
This feature allows the driver to store up to two different
memory profiles for easy recall through a memory switch.
Each memory profile contains desired position settings for
the driver seat, side mirrors, and power tilt and telescopic
steering column (if equipped) and a set of desired radio
station presets. Your key fob can also be programmed to
recall the same positions when the unlock button is
pushed.
Power Lumbar Switch
48 GETTING TO KNOW YOUR VEHICLE

NOTE:Your vehicle is equipped with two key fobs, one
key fob can be linked to memory position 1 and the other
key fob can be linked to memory position 2.
The memory seat switch is located on the driver ’s door
trim panel. The switch consists of three buttons:
• The set (S) button, which is used to activate the memory
save function.
• The (1) and (2) buttons which are used to recall either of
two pre-programmed memory profiles.Programming The Memory Feature
NOTE: To create a new memory profile, perform the
following:
1. Cycle the vehicle’s ignition to the ON/RUN position (do not start the engine).
2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror, power tilt and telescopic
steering column [if equipped], and radio station pre-
sets).
3. Push and release the set (S) button on the memory switch.
4. Within five seconds, push and release either of the memory buttons (1) or (2). The instrument cluster dis-
play will display which memory position has been set.
NOTE:
• Memory profiles can be set without the vehicle in PARK,
but the vehicle must be in PARK to recall a memory
profile.
• To set a memory profile to your key fob, refer to
“Linking And Unlinking The Remote Keyless Entry Key
Fob To Memory” in this section.
Memory Seat Switch
3
GETTING TO KNOW YOUR VEHICLE 49

Driver Two Memory Position Recall
•To recall the memory setting for driver two using the
memory switch, push memory button (2) on the
memory switch.
• To recall the memory settings for driver two using the
key fob, push the unlock button on the key fob linked to
memory position 2.
A recall can be canceled by pushing any of the memory
buttons during a recall (S, 1, or 2), or by pushing any of the
seat adjustment switches. When a recall is canceled, the
driver’s seat and steering column (if equipped) stop mov-
ing. A delay of one second will occur before another recall
can be selected.
Easy Entry/Exit Seat
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle.
The distance the driver seat moves depends on where you
have the driver seat positioned when you cycle the vehi-
cle’s ignition to the OFF position. •
When you cycle the vehicle’s ignition to the OFF posi-
tion, the driver seat will move about 2.4 inches (60 mm)
rearward if the driver seat position is greater than or
equal to 2.7 inches (67.7 mm) forward of the rear stop.
The seat will return to its previously set position when
you cycle the vehicle’s ignition to the ACC or RUN
position.
• The Easy Entry/Easy Exit feature is disabled when the
driver seat position is less than 0.9 of an inch (22.7 mm)
forward of the rear stop. At this position, there is no
benefit to the driver by moving the seat for Easy Exit or
Easy Entry.
Each stored memory setting will have an associated Easy
Entry and Easy Exit position.
NOTE: The Easy Entry/Exit feature is not enabled when
the vehicle is delivered from the factory. The Easy Entry/
Exit feature is enabled (or later disabled) through the
programmable features in the Uconnect system. Refer to
“Uconnect Settings” in “Multimedia”.
3
GETTING TO KNOW YOUR VEHICLE 51

To tilt the steering column, move the switch up or down as
desired. To lengthen or shorten the steering column, pull
the switch toward you or push the switch away from you
as desired.
NOTE:For vehicles equipped with Driver Memory Seat,
you can use your remote keyless entry key fob or the
memory switch on the driver’s door trim panel to return
the tilt/telescopic steering column to pre-programmed
positions. Refer to “Driver Memory Seat” in this section.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.
Heated Steering Wheel — If Equipped
The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on, it will stay on for an
average of 80 minutes before automatically shutting off.
This time will vary based on environmental temperatures.
The heated steering wheel can shut off early or may not
turn on when the steering wheel is already warm.
The heated steering wheel control button is located within
the Uconnect system. You can gain access to the control
button through the climate screen or the controls screen.
• Press the heated steering wheel button
once to turn
the heating element on.
• Press the heated steering wheel buttona second time
to turn the heating element off.
Power Tilt/Telescoping Steering Switch
3
GETTING TO KNOW YOUR VEHICLE 59

Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in “Getting To Know Your Vehicle” for
further information.
Power Folding Outside Mirrors — If Equipped
If equipped with power folding mirrors, they can be
electrically folded rearward and unfolded into the drive
position.
The switch for the power folding mirrors is located be-
tween the power mirror switches L (left) and R (right).
Push the switch once and the mirrors will fold in, pushing
the switch a second time will return the mirrors to the
normal driving position.
If the mirror is manually folded after electrically cycled, a
potential extra button push is required to get the mirrors
back to the drive position. If the mirror does not electrically
fold, check for ice or dirt build up at the pivot area which
can cause excessive drag.Automatic Folding Mirrors
When the Automatic Folding Mirrors feature is enabled,
the exterior mirrors will fold in when exiting the vehicle
(the ignition is OFF, all doors are closed, and the doors are
locked).
•
If the exterior mirrors were auto-folded, they will unfold
when the ignition is turned ON.
• If the exterior mirrors were manually folded, they will
not automatically unfold.
Power Folding Mirror Switch
3
GETTING TO KNOW YOUR VEHICLE 63

Setting NameSelectable Options
Personal Settings Linked To Key Fob — IfEquipped On
Off
NOTE:
•This feature provides automatic recall of all settings stored to a memory location (driver ’s seat, exterior mirrors,
steering column position and radio station pre-sets) to enhance driver mobility when entering and exiting the ve-
hicle.
•The seat returns to the memorized seat location (if “Personal Settings Linked to Key Fob” is set to on) when the
key fob is used to unlock the door.
Auto Comfort Systems — If Equipped
After pressing the “Auto-On Comfort” button on the touchscreen, the following settings will be available:
Setting Name Selectable Options
Auto-On Driver Heated Seat Off
Remote Start All Starts
NOTE:
When this feature is selected the driver’s heated seat and heated steering wheel will automatically turn on when tem-
peratures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C) the driver ’s vented seat will turn on.
438 MULTIMEDIA
