2019 CHEVROLET TRAVERSE keyless remote

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18
Seats and Restraints 67
.See Vehicle Personalization
0 155 for additional setting
information.
Identifying Driver Number
To identify the driver number: 1. Start the vehicle with a different key or RKE transmitter. The
DIC should display the driver
number; 1 or 2. Turn the
ignition off and remove the key
or RKE transmitter from the
vehicle.
2. Start the vehicle with the initial key or RKE transmitter. The
DIC should display the other
driver number not shown in
Step 1.
Saving Memory Positions
Read these instructions completely
before saving memory positions.
To save preferred driving positions
1 and 2: 1. Turn the ignition on or to ACC/ ACCESSORY.
A DIC welcome message may
indicate driver number 1 or 2. 2. Adjust all available memory
features to the desired driving
position.
3. Press and release SET; a beep will sound.
4. Immediately press and hold the 1 or 2 memory button matching
the above DIC welcome
message until two beeps
sound.
If too much time passes
between releasing SET and
pressing 1, the memory
position will not be saved and
two beeps will not sound.
Repeat Steps 3 and 4.
1 or 2 corresponds to the driver
number. See “Identifying Driver
Number” previously in this
section.
5. Repeat Steps 1–4 for a second driver using 1 or 2.
To save the position for
Band
easy exit features, repeat Steps 1–4
using
B. This saves the position
for getting out of the vehicle. Save preferred memory feature
positions to both 1 and 2 if you are
the only driver.
Manually Recalling Memory
Positions
Press and hold 1, 2, or
Bto recall
the previously saved memory
positions.
To stop Manual Memory Recall
movement, release 1, 2, or
Bor
press any of the following controls:
. Power seat
. Memory SET
. Power mirror, with the driver or
passenger side mirror selected
. Power steering wheel,
if equipped
Auto Memory Recall
The vehicle identifies the number of
the current driver ’s RKE transmitter
(1–8). See Remote Keyless Entry
(RKE) System Operation 030. If the
RKE transmitter is 1 or 2, and Auto
Memory Recall is programmed on in
vehicle personalization, the

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18
Instruments and Controls 159
ignition is changed from off to on or
ACC/ACCESSORY. SeeMemory
Seats 066.
Select Off or On.
Easy Exit Options
This feature automatically recalls
the previously stored Exit button
position when exiting the vehicle.
See Memory Seats 066.
Select Off or On.
Chime Volume
This allows the selection of the
chime volume level.
Touch + or −to adjust the volume.
Hands Free Liftgate Control
The liftgate may be operated with a
kicking motion under the left side of
the rear bumper. See Liftgate043.
Select Off, On-Open and Close,
or On-Open Only.
Reverse Tilt Mirror
When on, the driver and/or
passenger mirrors will tilt downward
when the vehicle is shifted to R (Reverse) to improve visibility of
the ground near the rear wheels.
They will return to their previous
driving position when the vehicle is
shifted out of R (Reverse) or the
ignition is turned to off.
Select Off, On - Driver and
Passenger, On - Driver, or On -
Passenger.
Auto Wipe in Reverse Gear
When on and the front wiper is on,
the rear wiper will automatically
activate when the vehicle is shifted
to R (Reverse).
Select Off or On.
Extended Hill Start Assist
This allows the duration of the Hill
Start Assist to be changed.
Select Extended Hold or
Standard Hold.
Lighting
Select and the following may
display:
.
Vehicle Locator Lights
. Exit Lighting Vehicle Locator Lights
This feature will flash the exterior
lamps and allows some of the
exterior lamps and most of the
interior lamps to turn on briefly
when
Kon the Remote Keyless
Entry (RKE) transmitter is pressed
to locate the vehicle.
Select Off or On.
Exit Lighting
This allows the selection of how
long the exterior lamps stay on
when leaving the vehicle when it is
dark outside.
Select Off, 30 Seconds, 60 Seconds,
or 120 Seconds.
Power Door Locks
Select and the following may
display:
. Unlocked Door Anti-Lockout
. Auto Door Unlock
. Delayed Door Lock

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18
Instruments and Controls 161
Passive Door Unlock
This allows the selection of what
doors will unlock when using the
button on the driver door to unlock
the vehicle.
Select All Doors or Driver Door.
Passive Door Lock
This allows passive locking to be
turned on or off and selects
feedback. SeeRemote Keyless
Entry (RKE) System Operation 030.
Select Off, On with Horn
Chirp, or On.
Remote Left in Vehicle Alert
This feature sounds an alert when
the RKE transmitter is left in the
vehicle. This menu also enables
Remote No Longer In Vehicle Alert.
Select Off or On.
Bluetooth
Select and the following may
display:
. Device Information
. Pair New Device .
Device Management
. Change Pairing PIN
. Ringtones
. Sort Order
. Voice Mail Numbers
. Text Message Alerts
Device Information
See information about the device
name, address, and PIN code.
Pair New Device
Select to pair a new device. See
“Pairing” in“Infotainment Controls”
under “Bluetooth” in the infotainment
manual.
Device Management
Select to connect to a different
phone source, disconnect a phone,
or delete a phone.
Change Pairing PIN
Select to change the PIN of a
device. Ringtones
Touch to change the ring tone for
the specific phone. The phone does
not need to be connected to change
the ring tone.
Sort Order
Select to change the order of the
contacts list.
Select First/Last or Last/First.
Voice Mail Numbers
This feature displays the voice mail
number for all connected phones.
To change the voice mail number,
select EDIT. Type a new number,
then select Save.
Text Message Alerts
This allows the feature to be turned
on or off.
Select Off or On.Apple CarPlay
Select and the following may
display:
.
Apple CarPlay
. Manage Apple CarPlay Devices

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18

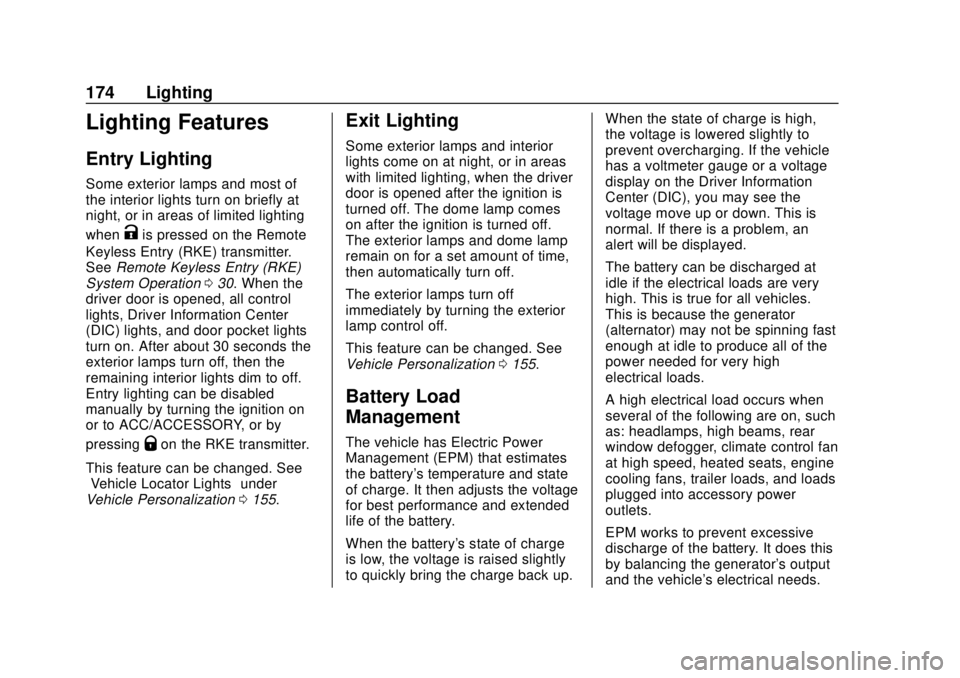

174 Lighting
Lighting Features
Entry Lighting
Some exterior lamps and most of
the interior lights turn on briefly at
night, or in areas of limited lighting
when
Kis pressed on the Remote
Keyless Entry (RKE) transmitter.
See Remote Keyless Entry (RKE)
System Operation 030. When the
driver door is opened, all control
lights, Driver Information Center
(DIC) lights, and door pocket lights
turn on. After about 30 seconds the
exterior lamps turn off, then the
remaining interior lights dim to off.
Entry lighting can be disabled
manually by turning the ignition on
or to ACC/ACCESSORY, or by
pressing
Qon the RKE transmitter.
This feature can be changed. See
“Vehicle Locator Lights” under
Vehicle Personalization 0155.
Exit Lighting
Some exterior lamps and interior
lights come on at night, or in areas
with limited lighting, when the driver
door is opened after the ignition is
turned off. The dome lamp comes
on after the ignition is turned off.
The exterior lamps and dome lamp
remain on for a set amount of time,
then automatically turn off.
The exterior lamps turn off
immediately by turning the exterior
lamp control off.
This feature can be changed. See
Vehicle Personalization 0155.
Battery Load
Management
The vehicle has Electric Power
Management (EPM) that estimates
the battery's temperature and state
of charge. It then adjusts the voltage
for best performance and extended
life of the battery.
When the battery's state of charge
is low, the voltage is raised slightly
to quickly bring the charge back up. When the state of charge is high,
the voltage is lowered slightly to
prevent overcharging. If the vehicle
has a voltmeter gauge or a voltage
display on the Driver Information
Center (DIC), you may see the
voltage move up or down. This is
normal. If there is a problem, an
alert will be displayed.
The battery can be discharged at
idle if the electrical loads are very
high. This is true for all vehicles.
This is because the generator
(alternator) may not be spinning fast
enough at idle to produce all of the
power needed for very high
electrical loads.
A high electrical load occurs when
several of the following are on, such
as: headlamps, high beams, rear
window defogger, climate control fan
at high speed, heated seats, engine
cooling fans, trailer loads, and loads
plugged into accessory power
outlets.
EPM works to prevent excessive
discharge of the battery. It does this
by balancing the generator's output
and the vehicle's electrical needs.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18
Driving and Operating 225
Caution (Continued)
breaking-in guideline every
time you get new brake
linings.
Following break-in, engine speed
and load can be gradually
increased.
Ignition Positions
This vehicle has pushbutton
starting. The Remote Keyless Entry (RKE)
transmitter must be in the vehicle for
the system to operate. If the
pushbutton start is not working, the
vehicle may be near a strong radio
antenna signal causing interference
to the Keyless Access system. See
Remote Keyless Entry (RKE)
System Operation
030.
To shift out of P (Park), the ignition
must be on or in service mode and
the brake pedal must be applied.
Stopping the Engine/OFF (No
Indicator Lights) : When the
vehicle is stopped, press ENGINE
START/STOP once to turn the
engine off.
If the vehicle is in P (Park), the
ignition will turn off, and Retained
Accessory Power (RAP) will remain
active. See Retained Accessory
Power (RAP) 0230.
If the vehicle is not in P (Park), the
ignition will return to ACC/
ACCESSORY and display the
message SHIFT TO PARK in the Driver Information Center (DIC).
When the vehicle is shifted into
P (Park), the ignition will turn off.
Do not turn the engine off when the
vehicle is moving. This will cause a
loss of power assist in the brake
and steering systems and disable
the airbags.
If the vehicle must be shut off in an
emergency:
1. Brake using a firm and steady pressure. Do not pump the
brakes repeatedly. This may
deplete power assist, requiring
increased brake pedal force.
2. Shift the vehicle to N (Neutral). This can be done while the
vehicle is moving. After shifting
to N (Neutral), firmly apply the
brakes and steer the vehicle to
a safe location.
3. Come to a complete stop, shift to P (Park), and turn the
ignition off. The shift lever must
be in P (Park) to turn the
ignition off.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 11/1/18
Vehicle Care 291
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 096.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner ’s manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see
Publication Ordering Information
0 398.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 096.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18
420 Index
High-Speed Operation . . . . . . . . . . 334
Hill and Mountain Roads . . . . . . . . 218
Hill Start Assist (HSA) . . . . . . . . . . 240
Home Page . . . . . . . . . . . . . . . . . . . . . 179
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . . 77
HVAC . . . . . . . . . . . . . . . . . . . . . . 201, 204
I
Ignition Positions . . . . . . . . . . . . . . . 225
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 51
Indicator Pedestrian Ahead . . . . . . . . . . . . 146
Vehicle Ahead . . . . . . . . . . . . . . . . 146
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 99
Information Publication Ordering . . . . . . . . . . 398
Infotainment . . . . . . . . . . . . . . . . . . . . 176
Infotainment System . . . . . . . . . . . . 402
Instrument Cluster . . . . . . . . . . . . . . 135
Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . .119
Interior Rearview Mirrors . . . . . . . . . 53
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 356
K
Keyless EntryRemote (RKE) System . . . . . . . . . 30
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
L
Labeling, Tire Sidewall . . . . . . . . . . 328
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 172
Daytime Running (DRL) . . . . . . 169
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 172
Exterior Controls . . . . . . . . . . . . . . 167
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 175
License Plate . . . . . . . . . . . . . . . . . 315
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 142
On Reminder . . . . . . . . . . . . . . . . . 150
Reading . . . . . . . . . . . . . . . . . . . . . . 173
Lane Change Alert (LCA) . . . . . . . 267
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 269
Lane Keep Assist (LKA) . . . . . . . . 269
Lane Keep Assist Light . . . . . . . . . 146
Lap-Shoulder Belt . . . . . . . . . . . . . . . 79 LATCH System
Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . .113
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . 105
LED Lighting . . . . . . . . . . . . . . . . . . . . 315
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 174
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Illumination Control . . . . . . . . . . . 172
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Lights Airbag Readiness . . . . . . . . . . . . . 141
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 145
Brake System Warning . . . . . . . 144
Charging System . . . . . . . . . . . . . 142
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 142
Cruise Control . . . . . . . . . . . . . . . . 150
Door Ajar . . . . . . . . . . . . . . . . . . . . . 151
Electric Parking Brake . . . . . . . . 145
Engine Oil Pressure . . . . . . . . . . 148
Flash-to-Pass . . . . . . . . . . . . . . . . . 169
Front Fog Lamp . . . . . . . . . . . . . . 150
High-Beam On . . . . . . . . . . . . . . . . 150
High/Low Beam Changer . . . . . 169

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146157) - 2019 - CRC - 10/31/18
Index 423
RecordsMaintenance . . . . . . . . . . . . . . . . . . 384
Recreational Vehicle Towing . . . . 359
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 393
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remote Vehicle Start . . . . . . . . . . . . 37
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 97
Maintenance . . . . . . . . . . . . . . . . . . 383
Replacing Airbag System . . . . . . . . 97
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . 113
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 84
Reporting Safety Defects Canadian Government . . . . . . . . 400
General Motors . . . . . . . . . . . . . . . 400
U.S. Government . . . . . . . . . . . . . 399
Restraints
Where to Put . . . . . . . . . . . . . . . . . 103
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 230
Reverse Tilt Mirrors . . . . . . . . . . . . . . 53
Roads
Driving, Wet . . . . . . . . . . . . . . . . . . 217 Roadside Assistance
Program . . . . . . . . . . . . . . . . . . . . . . . 393
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 58
Roof Rack System . . . . . . . . . . . . . . 122
Rotation, Tires . . . . . . . . . . . . . . . . . . 340
Routing, Engine Drive Belt . . . . . . 388
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 233
S
Safety Defects ReportingCanadian Government . . . . . . . . 400
General Motors . . . . . . . . . . . . . . . 400
U.S. Government . . . . . . . . . . . . . 399
Safety Locks . . . . . . . . . . . . . . . . . . . . . 42
Safety System Check . . . . . . . . . . . . 83
Satellite Radio . . . . . . . . . . . . . . . . . . 182
Scheduling Appointments . . . . . . . 395
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 76 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Extender . . . . . . . . . . . . . . . . . . . . . . . . 83
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . 77
Lap-Shoulder Belt . . . . . . . . . . . . . . 79
Reminders . . . . . . . . . . . . . . . . . . . . 140
Replacing after a Crash . . . . . . . . 84
Use During Pregnancy . . . . . . . . . . 83 Seats
Adjustment, Front . . . . . . . . . . . . . . . 63
Head Restraints . . . . . . . . . . . . . . . . 61
Heated and Ventilated Front . . . . 69
Heated, Rear . . . . . . . . . . . . . . . . . . . 73
Lumbar Adjustment, Front . . . . . . 64
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 66
Power Adjustment, Front . . . . . . . 63
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Reclining Seatbacks . . . . . . . . . . . . 64
Third Row Seat . . . . . . . . . . . . . . . . . 74
Securing Child Restraints . . . . . . . . . . . . . . . . 113, 115
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 149
OnStar . . . . . . . . . . . . . . . . . . . . . . . 405
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 50
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 50
Service . . . . . . . . . . . . . . . . . . . . . . . . . 207 Accessories andModifications . . . . . . . . . . . . . . . . 291
Doing Your Own Work . . . . . . . . 291
Maintenance Records . . . . . . . . 384
Maintenance, General Information . . . . . . . . . . . . . . . . . . 371
Parts Identification Label . . . . . 385
Scheduling Appointments . . . . . 395
