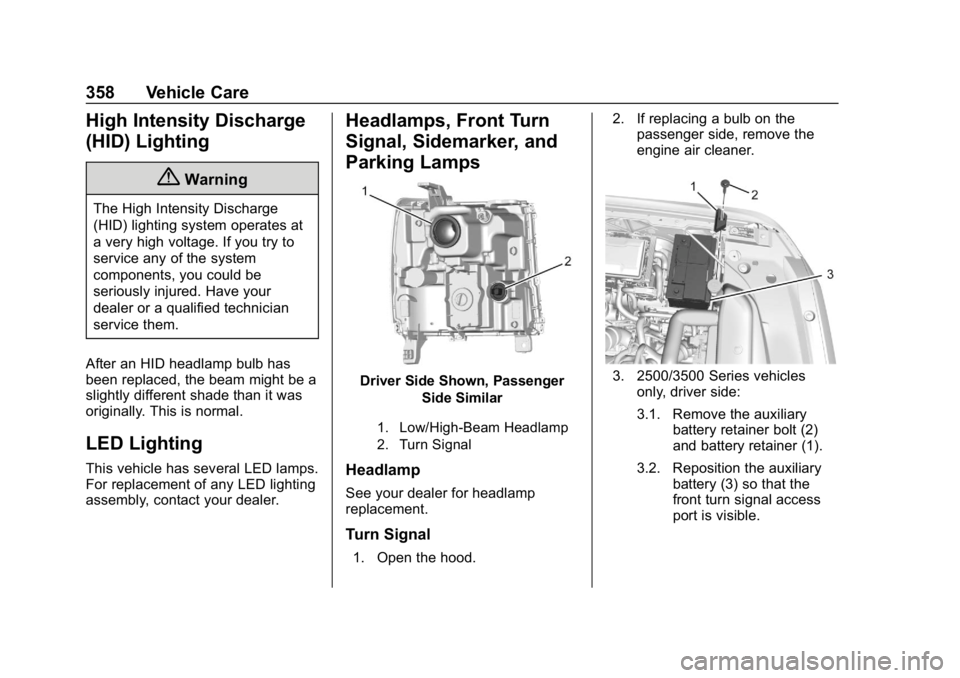

High Intensity Discharge
(HID) Lighting
{Warning
The High Intensity Discharge
(HID) lighting system operates at
a very high voltage. If you try to
service any of the system
components, you could be
seriously injured. Have your
dealer or a qualified technician
service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Headlamps, Front Turn
Signal, Sidemarker, and
Parking Lamps
Driver Side Shown, Passenger Side Similar
1. Low/High-Beam Headlamp
2. Turn Signal
Headlamp
See your dealer for headlamp
replacement.
Turn Signal
1. Open the hood. 2. If replacing a bulb on the
passenger side, remove the
engine air cleaner.
3. 2500/3500 Series vehicles
only, driver side:
3.1. Remove the auxiliary battery retainer bolt (2)
and battery retainer (1).
3.2. Reposition the auxiliary battery (3) so that the
front turn signal access
port is visible.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
Vehicle Care 359
4. Turn the bulb socketcounterclockwise to remove it
from the headlamp assembly
and pull it straight out.
5. Remove the bulb by pulling it straight out of the bulb socket.
6. Install the new bulb into the bulb socket.
7. Turn the bulb socket clockwise to install it in the headlamp
assembly.
8. 2500/3500 Series vehicles only, driver side:
8.1. Reposition the auxiliary
battery (3).
8.2. Install the auxiliary battery retainer (1) and
battery retainer bolt (2).
9. If replacing a bulb on the passenger side, reinstall the
engine air cleaner.
10. Close the hood.

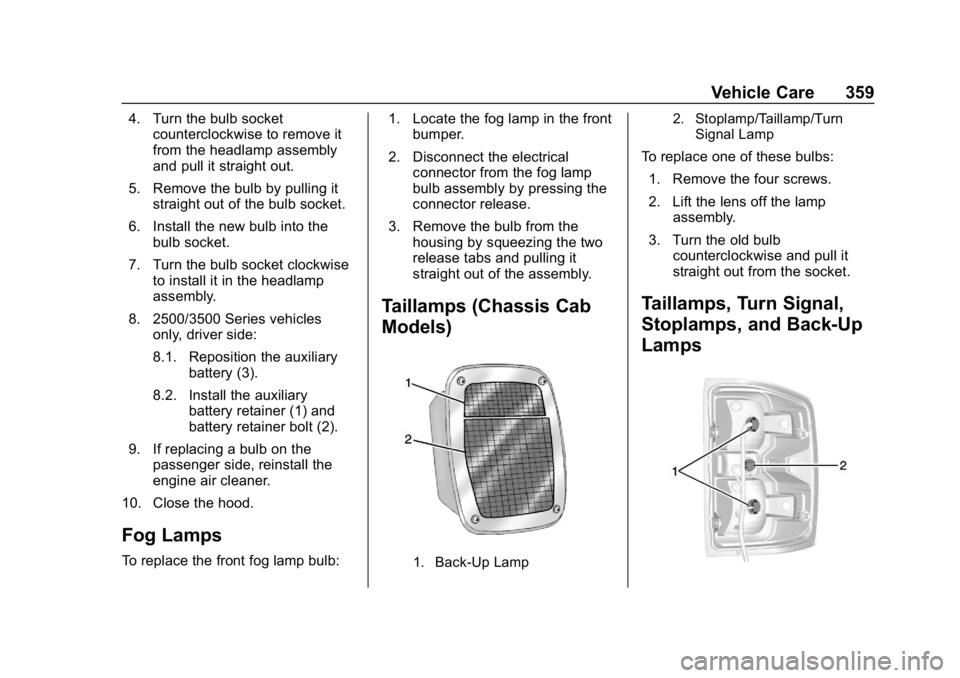

Fog Lamps
To replace the front fog lamp bulb: 1. Locate the fog lamp in the front
bumper.
2. Disconnect the electrical connector from the fog lamp
bulb assembly by pressing the
connector release.
3. Remove the bulb from the housing by squeezing the two
release tabs and pulling it
straight out of the assembly.
Taillamps (Chassis Cab
Models)
1. Back-Up Lamp 2. Stoplamp/Taillamp/Turn
Signal Lamp
To replace one of these bulbs:
1. Remove the four screws.
2. Lift the lens off the lamp assembly.
3. Turn the old bulb counterclockwise and pull it
straight out from the socket.
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
Vehicle Care 361

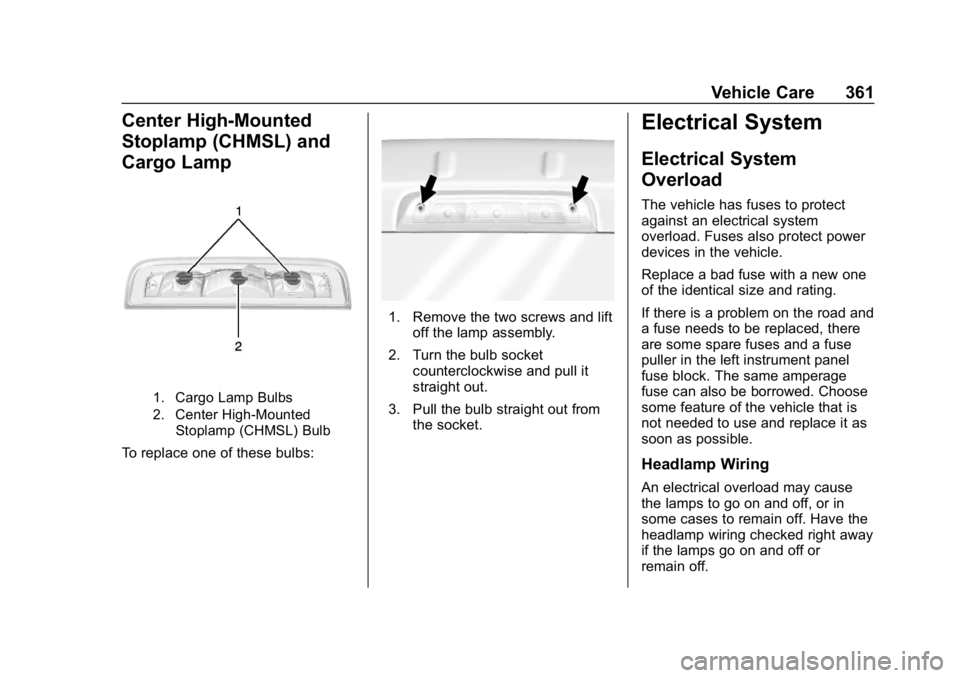

Center High-Mounted
Stoplamp (CHMSL) and
Cargo Lamp
1. Cargo Lamp Bulbs
2. Center High-MountedStoplamp (CHMSL) Bulb
To replace one of these bulbs:
1. Remove the two screws and lift off the lamp assembly.
2. Turn the bulb socket counterclockwise and pull it
straight out.
3. Pull the bulb straight out from the socket.
Electrical System
Electrical System
Overload
The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the left instrument panel
fuse block. The same amperage
fuse can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
Vehicle Care 365
FusesUsage
45 Fuel injectors B –
even
46 O2 Sensor B
47 Throttle control
48 Horn
49 Fog lamps
50 O2 Sensor A
51 Engine control module
52 Interior heater
53 Accessory power module/TPM pump
54 Front washer
55 Air conditioning/ Battery regulated
voltage control
56 Air conditioning module/
Battery pack
57 Transmission control module/
Engine control
module Fuses
Usage
58 Headlamps
74 Electric running boards
76 Fuel pump prime / MGU motor
77 Cabin pump motor
79 Vacuum pump
Relays Usage
59 Fuel pump
60 Upfitter 2
61 Upfitter 3
62 Upfitter 4
63 Trailer parking lamps
64 Run/Crank
65 Upfitter 1
66 Fuel pump 2
67 Air conditioning control
68 Starter Relays
Usage
69 Rear window defogger
70 Engine control module
71 Vacuum pump/ Cooling fan clutch
72 CKT 95
73 CKT 92
75 Fuel pump prime/ MGU motor
78 Vacuum pump switch

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
Vehicle Care 393
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts and
wheel nuts should be replaced.
If the wheel leaks air, replace it.
Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Whenever a wheel, wheel bolt,
or wheel nut is replaced on a dual
wheel setup, check the wheel nut
torque after 160,1 600, and 10 000 km (100,1,000, and
6,000 mi) of driving. For proper
torque, see
“Wheel Nut Torque”
under Capacities and Specifications
0 446.
See If a Tire Goes Flat 0394 for
more information.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
438 Service and Maintenance
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires. Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see
Interior Care 0423 and
Exterior Care 0418.
Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
. Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear.
. Your dealer has the required
equipment to ensure proper
wheel alignment.
Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
. Signs of damage include
scratches, cracks, and chips.

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
476 Index
Antilock Brake System (ABS) . . . 270Warning Light . . . . . . . . . . . . . . . . . 149
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 418
Interior . . . . . . . . . . . . . . . . . . . . . . . . 423
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . 209
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 453
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 282
Assistance Systems for Parking and Backing . . . . . . . . . . 280
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 196
Theft-Deterrent Feature . . . . . . . 182
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 48
Door Locks . . . . . . . . . . . . . . . . . . . . . 40
Forward Braking . . . . . . . . . . . . . . 285
Headlamp System . . . . . . . . . . . . 174
Transmission . . . . . . . . . . . . . . . . . 256
Transmission Fluid . . . . . . 335, 337
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 259
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 354 Auxiliary
Roof Mounted Lamp . . . . . . . . . . 176
Auxiliary Jack . . . . . . . . . . . . . . . . . . . 195
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . 190
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 350
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 351
B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 180
Load Management . . . . . . . . . . . . 179
Power Protection . . . . . . . . . . . . . 180
Battery - North America . . . . 349, 408
Blade Replacement, Wiper . . . . . 355
Blind Spot Mirrors . . . . . . . . . . . . . . . 48
Bluetooth Overview . . . . . . . . . . . . . . . . 203, 205
Bluetooth Audio . . . . . . . . . . . . . . . . 196
Brake Pedal and AdjustableThrottle . . . . . . . . . . . . . . . . . . . . . . 246
System Warning Light . . . . . . . . 148
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 347 Antilock . . . . . . . . . . . . . . . . . . . . . . . 270
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 272
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 348 Brakes (cont'd)
Parking . . . . . . . . . . . . . . . . . . . . . . . 271
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 227 Automatic Forward . . . . . . . . . . . 285
Break-In, New Vehicle . . . . . . . . . . 246
Bulb Replacement Center High-MountedStoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 361
Fog Lamps . . . . . . . . . . . . . . . . . . . 359
Halogen Bulbs . . . . . . . . . . . . . . . . 357
Headlamp Aiming . . . . . . . . . . . . . 357
Headlamps . . . . . . . . . . . . . . . . . . . 357
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 358
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 358
Taillamps . . . . . . . . . . . . . . . . . . . . . 359
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 359
Buying New Tires . . . . . . . . . . . . . . . 389
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 129

Chevrolet Silverado LD 1500 and Silverado 2500/3500 Owner Manual (GMNA-
Localizing-U.S./Canada-12162993) - 2019 - crc - 4/4/18
480 Index
Gauges (cont'd)Voltmeter . . . . . . . . . . . . . . . . . . . . . 142
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 135
General Information Service and Maintenance . . . . . 428
Towing . . . . . . . . . . . . . . . . . . . . . . . . 294
Vehicle Care . . . . . . . . . . . . . . . . . . 324
Glove Box . . . . . . . . . . . . . . . . . . . . . . 122
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 453
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 357
Hazard Warning Flashers . . . . . . . 175
Head Restraints . . . . . . . . . . . . . . . . . 56
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 357
Automatic . . . . . . . . . . . . . . . . . . . . . 174
Bulb Replacement . . . . . . . . . . . . 357
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 174
Flash-to-Pass . . . . . . . . . . . . . . . . . 174
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 358
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 358 Headlamps (cont'd)
High-Beam On Light . . . . . . . . . . 153
High/Low Beam Changer . . . . . 173
Lamps On Reminder . . . . . . . . . 154
Heated Steering Wheel . . . . . . . . . . . . . . . 128
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Heated Mirrors . . . . . . . . . . . . . . . . . . . 48
Heater
Engine Coolant . . . . . . . . . . . . . . . 251
Heating . . . . . . . . . . . . . . .216, 218, 220
High-Beam On Light . . . . . . . . . . . . 153
High-Speed Operation . . . . . . . . . . 380
Hill and Mountain Roads . . . . . . . . 235
Hill Descent Control (HDC) . . . . . 275
Hill Descent Control Light . . . . . . . 150
Hill Start Assist (HSA) . . . . . . . . . . 272
Home Page . . . . . . . . . . . . . . . . . . . . . 184
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 68
HVAC . . . . . . . . . . . . . . . . .216, 218, 220
I
Idle System Fast . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Ignition Positions . . . . . . . . . . . . . . . 247
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 354
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 44
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 151
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 92
Information Publication Ordering . . . . . . . . . . 458
Infotainment . . . . . . . . . . . . . . . . . . . . 181
Infotainment System . . . . . . . . . . . . 462
Instrument Cluster . . . . . . . . . . . . . . 136
Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . 122
Interior Rearview Mirrors . . . . . . . . . 49
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . 195
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 408
