2019 CHEVROLET EQUINOX headlamp

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
306 Vehicle Care
Headlamps
Bi-halogen headlamp shown.
Driver Side Shown, PassengerSide Similar
1. Headlamp
To replace one of the headlamp
bulbs:
1. Open the hood. See Hood
0 278.
2. For the driver side bulb, remove the battery cover.
Remove the windshield washer bottle filler neck by firmly
pulling it straight up and out of
the bottle.
For the passenger side,
remove the air cleaner cover.
3. Remove the cover from the back of the headlamp
assembly by turning it
counterclockwise.
4. Disconnect the electrical connector.
5. Remove the bulb from the lamp assembly by turning
counterclockwise.
6. Install a new bulb in the lamp assembly.
7. Connect the electrical connector.
8. Replace the cover from the back of the headlamp
assembly by turning it
clockwise. 9. For the driver side, reinstall the
battery cover. Reinstall the
windshield washer bottle filler
neck by firmly pushing it
straight into the bottle. Make
sure that the filler neck clip
engages into the bracket on
the upper tie-bar.
For the passenger side,
reinstall the air cleaner cover.
Front Turn Signal and
Fog Lamps
Driver Side Shown, Passenger
Side Similar

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18

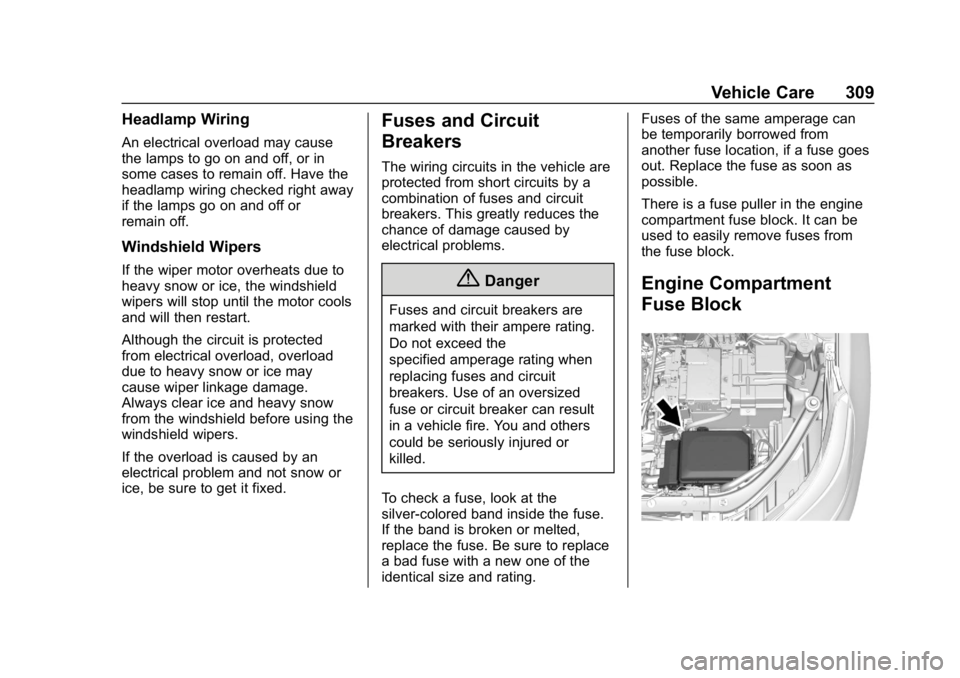

Vehicle Care 309
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
{Danger
Fuses and circuit breakers are
marked with their ampere rating.
Do not exceed the
specified amperage rating when
replacing fuses and circuit
breakers. Use of an oversized
fuse or circuit breaker can result
in a vehicle fire. You and others
could be seriously injured or
killed.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating. Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
There is a fuse puller in the engine
compartment fuse block. It can be
used to easily remove fuses from
the fuse block.
Engine Compartment
Fuse Block

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
Vehicle Care 311
FusesUsage
F10 Canister vent solenoid
F11 Fuel system
F12 Front heated seats
F13 Afterboil pump
F14 –
F15 Lambda sensor 2
F16 Ignition coils
F17 Engine control module
F18 Selective catalytic reduction module
(diesel only)
F19 NOx soot sensor (diesel only)
F20 DC DC converter 2
F21 Shift control
F22 Antilock brake pump
F23 Front/Rear washer pump
F24 – Fuses
Usage
F25 Diesel fuel heater (diesel only)
F26 –
F27 Antilock brake valves
F28 LD trailer
F29 Rear window defogger
F30 Mirror defroster
F31 –
F32 Variable functions
F33 –
F34 Horn
F35 –
F36 Right high-beam headlamp
F37 Left high-beam headlamp
F38 Automatic headlamp leveling
F39 Fog lamps
F40 – Fuses
Usage
F41 Transmission range control module
F42 Motorized headlamp
F43 –
F44 Interior rearview mirror
F45 Passenger side ventilated seat
F46 Driver side ventilated seat
F47 Steering column lock assembly
F48 Rear wiper
F49 –
F50 Heated steering wheel
F51 Right daytime running lamp
F52 Engine control module/
Transmission control
F53 –

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
312 Vehicle Care
FusesUsage
F54 –
F55 Front wiper speed/ Control
F56 –
F57 Left daytime running lamp
Relays Usage
K01 Starter solenoid
K02 Air conditioning control
K03 Engine control module
K04 Front wiper control
K05 Starter pinion
K06 Fuel heater (diesel only)
K07 –
K08 –
K09 Front wiper speed
K10 –
K11 – Relays
Usage
K12 High-beam headlamps
K13 Headlamps/Daytime running lamps
K14 Run/Crank
K15 Rear window defogger
*K16 Horn
*K17 Selective catalytic reduction
*K18 Fog lamps
*K19 Coolant pump
*K20 –
*K21 Rear washer pump
*K22 Front washer pump
*K23 Rear wiper control
* PCB relays are not serviceable.Instrument Panel Fuse
Block
The instrument panel fuse block is
under the instrument panel on the
driver side.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
336 Vehicle Care
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
Service and Maintenance 377
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants0379 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear. .
As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
414 Index
Assistance Systems forParking and Backing . . . . . . . . . . 236
Auto Stop Stop/Start System . . . . . . . . . . . . 198
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 51
Door Locks . . . . . . . . . . . . . . . . . . . . . 41
Forward Braking . . . . . . . . . . . . . . 242
Headlamp System . . . . . . . . . . . . 163
Transmission . . . . . . . . . . . . . . . . . 210
Transmission Fluid . . . . . . . . . . . 290
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 212
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 301
B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 167
Load Management . . . . . . . . . . . . 167
Power Protection . . . . . . . . . . . . . 167
Battery - North America . . . . 300, 351
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . 254
Blade Replacement, Wiper . . . . . 302
Brake Parking, Electric . . . . . . . . . . . . . . 216
System Warning Light . . . . . . . . 134 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Antilock . . . . . . . . . . . . . . . . . . . . . . . 215
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 217
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 180 Automatic Forward . . . . . . . . . . . 242
Braking System
Front Pedestrian (FPB) . . . . . . . 244
Break-In, New Vehicle . . . . . . . . . . 194
Bulb Replacement Front Turn Signal and Fog
Lamps . . . . . . . . . . . . . . . . . . . . . . 306
Halogen Bulbs . . . . . . . . . . . . . . . . 305
Headlamp Aiming . . . . . . . . . . . . . 305
Headlamps . . . . . . . . . . . . . . 305, 306
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 305
License Plate Lamps . . . . . . . . . 308
Taillamps . . . . . . . . . . . . . . . . . . . . . 307
Buying New Tires . . . . . . . . . . . . . . . 332
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 114
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 277 California
Proposition
65 Warning . . . . . . . . . .276, 300, 351,
Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 384
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 203
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 42
Winter Driving . . . . . . . . . . . . . . . . 188
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tie-Downs . . . . . . . . . . . . . . . . . . . . 109
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 107
Chains, Tire . . . . . . . . . . . . . . . . . . . . 337
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . .116
Charging System Light . . . . . . . . . 131
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 132
Child Restraints Infants and Young Children . . . . . 91
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 96
Older Children . . . . . . . . . . . . . . . . . . 89

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
Index 417
Flashers, Hazard Warning . . . . . . 163
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 337Changing . . . . . . . . . . . . . . . . . . . . . 345
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 367
Fluid Automatic Transmission . . . . . . 290
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 299
Diesel Exhaust . . . . . . . . . . . . . . . . . 28
Washer . . . . . . . . . . . . . . . . . . . . . . . 297
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 164
Folding Mirrors . . . . . . . . . . . . . . . . . . 50
Forward Automatic Braking . . . . . 242
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 240
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 397
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 244
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 59
Heated and Ventilated . . . . . . . . . . 64
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 252
Biodiesel . . . . . . . . . . . . . . . . . . . . . 254
Cold Weather Operation . . . . . . 255
Diesel Engines . . . . . . . . . . . . . . . 252 Fuel (cont'd)
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 263
Filling the Tank . . . . . . . . . . 259, 261
Filter Replacement . . . . . . . . . . . 258
Foreign Countries . . . . . . . . . . . . 252
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 128
Low Fuel Warning Light . . . . . . . 139
Prohibited Fuels . . . . . . . . . . . . . . 251
Recommended . . . . . . . . . . . . . . . 251
Running out of Fuel . . . . . . . . . . . 258
Top Tier . . . . . . . . . . . . . . . . . 250, 251
Water in Fuel . . . . . . . . . . . . . . . . . 255
Fuel for Diesel Engines . . . . . . . . . 252
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 309
Fuses and Circuit Breakers . . . 309
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 312
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 314
G
Garage Door Opener . . . . . . . . . . . 156
Programming . . . . . . . . . . . . . . . . . 156
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 303 Gauges
Engine Coolant
Temperature . . . . . . . . . . . . . . . . 129
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Odometer . . . . . . . . . . . . . . . . . . . . . 127
Speedometer . . . . . . . . . . . . . . . . . 127
Tachometer . . . . . . . . . . . . . . . . . . . 127
Trip Odometer . . . . . . . . . . . . . . . . 127
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . .119
General Information
Service and Maintenance . . . . . 368
Towing . . . . . . . . . . . . . . . . . . . . . . . . 264
Vehicle Care . . . . . . . . . . . . . . . . . . 276
Glove Box . . . . . . . . . . . . . . . . . . . . . . 107
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 391
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 305
Hazard Warning Flashers . . . . . . . 163
Head Restraints . . . . . . . . . . . . . . . . . 57
Headlamps . . . . . . . . . . . . . . . . . . . . . 306Aiming . . . . . . . . . . . . . . . . . . . . . . . . 305
Automatic . . . . . . . . . . . . . . . . . . . . . 163
Bulb Replacement . . . . . . . . . . . . 305
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 162
