Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
Vehicle Care 345
12. Turn the air only hose (10)counterclockwise to remove it
from the tire valve stem.
13. Replace the tire valve stem cap.
14. Return the air only hose (10) and power plug (9) back to
their original storage location.
15. Return the equipment to its original storage location in the
vehicle.
The tire sealant and compressor kit
has accessory adapters located in a
compartment on the bottom of its
housing that can be used to inflate
air mattresses, balls, etc.
Storing the Tire Sealant
and Compressor Kit
The tire sealant and compressor kit
is in a bag in the rear compartment
storage area. 1. Open the liftgate. See Liftgate
0 42.
2. Fold the rear part of the load floor to the front.
3. Turn the retainer nutcounterclockwise to remove the
tire sealant and compressor
kit bag.
4. Remove the tire sealant and compressor kit from the bag.
To store the tire sealant and
compressor kit, reverse the steps.
Tire Changing
Removing the Spare Tire and
Tools
1. Tow Eye (If Equipped)
2. Capless Funnel Adapter (If Equipped)
3. Wheel Wrench
4. Strap
5. Jack
6. Screwdriver (If Equipped)
To access the spare tire and tools:
1. Open the liftgate. See Liftgate
0 42.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
348 Vehicle Care
7. Remove all of the wheel nuts.
8. Remove the flat tire.
{Warning
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause a crash. When
changing a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle. In
an emergency, a cloth or a paper(Continued)
Warning (Continued)
towel can be used; however, use
a scraper or wire brush later to
remove all rust or dirt.
9. Remove any rust or dirt fromthe wheel bolts, mounting
surfaces, and spare wheel.
10. Place the compact spare tire on the wheel-mounting surface.
{Warning
Never use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle's wheel
could fall off, causing a crash.
11. Reinstall the wheel nuts. Tighten each nut by hand until
the wheel is held against
the hub.
12. Lower the vehicle by turning the jack handle
counterclockwise.
{Warning
Wheel nuts that are improperly or
incorrectly tightened can cause
the wheels to become loose or
come off. The wheel nuts should
be tightened with a torque wrench
to the proper torque specification
after replacing. Follow the torque
specification supplied by the
aftermarket manufacturer when
(Continued)

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
354 Vehicle Care
10. Try to start the vehicle that hadthe dead battery. If it will not
start after a few tries, it
probably needs service.
Caution
If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct order,
making sure that the cables do
not touch each other or other
metal.
Jumper Cable Removal
Reverse the sequence exactly when
removing the jumper cables.
After starting the disabled vehicle
and removing the jumper cables,
allow it to idle for several minutes.
Towing the Vehicle
Caution
Incorrectly towing a disabled
vehicle may cause damage. The
damage would not be covered by
the vehicle warranty. Do not lash
or hook to suspension
components. Use the proper
straps around the tires to secure
the vehicle. Do not drag a locked
wheel/tire while loading the
vehicle. Do not use a sling type
lift to tow the vehicle. This could
damage the vehicle.
GM recommends a flatbed tow truck
to transport a disabled vehicle. Use
ramps to help reduce approach
angles, if necessary. A towed
vehicle should have its drive wheels
off the ground. Contact Roadside
Assistance or a professional towing
service if the disabled vehicle must
be towed. The vehicle is equipped with a tow
eye. Only use the tow eye to pull
the vehicle onto a flatbed car carrier
from a flat road surface. Do not use
the tow eye to pull the vehicle from
snow, mud, or sand.
The tow eye is stored underneath
the load floor, near the spare tire or
the compressor kit, if equipped.
Front Tow Eye
Carefully open the cover by using
the small notch that conceals the
front tow eye socket.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18

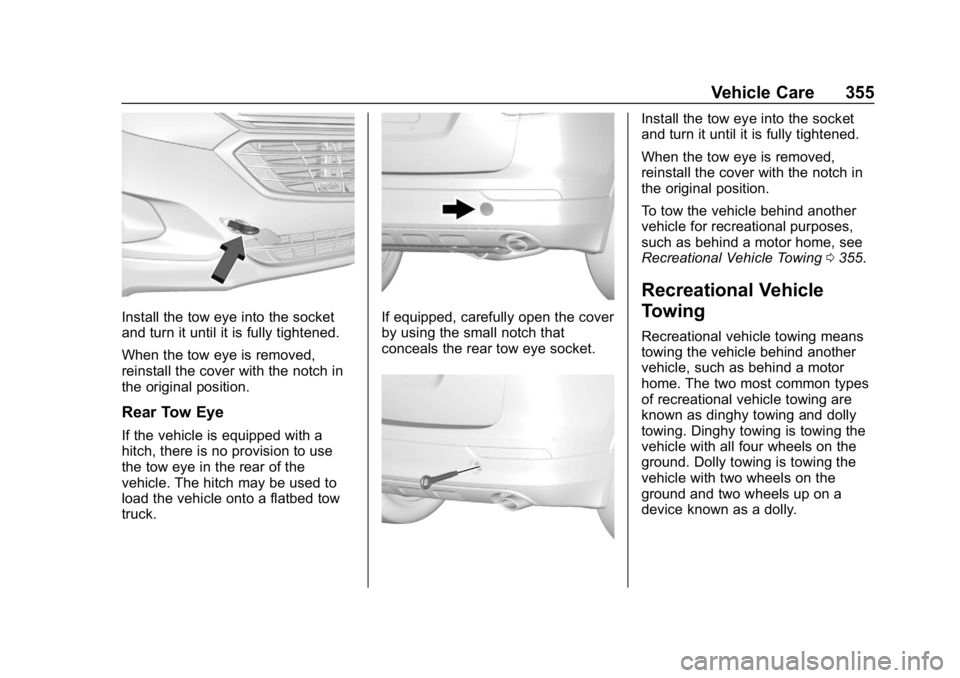

Vehicle Care 355
Install the tow eye into the socket
and turn it until it is fully tightened.
When the tow eye is removed,
reinstall the cover with the notch in
the original position.
Rear Tow Eye
If the vehicle is equipped with a
hitch, there is no provision to use
the tow eye in the rear of the
vehicle. The hitch may be used to
load the vehicle onto a flatbed tow
truck.
If equipped, carefully open the cover
by using the small notch that
conceals the rear tow eye socket.
Install the tow eye into the socket
and turn it until it is fully tightened.
When the tow eye is removed,
reinstall the cover with the notch in
the original position.
To tow the vehicle behind another
vehicle for recreational purposes,
such as behind a motor home, see
Recreational Vehicle Towing0355.
Recreational Vehicle
Towing
Recreational vehicle towing means
towing the vehicle behind another
vehicle, such as behind a motor
home. The two most common types
of recreational vehicle towing are
known as dinghy towing and dolly
towing. Dinghy towing is towing the
vehicle with all four wheels on the
ground. Dolly towing is towing the
vehicle with two wheels on the
ground and two wheels up on a
device known as a dolly.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
392 Customer Information
Roadside Assistance is not a part of
the New Vehicle Limited Warranty.
General Motors North America and
Chevrolet reserve the right to make
any changes or discontinue the
Roadside Assistance program at
any time without notification.
General Motors North America and
Chevrolet reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Services Provided
.Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification
before this service is given. .
Emergency Tow from a Public
Road or Highway: Tow to the
nearest Chevrolet dealer for
warranty service, or if the vehicle
was in a crash and cannot be
driven. Assistance is not given
when the vehicle is stuck in the
sand, mud, or snow.
. Flat Tire Change: Service to
change a flat tire with the spare
tire. The spare tire, if equipped,
must be in good condition and
properly inflated. It is the owner's
responsibility for the repair or
replacement of the tire if it is not
covered by the warranty.
. Battery Jump Start: Service to
jump start a dead battery.
. Trip Interruption Benefits and
Assistance: If your trip is
interrupted due to a warranty
event, incidental expenses may
be reimbursed within the
Powertrain warranty period.
Items considered are reasonable
and customary hotel, meals,
rental car, or a vehicle being
delivered back to the customer,
up to 500 miles.
Services Not Included in
Roadside Assistance
. Impound towing caused by
violation of any laws
. Legal fines
. Mounting, dismounting,
or changing of snow tires,
chains, or other traction devices
Service is not provided if a vehicle
is in an area that is not accessible
to the service vehicle or is not a
regularly traveled or maintained
public road, which includes ice and
winter roads. Off-road use is not
covered.
Services Specific to
Canadian-Purchased Vehicles
. Fuel Delivery: Reimbursement
is up to 7 liters. If available,
diesel fuel delivery may be
restricted. Propane and other
fuels are not provided through
this service.
. Lock-Out Service: Vehicle
registration is required.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18

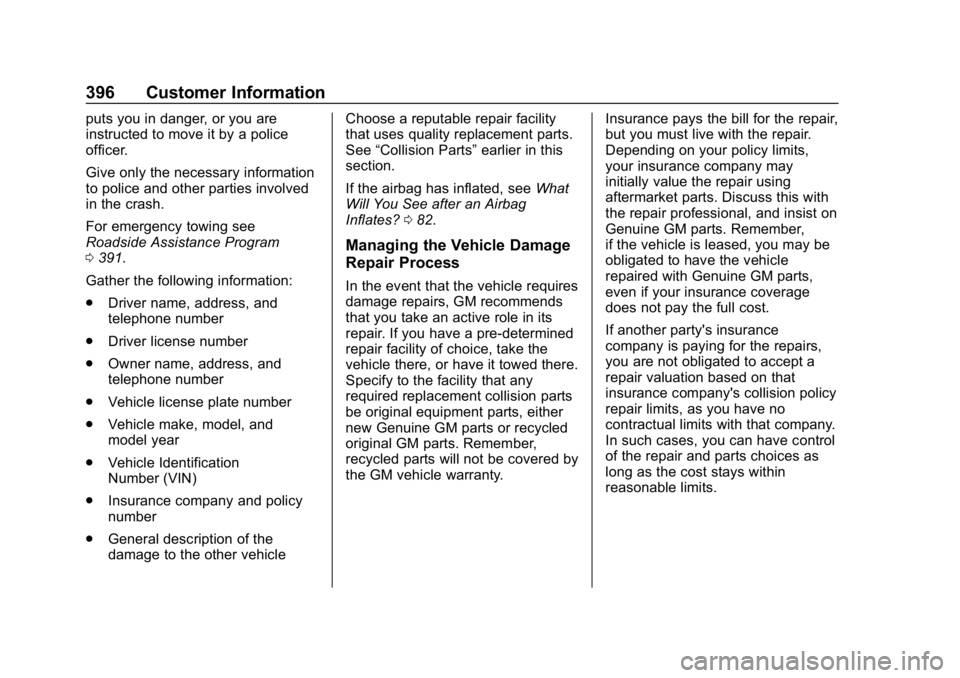

396 Customer Information
puts you in danger, or you are
instructed to move it by a police
officer.
Give only the necessary information
to police and other parties involved
in the crash.
For emergency towing see
Roadside Assistance Program
0391.
Gather the following information:
. Driver name, address, and
telephone number
. Driver license number
. Owner name, address, and
telephone number
. Vehicle license plate number
. Vehicle make, model, and
model year
. Vehicle Identification
Number (VIN)
. Insurance company and policy
number
. General description of the
damage to the other vehicle Choose a reputable repair facility
that uses quality replacement parts.
See
“Collision Parts” earlier in this
section.
If the airbag has inflated, see What
Will You See after an Airbag
Inflates? 082.
Managing the Vehicle Damage
Repair Process
In the event that the vehicle requires
damage repairs, GM recommends
that you take an active role in its
repair. If you have a pre-determined
repair facility of choice, take the
vehicle there, or have it towed there.
Specify to the facility that any
required replacement collision parts
be original equipment parts, either
new Genuine GM parts or recycled
original GM parts. Remember,
recycled parts will not be covered by
the GM vehicle warranty. Insurance pays the bill for the repair,
but you must live with the repair.
Depending on your policy limits,
your insurance company may
initially value the repair using
aftermarket parts. Discuss this with
the repair professional, and insist on
Genuine GM parts. Remember,
if the vehicle is leased, you may be
obligated to have the vehicle
repaired with Genuine GM parts,
even if your insurance coverage
does not pay the full cost.
If another party's insurance
company is paying for the repairs,
you are not obligated to accept a
repair valuation based on that
insurance company's collision policy
repair limits, as you have no
contractual limits with that company.
In such cases, you can have control
of the repair and parts choices as
long as the cost stays within
reasonable limits.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
Index 417
Flashers, Hazard Warning . . . . . . 163
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 337Changing . . . . . . . . . . . . . . . . . . . . . 345
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 367
Fluid Automatic Transmission . . . . . . 290
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 299
Diesel Exhaust . . . . . . . . . . . . . . . . . 28
Washer . . . . . . . . . . . . . . . . . . . . . . . 297
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 164
Folding Mirrors . . . . . . . . . . . . . . . . . . 50
Forward Automatic Braking . . . . . 242
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 240
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 397
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 244
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 59
Heated and Ventilated . . . . . . . . . . 64
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 252
Biodiesel . . . . . . . . . . . . . . . . . . . . . 254
Cold Weather Operation . . . . . . 255
Diesel Engines . . . . . . . . . . . . . . . 252 Fuel (cont'd)
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 263
Filling the Tank . . . . . . . . . . 259, 261
Filter Replacement . . . . . . . . . . . 258
Foreign Countries . . . . . . . . . . . . 252
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 128
Low Fuel Warning Light . . . . . . . 139
Prohibited Fuels . . . . . . . . . . . . . . 251
Recommended . . . . . . . . . . . . . . . 251
Running out of Fuel . . . . . . . . . . . 258
Top Tier . . . . . . . . . . . . . . . . . 250, 251
Water in Fuel . . . . . . . . . . . . . . . . . 255
Fuel for Diesel Engines . . . . . . . . . 252
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 309
Fuses and Circuit Breakers . . . 309
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 312
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 314
G
Garage Door Opener . . . . . . . . . . . 156
Programming . . . . . . . . . . . . . . . . . 156
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 303 Gauges
Engine Coolant
Temperature . . . . . . . . . . . . . . . . 129
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Odometer . . . . . . . . . . . . . . . . . . . . . 127
Speedometer . . . . . . . . . . . . . . . . . 127
Tachometer . . . . . . . . . . . . . . . . . . . 127
Trip Odometer . . . . . . . . . . . . . . . . 127
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . .119
General Information
Service and Maintenance . . . . . 368
Towing . . . . . . . . . . . . . . . . . . . . . . . . 264
Vehicle Care . . . . . . . . . . . . . . . . . . 276
Glove Box . . . . . . . . . . . . . . . . . . . . . . 107
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 391
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 305
Hazard Warning Flashers . . . . . . . 163
Head Restraints . . . . . . . . . . . . . . . . . 57
Headlamps . . . . . . . . . . . . . . . . . . . . . 306Aiming . . . . . . . . . . . . . . . . . . . . . . . . 305
Automatic . . . . . . . . . . . . . . . . . . . . . 163
Bulb Replacement . . . . . . . . . . . . 305
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 162

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12145779) - 2019 - CRC - 7/30/18
Index 423
Tires (cont'd)Different Size . . . . . . . . . . . . . . . . . 334
If a Tire Goes Flat . . . . . . . . . . . . 337
Inspection . . . . . . . . . . . . . . . . . . . . 330
Pressure . . . . . . . . . . . . . . . . . . . . . . 324
Pressure Light . . . . . . . . . . . . . . . . 138
Pressure Monitor Operation . . 326
Pressure Monitor System . . . . . 325
Rotation . . . . . . . . . . . . . . . . . . . . . . 330
Sealant and
Compressor Kit . . . . . . . . . . . . . 338
Sealant and Compressor Kit, Storing . . . . . . . . . . . . . . . . . . 345
Sidewall Labeling . . . . . . . . . . . . . 318
Terminology and Definitions . . 321
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 334
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 336
Wheel Replacement . . . . . . . . . . 336
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 331
Winter . . . . . . . . . . . . . . . . . . . . . . . . 317
Top Tier Fuel . . . . . . . . . . . . . . 250, 251
Tow/Haul Mode . . . . . . . . . . . . . . . . . 213
Tow/Haul Mode Light . . . . . . . . . . . 135
Towing Driving Characteristics . . . . . . . . 264 Towing (cont'd)
Equipment . . . . . . . . . . . . . . . . . . . . 271
General Information . . . . . . . . . . 264
Recreational Vehicle . . . . . . . . . . 355
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 268
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 354
Traction Control System(TCS)/StabiliTrak Light . . . . . . 137
Off Light . . . . . . . . . . . . . . . . . . . . . . 136
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 218
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . 268
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 210
Fluid, Automatic . . . . . . . . . . . . . . 290
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 393
Trip Odometer . . . . . . . . . . . . . . . . . . 127
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 164
U
Uniform Tire Quality Grading . . . 334
Universal Remote System . . . . . . 156Operation . . . . . . . . . . . . . . . . . . . . . 159 Universal Remote System (cont'd)
Programming . . . . . . . . . . . . . . . . . 156
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 47
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 180
Design . . . . . . . . . . . . . . . . . . . . . . . . 179
Identification Number (VIN) . . . 383
Load Limits . . . . . . . . . . . . . . . . . . . 190
Messages . . . . . . . . . . . . . . . . . . . . 150
Personalization . . . . . . . . . . . . . . . 151
Remote Start . . . . . . . . . . . . . . . . . . . 36
Security . . . . . . . . . . . . . . . . . . . . . . . . 47
Speed Messages . . . . . . . . . . . . . 151
Towing . . . . . . . . . . . . . . . . . . . . . . . . 354
Vehicle Ahead Indicator . . . . . . . . 136
Vehicle Care
Storing the Tire Sealantand Compressor Kit . . . . . . . . . 345
Tire Pressure . . . . . . . . . . . . . . . . . 324
Vehicle Data Recording and
Privacy . . . . . . . . . . . . . . . . . . . . . . . . 399
Ventilation, Air . . . . . . . . . . . . . . . . . . 174
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
