Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
In Brief 23
Premium Recommended
Use premium 93 octane—(R+M)/2
— unleaded gasoline in your
vehicle. TOP TIER Detergent
Gasoline is recommended.
Unleaded gasoline with an octane
rating as low as 87 may be used,
but it will reduce performance and
fuel economy.
See Recommended Fuel (LT1 6.2L
V8 Engine) 0212 orRecommended
Fuel (LT4 and LT5 6.2L
Supercharged V8 Engines) 0213.
Fuel (LT4 and LT5 6.2L
Supercharged
V8 Engines)
Premium Required
Use premium 93 octane —(R+M)/2
— unleaded gasoline in your
vehicle. TOP TIER Detergent Gasoline is recommended.
Unleaded gasoline with a 91 octane
rating may be used, but it will
reduce performance and fuel
economy.
See
Recommended Fuel (LT1 6.2L
V8 Engine) 0212 orRecommended
Fuel (LT4 and LT5 6.2L
Supercharged V8 Engines) 0213.
E85 or FlexFuel
No E85 or FlexFuel
Gasoline-ethanol fuel blends greater
than E15 (15% ethanol by volume),
such as E85, cannot be used in this
vehicle.
Engine Oil Life System
The engine oil life system calculates
engine oil life based on vehicle use
and displays a Driver Information Center (DIC) message when it is
necessary to change the engine oil
and filter. The oil life system should
be reset to 100% only following an
oil change.
Dry Sump Engine Break-In Oil
Change
If equipped with a dry sump engine,
the initial oil and filter change must
be performed at 800 km/500 mi.
Follow the engine oil life system for
every oil change thereafter.
Resetting the Oil Life System
1. Scroll through the DIC Info Pages menu until the
REMAINING OIL LIFE
percentage is displayed. See
Driver Information Center (DIC)
0121.
2. Press and hold SEL on the DIC while the Oil Life display is
active. The oil life will change
to 100%.
See Engine Oil Life System 0237.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
Driving and Operating 179
Starting and
Operating
New Vehicle Break-In
Follow these recommended
guidelines during the first 2 414 km
(1,500 mi) of driving this vehicle.
Parts have a break-in period and
performance will be better in the
long run.
For the first 322 km (200 mi):
.To break in new tires, drive at
moderate speeds and avoid hard
cornering.
. New brake linings also need a
break-in period. Avoid making
hard stops. This is
recommended every time brake
linings are replaced.
For the first 800 km (500 mi):
. Avoid full throttle starts and
abrupt stops.
. Do not exceed 4000 rpm. .
Avoid driving at any one
constant speed, fast or slow,
including the use of cruise
control.
. Avoid downshifting to brake or
slow the vehicle when the
engine speed will exceed
4000 rpm.
. Do not let the engine labor.
Never lug the engine. With a
manual transmission, shift to the
next lower gear. This rule
applies at all times, not just
during the break-in period.
. If equipped with a dry sump
engine (Stingray with Z51,
Grand Sport, and Z06), the initial
oil and filter change must be
performed at 800 km (500 mi).
For the first 2 414 km (1,500 mi):
. Do not participate in track
events, sport driving schools,
or similar activities.
. Check engine oil with every
refueling and add if necessary.
Oil and fuel consumption may be
higher than normal.
Front Air Dam
If equipped, the front air dam has
minimal ground clearance.
Under normal operation, the
components will occasionally
contact some road surfaces (speed
bumps, driveway ramps, etc.). This
can be heard inside the vehicle as a
scraping noise. This is normal and
does not indicate a problem.
Use care when approaching bumps
or objects on road surfaces and
avoid them when possible.
Composite Materials
This vehicle may be equipped with
parts containing carbon fiber,
sheet-molding compound, or other
composite materials.
Dealer-installed accessories may
also contain composite materials.
These parts and accessories may
include the splitter or rocker
extensions.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
312 Service and Maintenance
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. See
Engine Oil 0232.
Once a Month
. Check the tire inflation
pressures. See Tire Pressure
0 274.
. Inspect the tires for wear. See
Tire Inspection 0278.
. Check the windshield washer
fluid level. See Washer Fluid
0 248.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
See
Engine Oil Life System 0237.
Dry Sump Engine Break-In Oil
Change
If equipped with a dry sump engine,
the initial oil and filter change must
be performed at 800 km/500 mi.
Follow the engine oil life system for
every oil change thereafter.
Air Conditioning Desiccant
(Replace Every Seven Years)
The air conditioning system requires
maintenance every seven years.
This service requires replacement of
the desiccant to help the longevity
and efficient operation of the air
conditioning system. This service
can be complex. See your dealer.
Required Services Every
12 000 km/7,500 mi
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0232 and
Engine Oil Life System 0237.
. Check engine coolant level.
See Cooling System (Engine)
0 242 orCooling System (Aero
Panel) 0246 orCooling System
(Intercooler on LT4 and LT5
Engines) 0247.
. Check windshield washer fluid
level. See Washer Fluid 0248.
. Check tire inflation pressures.
See Tire Pressure 0274.
. Inspect tire wear. See Tire
Inspection 0278.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 239.
. Inspect brake system. See
Exterior Care 0300.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
Service and Maintenance 315
Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed. (4)
Or every five years, whichever
comes first.
See Cooling System (Engine) 0242
or Cooling System (Aero Panel)
0 246 orCooling System
(Intercooler on LT4 and LT5
Engines) 0247.
(5) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every three
years. See Brake Fluid 0250.
(7) Replace clutch fluid every three
years. See Hydraulic Clutch 0239.
(8) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0254.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
Service and Maintenance 317

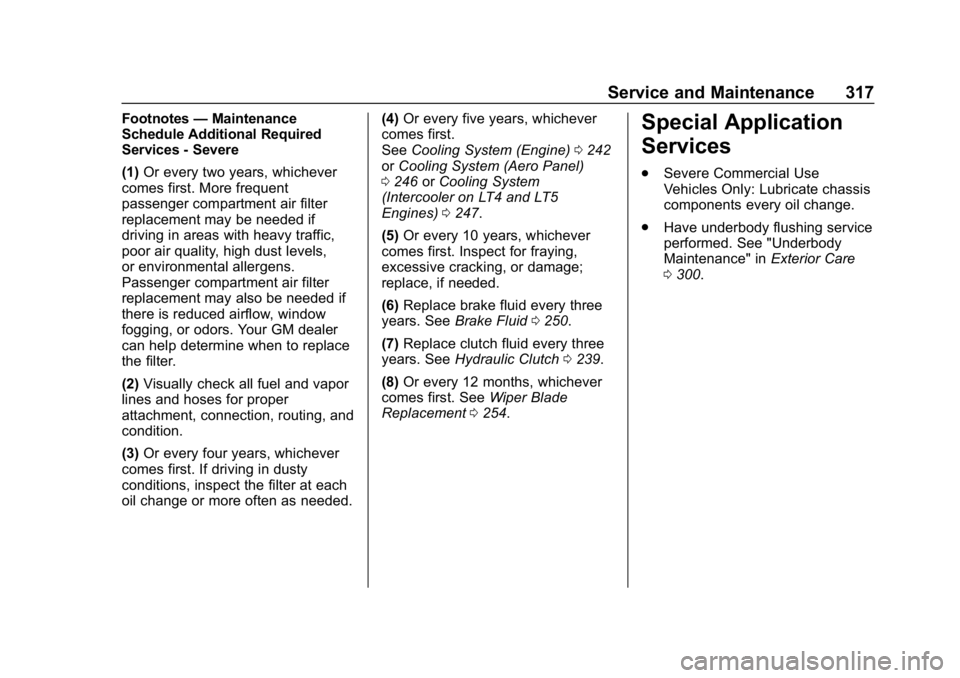

Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed. (4)
Or every five years, whichever
comes first.
See Cooling System (Engine) 0242
or Cooling System (Aero Panel)
0 246 orCooling System
(Intercooler on LT4 and LT5
Engines) 0247.
(5) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every three
years. See Brake Fluid 0250.
(7) Replace clutch fluid every three
years. See Hydraulic Clutch 0239.
(8) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0254.Special Application
Services
.
Severe Commercial Use
Vehicles Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 300.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
356 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 220
Accessory Power . . . . . . . . . . . . . . . 183
Active Fuel Management . . . . . . . 185
Active Rev Match . . . . . . . . . . . . . . . 193
Add-On Electrical Equipment . . . 216
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 346
Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . . . . 318
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 60
Air Cleaner/Filter, Engine . . . . . . . 239
Air Conditioning . . . . . . . . . . . . . . . . 151
Air Dam, Front . . . . . . . . . . . . . . . . . . 179
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 155
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 155
Airbag System
Check . . . . . . . . . . . . . . . . . . . . . . . . . . 84
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 77
Passenger Sensing System . . . . 79
What Makes an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 77
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 77 Airbag System (cont'd)
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 76
Where Are the Airbags? . . . . . . . . 75
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 83
Passenger Status Indicator . . . .112
Readiness Light . . . . . . . . . . . . . . .112
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 83
System Check . . . . . . . . . . . . . . . . . . 74
Alarm Vehicle Security . . . . . . . . . . . . . . . . 41
Antilock Brake System (ABS) . . . 195 Warning Light . . . . . . . . . . . . . . . . . .117
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 300
Interior . . . . . . . . . . . . . . . . . . . . . . . . 306
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 334
Assistance Systems for Parking and Backing . . . . . . . . . . 210
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 45
Door Locks . . . . . . . . . . . . . . . . . . . . . 37
Headlamp System . . . . . . . . . . . . 141
Transmission . . . . . . . . . . . . . . . . . 187

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
Index 359
E
Electric Parking Brake . . . . . . . . . . 195
Electric Parking Brake Light . . . . 116
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 216
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 259
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 258
Overload . . . . . . . . . . . . . . . . . . . . . 258
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 262
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . 118
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 346
Engine Air Cleaner/Filter . . . . . . . . . . . . . 239
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .113
Compartment Overview . . . . . . . 225
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . .110
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . .118
Cooling System . . . . . 242, 246, 247
Drive Belt Routing . . . . . . . . . . . . 329
Exhaust . . . . . . . . . . . . . . . . . . . . . . 186 Engine (cont'd)
Oil Life System . . . . . . . . . . . . . . . 237
Oil Pressure Light . . . . . . . . . . . . .119
Overheating . . . . . . . . . . . . . . . . . . 247
Power Messages . . . . . . . . . . . . . 128
Running While Parked . . . . . . . . 187
Starting . . . . . . . . . . . . . . . . . . . . . . . 182
Entry Lighting . . . . . . . . . . . . . . . . . . . 143
Event Data Recorders . . . . . . . . . . 342
Exit Lighting . . . . . . . . . . . . . . . . . . . . 143
Extended Parking . . . . . . . . . . . . . . . 186
Extender, Seat Belt . . . . . . . . . . . . . . 72
Exterior Lamp Controls . . . . . . . . . 139
Exterior Lamps Off Reminder . . . 139
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 144
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . 239
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 140
Flashers, Hazard Warning . . . . . . 142
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 286
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 309
Fluid Automatic Transmission . . . . . . 238 Fluid (cont'd)
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 250
Washer . . . . . . . . . . . . . . . . . . . . . . . 248
Folding Mirrors . . . . . . . . . . . . . . . . . . 45
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 340
Front Air Dam . . . . . . . . . . . . . . . . . . 179
Front Seats Heated and Ventilated . . . . . . . . . . 65
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 213
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 215
Filling the Tank . . . . . . . . . . . . . . . 214
Foreign Countries . . . . . . . . . . . . 213
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 109
Low Fuel Warning Light . . . . . . . .119
Management, Active . . . . . . . . . . 185
Prohibited Fuels . . . . . . . . . . . . . . 213
Recommended . . . . . . . . . . 212, 213
Top Tier . . . . . . . . . . . . . . . . . . . . . . 212
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 259
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 262

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
362 Index
Messages (cont'd)Vehicle Speed . . . . . . . . . . . . . . . . 128
Mirrors Automatic Dimming . . . . . . . . . . . . . 45
Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 46
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 44
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 45
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 45
Manual Rearview . . . . . . . . . . . . . . . 45
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tilt in Reverse . . . . . . . . . . . . . . . . . . 45
Mirrors, Interior Rearview . . . . . . . . 45
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Driver Control . . . . . . . . . . . . . . . . . 200
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 275
N
NavigationConnected Services . . . . . . . . . . 352
Net, Convenience . . . . . . . . . . . . . . . 97
New Vehicle Break-In . . . . . . . . . . . 179
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 108 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 160 Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine Oil Life System . . . . . . . 237
Pressure Light . . . . . . . . . . . . . . . . .119
Older Children, Restraints . . . . . . . 85
Online Owner Center . . . . . . . . . . . 333
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 343
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 346
OnStar Emergency . . . . . . . . . . . . . 346
OnStar Overview . . . . . . . . . . . . . . . 344
OnStar Security . . . . . . . . . . . . . . . . 346
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . 101
Overheating, Engine . . . . . . . . . . . . 247
P
Panel, Roof . . . . . . . . . . . . . . . . . . . . . . 48
Park Shifting Into . . . . . . . . . . . . . . . . . . . 184
Shifting Out of . . . . . . . . . . . . . . . . 185
Park Assist . . . . . . . . . . . . . . . . . . . . . 210
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 185 Brake and P (Park)Mechanism Check . . . . . . . . . . 254
Extended . . . . . . . . . . . . . . . . . . . . . 186
Over Things That Burn . . . . . . . 185 Parking or Backing
Assistance Systems . . . . . . . . . . 210
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 112
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Passenger Sensing System . . . . . 79
Perchlorate Materials
Requirements, California . . . . . . 220
Performance Data Recorder (PDR) . . . . . . . . . . . . . . . 145
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 128
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 36
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Outlets . . . . . . . . . . . . . . . . . . . . . . . 101
Protection, Battery . . . . . . . . . . . . 144
Retained Accessory (RAP) . . . 183
Seat Adjustment . . . . . . . . . . . . . . . . 59
Windows . . . . . . . . . . . . . . . . . . . . . . . 46
Pregnancy, Using Seat Belts . . . . 72
Privacy Vehicle Data Recording . . . . . . . 342
Program
Courtesy Transportation . . . . . . 336
Prohibited Fuels . . . . . . . . . . . . . . . . 213
