2019 CHEVROLET CORVETTE GRAND SPORT oil filter

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
Service and Maintenance 323

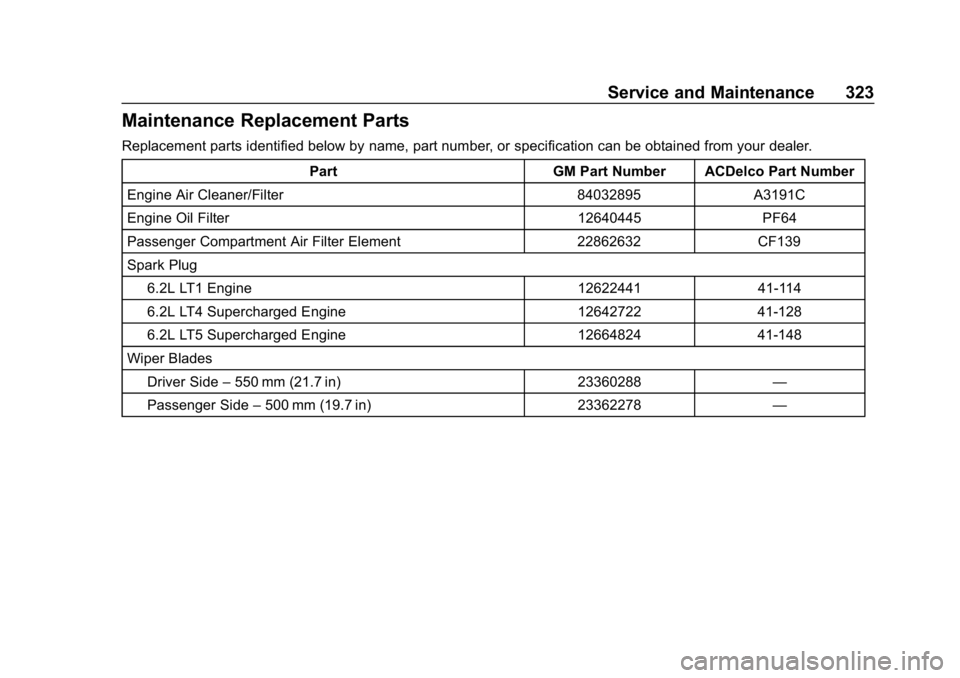

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 84032895 A3191C
Engine Oil Filter 12640445 PF64
Passenger Compartment Air Filter Element 22862632 CF139
Spark Plug 6.2L LT1 Engine 12622441 41-114
6.2L LT4 Supercharged Engine 12642722 41-128
6.2L LT5 Supercharged Engine 12664824 41-148
Wiper Blades Driver Side –550 mm (21.7 in) 23360288 —
Passenger Side –500 mm (19.7 in) 23362278 —

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
326 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
SeeRecommended Fluids and Lubricants 0321.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and amount, see the refrigerant label underthe hood. See your dealer for more information.
Engine Cooling System LT1 and LT4 Engines with V08 Heavy Duty Cooling
System 12.0 L 12.7 qt
LT1 and LT4 Engines without V08 Heavy Duty Cooling
System 11.2 L 11.8 qt
LT5 Engine 13.1 L 13.8 qt
Intercooler System LT4 Engine 4.3 L 4.5 qt
LT5 Engine 5.0 L 5.3 qt
Engine Oil with Filter 6.2L LT1 V8 Engine with Z51 or Grand Sport 9.3 L 9.8 qt

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
Index 359
E
Electric Parking Brake . . . . . . . . . . 195
Electric Parking Brake Light . . . . 116
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 216
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 259
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 258
Overload . . . . . . . . . . . . . . . . . . . . . 258
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 262
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . 118
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 346
Engine Air Cleaner/Filter . . . . . . . . . . . . . 239
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .113
Compartment Overview . . . . . . . 225
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . .110
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . .118
Cooling System . . . . . 242, 246, 247
Drive Belt Routing . . . . . . . . . . . . 329
Exhaust . . . . . . . . . . . . . . . . . . . . . . 186 Engine (cont'd)
Oil Life System . . . . . . . . . . . . . . . 237
Oil Pressure Light . . . . . . . . . . . . .119
Overheating . . . . . . . . . . . . . . . . . . 247
Power Messages . . . . . . . . . . . . . 128
Running While Parked . . . . . . . . 187
Starting . . . . . . . . . . . . . . . . . . . . . . . 182
Entry Lighting . . . . . . . . . . . . . . . . . . . 143
Event Data Recorders . . . . . . . . . . 342
Exit Lighting . . . . . . . . . . . . . . . . . . . . 143
Extended Parking . . . . . . . . . . . . . . . 186
Extender, Seat Belt . . . . . . . . . . . . . . 72
Exterior Lamp Controls . . . . . . . . . 139
Exterior Lamps Off Reminder . . . 139
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 144
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . 239
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 140
Flashers, Hazard Warning . . . . . . 142
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 286
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 309
Fluid Automatic Transmission . . . . . . 238 Fluid (cont'd)
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 250
Washer . . . . . . . . . . . . . . . . . . . . . . . 248
Folding Mirrors . . . . . . . . . . . . . . . . . . 45
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 340
Front Air Dam . . . . . . . . . . . . . . . . . . 179
Front Seats Heated and Ventilated . . . . . . . . . . 65
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 213
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 215
Filling the Tank . . . . . . . . . . . . . . . 214
Foreign Countries . . . . . . . . . . . . 213
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 109
Low Fuel Warning Light . . . . . . . .119
Management, Active . . . . . . . . . . 185
Prohibited Fuels . . . . . . . . . . . . . . 213
Recommended . . . . . . . . . . 212, 213
Top Tier . . . . . . . . . . . . . . . . . . . . . . 212
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 259
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 262

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12032182) - 2019 - crc - 5/8/18
362 Index
Messages (cont'd)Vehicle Speed . . . . . . . . . . . . . . . . 128
Mirrors Automatic Dimming . . . . . . . . . . . . . 45
Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 46
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 44
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 45
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 45
Manual Rearview . . . . . . . . . . . . . . . 45
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tilt in Reverse . . . . . . . . . . . . . . . . . . 45
Mirrors, Interior Rearview . . . . . . . . 45
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Driver Control . . . . . . . . . . . . . . . . . 200
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 275
N
NavigationConnected Services . . . . . . . . . . 352
Net, Convenience . . . . . . . . . . . . . . . 97
New Vehicle Break-In . . . . . . . . . . . 179
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 108 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 160 Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine Oil Life System . . . . . . . 237
Pressure Light . . . . . . . . . . . . . . . . .119
Older Children, Restraints . . . . . . . 85
Online Owner Center . . . . . . . . . . . 333
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 343
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 346
OnStar Emergency . . . . . . . . . . . . . 346
OnStar Overview . . . . . . . . . . . . . . . 344
OnStar Security . . . . . . . . . . . . . . . . 346
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . 101
Overheating, Engine . . . . . . . . . . . . 247
P
Panel, Roof . . . . . . . . . . . . . . . . . . . . . . 48
Park Shifting Into . . . . . . . . . . . . . . . . . . . 184
Shifting Out of . . . . . . . . . . . . . . . . 185
Park Assist . . . . . . . . . . . . . . . . . . . . . 210
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 185 Brake and P (Park)Mechanism Check . . . . . . . . . . 254
Extended . . . . . . . . . . . . . . . . . . . . . 186
Over Things That Burn . . . . . . . 185 Parking or Backing
Assistance Systems . . . . . . . . . . 210
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 112
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Passenger Sensing System . . . . . 79
Perchlorate Materials
Requirements, California . . . . . . 220
Performance Data Recorder (PDR) . . . . . . . . . . . . . . . 145
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 128
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 36
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Outlets . . . . . . . . . . . . . . . . . . . . . . . 101
Protection, Battery . . . . . . . . . . . . 144
Retained Accessory (RAP) . . . 183
Seat Adjustment . . . . . . . . . . . . . . . . 59
Windows . . . . . . . . . . . . . . . . . . . . . . . 46
Pregnancy, Using Seat Belts . . . . 72
Privacy Vehicle Data Recording . . . . . . . 342
Program
Courtesy Transportation . . . . . . 336
Prohibited Fuels . . . . . . . . . . . . . . . . 213
