308 Vehicle Care
1. Check the other vehicle.It must have a 12-volt battery
with a negative ground system.
Caution
If the other vehicle does not have
a 12-volt system with a negative
ground, both vehicles can be
damaged. Only use a vehicle that
has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake and shift into P (Park). See Shifting Into
Park 0208.
Caution
If any accessories are left on or
plugged in during the jump
starting procedure, they could be
damaged. The repairs would not
be covered by the vehicle
(Continued)
Caution (Continued)
warranty. Whenever possible, turn
off or unplug all accessories on
either vehicle when jump starting.
4. Turn the vehicle off. Turn off all lights and accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up even
when the propulsion system is not
operating and can injure you.
Keep hands, clothing and tools
away from any underhood
electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
(Continued)
Warning (Continued)
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving propulsion
system parts can injure you badly.
Keep your hands away from
moving parts once the propulsion
system is operating.
5. Connect one end of the red positive (+) cable to the
positive (+) terminal on the
discharged battery.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
322 Service and Maintenance
Service and
Maintenance
General Information
General Information . . . . . . . . . . 322
Maintenance Schedule
Maintenance Schedule . . . . . . . 323
Owner Checks and Services
Owner Checks andServices . . . . . . . . . . . . . . . . . . . . 325
Additional Maintenance
and Care
Additional Maintenanceand Care . . . . . . . . . . . . . . . . . . . . 326
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 328
Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . 329
Maintenance Records
Maintenance Records . . . . . . . . 330
General Information
Your vehicle is an important
investment. This section describes
the required maintenance for the
vehicle. Follow this schedule to help
protect against major repair
expenses resulting from neglect or
inadequate maintenance. It may
also help to maintain the value of
the vehicle if it is sold. It is the
responsibility of the owner to have
all required maintenance performed.
Your dealer has trained technicians
who can perform required
maintenance using genuine
replacement parts. They have
up-to-date tools and equipment for
fast and accurate diagnostics. Many
dealers have extended evening and
Saturday hours, courtesy
transportation, and online
scheduling to assist with service
needs.
Your dealer recognizes the
importance of providing
competitively priced maintenance
and repair services. With trained
technicians, the dealer is the place for routine maintenance such as tire
rotations and additional
maintenance items like tires, brakes,
batteries, and wiper blades.
Caution
Damage caused by improper
maintenance can lead to costly
repairs and may not be covered
by the vehicle warranty.
Maintenance intervals, checks,
inspections, recommended fluids,
and lubricants are important to
keep the vehicle in good working
condition.
Do not have chemical flushes that
are not approved by GM
performed on the vehicle. The
use of flushes, solvents, cleaners,
or lubricants that are not
approved by GM could damage
the vehicle, requiring expensive
repairs that are not covered by
the vehicle warranty.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
324 Service and Maintenance
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. SeeTire
Rotation 0292.
. Check coolant level. See
Cooling System 0261.
. Check windshield washer fluid
level. See Washer Fluid 0262.
. Check tire inflation pressures.
See Tire Pressure 0285.
. Inspect tire wear. See Tire
Inspection 0291.
. Visually check for fluid leaks.
. Inspect brake system. See
Exterior Care 0313.
. Visually inspect steering,
suspension, and chassis
components for damage,
including cracks or tears in the
rubber boots, loose or missing
parts, or signs of wear at least
once a year. See Exterior Care
0 313. .
Inspect power steering for
proper attachment, connections,
binding, leaks, cracks,
chafing, etc.
. Visually inspect halfshafts and
drive shafts for excessive wear,
lubricant leaks, and/or damage
including: tube dents or cracks,
constant velocity joint or
universal joint looseness,
cracked or missing boots, loose
or missing boot clamps, center
bearing excessive looseness,
loose or missing fasteners, and
axle seal leaks.
. Check restraint system
components. See Safety System
Check 070.
. Lubricate body components. See
Exterior Care 0313.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. If the hold open ability is low, service the
gas strut. See
Gas Strut(s)
0 268.
. Check tire sealant expiration
date, if equipped. See Tire
Sealant and Compressor Kit
0 299.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
Service and Maintenance 325
Maintenance Schedule
Additional Required
Services12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Drain and fill vehicle coolant circuits. (2)@
Replace brake fluid. (3)
Replace windshield wiper blades. (4)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts.@ @
Footnotes—Maintenance
Schedule Additional Required
Services
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2)
Or every five years, whichever
comes first. See Cooling System
0 261.
(3) Replace brake fluid every five
years. See Brake Fluid 0264.
(4) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0267.Owner Checks and
Services
.
At least twice a year, have
underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 313.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
326 Service and Maintenance
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required. It is recommended that
your dealer perform these services
—their trained dealer technicians
know your vehicle best. Your dealer
can also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention. The
following list is intended to explain
the services and conditions to look
for that may indicate services are
required.
Battery
The battery supplies power to
operate any additional electrical
accessories.
. To avoid break-down or failure,
maintain a battery with full
power. .
Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
. Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0328 for GM approved
fluids.
. Keep the windshield washer fluid
reservoir filled. .
Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
. Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
328 Service and Maintenance

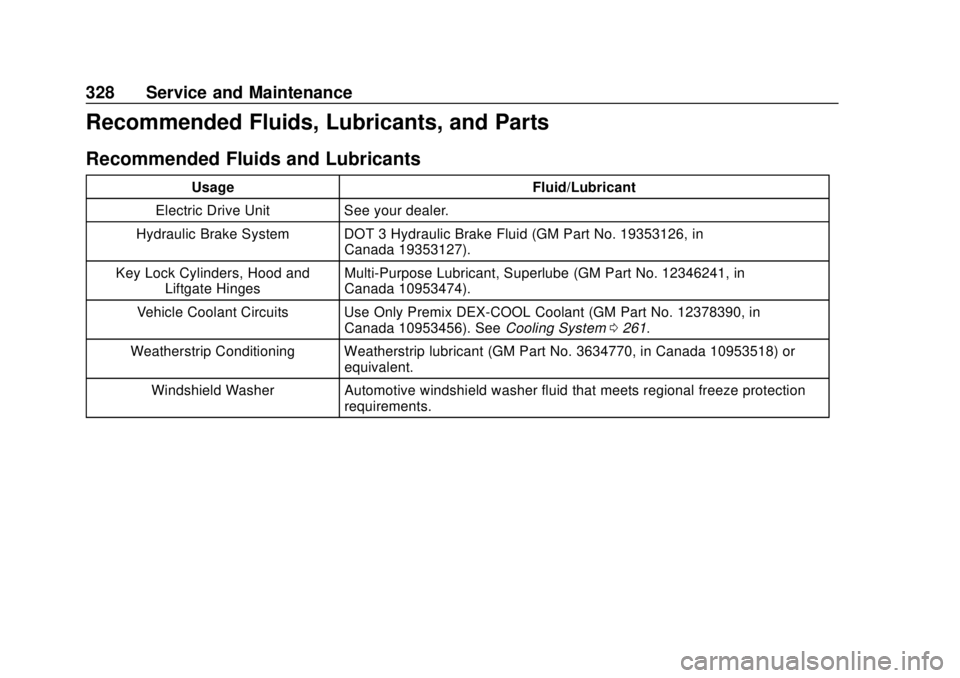

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Electric Drive Unit See your dealer.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19353127).
Key Lock Cylinders, Hood and Liftgate Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Vehicle Coolant Circuits Use Only Premix DEX-COOL Coolant (GM Part No. 12378390, in Canada 10953456). SeeCooling System0261.
Weatherstrip Conditioning Weatherstrip lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
360 Index
ArmrestRear Seat . . . . . . . . . . . . . . . . . . . . . . 64
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 337
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 227
Assistance Systems for
Parking and Backing . . . . . . . . . . 224
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 174
Theft-Deterrent Feature . . . . . . . 160
Automatic Climate Control System . . . . . . . 188
Door Locks . . . . . . . . . . . . . . . . . . . . . 44
Forward Braking . . . . . . . . . . . . . . 229
Headlamp System . . . . . . . . . . . . 155
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 174
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . 123Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 158
Power Protection . . . . . . . . . . . . . 158
Battery - North America . . . . 265, 306
Battery Gauge High Voltage . . . . . . . . . . . . . . . . . . 123
Blade Replacement, Wiper . . . . . 267 Bluetooth
Overview . . . . . . . . . . . . . . . . . . . . . 177
Bluetooth Audio . . . . . . . . . . . . . . . . 174
Brake Parking, Electric . . . . . . . . . . . . . . 215
System Warning Light . . . . . . . . 127
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Antilock . . . . . . . . . . . . . . . . . . . . . . . 214
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 216
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Regenerative Braking . . . . . . . . . 217
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 197 Automatic Forward . . . . . . . . . . . 229
Braking System Front Pedestrian (FPB) . . . . . . . 230
Break-In, New Vehicle . . . . . . . . . . 205
Bulb Replacement
Halogen Bulbs . . . . . . . . . . . . . . . . 270
Headlamp Aiming . . . . . . . . . . . . . 270
Headlamps . . . . . . . . . . . . . . . . . . . 270
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 270
License Plate Lamps . . . . . . . . . 271
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 271
Buying New Tires . . . . . . . . . . . . . . . 293
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 114
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 257
California Proposition
65 Warning . . . . . . . . . .256, 265, 306, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 332
Carbon Monoxide Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 47
Winter Driving . . . . . . . . . . . . . . . . 200
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . 107
Management System . . . . . . . . . 108
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 107
Chains, Tire . . . . . . . . . . . . . . . . . . . . 298
Charge Cord . . . . . . . . . . . . . . . . . . . . 246
Charging Delay Override . . . . . . . . . . . . . . . 241
Electrical Requirements . . . . . . 253
Plug-In . . . . . . . . . . . . . . . . . . . . . . . 237
Programmable . . . . . . . . . . . . . . . . 132
Utility Interruption . . . . . . . . . . . . . 252

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163003) - 2019 - crc - 5/18/18
362 Index
DriverTeen . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Driver Assistance Systems . . . . . 222
Driver Efficiency Gauge . . . . . . . . 123
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . 143
Driver Selected Operating
Modes . . . . . . . . . . . . . . . . . . . . . . . . 210
Driving Assistance Systems . . . . . . . . . . 227
Defensive . . . . . . . . . . . . . . . . . . . . . 196
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 197
Hill and Mountain Roads . . . . . . 200
If the Vehicle is Stuck . . . . . . . . . 201
Loss of Control . . . . . . . . . . . . . . . 198
Off-Road Recovery . . . . . . . . . . . 198
Vehicle Load Limits . . . . . . . . . . . 201
Wet Roads . . . . . . . . . . . . . . . . . . . 199
Winter . . . . . . . . . . . . . . . . . . . . . . . . 200
Driving for Better Energy Efficiency . . . . . . . . . . . . . . . . . . . . . . 30
E
Electric Drive Unit . . . . . . . . . . . . . . 210
Electric Parking Brake . . . . . . . . . . 215
Electric Parking Brake Light . . . . 127 Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 254
Electrical Requirements for Battery Charging . . . . . . . . . . . . . . 253
Electrical System Fuses and Circuit Breakers . . . 273
Instrument Panel FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 277
Overload . . . . . . . . . . . . . . . . . . . . . 272
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 348
Energy Efficiency Driving . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Energy Information . . . . . . . . . . . . . 140
Engine Cooling System . . . . . . . . . . . . . . . 261
Entry Lighting . . . . . . . . . . . . . . . . . . . 158
Event Data Recorders . . . . . . . . . . 345
Exit Lighting . . . . . . . . . . . . . . . . . . . . 158
Extended Parking . . . . . . . . . . . . . . . 209
Extender, Seat Belt . . . . . . . . . . . . . . 70
Exterior Lamp Controls . . . . . . . . . 152
Exterior Lamps Off Reminder . . . 154
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 158
F
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 154
Flashers, Hazard Warning . . . . . . 155
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 298
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 321
Fluid
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 264
Washer . . . . . . . . . . . . . . . . . . . . . . . 262
Folding Mirrors . . . . . . . . . . . . . . . . . . 50
Forward Automatic Braking . . . . . 229
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 227
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 343
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 230
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 59
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 60
Fuses Fuses and Circuit Breakers . . . 273
Instrument Panel FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 277
Underhood Compartment . . . . . 273
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 268
