2019 CADILLAC XT4 technical data

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . . . . . 28
Seats and Restraints . . . . . . . . . . . . . . . 61
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Instruments and Controls . . . . . . . . 116
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Infotainment System . . . . . . . . . . . . . 165
Climate Controls . . . . . . . . . . . . . . . . . . 166
Driving and Operating . . . . . . . . . . . . 172
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 252
Service and Maintenance . . . . . . . . . 324
Technical Data . . . . . . . . . . . . . . . . . . . . 337
Customer Information . . . . . . . . . . . . 340
Reporting Safety Defects . . . . . . . . . 350
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Connected Services . . . . . . . . . . . . . . . 362
Index . . . . . . . . . . . . . . . . . . . . . . . . 366

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
TECHNICAL DATA 337
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 337
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
Vehicle Data
Capacities and Specifications . . . . 338
Engine Drive Belt Routing . . . . . . . 339
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service Parts
labels and certificates of title and
registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “EngineSpecifications”
underCapacities and
Specifications 0338 for the vehicle's
engine code.
Service Parts Identification
Label
There may be a label on the inside of
the spare tire compartment that
contains the following information:
. Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a barcode
on the certification label on the
center (B) pillar to scan for this same
information.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
338 TECHNICAL DATA

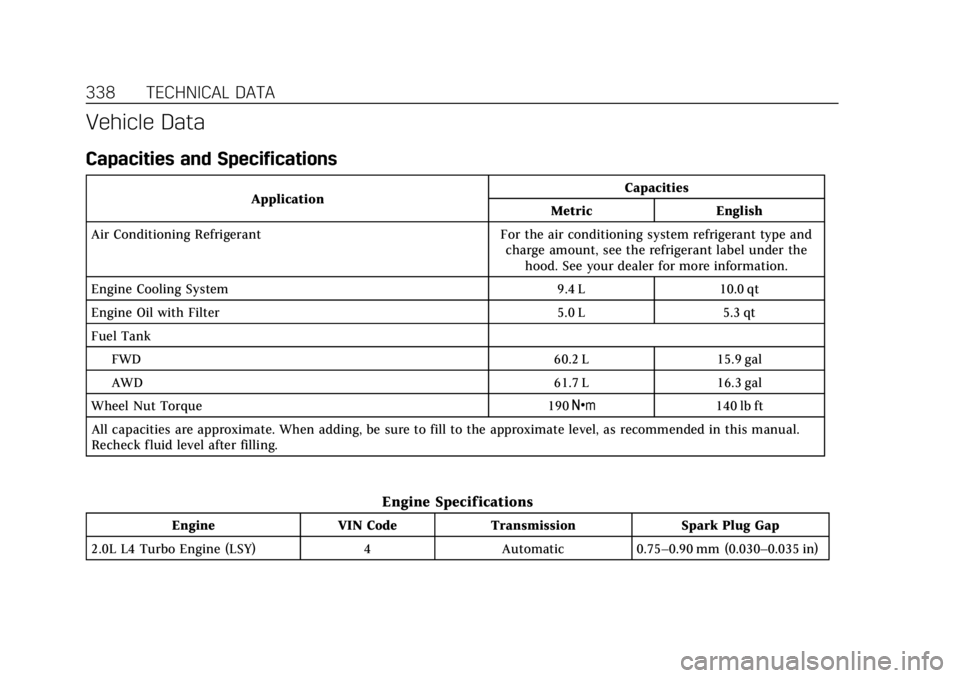

Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System 9.4 L 10.0 qt
Engine Oil with Filter 5.0 L 5.3 qt
Fuel Tank FWD 60.2 L 15.9 gal
AWD 61.7 L 16.3 gal
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Turbo Engine (LSY) 4Automatic0.75–0.90 mm (0.030–0.035 in)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12017481) - 2019 - CRC - 11/5/18
TECHNICAL DATA 339
Engine Drive Belt Routing
2.0L L4 Engine
