2019 BUICK REGAL SPORTBACK headlamp

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18

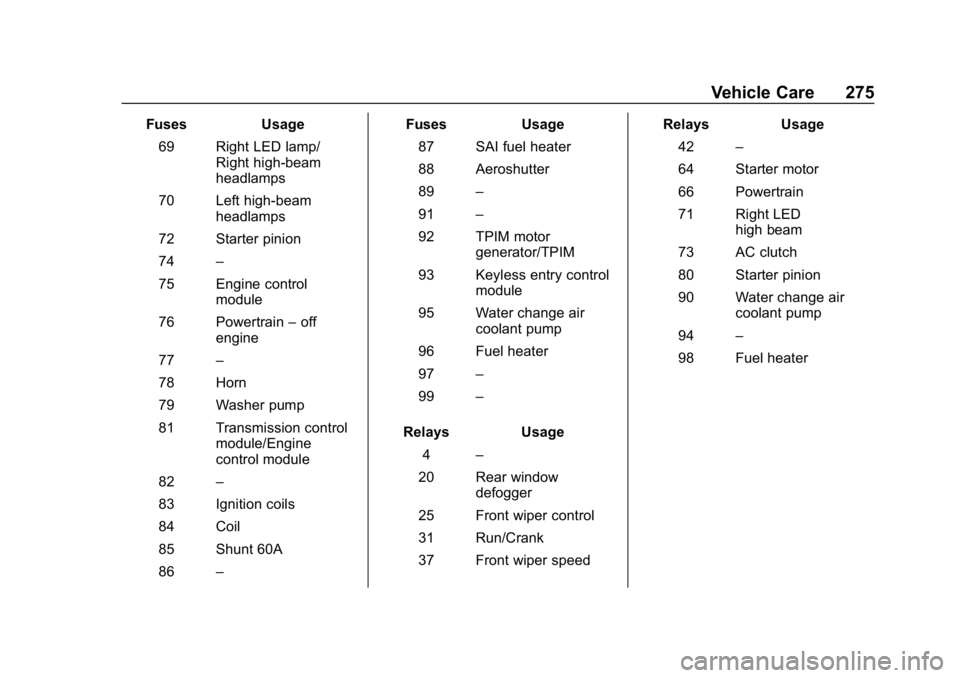

Vehicle Care 275
FusesUsage
69 Right LED lamp/ Right high-beam
headlamps
70 Left high-beam headlamps
72 Starter pinion
74 –
75 Engine control module
76 Powertrain –off
engine
77 –
78 Horn
79 Washer pump
81 Transmission control module/Engine
control module
82 –
83 Ignition coils
84 Coil
85 Shunt 60A
86 – Fuses
Usage
87 SAI fuel heater
88 Aeroshutter
89 –
91 –
92 TPIM motor generator/TPIM
93 Keyless entry control module
95 Water change air coolant pump
96 Fuel heater
97 –
99 –
Relays Usage
4 –
20 Rear window defogger
25 Front wiper control
31 Run/Crank
37 Front wiper speed Relays
Usage
42 –
64 Starter motor
66 Powertrain
71 Right LED high beam
73 AC clutch
80 Starter pinion
90 Water change air coolant pump
94 –
98 Fuel heater

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
Vehicle Care 297
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
Service and Maintenance 343
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns. Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.
Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.
Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see Interior Care 0330 and
Exterior Care 0325.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
Index 379
Armrest Storage . . . . . . . . . . . . . . . . 112
Assistance Program,Roadside . . . . . . . . . . . . . . . . . . . . . . 356
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 221
Assistance Systems for Parking and Backing . . . . . . . . . . 219
Auto Stop Stop/Start System . . . . . . . . . . . . 193
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 39
Forward Braking . . . . . . . . . . . . . . 223
Headlamp System . . . . . . . . . . . . 163
Transmission . . . . . . . . . . . . . . . . . 198
Transmission Fluid . . . . . . . . . . . 254
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . 200
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 265
B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 168
Load Management . . . . . . . . . . . . 168
Power Protection . . . . . . . . . . . . . 168
Battery - North America . . . . 264, 319 Blade Replacement, Wiper . . . . . 266
Brake
Parking, Electric . . . . . . . . . . . . . . 202
System Warning Light . . . . . . . . 137
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 262 Antilock . . . . . . . . . . . . . . . . . . . . . . . 202
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 204
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 180 Automatic Forward . . . . . . . . . . . 223
Braking System
Front Pedestrian (FPB) . . . . . . . 225
Break-In, New Vehicle . . . . . . . . . . 190
Bulb Replacement Fog Lamps . . . . . . . . . . . . . . . . . . . 270
Front Turn Signal Lamps . . . . . 270
Halogen Bulbs . . . . . . . . . . . . . . . . 269
Headlamp Aiming . . . . . . . . . . . . . 268
Headlamps . . . . . . . . . . . . . . . . . . . 269
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 269
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 270
Buying New Tires . . . . . . . . . . . . . . . 293
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 119
California
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 246
California Proposition
65 Warning . . . . . . . . . .245, 264, 319, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 349
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 197
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 41
Winter Driving . . . . . . . . . . . . . . . . 184
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . .113
Tie-Downs . . . . . . . . . . . . . . . . . . . . .114
Caution, Danger, and Warning . . . . 3
Chains, Tire . . . . . . . . . . . . . . . . . . . . 298
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 120
Charging System Light . . . . . . . . . 135
Check
Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 135

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
382 Index
Forward Collision Alert(FCA) System . . . . . . . . . . . . . . . . . 221
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 362
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Front Pedestrian Braking
(FPB) System . . . . . . . . . . . . . . . . . 225
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 60
Heated and Ventilated . . . . . . . . . . 66
Front Storage . . . . . . . . . . . . . . . . . . . 112
Front Turn Signal Lamps . . . . . . . 270
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 233
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 234
Filling the Tank . . . . . . . . . . . . . . . 233
Foreign Countries . . . . . . . . . . . . 233
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 130
Low Fuel Warning Light . . . . . . . 142
Prohibited Fuels . . . . . . . . . . . . . . 232
Recommended . . . . . . . . . . . . . . . 232
Top Tier . . . . . . . . . . . . . . . . . . . . . . 231
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 273 Fuses (cont'd)
Fuses and Circuit Breakers . . . 272
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 276
G
Garage Door Opener . . . . . . . . . . . 158
Programming . . . . . . . . . . . . . . . . . 158
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 267
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 132
Engine Oil Temperature . . . . . . . 131
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Odometer . . . . . . . . . . . . . . . . . . . . . 130
Speedometer . . . . . . . . . . . . . . . . . 130
Tachometer . . . . . . . . . . . . . . . . . . . 130
Voltmeter . . . . . . . . . . . . . . . . . . . . . 132
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 123
General Information Service and Maintenance . . . . . 334
Towing . . . . . . . . . . . . . . . . . . . . . . . . 235
Vehicle Care . . . . . . . . . . . . . . . . . . 245
Glove Box . . . . . . . . . . . . . . . . . . . . . . 111
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 356
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 269
Hazard Warning Flashers . . . . . . . 165
Head Restraints . . . . . . . . . . . . . . . . . 58
Head-up Display . . . . . . . . . . . . . . . . 149
Headlamps . . . . . . . . . . . . . . . . . . . . . 269Adaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . 164
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 268
Automatic . . . . . . . . . . . . . . . . . . . . . 163
Bulb Replacement . . . . . . . . . . . . 269
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 163
Flash-to-Pass . . . . . . . . . . . . . . . . . 163
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 269
High-Beam On Light . . . . . . . . . . 142
High/Low Beam Changer . . . . . 163
Lamps On Reminder . . . . . . . . . 143
Heated Steering Wheel . . . . . . . . . . . . . . . .117
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Heated Mirrors . . . . . . . . . . . . . . . . . . . 52
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 194
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 171
High-Beam On Light . . . . . . . . . . . . 142
