2019 BUICK REGAL SPORTBACK service indicator

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
Driving and Operating 225
A system unavailable message may
display if:
.The front of the vehicle or
windshield is not clean.
. Heavy rain or snow is interfering
with object detection.
. There is a problem with the
StabiliTrak/Electronic Stability
Control (ESC) system.
The FAB system does not need
service.
Front Pedestrian Braking
(FPB) System
If equipped, the FPB system may
help avoid or reduce the harm
caused by front-end crashes with
nearby pedestrians when driving in
a forward gear. FPB displays an
amber indicator,
~, when a nearby
pedestrian is detected directly
ahead. When approaching a
detected pedestrian too quickly,
FPB provides a red flashing alert on
the windshield and rapidly beeps.
FPB can provide a boost to braking
or automatically brake the vehicle. This system includes Intelligent
Brake Assist (IBA), and the Forward
Automatic Braking (FAB) System
may also respond to pedestrians.
See
Forward Automatic Braking
(FAB) 0223.
The FPB system can detect and
alert to pedestrians in a forward
gear at speeds between 8 km/h
(5 mph) and 80 km/h (50 mph).
During daytime driving, the system
detects pedestrians up to a distance
of approximately 40 m (131 ft).
During nighttime driving, system
performance is very limited.
{Warning
FPB does not provide an alert or
automatically brake the vehicle,
unless it detects a pedestrian.
FPB may not detect pedestrians,
including children: . When the pedestrian is not
directly ahead, fully visible,
or standing upright, or when
part of a group.
(Continued)
Warning (Continued)
.Due to poor visibility,
including nighttime
conditions, fog, rain,
or snow.
. If the FPB sensor is blocked
by dirt, snow, or ice.
. If the headlamps or
windshield are not cleaned
or in proper condition.
Be ready to take action and apply
the brakes. For more information,
see Defensive Driving 0180.
Keep the windshield, headlamps,
and FPB sensor clean and in
good repair.
FPB can be set to Off, Alert, or Alert
& Brake through vehicle
personalization. See “Front
Pedestrian Detection” in“Collision/
Detection Systems” underVehicle
Personalization 0153.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18

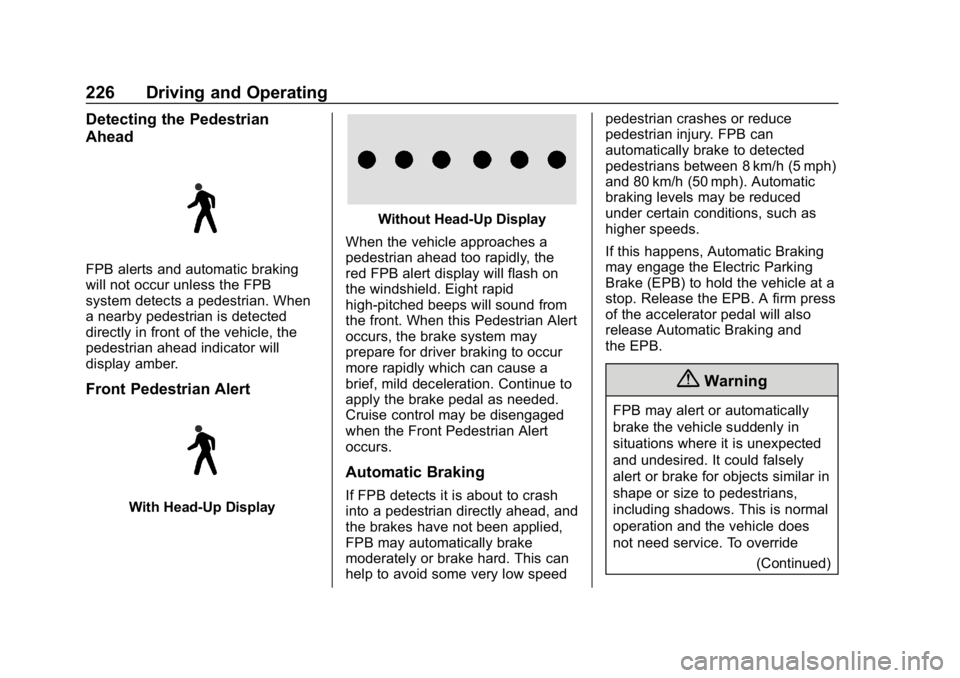

226 Driving and Operating
Detecting the Pedestrian
Ahead
FPB alerts and automatic braking
will not occur unless the FPB
system detects a pedestrian. When
a nearby pedestrian is detected
directly in front of the vehicle, the
pedestrian ahead indicator will
display amber.
Front Pedestrian Alert
With Head-Up Display
Without Head-Up Display
When the vehicle approaches a
pedestrian ahead too rapidly, the
red FPB alert display will flash on
the windshield. Eight rapid
high-pitched beeps will sound from
the front. When this Pedestrian Alert
occurs, the brake system may
prepare for driver braking to occur
more rapidly which can cause a
brief, mild deceleration. Continue to
apply the brake pedal as needed.
Cruise control may be disengaged
when the Front Pedestrian Alert
occurs.
Automatic Braking
If FPB detects it is about to crash
into a pedestrian directly ahead, and
the brakes have not been applied,
FPB may automatically brake
moderately or brake hard. This can
help to avoid some very low speed pedestrian crashes or reduce
pedestrian injury. FPB can
automatically brake to detected
pedestrians between 8 km/h (5 mph)
and 80 km/h (50 mph). Automatic
braking levels may be reduced
under certain conditions, such as
higher speeds.
If this happens, Automatic Braking
may engage the Electric Parking
Brake (EPB) to hold the vehicle at a
stop. Release the EPB. A firm press
of the accelerator pedal will also
release Automatic Braking and
the EPB.
{Warning
FPB may alert or automatically
brake the vehicle suddenly in
situations where it is unexpected
and undesired. It could falsely
alert or brake for objects similar in
shape or size to pedestrians,
including shadows. This is normal
operation and the vehicle does
not need service. To override
(Continued)

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
Driving and Operating 243
Overloading is another leading
cause of trailer tire blow-outs. Never
load your trailer with more weight
than the tires are designed to
support. The load rating is located
on the trailer tire sidewall.
Always know the maximum speed
rating for the trailer tires before
driving. This may be significantly
lower than the vehicle tire speed
rating. The speed rating may be on
the trailer tire sidewall. If the speed
rating is not shown, the default
trailer tire speed rating is 105 km/h
(65 mph).Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC) is
used for vehicle service
and Emission Inspection/
Maintenance testing. See
Malfunction Indicator Lamp
(Check Engine Light)0135.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle’s
systems.
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and
would not be covered by the
vehicle warranty. Always check
with your dealer before adding
electrical equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle 088 and Adding Equipment
to the Airbag-Equipped Vehicle
0 88.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
262 Vehicle Care
Caution (Continued)
.Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
. When using concentrated
washer fluid, follow the
manufacturer instructions for
adding water.
. Fill the washer fluid tank
only three-quarters full when
it is very cold. This allows
for fluid expansion if
freezing occurs, which could
damage the tank if it is
completely full.
Brakes
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or can be heard all the time when the
vehicle is moving, except when
applying the brake pedal firmly.
{Warning
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
a crash. When the brake wear
warning sound is heard, have the
vehicle serviced.
Caution
Continuing to drive with worn-out
brake pads could result in costly
brake repair.
Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated, inspect brake pads for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications. See
Capacities and
Specifications 0349.
Brake pads should be replaced as
complete sets.
Brake Pedal Travel
See your dealer if the brake pedal
does not return to normal height,
or if there is a rapid increase in
pedal travel. This could be a sign
that brake service may be required.
Replacing Brake System Parts
Always replace brake system parts
with new, approved replacement
parts. If this is not done, the brakes
may not work properly. The braking
performance expected can change
in many other ways if the wrong
replacement brake parts are
installed or if parts are improperly
installed.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
Service and Maintenance 343
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns. Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.
Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.
Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see Interior Care 0330 and
Exterior Care 0325.

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
382 Index
Forward Collision Alert(FCA) System . . . . . . . . . . . . . . . . . 221
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 362
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Front Pedestrian Braking
(FPB) System . . . . . . . . . . . . . . . . . 225
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 60
Heated and Ventilated . . . . . . . . . . 66
Front Storage . . . . . . . . . . . . . . . . . . . 112
Front Turn Signal Lamps . . . . . . . 270
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 233
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 234
Filling the Tank . . . . . . . . . . . . . . . 233
Foreign Countries . . . . . . . . . . . . 233
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 130
Low Fuel Warning Light . . . . . . . 142
Prohibited Fuels . . . . . . . . . . . . . . 232
Recommended . . . . . . . . . . . . . . . 232
Top Tier . . . . . . . . . . . . . . . . . . . . . . 231
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 273 Fuses (cont'd)
Fuses and Circuit Breakers . . . 272
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 276
G
Garage Door Opener . . . . . . . . . . . 158
Programming . . . . . . . . . . . . . . . . . 158
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 267
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 132
Engine Oil Temperature . . . . . . . 131
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Odometer . . . . . . . . . . . . . . . . . . . . . 130
Speedometer . . . . . . . . . . . . . . . . . 130
Tachometer . . . . . . . . . . . . . . . . . . . 130
Voltmeter . . . . . . . . . . . . . . . . . . . . . 132
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 123
General Information Service and Maintenance . . . . . 334
Towing . . . . . . . . . . . . . . . . . . . . . . . . 235
Vehicle Care . . . . . . . . . . . . . . . . . . 245
Glove Box . . . . . . . . . . . . . . . . . . . . . . 111
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 356
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 269
Hazard Warning Flashers . . . . . . . 165
Head Restraints . . . . . . . . . . . . . . . . . 58
Head-up Display . . . . . . . . . . . . . . . . 149
Headlamps . . . . . . . . . . . . . . . . . . . . . 269Adaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . 164
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 268
Automatic . . . . . . . . . . . . . . . . . . . . . 163
Bulb Replacement . . . . . . . . . . . . 269
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 163
Flash-to-Pass . . . . . . . . . . . . . . . . . 163
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 269
High-Beam On Light . . . . . . . . . . 142
High/Low Beam Changer . . . . . 163
Lamps On Reminder . . . . . . . . . 143
Heated Steering Wheel . . . . . . . . . . . . . . . .117
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Heated Mirrors . . . . . . . . . . . . . . . . . . . 52
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 194
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 171
High-Beam On Light . . . . . . . . . . . . 142

Buick Regal Owner Manual (GMNA-Localizing-U.S./Canada-12163021) -
2019 - CRC - 11/14/18
384 Index
Lights (cont'd)Engine Oil Pressure . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . 163
Front Fog Lamp . . . . . . . . . . . . . . 143
High-Beam On . . . . . . . . . . . . . . . . 142
High/Low Beam Changer . . . . . 163
Lane Keep Assist . . . . . . . . . . . . . 139
Low Fuel Warning . . . . . . . . . . . . 142
Seat Belt Reminders . . . . . . . . . . 133
Security . . . . . . . . . . . . . . . . . . . . . . 142
Service Electric Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . 138
StabiliTrak OFF . . . . . . . . . . . . . . . 140
Tire Pressure . . . . . . . . . . . . . . . . . 141
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 140
Traction Off . . . . . . . . . . . . . . . . . . . 139
Locks
Automatic Door . . . . . . . . . . . . . . . . . 39
Delayed Locking . . . . . . . . . . . . . . . . 39
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Lockout Protection . . . . . . . . . . . . . . 40
Power Door . . . . . . . . . . . . . . . . . . . . . 39
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Loss of Control . . . . . . . . . . . . . . . . . 182
Low Fuel Warning Light . . . . . . . . . 142
Low-Profile Tires . . . . . . . . . . . . . . . . 279 Lower Anchors and Tethers
for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 97
Lumbar Adjustment . . . . . . . . . . . . . . 61 Front Seats . . . . . . . . . . . . . . . . . . . . . 61
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 347
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 342
Maintenance Schedule . . . . . . . . . 336
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 345
Malfunction Indicator Lamp . . . . . 135
Manual Mode . . . . . . . . . . . . . . . . . . . 200
Massage . . . . . . . . . . . . . . . . . . . . . . . . 68
Memory Features . . . . . . . . . . . . . . . . 13
Memory Seats . . . . . . . . . . . . . . . . . . . 64
Messages Engine Power . . . . . . . . . . . . . . . . 152
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 152
Vehicle Speed . . . . . . . . . . . . . . . . 153
Mirrors Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 52
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 51
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 52 Mirrors (cont'd)
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 52
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Tilt in Reverse . . . . . . . . . . . . . . . . . . 52
Mirrors, Interior Rearview . . . . . . . . 52
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 287
N
NavigationConnected Services . . . . . . . . . . 374
Net, Convenience . . . . . . . . . . . . . . 114
New Vehicle Break-In . . . . . . . . . . . 190
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 130
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 182
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 251
Engine Oil Life System . . . . . . . 253
Pressure Light . . . . . . . . . . . . . . . . 141
Older Children, Restraints . . . . . . . 90
Online Owner Center . . . . . . . . . . . 355
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 365
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 368
OnStar Emergency . . . . . . . . . . . . . 367
OnStar Overview . . . . . . . . . . . . . . . 366
