2019 Alfa Romeo Stelvio jump start

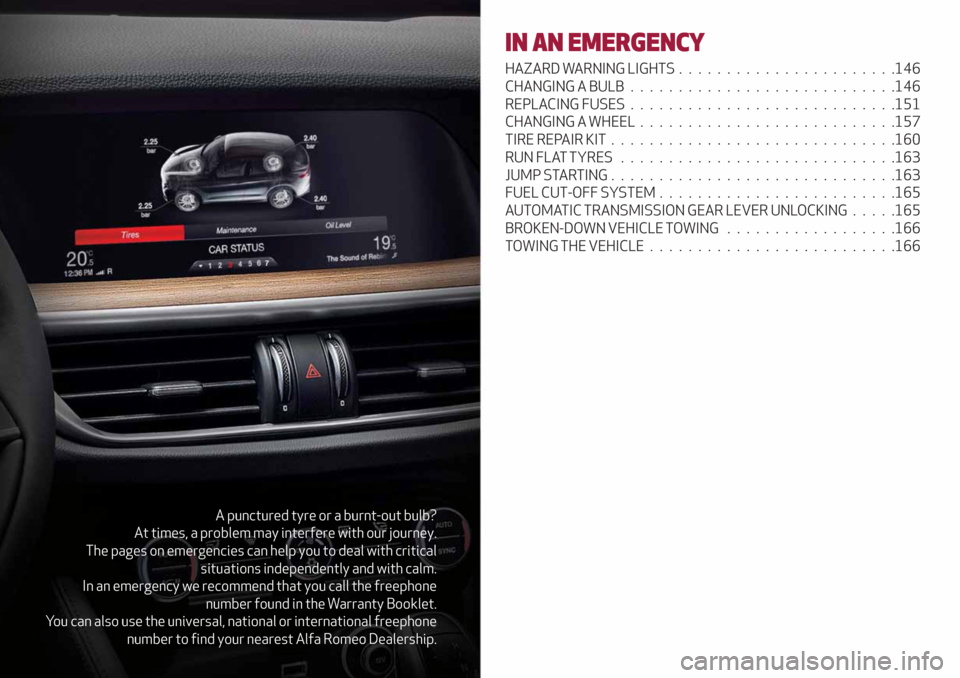

A punctured tyre or a burnt-out bulb?
At times, a problem may interfere with our journey.
The pages on emergencies can help you to deal with critical
situations independently and with calm.
In an emergency we recommend that you call the freephone
number found in the Warranty Booklet.
You can also use the universal, national or international freephone
number to find your nearest Alfa Romeo Dealership.
IN AN EMERGENCY
HAZARD WARNING LIGHTS.......................146
CHANGING A BULB............................146
REPLACING FUSES . ...........................151
CHANGING A WHEEL ...........................157
TIRE REPAIR KIT . .............................160
RUN FLAT TYRES.............................163
JUMP STARTING..............................163
FUEL CUT-OFF SYSTEM . ........................165
AUTOMATIC TRANSMISSION GEAR LEVER UNLOCKING.....165
BROKEN-DOWN VEHICLE TOWING..................166
TOWING THE VEHICLE..........................166

RUN FLAT TYRES
(where provided)
157) 158) 159)
"Run Flat" tyres allow you to maintain
control of the car after a puncture and to
continue driving safely for about 50 mi
(80 km) at a maximum speed of 50 mph
(80 km/h).
The reinforced tyre wall retains its shape
and supports the weight of the car in the
event of pressure loss.
Cars equipped with Run Flat tyres are
NOT provided with Tire Repair Kits. For
repair, contact an Alfa Romeo Dealership
as soon as possible.
WARNING
157)Do not exceed the maximum distance
or speed (80 km - 80 km/h) in the event of
pressure loss-puncture.
158)A pressure loss alters the driving
behaviour of the car, for example, causing
less directional stability when braking,
longer braking distances and altered
steering geometry. Therefore, adjust your
driving style to avoid sudden turns or
obstacles such as pavements and potholes.
159)Do not exceed 60 km/h when driving
with an especially heavy trailer.
JUMP STARTING
If the battery is flat, a jump starting can
be performed using the battery and the
cables of another vehicle, or using an
auxiliary battery. In all cases, the battery
used must have a capacity equal to or a
little higher than the flat one.
Jump starting may be dangerous if
carried out incorrectly: carefully follow
the procedures described below.
61)
IMPORTANT NOTES
Do not use an auxiliary battery or any
other source of external supply with a
voltage above 12 V: the battery, the
starter, the alternator and the electrical
system of the vehicle could be damaged.
Do not attempt jump starting if the
battery is frozen. The battery could break
and explode!
REMOTE BATTERY CONNECTION
POLES
To facilitate the operation, the remote
poles of the battery for the jump starting
can be found in the engine compartment:
the battery, on the other hand, is placed
in the luggage compartment.
The negative terminal (-) fig. 166 is
positioned next to the right bonnet lock.You can access the positive terminal (+)
by lifting the protective flap fig. 167.
The pole is shown in fig. 168.
16608076V0006EM
16708076V0002EM
163

To carry out the operation, you need to
have the correct cables to connect the
auxiliary battery to the remote poles of
the flat battery. Usually, these cables
have terminals at the ends and are
identified by different sheath colours
(red = positive, black = negative).
JUMP STARTING
160) 161) 162)
Proceed as follows:
switch off all electrical devices in the
car;
engage the parking brake, actiate P
(Park) mode and put the starter switch in
the STOP position;
should you be using the battery of
another car, park the other car within the
range of the cables used for the
connection, operate the parking brake
and ensure that its ignition is off.
IMPORTANT If the auxiliary battery is
installed on another vehicle, check that
there is no accidental contact of metal
parts between the two vehicles, since an
earth connection may result, with the risk
of serious injury to any people who may
be nearby.
IMPORTANT If the procedure below is
carried out incorrectly, it can cause
severe injury to people or damage the
recharging system of one or both
vehicles. Carefully follow the instructions
given below.
Cable connection
62)
Proceed as follows to carry out a jump
starting:
connect a terminal on the end of the
positive cable from the remote positive
pole (+) of the car with flat battery;
connect the terminal on the opposite
end of the positive (+) cable to the
positive (+) pole of the auxiliary battery;
connect a negative cable end terminal
to the negative (-) pole of the auxiliary
battery;
connect the terminal on the opposite
end of the negative (-) cable to the earth
point (-) on the car with the battery flat;
start the engine of the car with an
auxiliary battery, let it run for some
minutes at idle and then start the engineof the car with flat battery. In case a
portable battery is used, before starting
the car, wait a few seconds after
completing the connection.
Cable disconnection
Once the engine is started, remove the
connection cables in reverse sequence,
as shown below:
disconnect the negative cable end
terminal (-) from the earth point (-) of the
car with flat battery;
disconnect the terminal on the
opposite end of the negative cable from
the negative (-) pole of the auxiliary
battery;
disconnect the terminal on the
opposite end of the positive (+) cable
from the positive (+) pole of the auxiliary
battery;
disconnect the terminal on the end of
the positive cable from the remote
positive pole (+) of the car with flat
battery.
WARNING
160)Do not get too close to the radiator
cooling fan: the electric fan may start;
danger of injury. Scarves, ties and other
loose clothing might be pulled by moving
parts.
16808076V0001EM
164
