2019 Alfa Romeo 4C Spider stop start

to start within 10 seconds, turn the ignition switch to
the STOP (OFF/LOCK) position, wait 10 to 15 seconds,
then repeat the “Normal Starting” procedure.
Cold Weather Operation
Your engine is designed to operate at temperatures as
low as 0°F (-18°C).
CAUTION!
Use of the recommended oil and adhering to the
prescribed oil change intervals is important to pre-
vent engine damage and ensure satisfactory starting
in cold conditions.
If Engine Fails To Start
WARNING!
Never pour fuel or other flammable liquids into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in a flash fire causing
serious personal injury.
CAUTION!
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with a Alfa Twin
Clutch Transmission cannot be started this way.
Unburned fuel could enter the catalytic converter
and once the engine has started, ignite and dam-
age the converter and vehicle.
•
To prevent damage to the starter, do not continu-
ously crank the engine for more than 15 seconds at
a time. Wait 10 to 15 seconds before trying again.
After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
Turbo Charger “Cool Down”
This vehicle is equipped with an after-run pump to cool
the turbocharger after the engine is shut off. Depending
on the type of driving and the amount of cargo, the
pump will run for up to five minutes after the engine
has been shut off to circulate coolant through the
turbocharger.
Although the pump is rubber-mounted for quiet opera-
tion, it is normal to hear it running during this time.
138 STARTING AND OPERATING

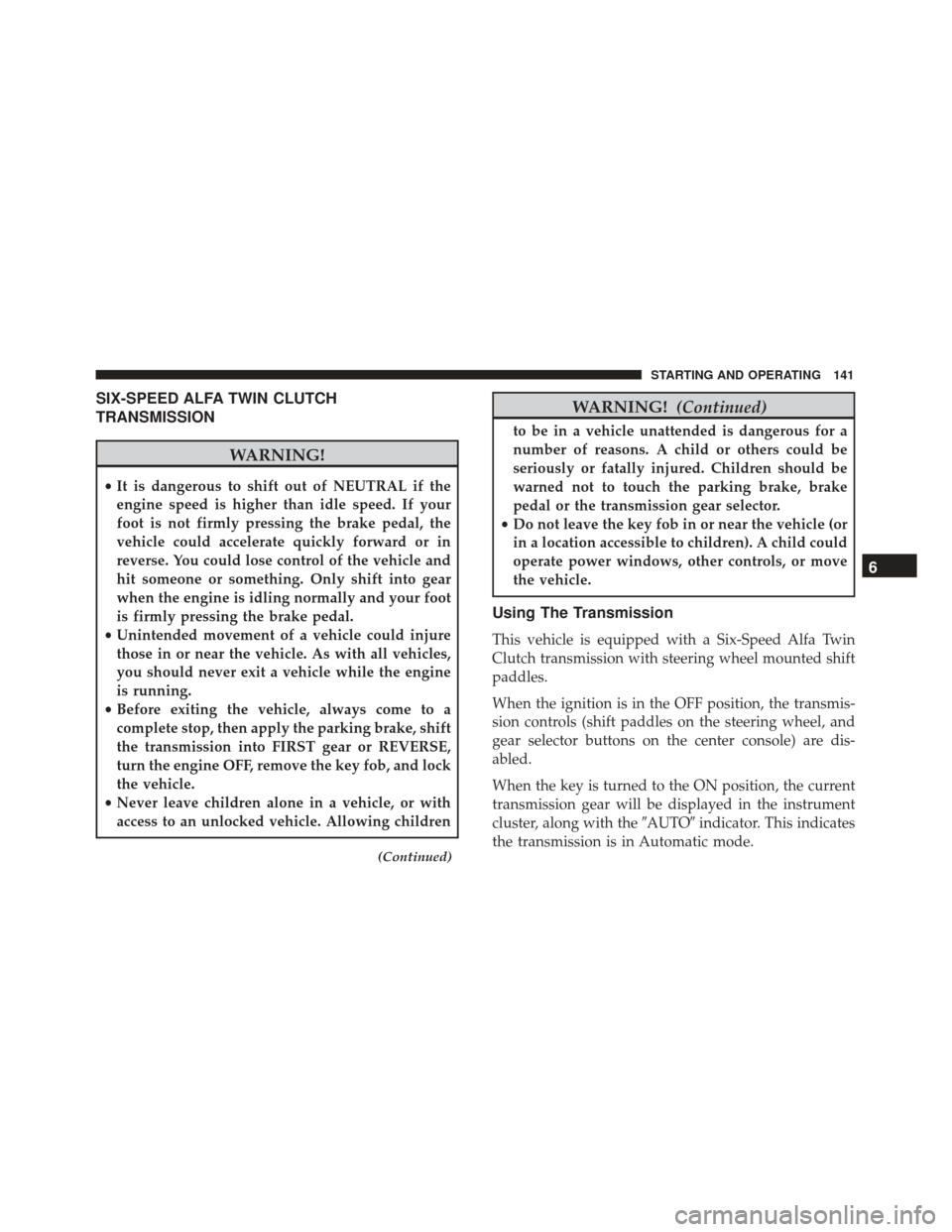

SIX-SPEED ALFA TWIN CLUTCH
TRANSMISSION
WARNING!
•It is dangerous to shift out of NEUTRAL if the
engine speed is higher than idle speed. If your
foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in
reverse. You could lose control of the vehicle and
hit someone or something. Only shift into gear
when the engine is idling normally and your foot
is firmly pressing the brake pedal.
• Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine
is running.
• Before exiting the vehicle, always come to a
complete stop, then apply the parking brake, shift
the transmission into FIRST gear or REVERSE,
turn the engine OFF, remove the key fob, and lock
the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
(Continued)
WARNING! (Continued)
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake
pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle (or
in a location accessible to children). A child could
operate power windows, other controls, or move
the vehicle.
Using The Transmission
This vehicle is equipped with a Six-Speed Alfa Twin
Clutch transmission with steering wheel mounted shift
paddles.
When the ignition is in the OFF position, the transmis-
sion controls (shift paddles on the steering wheel, and
gear selector buttons on the center console) are dis-
abled.
When the key is turned to the ON position, the current
transmission gear will be displayed in the instrument
cluster, along with the AUTOindicator. This indicates
the transmission is in Automatic mode.
6
STARTING AND OPERATING 141

Operating Modes
The transmission has two normal operating modes
(except when the “Race” mode is selected on the DNA
switch):
•MANUAL mode: The driver must shift gears manu-
ally (using the steering wheel mounted shift
paddles).
• Automatic (AUTO) mode: The system shifts between
all forward gears automatically. When the “Race” mode is selected via the DNA selector,
the only allowed transmission operating mode is
MANUAL.
MANUAL Mode
In this operating mode, the driver is responsible for
choosing the best gear to engage, depending on the
vehicle’s operating conditions. The current gear is dis-
played in the instrument cluster.
To activate/deactivate MANUAL mode, push the A/M
button on the center console when the transmission is in
any forward gear.
Use the “+” shift paddle to engage a higher gear, or the
“–” paddle to engage a lower gear.
If a requested gear shift is not allowed (typically,
because it would cause engine overspeed or lugging),
an acoustic signal will sound and the transmission will
remain in the existing gear.
The transmission will automatically downshift during
closed-throttle decelerations, to prevent engine lugging.
When coming to a stop, the transmission will automati-
cally select FIRST (1st) gear. The driver must manually
upshift the transmission (by tapping the + shift paddle)
as the vehicle accelerates.
Transmission Gear Selector
142 STARTING AND OPERATING

NOTE:To provide better comfort, the transmission will
up-shift to the next available gear if the engine speed
limit is reached. This feature is only available in NATU-
RAL and ALL WEATHER Modes.
AUTO Mode
In AUTO mode the transmission shifts gears automati-
cally depending on vehicle speed, engine RPM, and
accelerator pedal position.
AUTO is the default operating mode at startup. When
in AUTO mode, AUTOappears in the instrument
cluster, adjacent to the current gear display.
To toggle between AUTO and MANUAL modes, push
the A/M button on the center console.
Accelerating From A Stop
FIRST (1) and REVERSE (R) can only be engaged (at a
stop) when the brake pedal is pressed.
To drive, press the brake pedal, and select 1 (1st) or R
(REVERSE) using the transmission gear selector buttons
on the center console. Then release the brake pedal and
smoothly press the accelerator pedal. NOTE:
•
The vehicle will not “creep” when the brake pedal is
released, and may in fact roll down on an incline.
Leaving from a stop, the accelerator pedal must be
pressed to transmit driving torque to the wheels.
• When starting on a fairly steep incline, it may be
helpful to engage the parking brake.
• The vehicle can only be launched (from a stop) in
FIRST (1) or REVERSE (R). Second gear (or higher)
cannot be engaged when the vehicle is stationary.
• If the brake pedal is not depressed (and the vehicle is
stationary for a period of time), the transmission will
automatically engage NEUTRAL (N).
• FIRST (1) and REVERSE (R) gears can only be
engaged at vehicle speeds below 2 mph (3 km/h). At
speeds below 6 mph (10 km/h), attempts to shift
from 1 to R (or R to 1) will only be allowed if the
vehicle speed drops below the 2 mph (3 km/h)
threshold within three seconds of the request; other-
wise, the transmission will shift to NEUTRAL (N).
The driver should then repeat the request for 1st or R
once the vehicle has come to a stop.
6
STARTING AND OPERATING 143

the brake pedal). The transmission will engage the
correct gear according to the vehicle’s speed.
Acoustic Signal
If the vehicle is stationary with the engine running and
FIRST (1) or REVERSE (R) engaged, the system acti-
vates an acoustic signal and automatically places the
transmission in NEUTRAL (N) when:
•The accelerator and/or brake pedal are not operated
for at least three minutes.
• The brake pedal is pressed for longer than 10 min-
utes.
• The driver ’s door is opened and the accelerator pedal
or the brake pedal are not operated for at least one
and a half seconds.
• A fault has been detected in the transmission.
Parking The Vehicle
When parking and leaving the vehicle, proceed as
follows:
1. Make sure that the vehicle has come to a complete
stop. 2. With the brake pedal depressed, put the vehicle into
either a forward or reverse gear by pushing 1 or R.
(The vehicle may already be in 1 or R if you were just
driving.)
3. Engage the parking brake.
4. Turn off and remove the key.
5. Release the brake pedal.
When parking on an incline, turn the front wheels
toward the curb on a downhill slope and away from the
curb on an uphill slope. Always chock the wheels when
parking on steep grades.
General Notes
When the vehicle is stopped and in gear, always keep
the brake pedal pressed until you decide to set off, then
release the brake and accelerate gradually.
During prolonged stops with the engine running, it is
advisable to keep the transmission in NEUTRAL (N).
When stopped on an incline, always hold the vehicle in
place using the brakes. On steep inclines, Hill Start
Assist (HSA) will temporarily hold the vehicle in posi-
tion when the brake pedal is released. If the accelerator
6
STARTING AND OPERATING 145

pedal is not applied after a short time, the vehicle will
roll back. Either reapply the brake (to hold the vehicle)
or press the accelerator to climb the hill.
Only shift between FIRST (1) and REVERSE (R) when
completely stopped, with the brake pedal pressed.
When necessary, it is possible to engage FIRST (1),
REVERSE (R) or NEUTRAL (N) with the engine off, the
key at MAR-ON and the brake pressed. In this case,
wait at least five seconds between one gear change and
the next, in order to safeguard the operation of the
hydraulic system, and the pump in particular.
For uphill departures, accelerate gradually but fully,
immediately after releasing the parking brake or the
brake pedal; this allows the engine speed to increase to
provide more torque at the wheels.
ALFA DNA SYSTEM (DYNAMIC VEHICLE
CONTROL SYSTEM)
This vehicle is equipped with a “Alfa DNA” system
lever (located on the center console). There are four
modes of operation to be selected according to driving
style and road conditions:•
Dynamic (This mode alters the transmission’s auto-
matic shift schedule for sportier driving [D]).
• Natural (mode for driving in normal conditions [N]).
• All Weather (mode for driving in poor grip condi-
tions, such as rain and snow [A]).
• Race (sports driving mode [D]).
This also acts on the dynamic vehicle control systems
(engine, gearbox/transmission, ESC system).
Alfa DNA Mode Selector
146 STARTING AND OPERATING

Acoustic Signal
When REVERSE gear is engaged, and there is an
obstacle behind the vehicle, an acoustic signal is emitted
which varies according to the distance of the bumper
from the obstacle.
The frequency of the acoustic signal:
•Increases as the distance between vehicle and ob-
stacle decreases, culminating in a continuous acous-
tic signal when the distance is less than approxi-
mately 12 inches (30 cm).
• Decreases if the distance from the obstacle increases,
until the signal ceases entirely.
• Remains constant if the distance between vehicle and
obstacle remains unchanged; if this situation con-
cerns the side sensors, the signal will stop after
approximately 3 seconds, for example, in the event of
parking along a wall.
If several obstacles are detected by the sensors, only the
nearest one is considered.
Indications On Display — If Equipped
When the sensors are activated, the parking sensor
display screen appears in the instrument cluster.
Obstacle presence and distance information is therefore
provided both by the acoustic signal and the instrument
cluster display.
The system indicates a detected obstacle by displaying
an arc in one or more positions according to the distance
of the obstacle and its position in relation to the vehicle.
Parking Sensor Display Screen
154 STARTING AND OPERATING

•The variation in sensor position, caused by variation
in ride (due to suspension component wear), chang-
ing tires, overloaded vehicle, or tuning that lowers
the vehicle, for example, may affect parking sensor
system performance.
NOTE: The sensor must be free from mud, dirt snow or
ice in order for the system to operate correctly. Be
careful not to scratch or damage the sensors while
cleaning them. Avoid using dry, rough or hard cloths.
The sensors must be washed using clean water, with the
addition of car shampoo if necessary. When using
special washing equipment such as high pressure jets or
steam cleaning, clean the sensors very quickly keeping
the jet more than 4 inches (10 cm) away. Also, do not
apply stickers to the sensors.
WARNING!
Drivers must be careful when backing up even
when using the Parking Sensor system. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, ob-
structions, or blind spots before backing up. You
are responsible for the safety of your surroundings
(Continued)
WARNING! (Continued)
and must continue to pay attention while backing
up. Failure to do so can result in serious injury or
death.
CAUTION!
•The Parking Sensor system is only a parking aid
and it is unable to recognize every obstacle,
including small obstacles. Parking curbs might be
temporarily detected or not detected at all. Ob-
stacles located above or below the sensors will
not be detected when they are in close proximity.
• The vehicle must be driven slowly when using
the Parking Sensor system in order to be able to
stop in time when an obstacle is detected. It is
recommended that the driver looks over his/her
shoulder when using the Parking Sensor system.
PARKVIEW REAR BACK UP CAMERA
The ParkView Rear Back Up Camera allows you to see
an on-screen image of your vehicle’s rear surroundings
when the gear selector is put into REVERSE. The image
will be displayed on the rearview mirror along with a
156 STARTING AND OPERATING
