2019 Acura TLX TPMS

11
Quick Reference Guide
Instrument Panel (P 71)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator Vehicle Stability Assist
(VSA®) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
System Indicators
System Message
Indicator
Gauges (P113)/Display (P114)/System Indicators (P72)
Low Tire Pressure/
TPMS Indicator
Keyless Access System
Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator SPORT
(Sport mode)
Indicator Blind spot information
(BSI) Indicator
*
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator
Road Departure Mitigation
(RDM) Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
CanadaFog Light Indicator*
Temperature
Gauge Security System
Alarm IndicatorFuel Gauge
Tachometer
Multi-Information Display
Speedometer
Gear Position Indicator
*/
Shift Lever Position
Indicator
*
M (sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
System Indicators
Lane Keeping Assist
System ( LKAS) Indicator
Adaptive Cruise Control
(
ACC ) with Low Speed
Follow (LSF) Indicator
Anti-lock Brake System
( ABS ) Indicator
Seat Belt Reminder
Indicator Brake System
Indicator (Red) Supplemental Restraint
System Indicator
Low Fuel Indicator Turn Signal and Hazard
Warning Indicators
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada
Precision All-Wheel
SteerTM (P-AWS ®)
Indicator*
ECON (Econ mode)
Indicator SH-AWD Indicator
*
Auto Idle Stop System
Indicator (Amber)*/
Auto Idle Stop
Indicator (Green)
*
Auto High-Beam
Indicator
* Not available on all models
19 ACURA TLX-31TZ36400.book 11 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

21
Quick Reference Guide
VSA® On and Off (P418)
● The Vehicle Stability Assist ® (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P439)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● The CMBS
TM is turned on every time you
start the engine.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P424, 551)
● The TPMS monitors tire pressure.
● TPMS is turned on automatically every time you start the engine.
● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P459)
aPress the fuel fill
door release button.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Fuel recommendation: Unleaded premium gasoline, pump octane number 91 or
higher
Fuel tank capacity: 17.2 US gal (65 L)
Wait for five seconds
* Not available on all models
19 ACURA TLX-31TZ36400.book 21 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

27
Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why does the gear position
automatically change to
(P
when I open the driver's
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver's door and manually change the gear
position. u
When opening the driver’s door (P373)
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P551)
Models with electronic gear selector
* Not available on all models
19 ACURA TLX-31TZ36400.book 27 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a spare tire
*
is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a spare tire
*, get your regular tire
repaired or replaced and put back on your
vehicle as soon as you can.
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, roll the right
selector wheel to see the message again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is rolled.
—
* Not available on all models
19 ACURA TLX-31TZ36400.book 81 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

119
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 467
Shows each tire’s pressure.
2Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 424
Shows the current mode for Integrated dynamics system.
2Integrated Dynamics System P. 387
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2Super Handling-All Wheel DriveTM (SH-
AWD ®)* P. 423
■Engine Oil Life and Maintenance Items
■Tire Pressure Monitor
■Current Mode for Integrated Dynamics System
■SH-AWD ® Torque Distribution Monitor*
* Not available on all models
19 ACURA TLX-31TZ36400.book 119 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

355
Driving
This chapter discusses driving and refueling.
Before Driving................................... 356
Towing a Trailer ................................ 361
When Driving
Starting the Engine .......................... 362
Precautions While Driving................. 369
Automatic Transmission
*................. 370
Dual Clutch Transmission*............... 370
Shifting ............................................ 371
Shifting ............................................ 378
Auto Idle Stop
*................................ 382
Integrated Dynamics System............. 387
Models with electronic gear selector
Models with shift lever
Front Sensor Camera ....................... 388
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ......................... 390
Road Departure Mitigation (RDM) System ... 404Lane Keeping Assist System (LKAS) .. 409Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System ............... 417
Agile Handling Assist ....................... 419
Precision All-Wheel SteerTM (P-AWS ®)
System*......................................... 419
Blind spot inform ation (BSI) System*.... 420
Super Handling-All Wheel DriveTM (SH-
AWD® )*......................................... 423 Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist.......................... 424
Tire Pressure Monitoring System (TPMS) -
Required Federal Expl anation ........... 426
Braking .............................................. 428
Parking Your Vehicle ........................ 445
Multi-View Rear Camera
*................ 456
Surround View Camera System*..... 458
Refueling ........................................... 459
Fuel Economy and CO
2 Emissions .... 462
* Not available on all models
19 ACURA TLX-31TZ36400.book 355 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

424
uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
Driving
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
Monitors the tire pressure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the multi-information display.
1 Tire Pressure Monitoring System (TPMS) with Tire Fill Assist
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come
on. 2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 551
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of over inflation.
The TPMS audibly and visually informs you of
changes in tire pressure of the individual tire that you
are adjusting using audibl e and visual indications.
If a change in tire pressure has been significant, the
system beeps and the hazard lights flash continuously
for five seconds when the specified tire pressure is
reached. Stop filling the tire.
Low Tire Pressure/
TPMS Indicator
19 ACURA TLX-31TZ36400.book 424 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

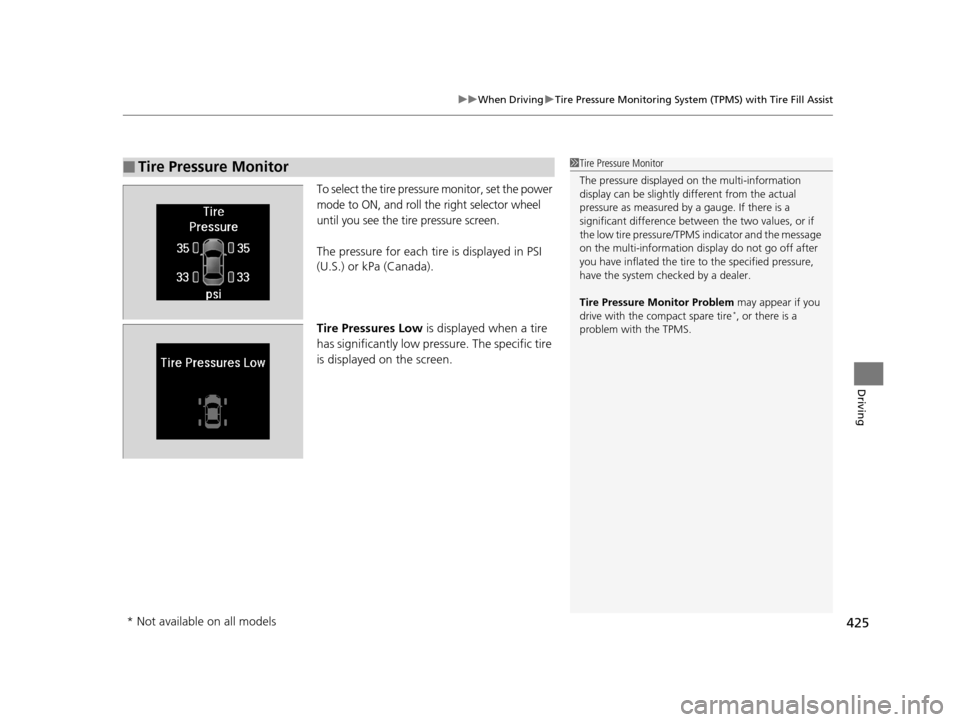

425
uuWhen Driving uTire Pressure Monitoring System (TPMS) with Tire Fill Assist
Driving
To select the tire pressure monitor, set the power
mode to ON, and roll the right selector wheel
until you see the tire pressure screen.
The pressure for each tire is displayed in PSI
(U.S.) or kPa (Canada).
Tire Pressures Low is displayed when a tire
has significantly low pressure. The specific tire
is displayed on the screen.
■Tire Pressure Monitor1 Tire Pressure Monitor
The pressure displayed on the multi-information
display can be slightly different from the actual
pressure as measured by a gauge. If there is a
significant di fference between the two values, or if
the low tire pressure/TPMS indicator and the message
on the multi-information di splay do not go off after
you have inflated the tire to the specified pressure,
have the system checked by a dealer.
Tire Pressure Monitor Problem may appear if you
drive with the compact spare tire
*, or there is a
problem with the TPMS.
* Not available on all models
