2019 Acura RLX HYBRID sensor

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind spot
information
System Indicator
•Comes on for a few seconds when
you change the power mode to ON,
then goes off.
• Stays on while the blind spot
information system is turned off.
—
•Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.•Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind spot information System P. 443
•Comes on if there is a problem with
the system.• Comes on while driving - Have your
vehicle checked by a dealer.
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator
• Comes on for a few seconds when
you change the power mode to ON,
then goes off.
• Comes on when you deactivate the
CMBS
TM. A multi-information display
message appears for five seconds.
• Comes on if there is a problem with
the CMBS
TM.
• Stays on constant ly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
19 ACURA RLX HYBRID CSS-31TY36500.book 92 ページ ２０１８年３月７日　水曜日　午 後４時１９分

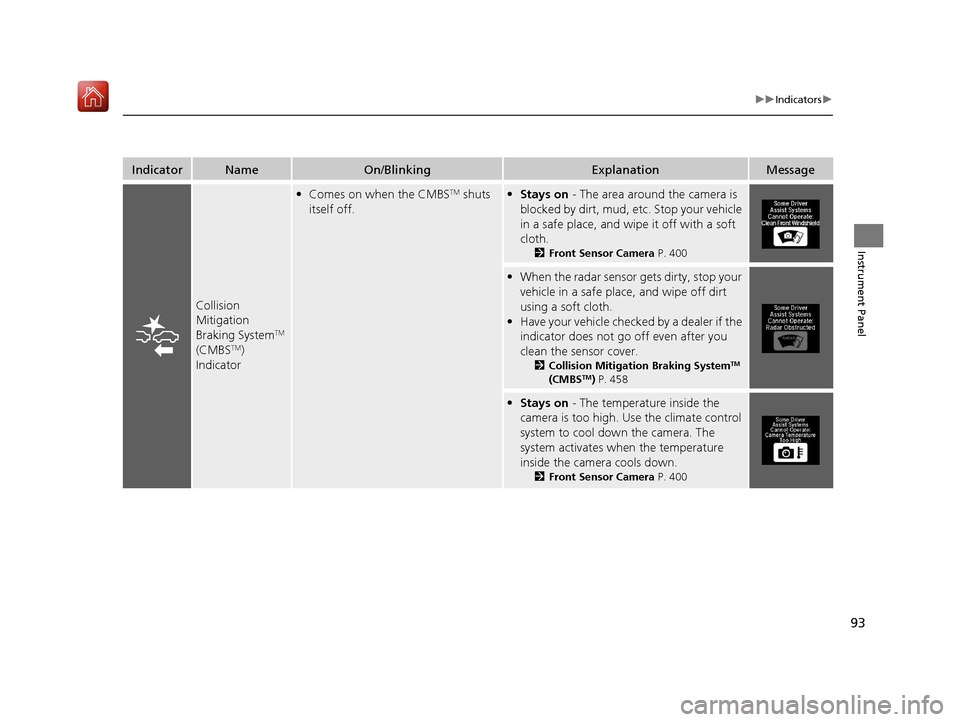

93
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator
• Comes on when the CMBSTM shuts
itself off.• Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
2 Front Sensor Camera P. 400
•When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
• Have your vehicle checked by a dealer if the
indicator does not go off even after you
clean the sensor cover.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
• Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool do wn the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 400
19 ACURA RLX HYBRID CSS-31TY36500.book 93 ページ ２０１８年３月７日　水曜日　午 後４時１９分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when there is a prob lem with the sensor on the
12-volt battery.●Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 529
●Appears when the starter system has a problem.●As a temporary measure, press and hold the POWER
button for up to 15 second s while depressing the brake
pedal and manually turn on the power system.
Have your vehicle checked by a dealer.
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE
OFF.
●Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
19 ACURA RLX HYBRID CSS-31TY36500.book 97 ページ ２０１８年３月７日　水曜日　午 後４時１９分

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears if there is a problem with the radiator system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle chec ked by a dealer as soon as
possible.
• Appears if there is a problem with the parking sensor
system.•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
• Appears if the automatic brake hold is automatically
canceled while it is in operation.•Immediately depress the brake pedal.
•Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 454
Models with
parking sensor
system
19 ACURA RLX HYBRID CSS-31TY36500.book 101 ページ ２０１８年３月７日　水曜日　午後４時１９分

111
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
• Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
• May appear when driving in bad weather (rain, snow,
fog, etc.)• When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 458
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 402
2 Road Departure Mitigation (RDM) System P. 416
2 Traffic Jam Assist P. 428
•Appears if the temperature inside the camera is too
high.• Use the climate control sy stem to cool down the
camera.
2 Front Sensor Camera P. 400
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 458
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 402
2 Lane Keeping Assist System (LKAS) P. 421
2 Road Departure Mitigation (RDM) System P. 416
2 Traffic Jam Assist P. 428
•Appears when the area around the camera is blocked
by dirt, mud, etc.
• May appear when driving in bad weather (rain, snow,
fog, etc.)• Stop your vehicle in a safe pl ace, and wipe it off with a
soft cloth.
2 Front Sensor Camera P. 400
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 458
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 402
2 Lane Keeping Assist System (LKAS) P. 421
2 Road Departure Mitigation (RDM) System P. 416
2 Traffic Jam Assist P. 428
19 ACURA RLX HYBRID CSS-31TY36500.book 111 ページ ２０１８年３月７日　水曜日　午後４時１９分

uuGauges and Displays uMulti-Information Display
116
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset the trip meter, display it, and then press and hold the TRIP button. The trip
meter is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature readi ng by up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.
Use the audio/information screen to correct the temperature.
2Customized Features P. 295
Shows the estimated average fuel econom y of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1 Average Fuel Economy
You can change when the average fuel economy is
reset.
2 Customized Features P. 295
19 ACURA RLX HYBRID CSS-31TY36500.book 116 ページ ２０１８年３月７日　水曜日　午後４時１９分

127
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 128
Locking and Unlocking the Doors
Key Type and Functions ................... 129
Low Keyless Access Remote Signal Strength ......................................... 130
Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 139
Childproof Door Locks ..................... 141
Auto Door Locking/Unlocking .......... 142
Opening and Closing the Trunk ....... 143
Security System ................................ 146
Immobilizer System .......................... 146
Security System Alarm ...................... 146Opening and Closing the Windows .... 149
Opening and Closing the Moonroof ... 151
Operating the Switches Around the
Steering Wheel POWER Button................................. 152
Turn Signals ..................................... 155
Light Switches.................................. 156
Fog Lights
*...................................... 159
Daytime Running Lights ................... 159
Auto High-Beam .............................. 160
Wipers and Washers ........................ 163
Brightness Control ........................... 166
Rear Defogger/ Heated Door Mirror/Heated
Windshield Button ......................... 168 Driving Position Memory System ...... 169
Adjusting the Steering Wheel .......... 171
Adjusting the Mirrors ....................... 172
Interior Rearview Mirror ................... 172
Power Door Mirrors ......................... 173
Adjusting the Seats .......................... 175
Front Seats ...................................... 175
Interior Lights/Interior Convenience
Items ................................................ 182
Interior Lights .................................. 182
Interior Convenience Items .............. 184
Climate Control System ................... 200
Using Automatic Climate Control .... 200
Automatic Climate Control Sensors......209
* Not available on all models
19 ACURA RLX HYBRID CSS-31TY36500.book 127 ページ ２０１８年３月７日　水曜日　午後４時１９分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
132
Controls
■Locking the doors and trunk
Press the door lock button on the front or rear
door.u Some exterior lights flash; the beeper
sounds; all the doors and trunk lock; and
the security system sets.1Using the Keyless Access System
You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.
•If you grip a front or rear door handle wearing
gloves, the door sensor ma y be slow to respond or
may not respond by unlocking the doors.
•After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless access remote if it is above or below the
outside handle.
•The keyless access remote may not operate if it is
too close to the door and door glass.
Door Lock
Button
