2019 Acura RLX HYBRID remote start

uuAdjusting the Mirrors uPower Door Mirrors
174
Controls
■Folding in the door mirrors
Press the lock button on the keyless access re mote, or press the door lock button on
any door. u The mirrors start folding in automatically.
■Folding out the door mirrors
Press the unlock button on th e keyless access remote, or grab the door handle on
any door.
u The mirrors start folding out automatically.
■Automatic Folding Door Mirror Function1Automatic Folding Door Mirror Function
You can turn the automa tic folding door mirror
function on and off.
2 Customized Features P. 295
1Folding out the door mirrors
You cannot turn the automatic folding out
automatically if they have been folded in using the
folding button.
19 ACURA RLX HYBRID CSS-31TY36500.book 174 ページ ２０１８年３月７日　水曜日　午後４時１９分

298
uuCustomized Features u
Features“Trip B” Reset Timing
Language Selection
Adjust Outside Temp. Display



Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep

Turn By Turn Display
Default
Memory Position Link

Door Unlock Mode
Keyless Access Light Flash


Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Vehicle
Settings
Driver Assist
System Setup
Keyless Access
Setup
Lighting Setup
Keyless Access Beep
Lane Keeping Assist Suspend Beep
Blind Spot Info
Easy Entry/Exit
Auto Seatbelt Tension

Driving
Position Setup
Display Speed Unit
Reactive Force Pedal
Head-up Warning
Road Departure Mitigation Setting
Remote Start System On/Off

Reverse Alert Tone

“Trip A” Reset TimingMeter/
Head-up Display Setup
Walk Away Auto Lock
19 ACURA RLX HYBRID CSS-31TY36500.book 298 ページ ２０１８年３月７日　水曜日　午後４時１９分

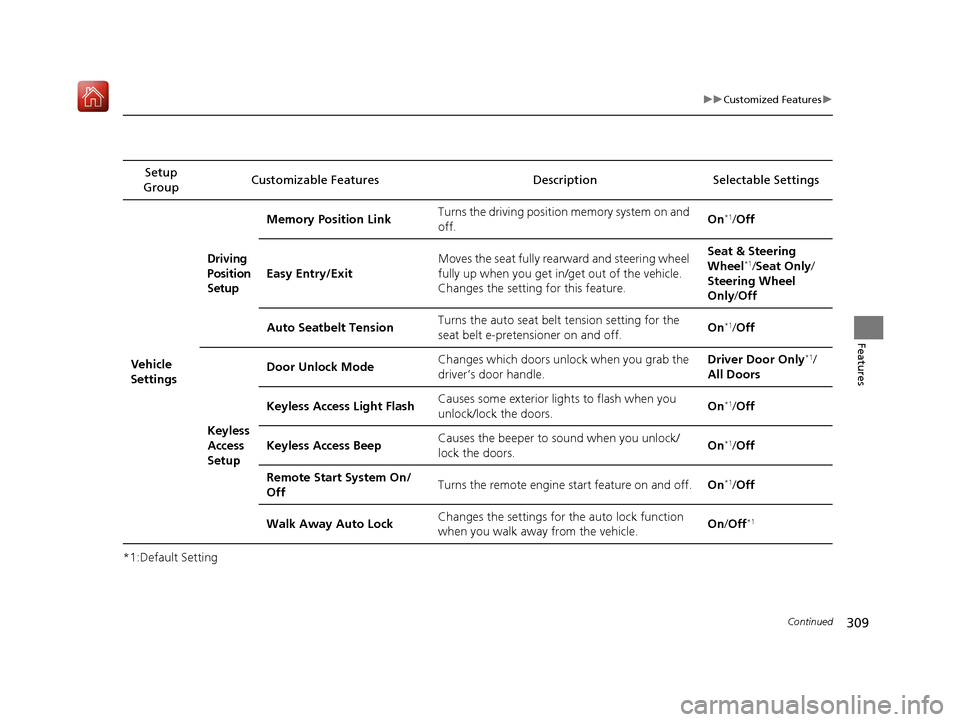

309
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings
Driving
Position
Setup
Memory Position Link Turns the driving position memory system on and
off. On*1/
Off
Easy Entry/Exit Moves the seat fully rear
ward and steering wheel
fully up when you get in/get out of the vehicle.
Changes the setting for this feature. Seat & Steering
Wheel
*1/
Seat Only /
Steering Wheel
Only /Off
Auto Seatbelt Tension Turns the auto seat belt
tension setting for the
seat belt e-pretensioner on and off. On
*1/
Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only
*1/
All Doors
Keyless Access Light Flash Causes some exterior lights to flash when you
unlock/lock the doors. On
*1/
Off
Keyless Access Beep Causes the beeper to sound when you unlock/
lock the doors.
On
*1/
Off
Remote Start System On/
Off Turns the remote engine start feature on and off.
On
*1/Off
Walk Away Auto Lock Changes the settings for th
e auto lock function
when you walk away from the vehicle. On
/Off
*1
19 ACURA RLX HYBRID CSS-31TY36500.book 309 ページ ２０１８年３月７日　水曜日　午後４時１９分

Continued379
uuWhen Driving uTurning on the Power
Driving
3. Press the POWER button without
depressing the accelerator pedal.
u The Ready To Drive message appears
on the multi-information display.
u When the ambient temperature is
extremely low, the vehicle does not move
until certain conditions are met.
A warning message appears instead of
Ready To Drive .
2Multi-Information Display Warning
and Information Messages P. 103
uIf the High Voltage battery is fully
charged, the gasoline engine may not
start.
u If the High Voltage battery charge level is
low, the gasoline engine starts.
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft.
If an improperly c oded key (or other device) is used,
the power system does not activate. 2 Immobilizer System P. 146
When you set the power mode to ON, you may feel
as if the brake pedal is sinking down. This is normal.
Bring the keyless access remote close to the POWER
button if the battery in the keyless access remote is
weak.
2 If the Keyless Access Remote Battery is
Weak P. 560
The power system may not activate if the keyless
access remote is subjecte d to strong radio waves.
The engine may not run when the vehicle is ready for
driving.
You can start driving with the READY indicator on.
If you press the POWER button while depressing the
brake pedal with the READY indicator on, the power
mode is set to VEHICLE OFF and you cannot start
driving. 2 READY Indicator P. 80
■Stopping the Power System
19 ACURA RLX HYBRID CSS-31TY36500.book 379 ページ ２０１８年３月７日　水曜日　午後４時１９分

uuWhen Driving uTurning on the Power
380
Driving
You can remotely turn the power system on using the two-way keyless access
remote from extended distances.
■To turn the power system on
The power system is on for up to 10 minutes without you starting the vehicle.
To extend the time for another 10 minute s during the first 10 minutes, press the
button, then press and hold the button.
u The amber LED blinks, then the green LED comes back on if a 10-minute
extension request was tra nsmitted successfully.
After pressing the button, wait for the gr een LED to blink. This indicates that
the all the doors and the trunk are locked.
■Remote Engine Start with Vehicle Feedback1 Remote Engine Start with Vehicle Feedback
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
The range may be less when the vehicle is running.
This distance may vary by external electrical
interference.
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the audio/information screen.
•The power mode is not in VEHICLE OFF.
•The transmission is in a position other than ( P.•The hood is open, or any door or the trunk is
unlocked.
•You have already used the remote twice to turn the
power system on.
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.
3WARNING
Carbon monoxide ga s is toxic and can
rapidly accumulate in closed or even partly
enclosed areas.
Breathing it can cause unconsciousness and
even kill you.
Never use the remote engine starter with
the vehicle parked in a garage or other
areas with limited ventilation.
Press the button, then press and hold the button.
Amber LED: Blinks when any button is pressed.
Continues to blink
during a vehicle
self check until the
power system is
turned on. Go within the range,
and try again.
Green LED: Comes on while
the power system is on. Red LED: Blinks when the
remote is out of the keyless
access system range.
19 ACURA RLX HYBRID CSS-31TY36500.book 380 ページ ２０１８年３月７日　水曜日　午後４時１９分

Continued381
uuWhen Driving uTurning on the Power
Driving
■To turn the power system off1Remote Engine Start with Vehicle Feedback
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.
•The security system alarm is not set.
Before turning the power sy stem on, make sure to
check the door lock status using the remote. When
you press the button, wait for the green LED to
blink. If the red LED turns on, the doors and trunk did
not lock, and the power system is not turned on.
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is cold outside:
•The defroster and heated windshield are activated
at a moderately warm temperature.
•The rear defogger, door mi rror heaters and heated
windshield are activated.
•The heated steering wheel is activated. 2Heated Steering Wheel P. 194
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you know
that the power system is turned off.
●Blinks when the remote is out of the keyless
access system range. The power system will not
be turned off.
19 ACURA RLX HYBRID CSS-31TY36500.book 381 ページ ２０１８年３月７日　水曜日　午後４時１９分

uuWhen Driving uTurning on the Power
382
Driving
1. While depressing the brake pedal, press the POWER button.
2. Keeping your right foot on the brake pedal, press the
(D button. Select (R when
reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the electric parking brake indicator goes off.
2 Parking Brake P. 450
2 If the Transmission System Indicator Blinks along with the Warning
Message P. 571
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your fo ot from the brake pedal to the accelerator.
Change to
(D when facing uphill, or (R when facing downhi ll, then release the
brake pedal.
■Starting to Drive1 Starting to Drive
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
The power system is turned off when the gear
position is ch anged from
(P before the POWER
button is pressed. Follow th e step 1 when starting to
drive.
When the power system is turned on using the two-
way keyless access remote
When the power system is turned on using the two-way keyless access remote
When the power system is turned on in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippe ry slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
19 ACURA RLX HYBRID CSS-31TY36500.book 382 ページ ２０１８年３月７日　水曜日　午後４時１９分

539
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 540
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 541
Changing a Flat Tire ......................... 553
Power System Won’t Start Checking the Procedure ................... 559
If the Keyless Access Remote Battery is Weak ............................................. 560
Emergency Power System Off........... 561
Jump Starting .................................... 562
Overheating How to Handle Overheating ............. 565 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On .. 567
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 567
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 568
If the Brake System Indicator (Red) Comes
On ................................................. 568
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 569
If the Electric Parking Brake System Indicator Comes On............................................. 569
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 570 If the Transmission System Indicator Blinks
along with the Warning Message... 571
Fuses
Fuse Locations ................................. 572
Inspecting and Changing Fuses ........ 579
Emergency Towing ........................... 580
When You Cannot Unlock the Fuel Fill Door ................................................. 581
When You Cannot Open the Trunk .. 582
RefuelingRefueling From a Portable Fuel Container ... 583
19 ACURA RLX HYBRID CSS-31TY36500.book 539 ページ ２０１８年３月７日　水曜日　午後４時１９分
