2019 Acura NSX keyless

429
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 430
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 431
Handling of the Jack ........................ 442
Power System Won’t Start Checking the Procedure ................... 443
If the Keyless Access Remote Battery is Weak ............................................. 444
Emergency Power System Off........... 445
Jump Starting .................................... 446
Overheating How to Handle Overheating ............. 448 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 450
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 450
If the Brake System Indicator (Red) Comes On ................................................. 451
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 451
If the Electric Parking Brake System Indicator Comes On ....................... 452 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 453
If the Transmission System Indicator Blinks along with the Warning Message... 454
If the Low Oil Level Symbol Appears.....454Fuses Fuse Locations ................................. 455
Inspecting and Changing Fuses ........ 459
Emergency Towing ........................... 460
When You Cannot Unlock the Fuel Fill Door ................................................. 461
When You Cannot Open the Hatch.....462RefuelingRefueling from a Portable Fuel Container .... 463
19 NSX-31T6N6200.book 429 ページ ２０１８年８月９日　木曜日　午前１１時１２分

443
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver informatio n interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 83
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 127
2If the Keyless Access Remote Battery is
Weak P. 444
The POWER SYSTEM indicator comes on.Have your vehicle checked by an authorized
Acura NSX dealer.
The transmission system indicator blinks and Transmission
Problem Apply Parking Brake When Parked message
appears.The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 454
Check the brightness
of the interior lights. The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by an
authorized Acura NSX dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by
an authorized Acura NSX dealer.
2 Inspecting and Changing Fuses P. 459
Check the gear
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 81
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 446
19 NSX-31T6N6200.book 443 ページ ２０１８年８月９日　木曜日　午前１１時１２分

444
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the ENGINE START/STOP button flashes, and the READY
indicator does not come on.
The To Start, Hold Remote Near Start Button message appears on the driver
information interface.
Turn on the power system as follows. 1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the ENGINE START/
STOP button is flashing. The buttons on
the keyless access remo te should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
19 NSX-31T6N6200.book 444 ページ ２０１８年８月９日　木曜日　午前１１時１２分

480
Index
G
Gasoline (Fuel)Economy ................................................. 370
Gauge ....................................................... 95
Information ............................................. 368
Instant Fuel Economy ............................... 101
Low Fuel Indicator ..................................... 77
Refueling ................................................. 368
Gauges ......................................................... 95
Gear Position Indicator ....................... 76, 326
Gear Shift Positions
Dual Clutch Transmission ......................... 324
Glass (care) ........................................ 418, 421
Glove Box .................................................. 151
H
Handling the Unexpected ........................ 429
HandsFreeLink® (HFL)............................... 268
Automatic Import of Ce llular Phonebook and
Call History ............................................ 281
Displaying Messages ................................ 297
HFL Buttons ............................................. 268
HFL Menus .............................................. 271
HFL Status Display.................................... 270
Limitations for Manua l Operation ............ 270
Making a Call .......................................... 290
Options During a Call .............................. 294
Phone Setup ............................................ 276
Phonebook Phonetic M odification ........... 285
Receiving a Call ....................................... 294 Receiving a Text/E-mail Message.............. 295
Ring Tone................................................ 280
Roadside Assistance ................................ 301
Selecting a Mail Account ......................... 296
Speed Dial ............................................... 282
To Set Up Text/E-mail Message Options ... 279
Hatch ......................................................... 119
Unable to Open....................................... 462
Hazard Warning Button .............................. 4
Headlights ................................................. 131
Aiming .................................................... 399
Automatic Operation (automatic lighting control) ................................................. 132
Dimming ......................................... 131, 134
Operating................................................ 131
Heaters (Seat) ........................................... 153
HFL (HandsFreeLink ®)............................... 268
High Beam Indicator .................................. 81
High Voltage Battery ............................... 353
High-Performance Driving ....................... 313
Hill Start Assist System ............................. 321
HomeLink ® Universal Transceiver ............ 265
Honda App License Agreement .............. 226
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD® )............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............ 468
Vehicle Identification............................... 468
Immobilizer System .................................. 122
Indicator ................................................... 81
Indicators .................................................... 70
12-Volt Battery Charging System ...... 75, 450
Active Damper System .............................. 74
Anti-lock Brake System (ABS) .................... 78
Automatic Brake Hold ....................... 72, 357
Automatic Brake Hold System ........... 72, 357
Brake System (Amber) ............................... 73
Brake System (Red) ........................... 70, 451
Brake Wear ............................................... 74
CRUISE CONTROL ............................. 82, 341
CRUISE MAIN.................................... 82, 340
Door and Trunk (Hatch) Open ................... 35
Electric Parking Brake ................................ 71
Electric Parking Brake System ............ 71, 452
Electric Power Steering (EPS) System ............................................ 78, 451
Gear Position ............................................ 76
High Beam ................................................ 81
Immobilizer System ................................... 81
Keyless Access System............................... 82
Lights On .................................................. 81
Low Fuel ................................................... 77
Low Oil Pressure ....................................... 70
Low Tire Pressure/TPMS ............ 80, 349, 351
Malfunction Indicator Lamp .............. 75, 450
19 NSX-31T6N6200.book 480 ページ ２０１８年８月９日　木曜日　午前１１時１２分

481
Index
POWER SYSTEM ....................................... 74
READY ...................................................... 74
Seat Belt Reminder.............................. 37, 77
Security System Alarm............................... 82
Supplemental Restraint System ........... 55, 78
System Message ....................................... 80
Transmission System ................................. 76
Turn Signal ............................................... 81
Vehicle Stability Assist® (VSA ®)
System ............................................ 79, 343
VSA ® OFF.......................................... 79, 344
Information .............................................. 465
Instant Fuel Economy .............................. 101
Instrument Panel ........................................ 69
Integrated Dynamics System (IDS) .......... 333
QUIET Mode ........................................... 336
SPORT Mode........................................... 336
SPORT+ Mode ........................................ 337
TRACK Mode .......................................... 337
Interior Lights ........................................... 149
Interior Rearview Mirror ......................... 141
Inverter Coolant ............................... 396, 467
J
Jump Starting........................................... 446
K
Key Number Tag ....................................... 106
Keyless Access System ............................... 107
Keyless Lockout Prevention ..................... 114
Keys ........................................................... 105
Lockout Prevention .................................. 114
Number Tag ............................................ 106
Remote Transmitter ................................. 112
Types and Functions ................................ 105
Kickdown (Dual Clutch Transmission) ..... 323
L
Language (HFL)......................................... 270
Launch Control ......................................... 338
Lights ................................................. 131, 399
Automatic Operation (automatic lighting control).................................................. 132
Bulb Replacement .................................... 399
Daytime Running Lights ........................... 134
High Beam Indicator .................................. 81
Interior .................................................... 149
Light Switches ......................................... 131
Lights On Indicator .................................... 81
Turn Signals ............................................. 130
Load Limits ................................................ 311
Locking/Unlocking .................................... 105
Auto Door Locking/Unlocking .................. 118
From Inside .............................................. 115
From Outside ........................................... 107
Keys ........................................................ 105 Using a Key ............................................. 114
Lockout Prevention System ..................... 114
Low Battery Charge (12-Volt) .................. 450
Low Fuel Indicator ...................................... 77
Low Keyless Access Remote Signal
Strength .................................................. 106
Low Oil Level ............................................ 454
Low Oil Pressure Indicator ......................... 70
Luggage (Maximum Load Limit) ............. 311
Lumbar Support ....................................... 145
M
Maintenance............................................. 373
12-Volt Battery ........................................ 415
Brake Fluid .............................................. 398
Cleaning ................................................. 418
Climate Control System ........................... 417
Coolant ........................................... 394, 396
Cooling System ....................................... 394
Inverter Coolant ...................................... 396
Maintenance Minder
TM............................ 377
Oil ........................................................... 389
Precautions ............................................. 374
Remote Transmitter ................................. 416
Replacing Light Bulbs .............................. 399
Safety...................................................... 375
Service Items ........................................... 380
Tires ........................................................ 405
Transmission Fluids .................................. 397
Under the Hood and Hatch ..................... 383
19 NSX-31T6N6200.book 481 ページ ２０１８年８月９日　木曜日　午前１１時１２分

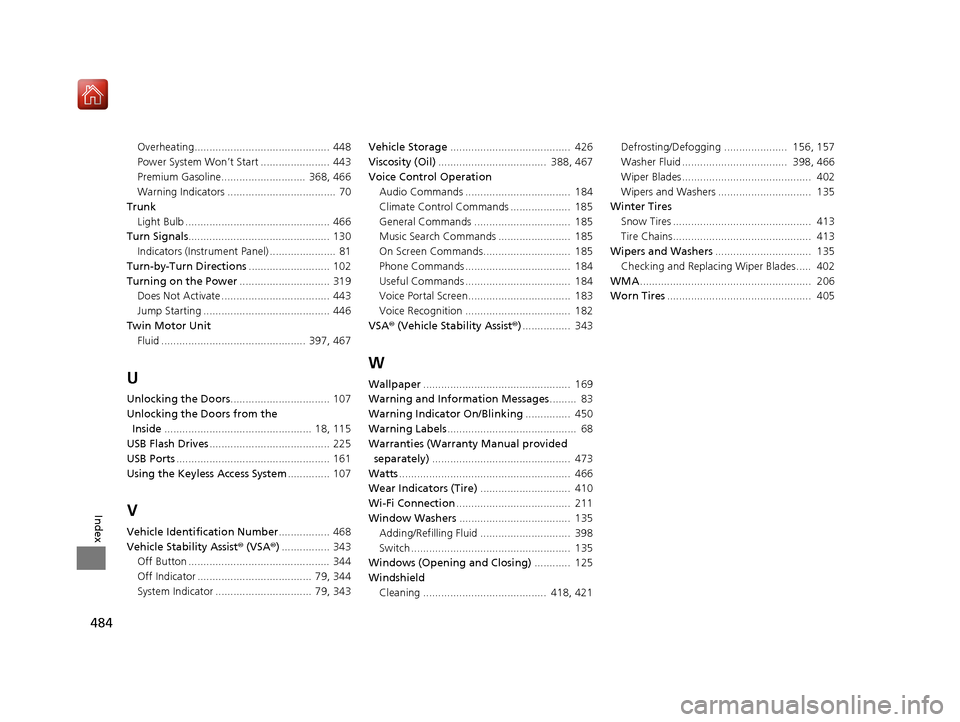

484
Index
Overheating............................................. 448
Power System Won’t Start ....................... 443
Premium Gasoline............................ 368, 466
Warning Indicators .................................... 70
Trunk
Light Bulb ................................................ 466
Turn Signals ............................................... 130
Indicators (Instrum ent Panel) ...................... 81
Turn-by-Turn Directions ........................... 102
Turning on the Power .............................. 319
Does Not Activate .................................... 443
Jump Starting .......................................... 446
Twin Motor Unit Fluid ................................................ 397, 467
U
Unlocking the Doors ................................. 107
Unlocking the Doors from the Inside ................................................. 18, 115
USB Flash Drives ........................................ 225
USB Ports ................................................... 161
Using the Keyless Access System .............. 107
V
Vehicle Identification Number................. 468
Vehicle Stability Assist ® (VSA ®) ................ 343
Off Button ............................................... 344
Off Indicator ...................................... 79, 344
System Indicator ................................ 79, 343 Vehicle Storage
........................................ 426
Viscosity (Oil) .................................... 388, 467
Voice Control Operation Audio Commands ................................... 184
Climate Control Commands .................... 185
General Commands ................................ 185
Music Search Commands ........................ 185
On Screen Commands............................. 185
Phone Commands ................................... 184
Useful Commands ................................... 184
Voice Portal Screen.................................. 183
Voice Recognition ................................... 182
VSA ® (Vehicle Stability Assist ®)................ 343
W
Wallpaper ................................................. 169
Warning and Information Messages ......... 83
Warning Indicator On/Blinking ............... 450
Warning Labels ........................................... 68
Warranties (Warranty Manual provided
separately) .............................................. 473
Watts ......................................................... 466
Wear Indicators (Tire) .............................. 410
Wi-Fi Connection ...................................... 211
Window Washers ..................................... 135
Adding/Refilling Fluid .............................. 398
Switch ..................................................... 135
Windows (Opening and Closing) ............ 125
Windshield
Cleaning ......................................... 418, 421 Defrosting/Defogging ..................... 156, 157
Washer Fluid ................................... 398, 466
Wiper Blades........................................... 402
Wipers and Washers ............................... 135
Winter Tires
Snow Tires .............................................. 413
Tire Chains.............................................. 413
Wipers and Washers ................................ 135
Checking and Replacing Wiper Blades..... 402
WMA ......................................................... 206
Worn Tires ................................................ 405
19 NSX-31T6N6200.book 484 ページ ２０１８年８月９日　木曜日　午前１１時１２分
